Pressure range | Pressure Type | gauge pressure absolute pressure sealed pressure |
Pressure range | 1-1000Bar (optional) | |
Power supply | 24VDC 12VDC 12-36VDC | |
Signal output | 4-20mA 0-20mA 1-5V 0-5V | |
Signal line specification | 2wire 2wire 3wire 3wire | |
Zero Drift | ±0.03%FS/°C | |
Accuracy | ±0.1%FS ±0.3%FS ±0.5%FS | |
Thermal Sensitivity Shift | ±0.03%FS/°C | |
Longterm Stability (1 Year) | <=0.21%FS | |
Frequency Response (-3dB) | 5kHz~650kHz | |
Compensated Temperature | -10~70℃ | |
Working Temperature | -40~85℃ | |
Storage Temperature | -40~125℃ | |
Overload pressure | 200%FS | |
Protection Classification | IP65 | |
Body materials | 316 stainless steel (standard) | |
Transmission distance | <= 100m (No electromagnetic interference) | |
Pressure connection | G1/4, G1/2, 1/2NPT, 1/4NPT, M12*1.5, M20*1.5 etc. (optional) | |
Measure media | Gas, water, oil or other media can be compated with stainless | |
Accuracy | ±0.1%FS ±0.3%FS ±0.5%FS | |

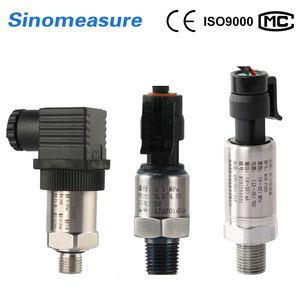

Terminal Block Specifications | Hirschmann connector, aviation conncetor, direct lead connector |
Q: How long will you give me the reply?
A: we will contact you in 1 hours as soon as we can.
Q:Could I visit your factory?
A: Sincerely invite you to visit our factoy
Q: Do you provide samples?
A: Yes,we have materials in stock to help you to get the samples as soon as we can.
Q: How about the quality of the managements ?

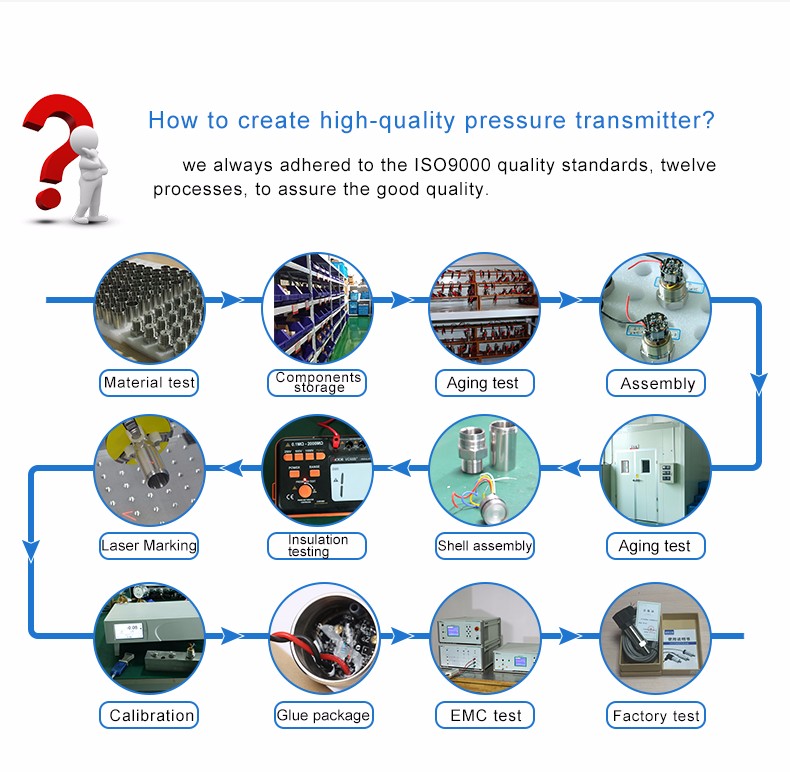

A: We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping to you . We have the certification of ISO,CE we could send the certification test of our company to you.
Q: What is your terms of payment ?
A: We could accept T/T, Paypal, WU ,Credit Assurance
Q: What is the warranty for your product ?
A: Warranty: 2 years, Lifetime maintenance
