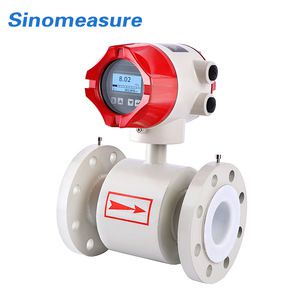

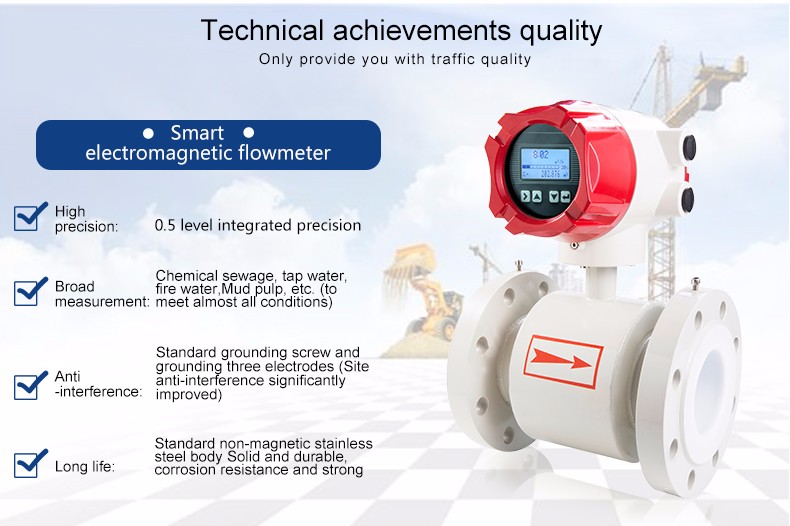

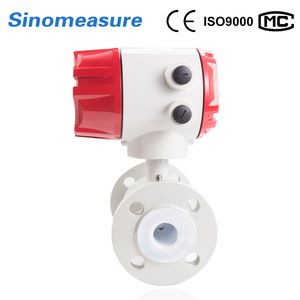

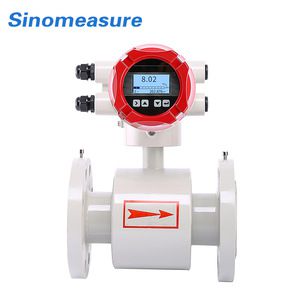

| Name: | Intelligent electromagnetic flowmeter |
| Accuracy: | ±0.5%R |
| Pressure: | 1.6MP (DN10~DN150) 1.6MPA (DN200~DN600) 1.0MPA (DN700~DN1200) 0.6MPA (DN1400~DN2000) (Others can be customized) |
| Installation: | Flange(standard) Clamp (customized) |
| Electrode: | SS316L(standard) HB / HC alloy (strong acid and alkali) Titanium ; tantalum ; tungsten carbide ; platinum |
| Lining: | Neoprene;PTFE;F46;PFA |
| Range Ratio: | 20:01 |
| Ambient: | Sensor: -25 ~ 180 ℃ converter: -10 ~ 60 ℃ |
| Fluid requirements: | Conductive medium (conductivity ≥ 5US / CM) |
How to choose lining material?
| Lining material | Applications |
| Teflon | Strong corrosive mediums such as strong acid and alkali |
| PFA | Applicable in state of load pressure |
| F46 | 1.The same as PTFE. 2.Applicable in mediums of low abrasion. |
| Neoprene | Water,sewage and slurry,mineral serosity of low abrasion. |
| Polyurethane | A pplicable in mineral serosity,slurry and coal slurry of high abrasion. |
How to choose electrode material?
| Electrode material | Applications |
| SS316L | Applicable in water,sewage and corrosive mediums. |
| Tungsten carbide | Applicable in mediums of no corrosive and low abrasion. |
| Hastelloy B(HB) | Having strong resistance to hydrochloric acid of any consistance |
| Hastelloy C(HC) | Be resistant to oxidable acid such as nitric acid,mixed acid etc |
| Titanium | Seawater,and kinds of chloride,hypochlorite salt,oxidable acid etc |
| Da | Hydrofluoric acid, fuming sulfuric acid, alkali remaining chemicals etc |
| Platinum-iridium | Chemical mediums except for aqua fortis,ammonium salt. |
Q: How long will you give me the reply?
A: we will contact you in 1 hours as soon as we can.
Q:Could I visit your factory?
A: Sincerely invite you to visit our factory
Q: Do you provide samples ?
A: Yes,we have materials in stock to help you to get the samples as soon as we can.
Q: How about the quality of the managements ?
A: We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping to you . We have the certification of ISO,CE we could send the certification test of our company to you.
Q: What is your terms of payment ?
A: We could accept T/T, Paypal, WU ,Credit Assurance
Q: What is the warranty for your product ?
A: Warranty: 2 years, Lifetime maintenance
