D2PH/M Digital Differential Pressure Gauge(PowerType)

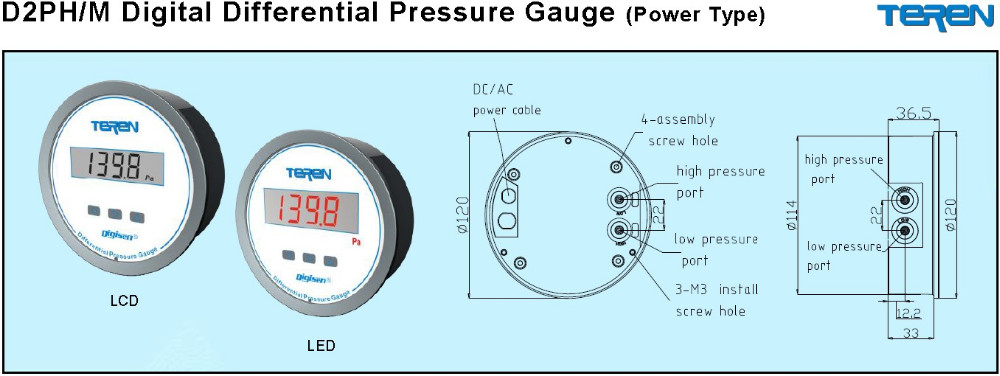

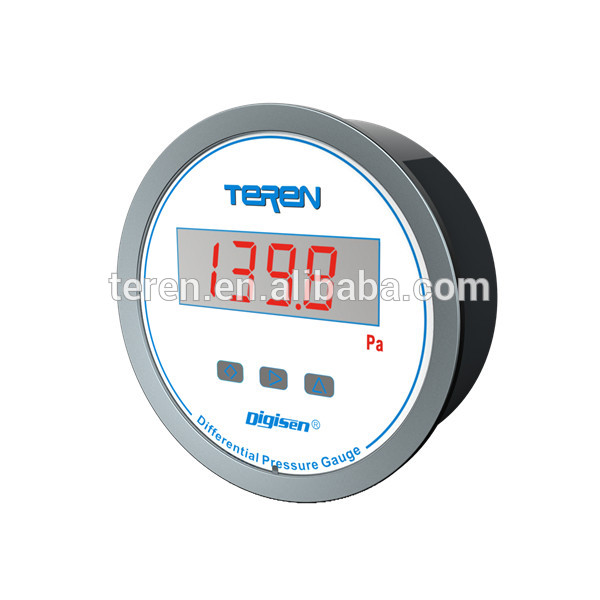

D2PH /D2PM LED display as below:

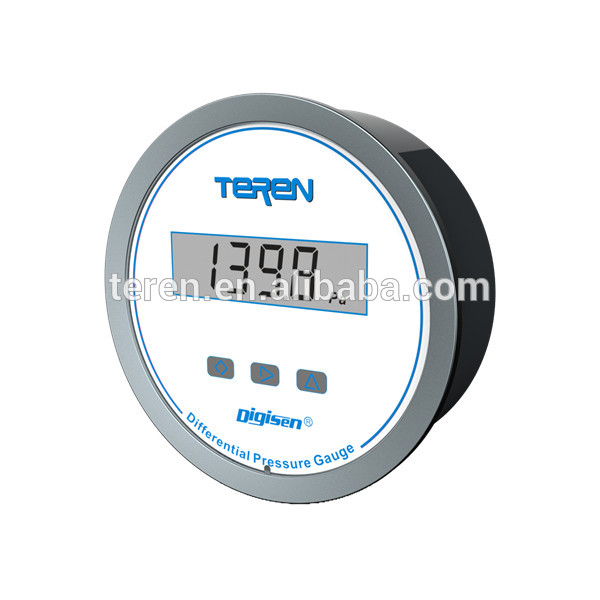

D2PH /D2PM, LCD display as below:
Applications & Features
- Apply high accuracy MEMS sensor and digital technologies, can measure positive, negative or differential` pressure. It can completely replace the traditional pointer mechanical gauges.
- It can measure fan and blower pressures, filter resistance, air velocity, pressure drop across orifice plates, differential pressure of medical equipment or pharmaceutical machine, etc.
- No any movable parts, no any effect on vibration.
- With ultra-thin design of 33mm, it could be flush, surface or wall mount
- Fashion and state of art housing design.
- Function keys: zero reset, units select, display update time, automatic sleep time, sound-light alarm, etc.
- Built-in buzzer and backlight, for sound-light alarm.
Specifications
Medium: non-combustible, non-corrosive air, not sensitive to moisture, dust, condensation and oil
Working Temp. : LED-20~70°C; LCD-10~60°C
Medium Temp.: 0~60°C
Temp. Compensation: 0~50°C
Working pressure: overload 10xFS, burst 15xFS
Accuracy: up to ±1.0% FS, see accuracy table
Long term stability: ±0.5%FS /Year
Thermal effect: <0.05%FS/℃(zero), <0.08%FS/(FS)
Display: 4 bits LCD,18mm character height with units indication, or 4 bits 0.8" red LED
Sound-light alarm: by buzzer and backlight
Power: 15~28VDC/AC or 85~265VAC
Process Connection: 5mm ID tubing, two pairs(on left or back side)
Keys: 3 touch buttons
Materials: ABS
Protection: IP65
Weight: 260g
Approval: CE
Accessory: A-S0 is standard. Options are A-S1, A-S2 and A-S7-X. They can be used for surface, panel or flush mount and should be ordered separately. See details in Accessories.
Models
| Model | D2PH |
|
| High Accuracy digital DP gauge | |
D2PM |
|
| Executive digital DP gauge | ||
Range | See table |
| |||
Display |
| 0 | LCD(Backlight) | ||
| 1 | LED | ||||
| Power | 0 | 15~28VAC/DC | |||
| 1 | 85~265VAC |
Measuring range
| Code | UNIT & Range & Resolution for Display | Accuracy(%FS) | ||||||
| Pa | Pa | KPa | In W.C | mm W.C | mbar | D2PH | D2PM | |
| 1 | 0-60 | 60.00 | 0.060 | 0.250 | 6.000 | 0.600 | 1% | 3% |
| 2 | 0-125 | 125.0 | 0.125 | 0.500 | 12.50 | 1.250 | 1% | 2% |
| 3 | 0-250 | 250.0 | 0.250 | 1.000 | 25.00 | 2.500 | 1% | 1% |
| 4 | 0-500 | 500.0 | 0.500 | 2.000 | 50.00 | 5.000 | 1% | 1% |
| 5 | 0-1000 | 1000 | 1.00 | 4.000 | 100.0 | 10.00 | 1% | 1% |
| 6 | 0-2500 | 2500 | 2.50 | 10.00 | 250.0 | 25.00 | 1% | |
| 7 | 0-5000 | 5000 | 5.00 | 20.00 | 500.0 | 50.00 | 1% | |
| 8 | 0-10000 | 10000 | 10.00 | 40.00 | 1000 | 100.0 | 1% | |
| 9 | 0-20000 | 20000 | 20.00 | 80.00 | 2000 | 200.00 | 1% |
Note: 1. 5 engineering units can be set by the key and related LCD will be on
2. For zero center models, add "Z " at the end of the model.
For example, D2PM100Z, means -30-0-30pa. Only ranges 1~6 have this selection
Sample Order | Order | OEM Order |
| Three work days | 2 weeks | 3 weeks |
Port
Shenzhen, Hong Kong
