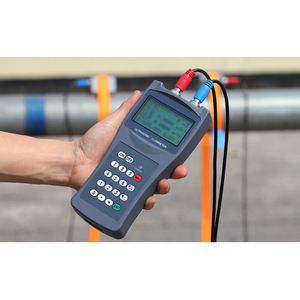

Portable Ultrasonic FlowMeter

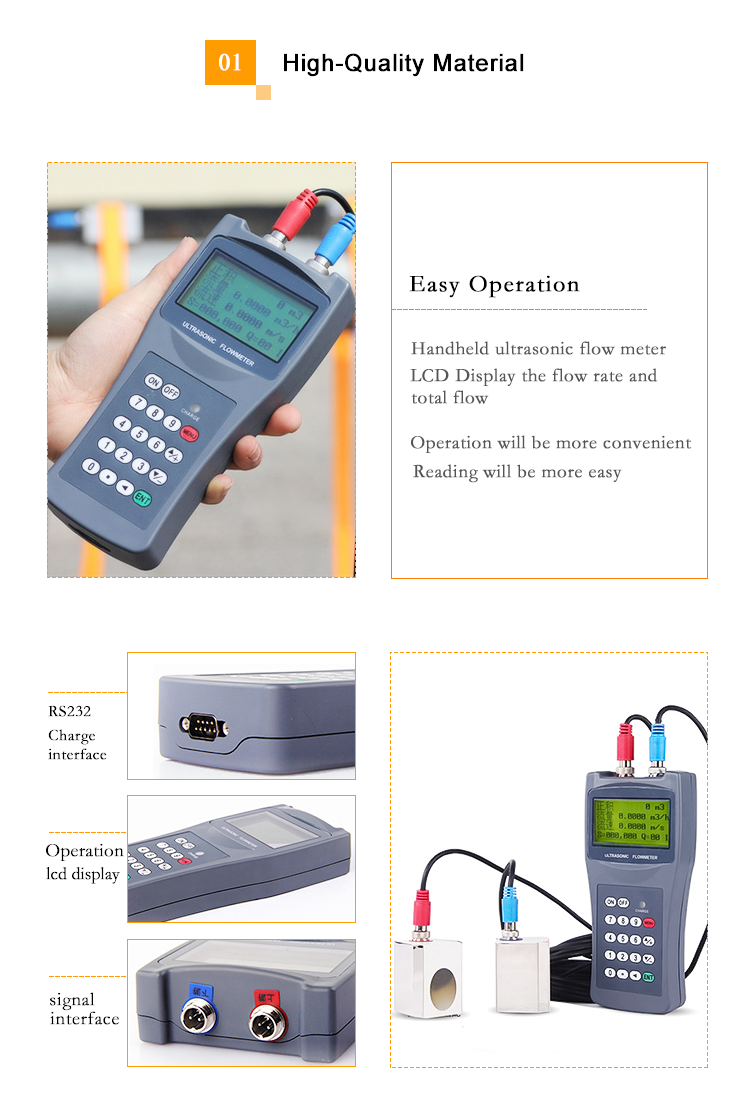

A.[Features of Portable Ultrasonic flowmeter]
All kinds of liquid
The Portable Ultrasonic flowmeter could measure all kinds of liquid beacuse it don't contact the medium;
Threee kinds of type for you reference
There are three types ultrasonic flow meter,based on your working condition;
Various communication and output
4~20mA Output ,RS232 and RS485 optional and satisfy your working conditions;
Easy installation and operation
various installation ways and easy to operaton
B.[Parameters]
| Production Name | The Portable Ultrasonic flowmeter | ||
| Parameter | Handheld | Portable | Wall-mounted |
| Accuracy | 1.0% Flow speed >0.2m/s | ||
| Display | 4×8 English display | 2×10 backlight display | 2×10 backlight display |
| Medium | All kinds of liquid | ||
| Function | Data logger | Printer | store data while power off |
| Parts | tape,coupling agent,cable | box and coupling agent | Fixed parts |
| Linearity | 0.5% | ||
| Repeatability | 0.2% | ||
| Sensor | 15~6000mm standard high temperature sensor | ||
| Output | ---- | 4~20mA | 4~20mA |
| Diameter | Min:15mm Max:6000mm | ||
| Communication | RS232 | RS485 MODBUS | RS485 |
| Power supply | 3 Ni-H battery | 85~264 VAC | 85~264 VAC |
| Installaton | External stickers ;External clip-type;Plug-in |
| Parameter of Flow Sensor | |||||
| Type | Fromat | Model | Diameter | Temperature | Size |
Standard Sandwish | Normal Small | S-2 | DN15~100 | -30~90℃ | 45*25*32 |
| Normal Medium | M-1 | DN50~700 | -30~90℃ | 64*39*44 | |
| Normal large | L-1 | DN300~6000 | -30~90℃ | 97*54*53 | |
High temperature Sandwish | High-Tem small | S-2-HT | DN15~100 | -30~160℃ | 45*25*32 |
| High-Tem medium | M-1-HT | DN50~700 | -30~160℃ | 64*39*44 | |
| High-Tem large | L-1-HT | DN300~6000 | -30~160℃ | 97*54*53 | |
| Plug-in | Standard | C-1 | DN80~6000 | -30~160℃ | 190*80*55 |
| Lengthen | C-2 | DN80~6000 | -30~160℃ | 335*80*55 |
C.[Installation]
a.Installation order
- Choose the installation location
- Inpun the measuring parameters
- The installation of flow sensor and debugging
- Measuring the data
- View the data of measuring
- Checking the installation
b.Installation location

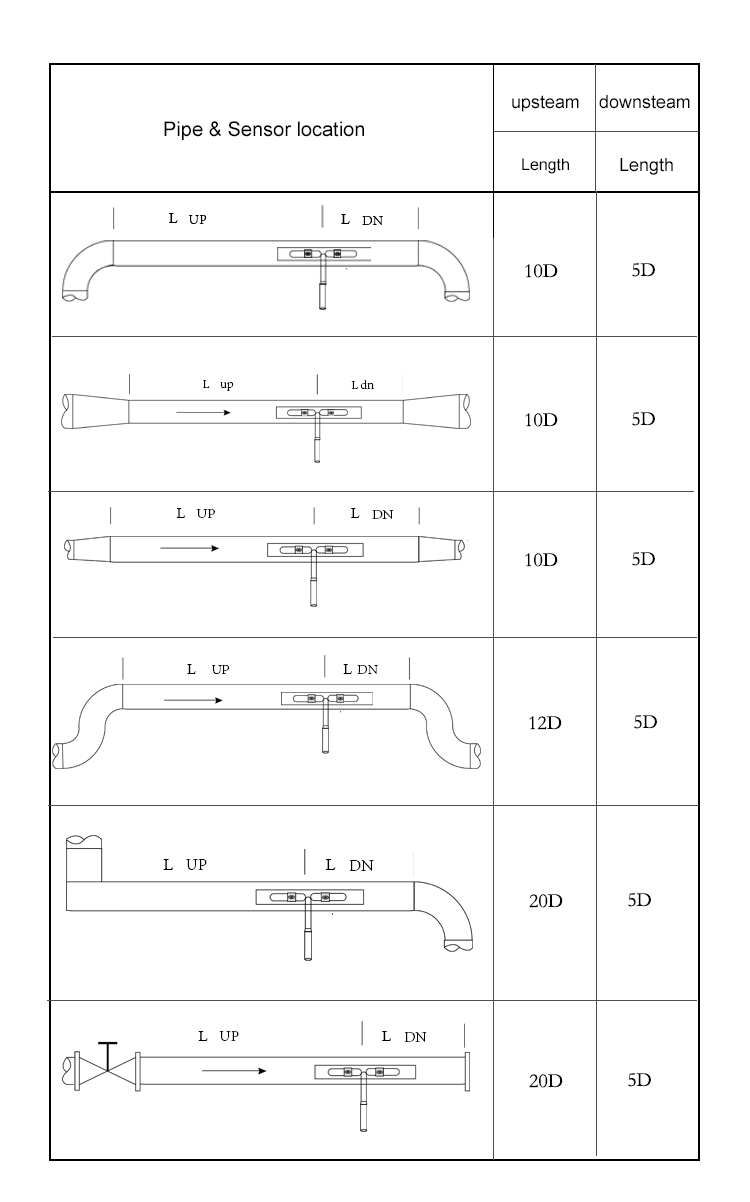

- The ultrasonic flow sensor installation should avoid the above and below,To avoid the sediment or bubbles;
- The requirement of installa the flow sensor is must have enough straight pipeine,al least,to ensure 10DN upsteam pipeline and 5DN downsteam pipeline;
- To ensure the pipeline is fulled by medium and temperature of pipe;
- To choose the clear pipeline to installa the ultrasonic flow sensor.
D.[Company info]
- Our Company is Top 10 Manufacture on Alibaba;
- We have about 30 years of experience in Manufacture;
- Our products have been exported to more 100 coutries and area;
- ISO,SGS,CE and more ceterficates for you reference;
- Patent technology and more than 3 years working life
