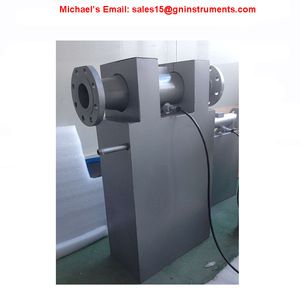

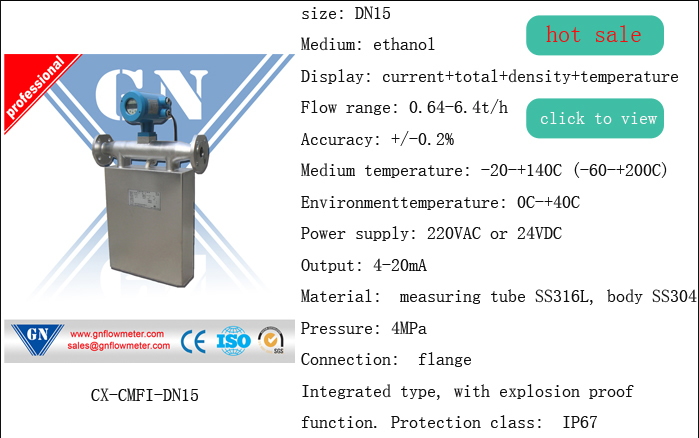

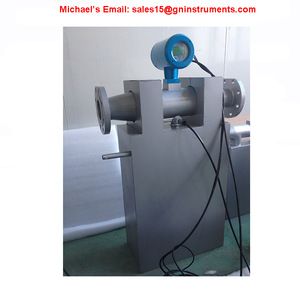

coriolis mass juice flowmeter price with CE approved
Titles | Technical Specifications |
Mass flow accuracy | ±[0.2% +(zero stability /flow rate×100%)] |
Mass flow repeatability | ±(1/2) ×[0.2% +(zero stability /flow rate×100%)] |
Density range | 0.2 g/cm3~3.5g/cm3 |
Density accuracy | ±0.002g/cm3 |
Temperature range | -60°C~+200°C |
Temperature accuracy | ±1°C |
Output of current loop | 4mA~20mA |
Output of frequency/pulse | 0Hz~10kHz |
Contactor capacity of a Batch Control relay | 24V/0.1A |
Contactor form | normal open |
Other Specifications
Titles | Specifications |
Temperature range of fluid | -40°C~+200°C |
Environmental temperature range | 0°C~+40°C |
Environmental humidity | ≤90% RH, non condensation |
Atmospheric pressure range | 86kPa~106kPa |
Power supply of transmitters | Essential safety Voltage: AC(220±10%)V,(50±5%)Hz Composite Voltage: DC (24±10%) V |
Power consumed | <15W |

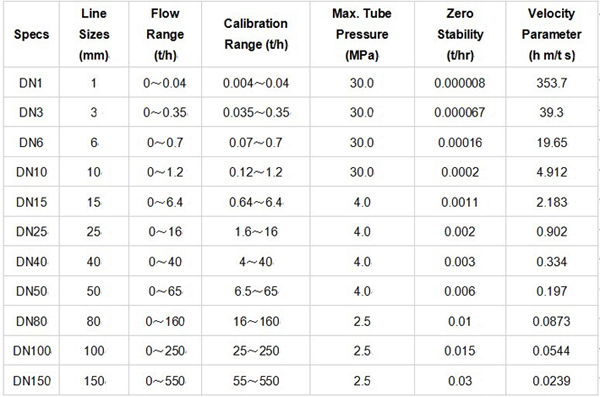

Specifications
Explosion-proof Identification Code
Form of Explosion-proof | Identification Code |
Essential safety | Exib[ib]IIBT4 |
Composite | Exdib[ib]IIBT4 |

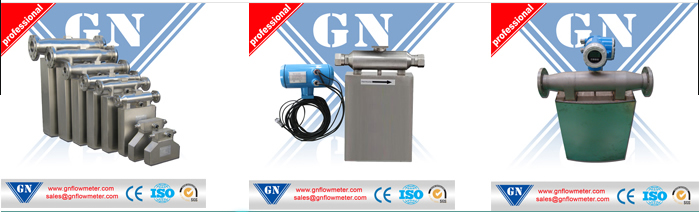

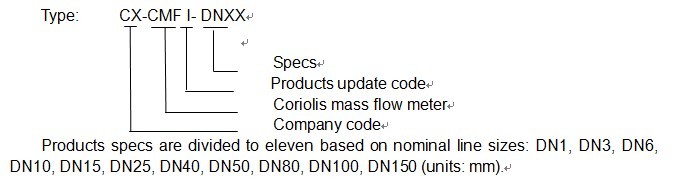

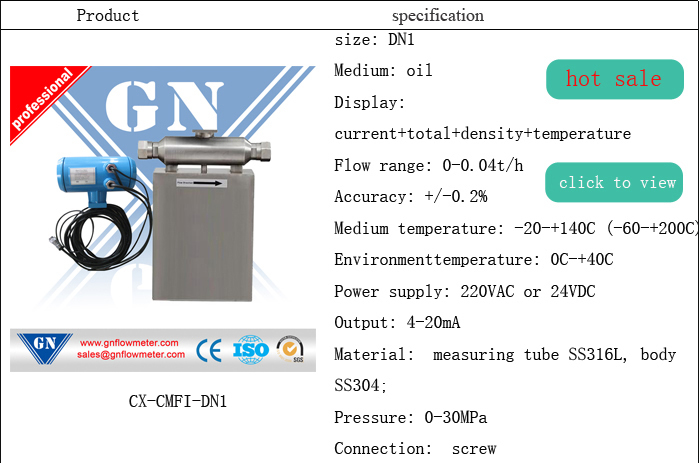

Classify of Products
Would you pls give us more specific information as below:
- What’s the medium?(oil,juice,water,milk)
- What’s the size?
- What’s the flow range?
- What’s the viscosity?
- What’s the density?
- What’s the temperature and pressure?
- What’s the connection? Flange?
- What’s the output?
- Do you need the explosion proof?
- 10. What’s the accuracy?+/-0.1%
related products

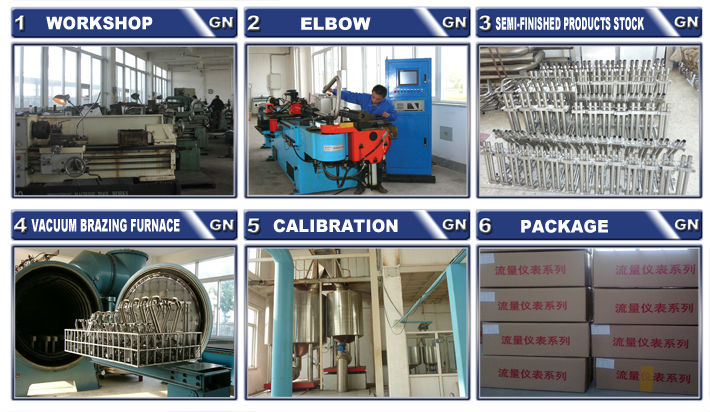

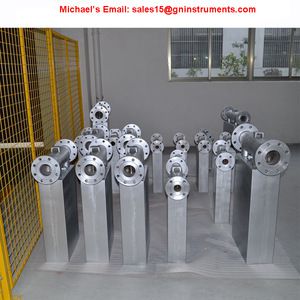

Production line
Certificate
Group photo

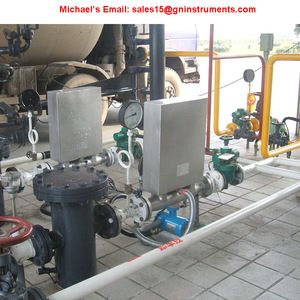

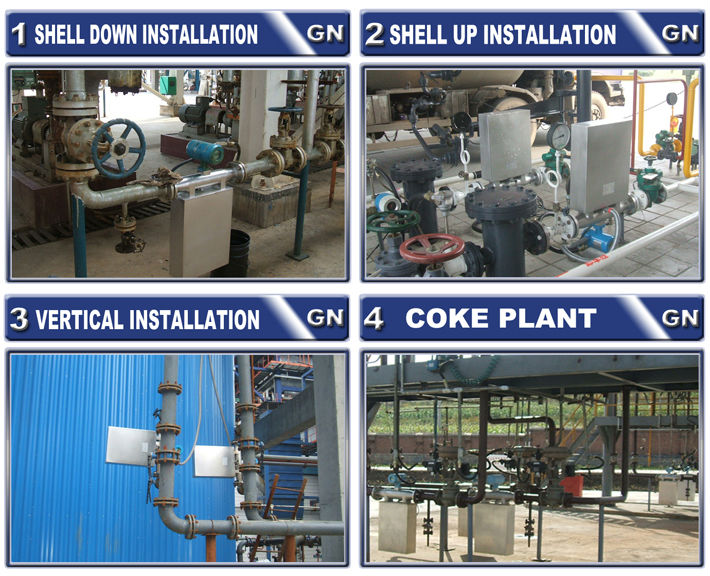

Installation photo
Payment Terms
1.Loading Port: Shanghai China
2. Samples Leading Time: 3-7 working days
3. Delivery Time: Within 7-15 days after payment
4.Payment: T/T, Western Union, Paypal
After-sales service
We promise to deliver the following after-sales service:
1. Warranty: The warranty period is 12 months starting from the shipping date;
2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;
3. For on-site services not arising from manufacturing quality, we shall charge a certain service fee at our discretion based on actual charges incurred such as travel expense;
4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.
