Introduction:
1. This water filling machine is a unique design combining the three machines of bottle
washing, filling and capping in one to decrease main power, to save space and to diminish
the air pollution among the three machines.
2. The machine is easy to change the shape of bottles, which can be done by changing thethumb wheel
without adjusting the height of the machine.
3. The filling water machine case and the parts contacting with the materials are made ofstainless steel
which ensures the good external look and easy washing.
4. Each water filling machine element tha contacts with the liquid is made of high quality Stainless steel 304,
if needed,Stainless steel is also available.
5. The water filling machine adopts bottle neck holding transmission technology to realize fully automatic
rinsing, filling and capping.
6. Most elements of the electrical system use famous international brand, for example,Mitsubish,Omron
brand .
7. The water filling machine obtain the advantages of good abrasive resistance,high stability,low failure rate,
etc. The quality of the equipments reaches the advanced level of the world.
8. Nozzles in the grab can guarantee the complete wash of the interior of the bottle.
9. Easy to operate, save the cost for workers.
characteristics:
1.All parts have a height adjust device, the height of bottle can be adjusted and the diameter can be adjusted according to samples |
2.This 3 in 1 filling machine is mainly used for washing, filling and capping.Bottle washing, filling and capping are achieved in one machine |
3.Full compliance with the GMP requirements |
4.The touch screen shows in seven kinds of languages |
5.All parts are made of high quality Stainless steel |
6. Convenient to take out component parts to clean and sterilize,adjust to fit to other bottle size with no change parts. |
7.The main machine adopts advanced PLC control technology. The key parts adopt international famous products,such as Mitsubishi, Omron, Siemens, etc . |
Technical Data
1 | production name | Automatic PET bottle filling line/water filling machinery |
2 | production capacity(b/h) | 3000-5000(customized) |
3 | filling volume | 100-1000ml(customized) |
4 | washing-filling-capping | 8-8-3(customized) |
5 | filling accuracy(%) | 99 |
6 | air source pressure(MPA) | 0.6 |
7 | air consumption(L/min) | 800 |
8 | Power(kw) | 2.2 |
9 | Dimension(mm) | 2800*2000*2500(L*W*H) |
10 | weight(kg) | 3500 |

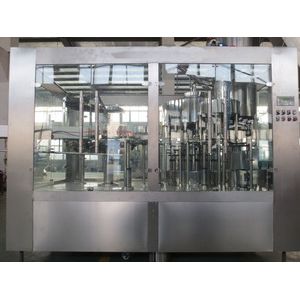

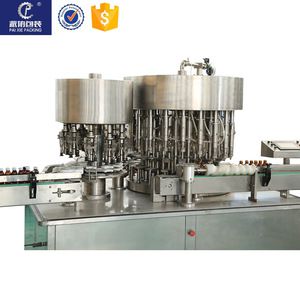

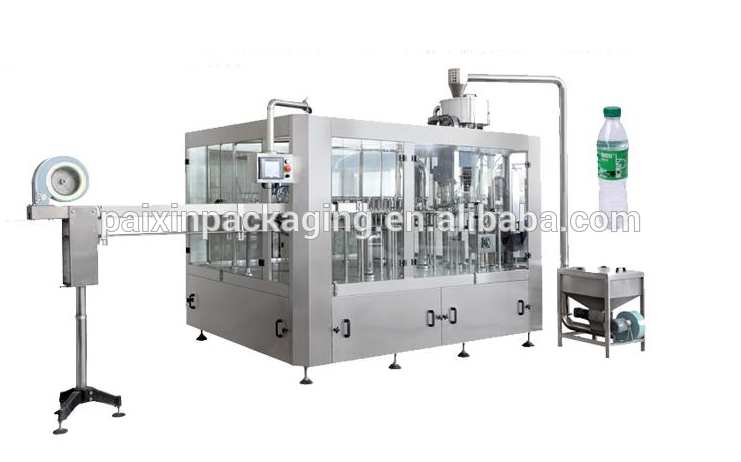

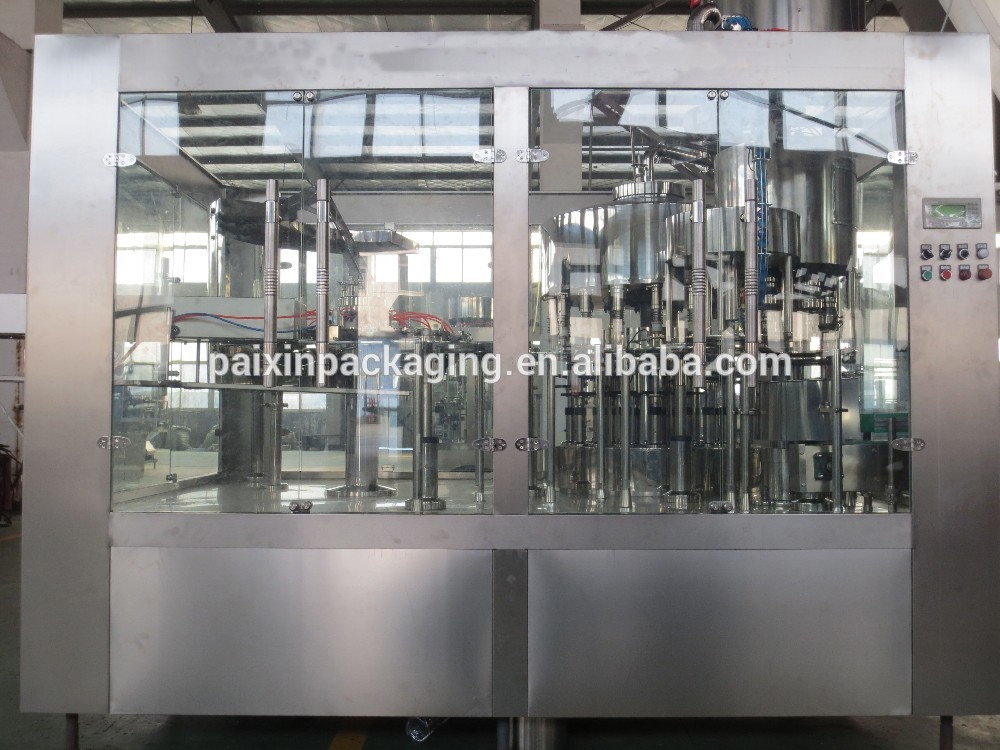

3 in1 water filling machine

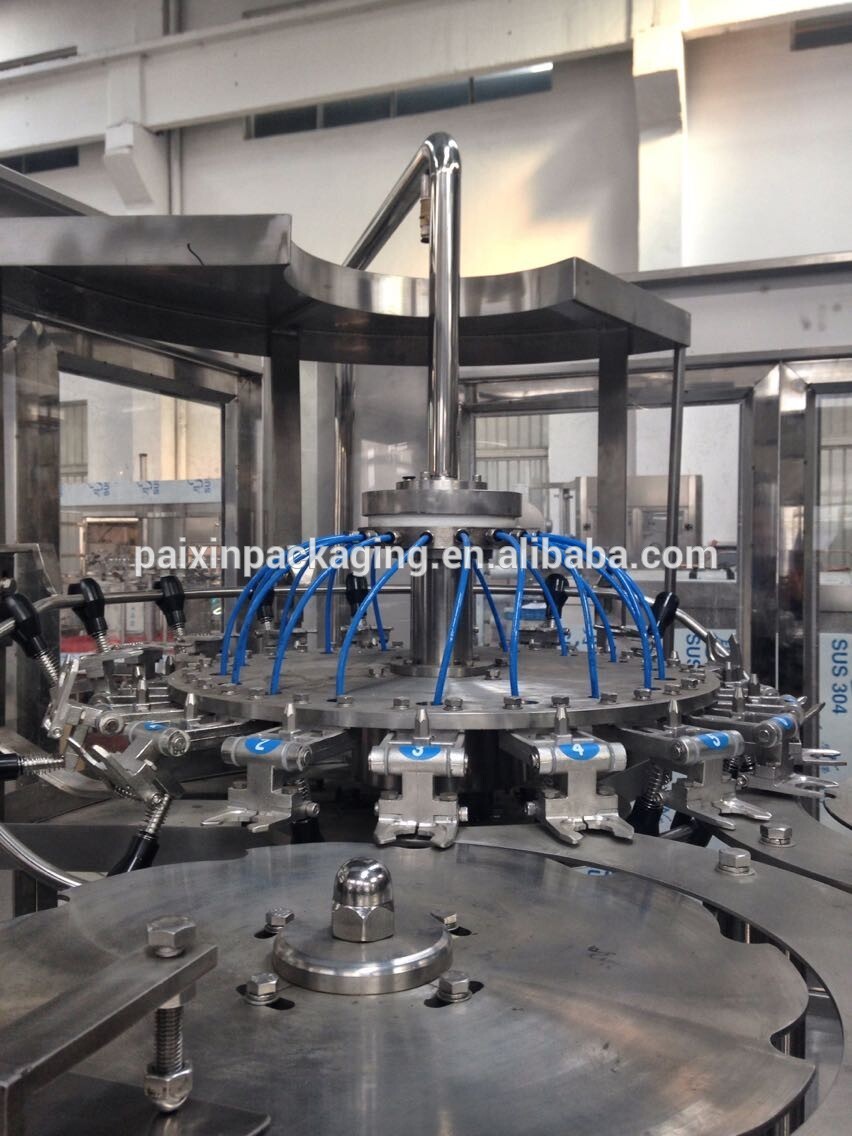

Washing machine

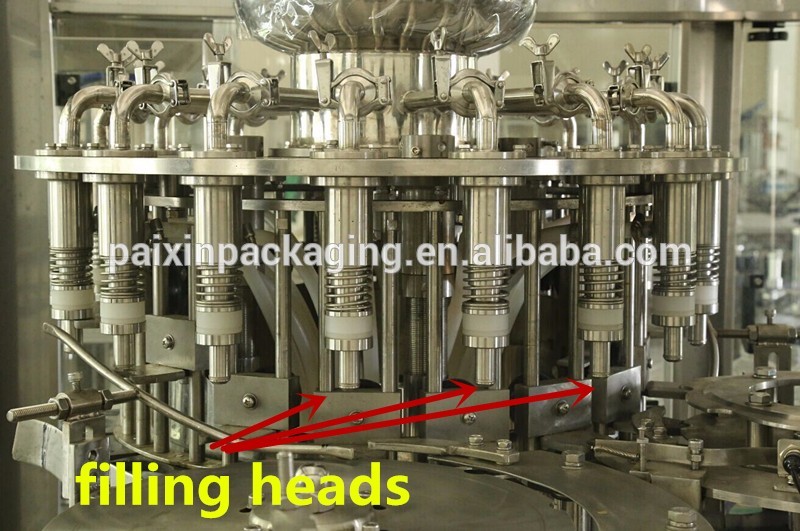

Filling heads

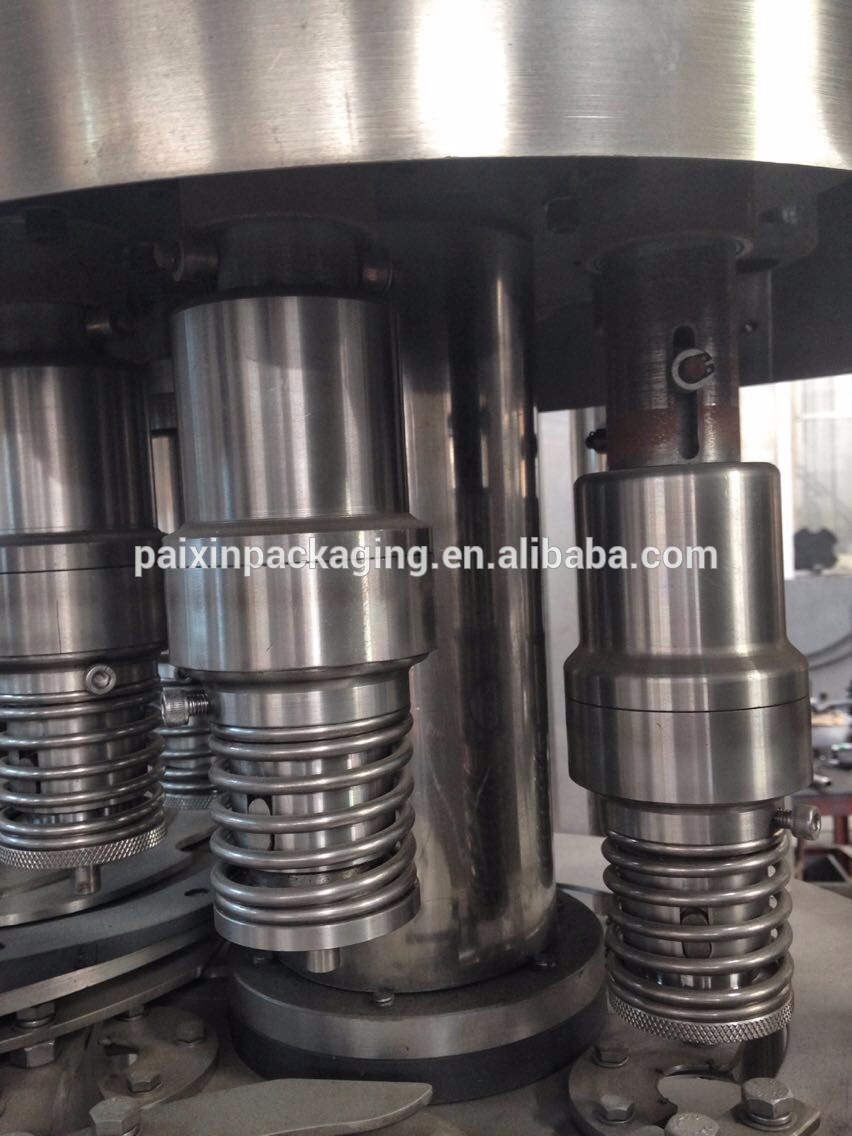

Capping machine

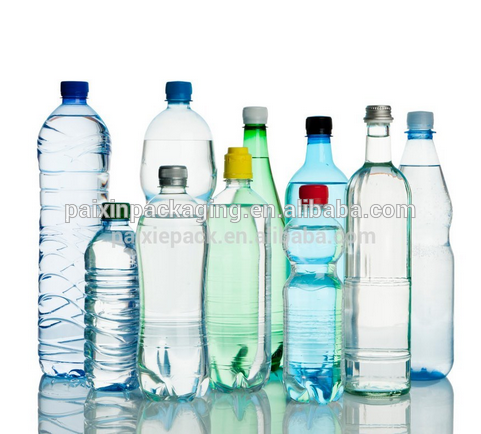

The samples
We believe that a good machine is not only a simple combination of many good components.
we not only have the best quality world famous components,but also have the most reasonable and humanity design,we are constantly improving our technology.
We can guarantee that our machine can work with no problem for over 6 years.

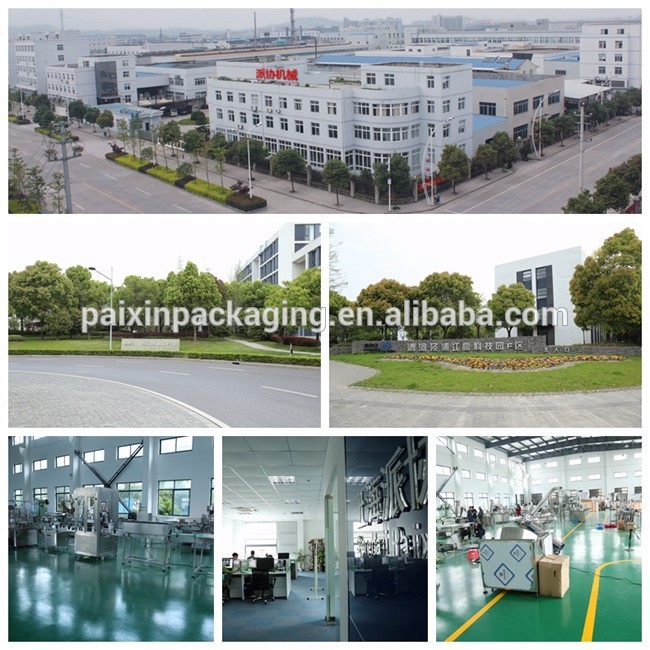

Shanghai Paixie Packing Machinery CO.,LTD is a manufacturer of Bottle feeding machine, bottle washer,Filling machine for bottles,filling machine for cans,packaging machine for bags, aerosol spray filling machine,liquid filling machine, jam filling machine,labeling machine, mixer machine, Sealing machine, capping machine,Charging machine, Weigher, Ink Jet Printer, Water-bath Checking, Capping machine, Air compressor, etc, with well-equipped testing equipment and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in food medicine industry chemical industry and other industries.
Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
| Packaging Details: | With strong wooden case or pallet as standard export and customer's requirement. |
| Delivery Detail: | Shipped in 30 days after payment
|
Q:Are you manufacturer?
A:Yes,we are manufacturing filling machine with rich experience,our Engineer Team with over 20 year’s experience.
Q:How can I know your machine has good quality?
A:We will send the video of testing the machine working condition for you before delivery,so you can send us your bottle samples for a trial.
Q: What certifications do you have?
A: Fully in accordance with the GMP&ISO standard production and passed CE certification
Q:What is your Quality Warranty?
A:Two year warranty; Lifelong Maintenance and Technical Support.
After-sales service:
We guarantee the quality of the main parts within 12 months. If the main parts go wrong without artificial
factors within one year, we will freely provide them or maintain them for you. After one year, if you need
to change parts, we will kindly provide you with the best price or maintain it in your site. Whenever you
have technical question in using it, we will freely do our best to support you.
Guarantee of quality :
The Manufacturer shall guarantee the goods are made of Manufacturer’s best materials, with first class workmanship, brand new, unused and correspond in all respects with the quality, specification and performance as stipulated in this Contract. Quality guarantee period is within 12 months from B/L date. The Manufacturer would repair the contracted machines free of charge during the quality guarantee period. If the break-down can be due to the improper use or other reasons by the Buyer, the Manufacturer will collect repair parts cost.
Installation and Debugging:
The seller would dispatch his engineers to instruct the installation and debugging. Cost would be bear on buyer’s side (round way flight tickets, accommodation fees in buyer country). The buyer should provide his site assistance for the installation and debugging.
The machines can be customized according to your requirements.
If you have any qusetions please Contact us we will provide best help.
