CE Standard automatic piston pump honey stick filling machine with heater for glass bottle/jars

automatic glass  jar honey filling machine adopts Japanese Mitsubishi  PLC program system to control.

Technical Feature

  • Filling Machine, honey filling machine
  • New
  • Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
  • Bags, Barrel, Bottles, Cans, Capsule, Cartons, Case, Pouch, Stand-up Pouch
  • Glass, Metal, Paper, Wood, Other
  • Automatic
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$15~8

PRIMARY PARAMETERS

Type
Filling Machine, honey filling machine
Condition
New
Application
Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Packaging Type
Bags, Barrel, Bottles, Cans, Capsule, Cartons, Case, Pouch, Stand-up Pouch
Packaging Material
Glass, Metal, Paper, Wood, Other
Automatic Grade
Automatic
Driven Type
Electric
Voltage
380v or 220v
Power
1.5kw
Place of Origin
Shanghai, China (Mainland)
Brand Name
Paixie
Model Number
honey stick filling machine
Dimension(L*W*H)
1600*1200*1400
Weight
500kg
Certification
CE, ISO9001
After-sales Service Provided
Engineers available to service machinery overseas
Automatic grade
full automatic
Filling capacity
50-5000ml
Filling speed
500-6000 bottles/h
Certificate
CE, ISO9001
Filling material
liquid with PM and paste,sticky liquid
Machine material
stainless steel
Package accuracy
u00b11%
Sealing rate
u226599%
Guarantee
one year free

DETAIL DESCRIPTION

 automatic piston pump honey stick filling machine with heater for glass bottle/jars

Product Description

  The full automatic glass  jar honey filling machine is specially made for liquid with PM and paste such as tomato paste,honey, jam, gel, peanut butter, oil , shampoo, lotion, cream, etc. The automatic glass  jar honey filling machine adopts Japanese Mitsubishi  PLC program system to control. The machine adopts piston pump and for filling. By adjusting the position pump, it can fill all of the bottles in one filling machine, with quick speed and high precision.  The hopper and the piston pump can be heated and keep warm.



filling machine

Features:

1. Adopting the world-famous brands, like Japanese Omron light contaol elementand Japanese SMC pneumatic components, the automatic glass jar honey filling machine has the incomparable advantages of low failure rate, stable and reliable performance as well as the surprising longevity. Also can be customized according to customs' requirements.
2. The  automatic glass jar honey filling machine can feed bottles, fill (can keep warm, heat up and stir), supply cap and screw capping and sealing automatically.

3.Speed control: frequency conversion adjusting speed
4. The  automatic glass jar honey  filling machine is designed according to GMP requirements, which is made of stainless steel under the internatioal of SUS316L, SUS304.

5.It adopts no bottle no filling system. Unique drip proof device in production process, ensure no irrigation constant filling function.

6.  The  automatic glass jar honey filling machine will alarm or stop workiing automatically if unconventional problems happen(such as counting mistake, miss bottles)



Main technical parameters



Name

Automatic honey filling machine

Production capacity

1000-8000bottles/hour

Filling capacity

50-5000ml

Bottle size

20-1500mm

Packaging accuracy

±1%

Sealing rate

99%

Air pressure

0.4-0.6Mpa

Machine weight

550-650kg

Power

220v or 380v

Warranty

One year free

Certificate

ISO9001, GMP, CE

Applied bottle range

Round/flat/square bottles

Single machine noise

≤70dB

Condition

New



Special design

Controlling system

full-auto PLC + human-computer touch screen control system

Bottle position correct device

a special bottles position device is added to make the whole filling process smooth and stable

Filling nozzles

with the function of anti-drop and anti-drawing

Piston pump

Suitable for all kinds of material with high filling speed and filing precision, For filling corrosive, the position pump will be made by silicon rubber, Teflon, ceramics and other corrosion resistance materials.

cleaning

The pump uses quick-fit removal Structure: easy cleaning and disinfection.

Protector

it's optional for customers it's dust proof , can protect the prodcuts being polluted when filling

 detail pictures of machine



samples

honey filling machine samples



bottle feeding table

bottles feeding machine.png





honey filling machine

honey filling machine

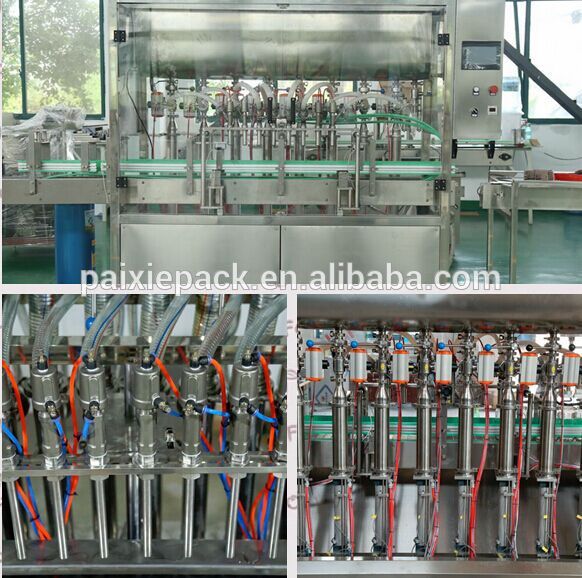

filling part

 paste-pic-dp_uuid_nbb73

 capping machine

 capping machine 3



labeling machine

round bottle labeller self adhensive.jpg





 CE standard



new CE

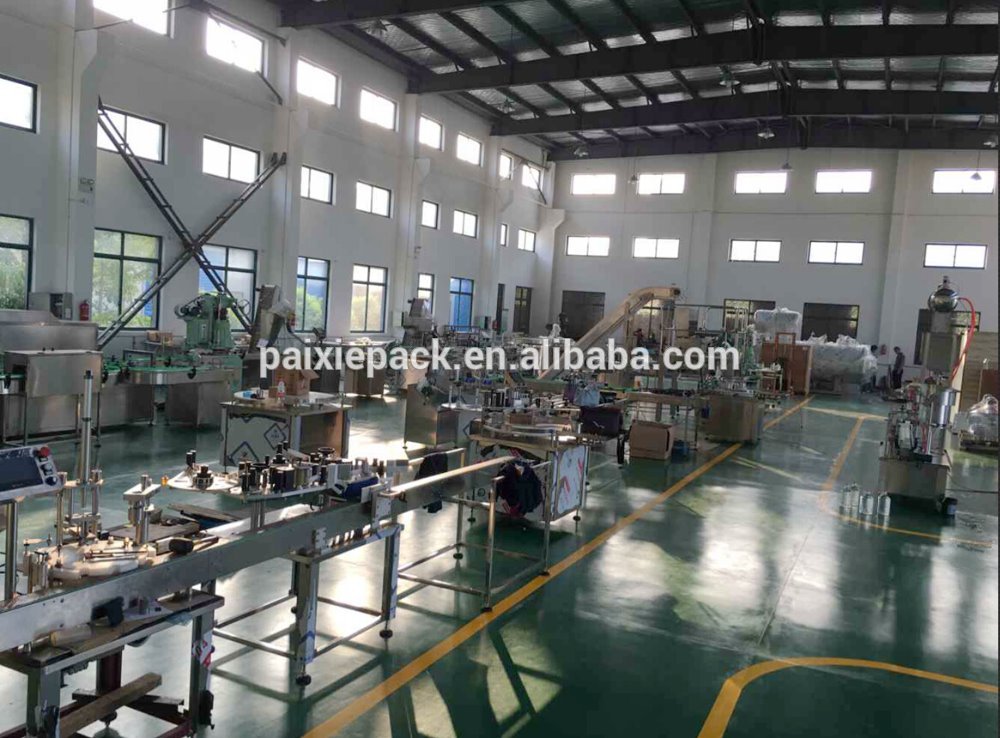

our workshop

workshop



Our Services



Warranty time

One year free, provide spare components 1 year freely

Teaching services

Our engineers will teach your staff to operate the machine during the period of installation and commissioning

Certificate services

Complying with our clients’ request, we can provide related certificates to clients freely

Maintenance services and after services

If any questions, we will reply within 48hours, call our helpline Offering:0086-21-34781699, engineers available to service machinery overseas
