Cement packaging machine plaster filling equipment with 8 nozzles
1. ABOUT US
The history of TangShan ZhongYi Machinery Co., LTD. began in 1989, it's one of the earliest and biggest cement packing line equipment manufacturers in China.
Due to the strong quality and excellent performances, machines produced by TangShan ZhongYi Machinery Co., LTD. have reached to over 3000 users around the country and also been exported to other countries, including Kazakhstan, Russia, Uzbekistan, Tajikistan, Ukraine, Georgia, Indonesia, Pakistan,Vietnam, Peru, Ethiopia, Algeria, Ethiopia, Zimbabwe, Madagascar, Turkey, Saudi Arabia, Bangladesh, etc. They are not only enjoyed the reputation, but also earned credits from the customers.
Main products of our company:
Rotary cement packing machine; Fixed cement packing machine; Big bag cement packing machine; Cement bulk loading system; Auxiliary equipment for cement packing line, such as Vibrating screen, Bag receiving conveyor, Bag positing conveyor, Bag cleaning conveyor, Bagged cement truck loading machine.
2. PRODUCT'S DETAILS

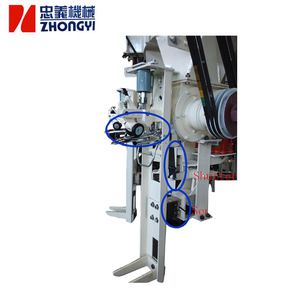

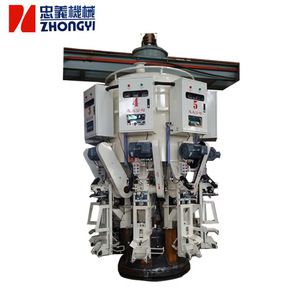

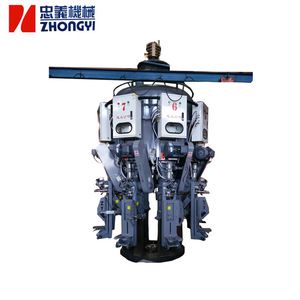

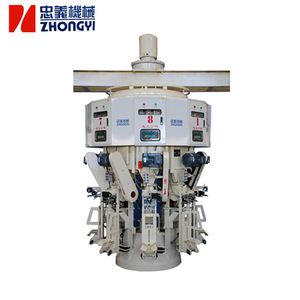

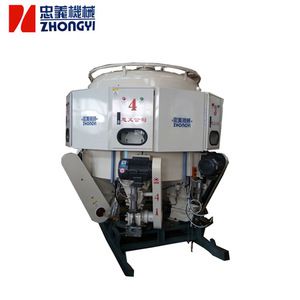

High capacity servo motor control type automatic rotary 50kg bag filling machine
This series of machine is mainly used for filling cement into 25-50kg bags. In addition, it also can be used for filling other powdery and granular materials with good flow performance. Except manually bag inserting, all the other filling processes can be done by the packing machine automatically and continuously.
Model BHYW8S numerical control rotary cement packing machine is the central equipment among the cement packing system. The control system of the packing machine adopts technology of microcomputer and servo motor. It has main features of more accurate measuring accuracy, higher capacity, low failure rate and environmental protection.
Application scope:
Power voltage: AC 380V -15~+10% 3N 50Hz
Operation environment:
(1) Temperature: -10~40°C
(2) Relative humidity: < 90%
(3) Altitude: < 2000m
Cement conditions:
(1) Moisture content: <1%
(2)Packing temperature: <120°C
(3) Density: Generic 1.1~1.3t/m3

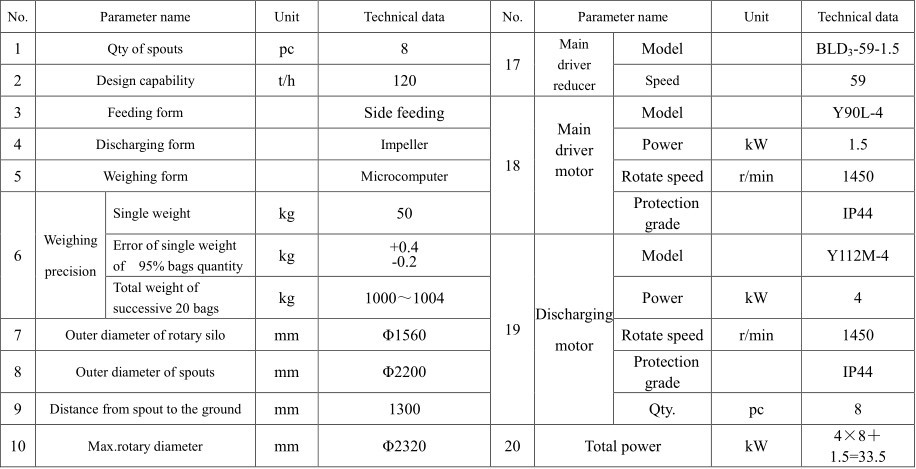

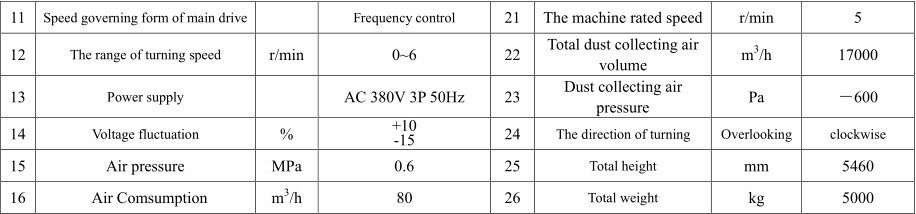

3.TECHNICAL DATA
FAQ
1. What is the usage of this machine?
-- This machine mainly used for packing good mobility material like cement, gypsum powder and others powder, granule less than 7mm.
2. What is the voltage/phase for this machine?
-- We normally make voltage into 220V / 50HZ / Single phase or 380V / 50HZ / Three Phase. But it can be made according to clients' demand, like 415V / 50HZ / Three phase and so on.
3. What kind of packing box is?
-- We pack machines in a standard exporting plywood case, no vermin, germs. It can help to protect the machine while transporting.
4. How long is the guarantee?
-- For non-human damage factor, within 12 months after commissioning or within 18 months from the date of B/L, whichever comes first.
5. How should I do if meet some trouble while using?
-- Don't worry about that. We are always be pleased to provide using support to clients. We can take a video for showing how to resolve the problem, and write detail resolution to you.
6. What's the payment mode?
-- T/T, L/C.
Pre-sale Service
1. Offering comprehensive technical and business consultation services;
2. Proposing the most suitable scheme and equipment for our clients;
3. Designing and fabricating targeted products according to the special requirements of clients;
4. Training technician with high qualified service.
After-sale Service
1. Highly inspecting equipments in every working procedure, quality comes first;
2. Fast & Safe Delivery;
3. Assisting our clients for foundation construction of equipments;
4. Dispatching engineers to install and debug equipments if the client have requirement;
5. Training the first-line operators on site;
6. Providing technical exchanging.

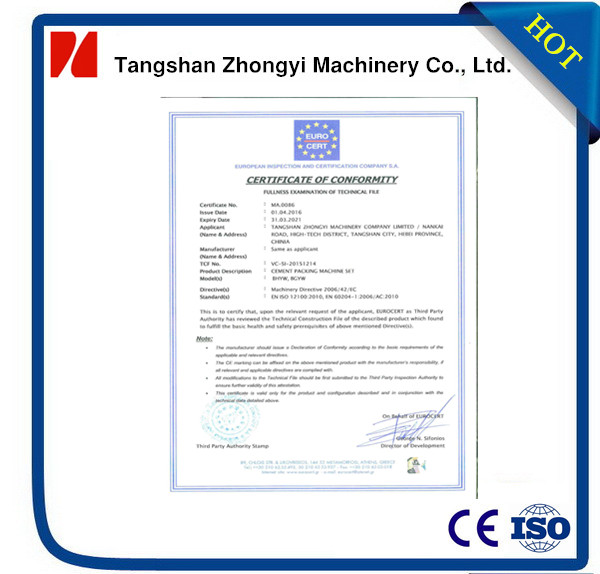

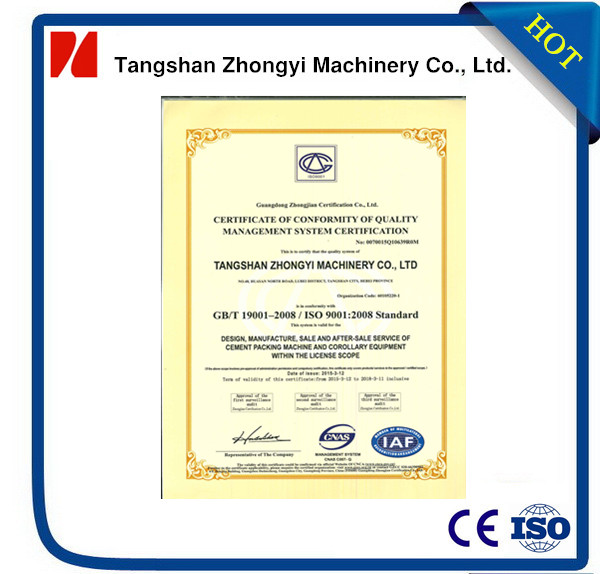

4. CERTIFICATE

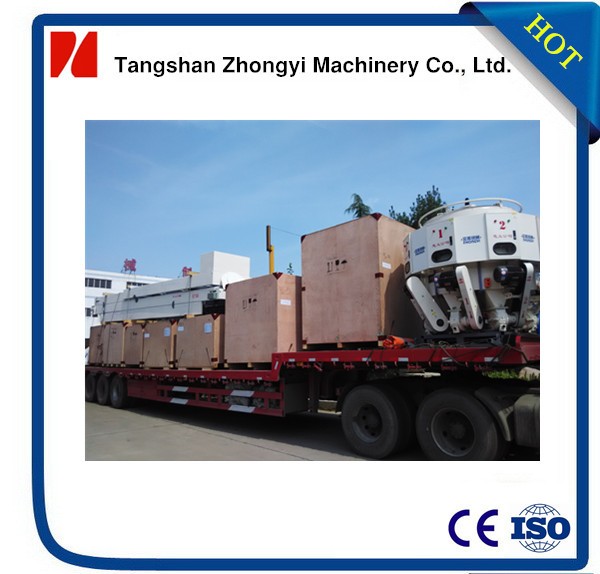

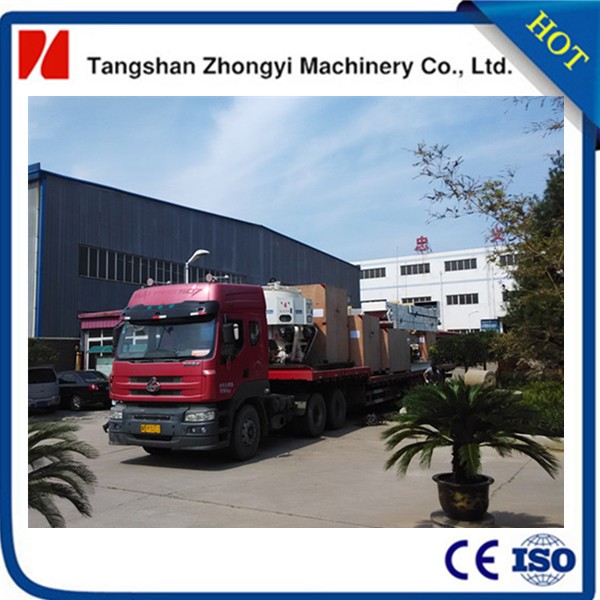

5. PACKAGE
6. BUSINESS COOPERATION
7. OUR EXHIBITION

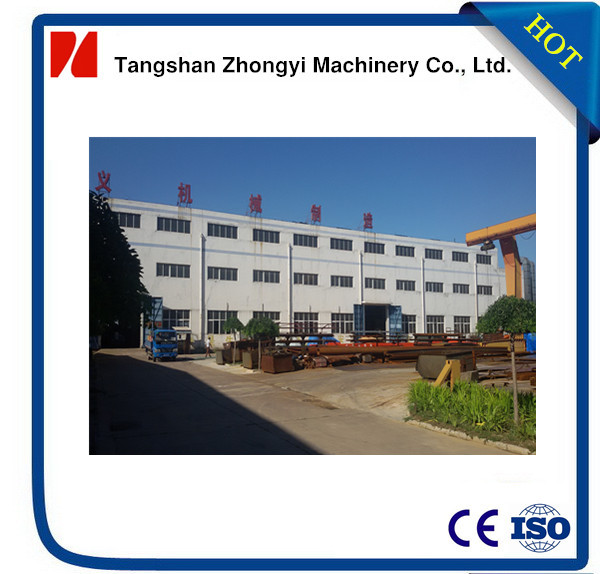

8. COMPANY AND FACTORY
