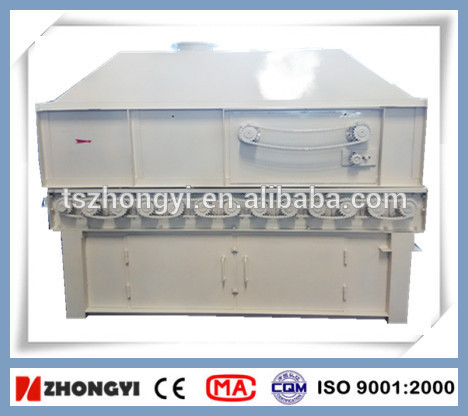

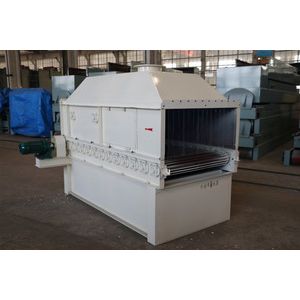

Roll cage cleaning machine for cement bag
Hollow roll cage clean the dust under the bag.

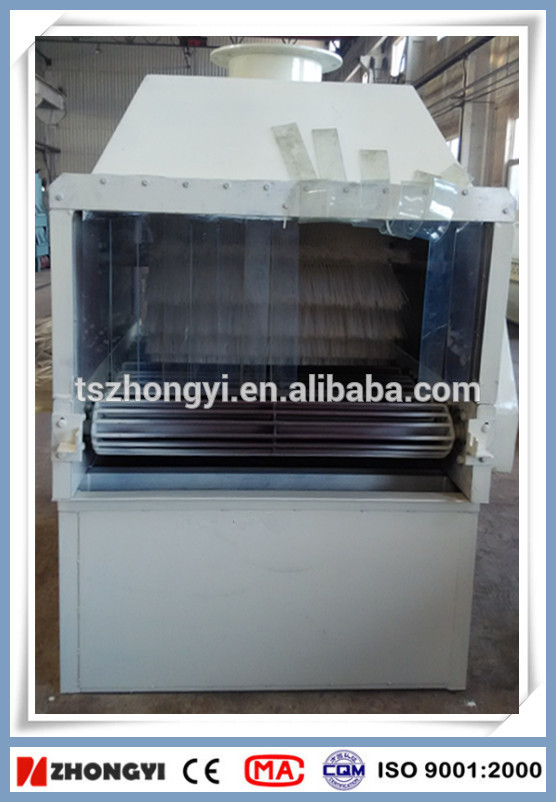

Rotating brush roll clean the dust above the bag.
In order to sweep away dust and printing,bag cleaning conveyor has unique rotating brush. Hollow roll cages lay strew at random to let the cement bag bump along, fall dust cleaning and discharge the air in bags.Adding the dust collecting system from up and down to ensure little dust on the cement bag after getting away from lengthen machine.
Technical data:
No. | Parameter Name | Unit | Data | Remarks | |
1 | Name |
| Roller Bag Cleaning conveyor |
| |
2 | Model |
| BHQ-800(GD13) |
| |
3 | Roller way type |
| Roll cage |
| |
4 | Roller way linear velocity | m/s | 1 |
| |
5 | Belt width | mm | 800 |
| |
6 | Cycloidal pin gear speed reducer | Model |
| XWD3-11-1.5 |
|
Speed ratio | i | 11 |
| ||
Power | kw | 1.5 |
| ||
7 | Brush roller linear velocity | m/s | 2 |
| |
8 | Dust collecting air volume | m3/h | 3000 |
| |
9 | Size(length×width×height) Length × width × high | mm | 2276×1880×1735 |
| |
10 | Overall weight | kg | 900 |
|
