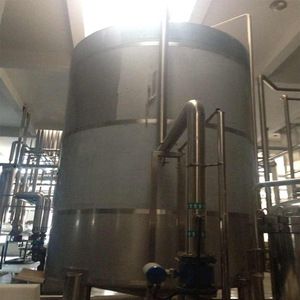

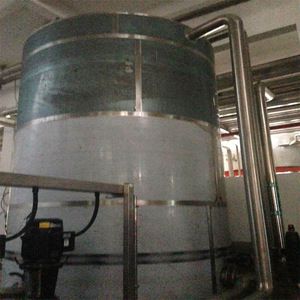

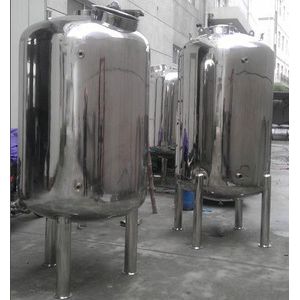

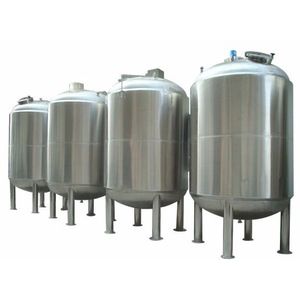

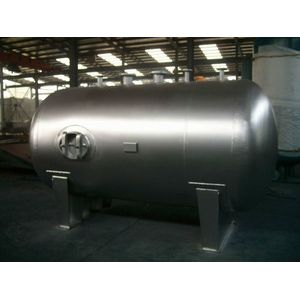

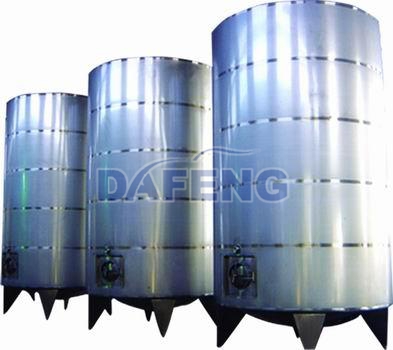

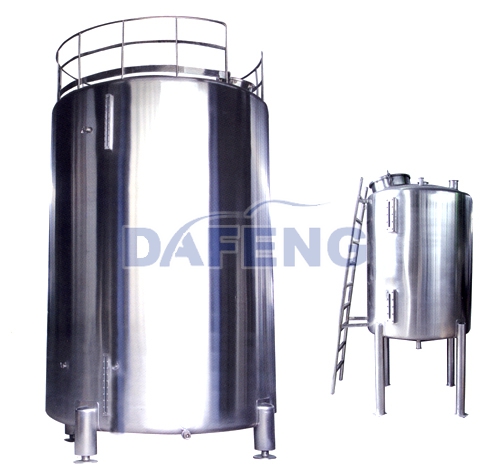

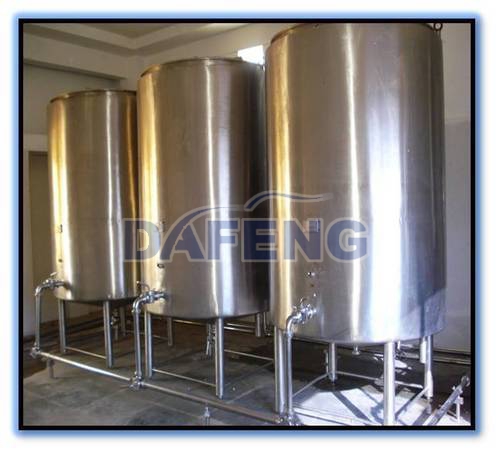

Stainless steel storage tanks,stainless steel tanks
Application:
Used as liquid storage tank, mixing tank, buffer tank and water storage tank etc.
Configuration:
1) Manhole
2) CIP cleaner
3) Thermometer
4) Liquid lever meter and controller
5) Dismountable Inlet assembly
6) Sanitary breathing cover
Technical parameters:
Nomtal volume | Working pressure (Mpa) | Working temperature (!1) | L(mm) | L1(mm) | D(mm) | D1(mm) | H(mm) |
1000L | 0.099 | 100 | 1950 | 1500 | 1050 | 900 | 300 |
2000L | 0.099 | 100 | 2300 | 1900 | 1400 | 1200 | 300 |
3000L | 0.099 | 100 | 2600 | 2000 | 1800 | 1400 | 300 |
5000L | 0.099 | 100 | 3260 | 2500 | 1800 | 1600 | 300 |
9000L | 0.099 | 100 | 4300 | 3500 | 1900 | 1700 | 300 |
10000L | 0.099 | 100 | 4700 | 3900 | 2100 | 1900 | 350 |
20000L | 0.099 | 100 | 5650 | 4500 | 2800 | 2400 | 350 |
30000L | 0.099 | 100 | 6250 | 4900 | 3000 | 2900 | 350 |
Our company’s quality certification:
We have got CE, PED, ISO9001 (2008) certificates.
