stainless steel beer fermentor

PRIMARY PARAMETERS

Processing

Fermenting Equipment, Fermenting

Condition

New

Place of Origin

Zhejiang, China (Mainland)

Brand Name

Model Number

DFBG

Processing Types

beer

Voltage

380V

Power(W)

0-80KW

Dimension(L*W*H)

Capacity Request

Weight

200KG-2000KG

Certification

CE,ISO9001

Warranty

1 Year

After-sales Service Provided

Engineers available to service machinery overseas

material

stainless steel 304

Layer

single layer/three layer(can be customized)

cooling media

ice water or glycol

cooling system

ice water, refrigerator,miller board

Product Name

conical beer fermenter beer fermentor fermentation tanks

Inside pressure

Normal pressure

Jacket working pressure

0.2Mpa.

DETAIL DESCRIPTION

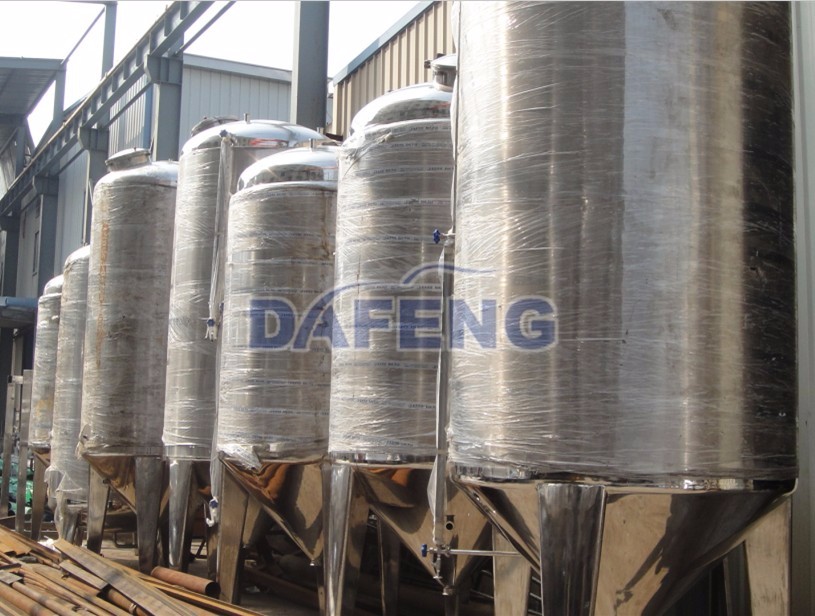

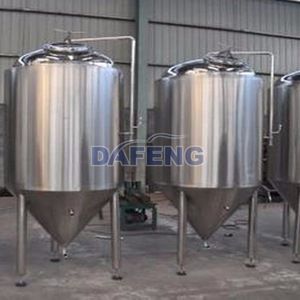

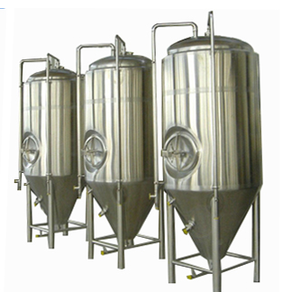

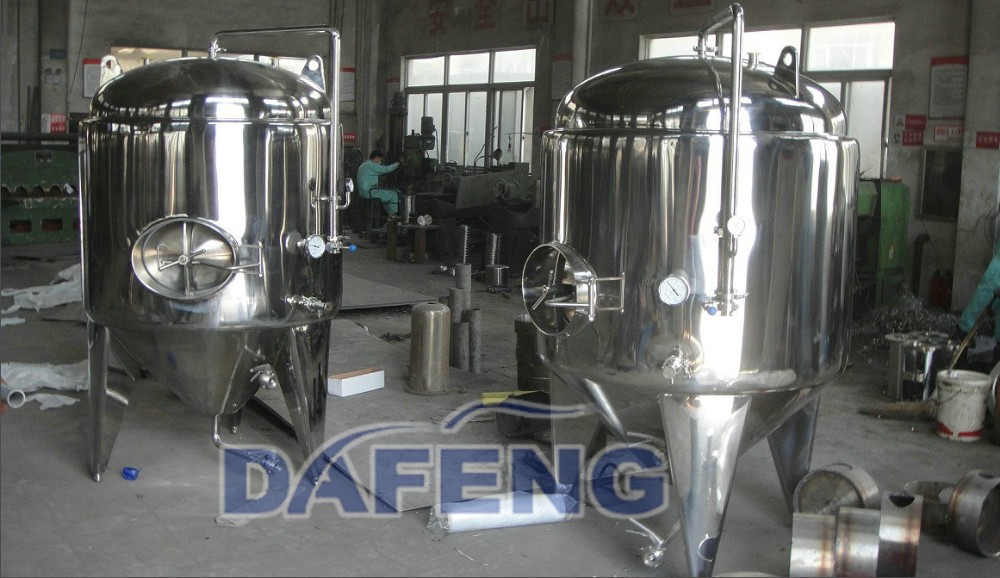

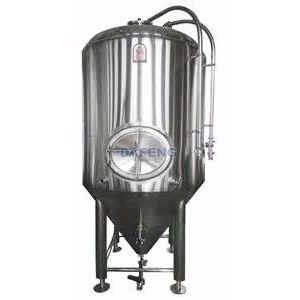

Conical Beer Fermentor

Product Description

Key Specifications/Special Features:

Material: 304-2B stainless steel
Isolation: PU foam
Capacity: 200 to 20,000L

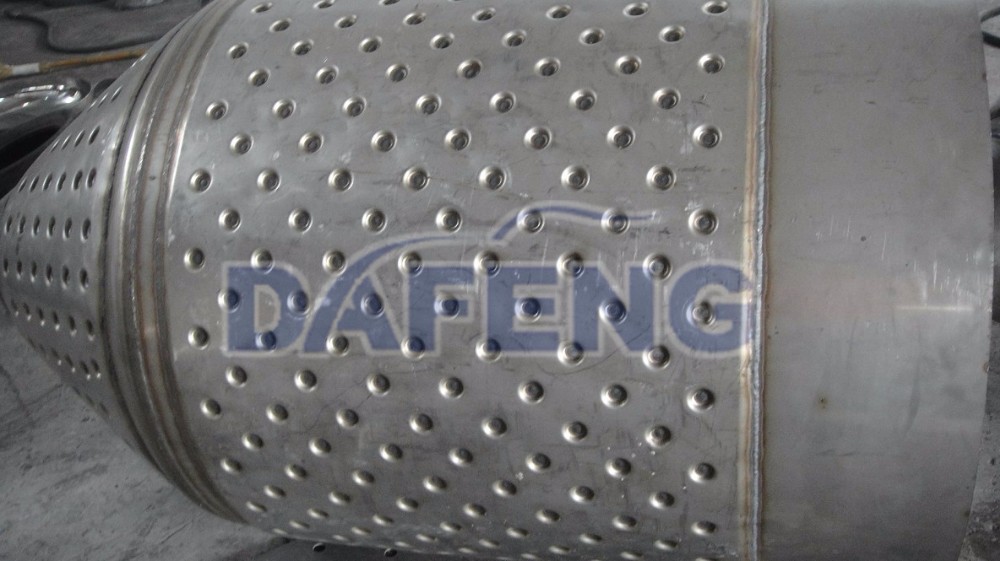

Dimple pad cooling jacket in the tank body and conical bottom, efficiently cools the tank in all parts
Cooling exchange areas are available in different designs
Conical bottom in 60 degrees is designed for the yeast fermentation processing

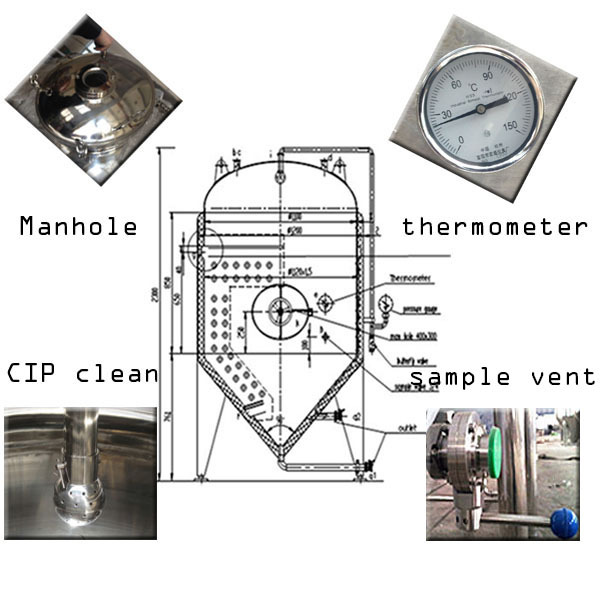

Configure: CIP socket,sideway manhole,strong leg supports, temperature gauge and sampling socket
Applications: winery, brewery storage and fermentation

Usage:

This product is widely used in such industries as brewing,dairy product processing, etc..

The Conical Fermenter is a beautifully designed product for the discriminating brewer.

Its features provide commercial brewery functionality at a consumer good price.

It is easy to use and load with standard features,clearly the best and only way to siphon clear beer or wine!

Advantages,

1,The cooling jacket adopts the form of honey comb jacket,which are provided at tank body and conical bottom to effectively increase the cooling speed,

heat exchanging area of jacket of different proportions can be allocated according to customers' technological requirements.

2,Adopted the international standards of fermentation technology,diverse methods to control the temperature,the inner surface of the tank are mirror-polished,

Completely meet the demanding of PLC and sterilize system.



TECHNICAL PARAMETERS:

Number	Specification	Conical angle	Inner diameter/overall height	Correspond
1	7BBL FST	60°	1000-2418/1000-2520	8HL FST
2	10BBL FST	60°	1000-2990/1100-2720 1200-244-/1200-2580	12 HL FST
3	15BBL FST	60°	950-3955/1100-3745 1200-3170/1300-3110 1400-2680/1400-2790	17 HL FST
4	20BBL FST	60°	1200-4105/1300-3490 1350-3665/1400-3170 1500-3340	34 HL FST
5	30BBL FST	60°/80° /105 °	1500-4905/1600-3860 1700-3625	35 HL FST
6	40 BBL FST	60°	1700-4255/1800-3960 1800-4050/1900-3580 1900-3860/2000-3440	46 HL FST
7	50 BBL FST	60°	1700-4855/1800-4620 1900-4360	58 HL FST
8	60 BBL FST	60°/90°	1800-5150/1900-4860 2000-4660/2100-4580	70 HL FST
9	80 BBL FST	60°/90°	2000-5580/2100-5335 2200-4400	93 HL FST
10	100 BBL FST	60°/65°/70°/75°	2100-6140/2300-5250 2300-5060/2200-5540	116 HL FST
11	105 BBL FST	60°/65°	2100-6300/2400-5180 2100-5895/2400-5000	139 HL FST
12	120 BBL FST	60°	2100-7000/2200-6400 2200-6600/2700-5400	139HL FST
		90°	2100-6380

Accessories are provided:

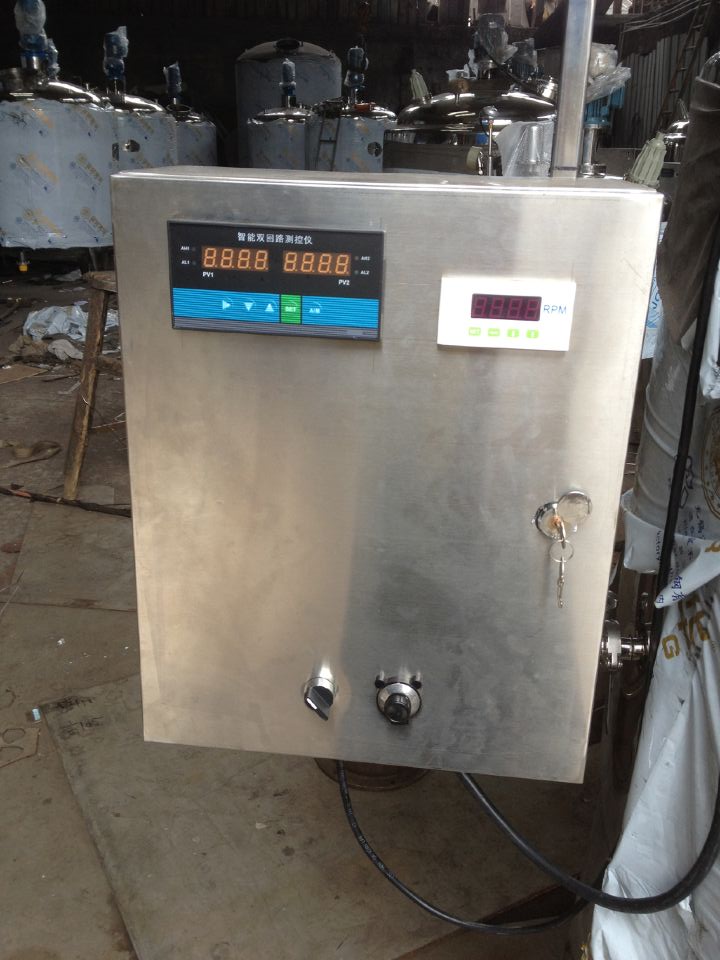

Our control panel is for switich on/off(mash tun),stirring on/off(mash tun),digital display temperature( fermenter or other beer equipment),digitatl display liquid level etc,which is up to you.

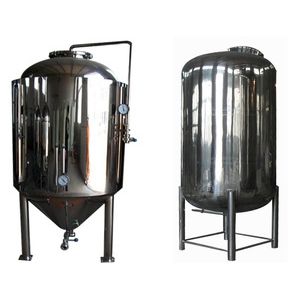

2000L Single layer fermenter,seal elliptical&conical bottom,different capacity can be customized as per your need.

Or you can directly contact us below,we'd like to help and meet to your actual need.
