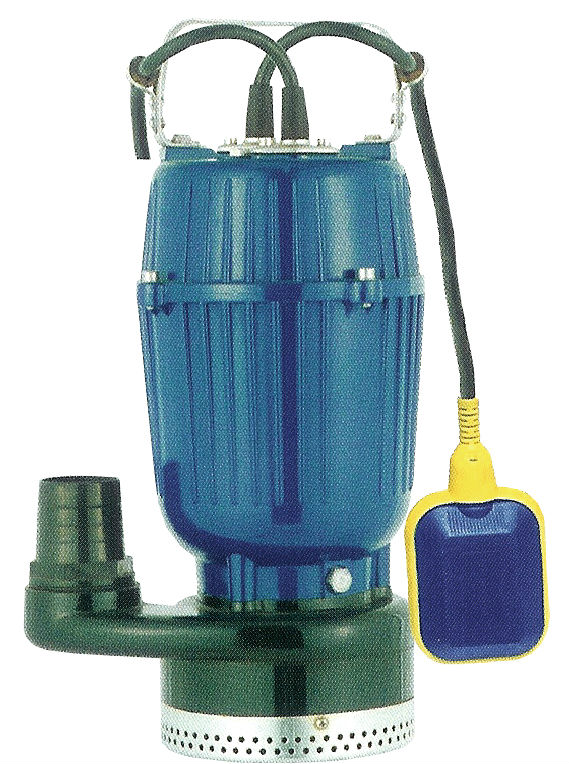

SA-1100DF Double Impeller Submersible Water Pump

SA-1100DF Double Impeller Submersible Water Pump RANGE OF PERFORMANCE submersible water pump8Flow rate: 250 L/min (15 m3/h)8Head: 28 m LIMITS OF USE8Maximum operating depth 5m below waterlevel8Maximum fluid  temperature 40°C8PH value in water :

Technical Feature

  • Zhejiang, China (Mainland)
  • UNIPOMPE submersible water pump
  • SA-1100DF submersible water pump
  • Rotary Pump
  • Single-stage Pump
  • Water
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$1~50

PRIMARY PARAMETERS

Place of Origin
Zhejiang, China (Mainland)
Brand Name
UNIPOMPE submersible water pump
Model Number
SA-1100DF submersible water pump
Theory
Rotary Pump
Structure
Single-stage Pump
Usage
Water
Power
Electric
Standard or Nonstandard
Standard
Fuel
electric
Pressure
High Pressure
Application
Submersible
Name
submersible water pump

DETAIL DESCRIPTION

SA-1100DF Double Impeller Submersible Water Pump



RANGE OF PERFORMANCE

submersible water pump

8Flow rate: 250 L/min (15 m3/h)
8Head: 28 m



LIMITS OF USE
8Maximum operating depth 5m below waterlevel
8Maximum fluid  temperature 40°C
8PH value in water :4-10
8Maximum Passage for suspended solids: 2 mm



N.

DESCRIPTION

N.

DESCRIPTION

N.

DESCRIPTION

N.

DESCRIPTION

1

Protector

16

Line protector

31

"O" ring

46

Guide leaf

2

Cable presser

17

"O" ring

32

Pump body

47

Stretching washer

3

Screw

18

Screw

33

Screw

48

Screw

4

Cable

19

Stretching washer

34

Oil seal

49

Washer

5

Flange

20

Washer

35

Impeller

50

Nut

6

Cable protector

21

Screw

36

Nut

51

Washer

7

Bolt

22

Motor cover

37

Pump cover

52

Screw

8

Handle

23

Undulated washer

38

Washer

53

 Screw

9

Bolt

24

Bearing

39

Screw

54



10

"O" ring

25

Rotor

40

Float switch

55



11

Screw

26

Thermal protector

41

Rubber washer

56



12

Washer

27

Stator

42

Word ring

57



13

Capacitor cover

28

Mechanical seal

43

Filter mesh

58



14

"O" ring

29

"O" ring

44

Ball bearing

59



15

Capacitor

30

Out-let connector

45

"O" ring

60










WARRANTY: 1 YEAR (according to our general sales conditions)

MODEL

POWER

MAX.HEAD

MAX.FLOW

OUTLET

CABLE

G.W

DIMENSION

20‘ QUANTITY



(Kw)

(m)

(l/min)

(mm)

(m)

(K.g)

(cm)

 pcs

SA-1100DF

1.1

28

250

50

12

20.5

27X23.5X46.5

950


*220V/50Hz, 240V/50Hz, 110V/60Hz  & 240V/60Hz are available on request.



PRODUCTION PROCESS SCHEME

QDX
