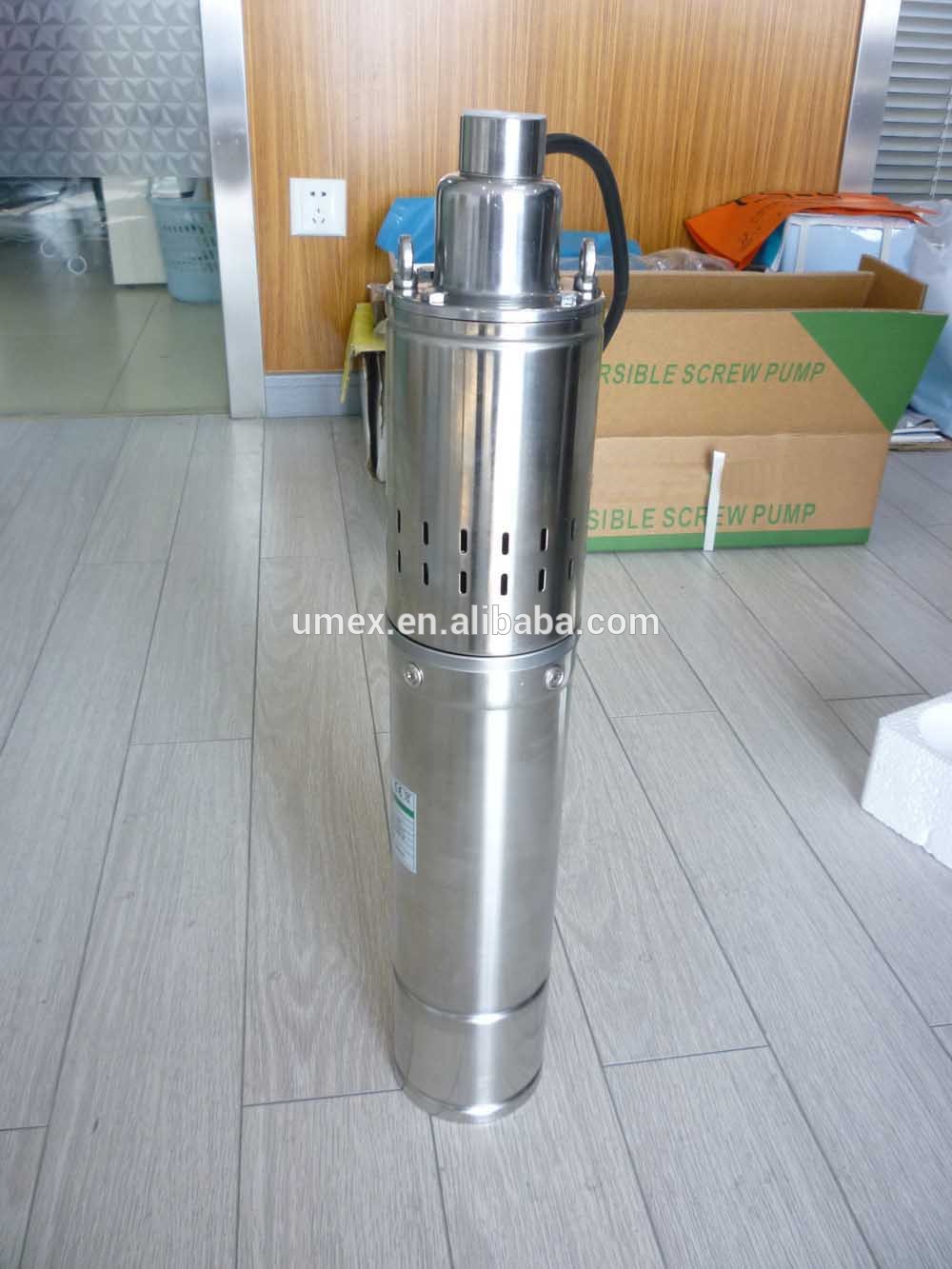

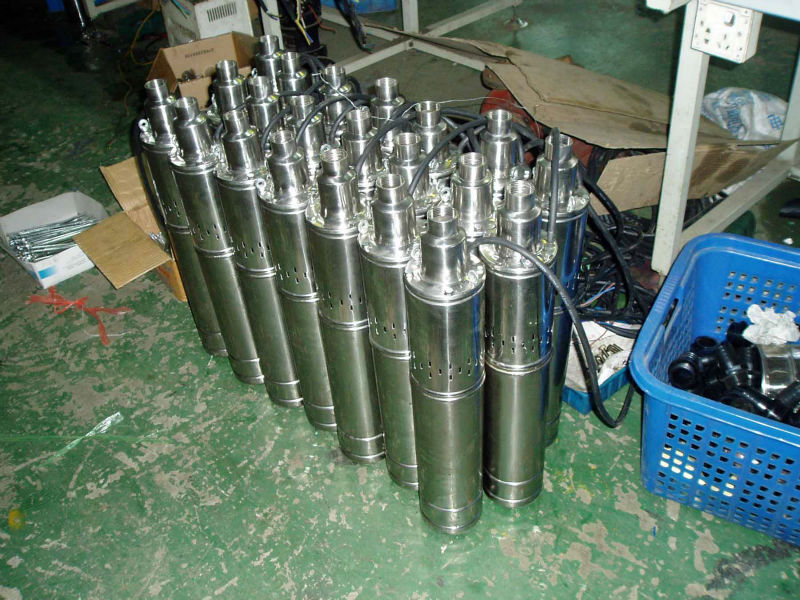

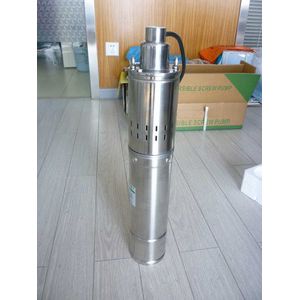

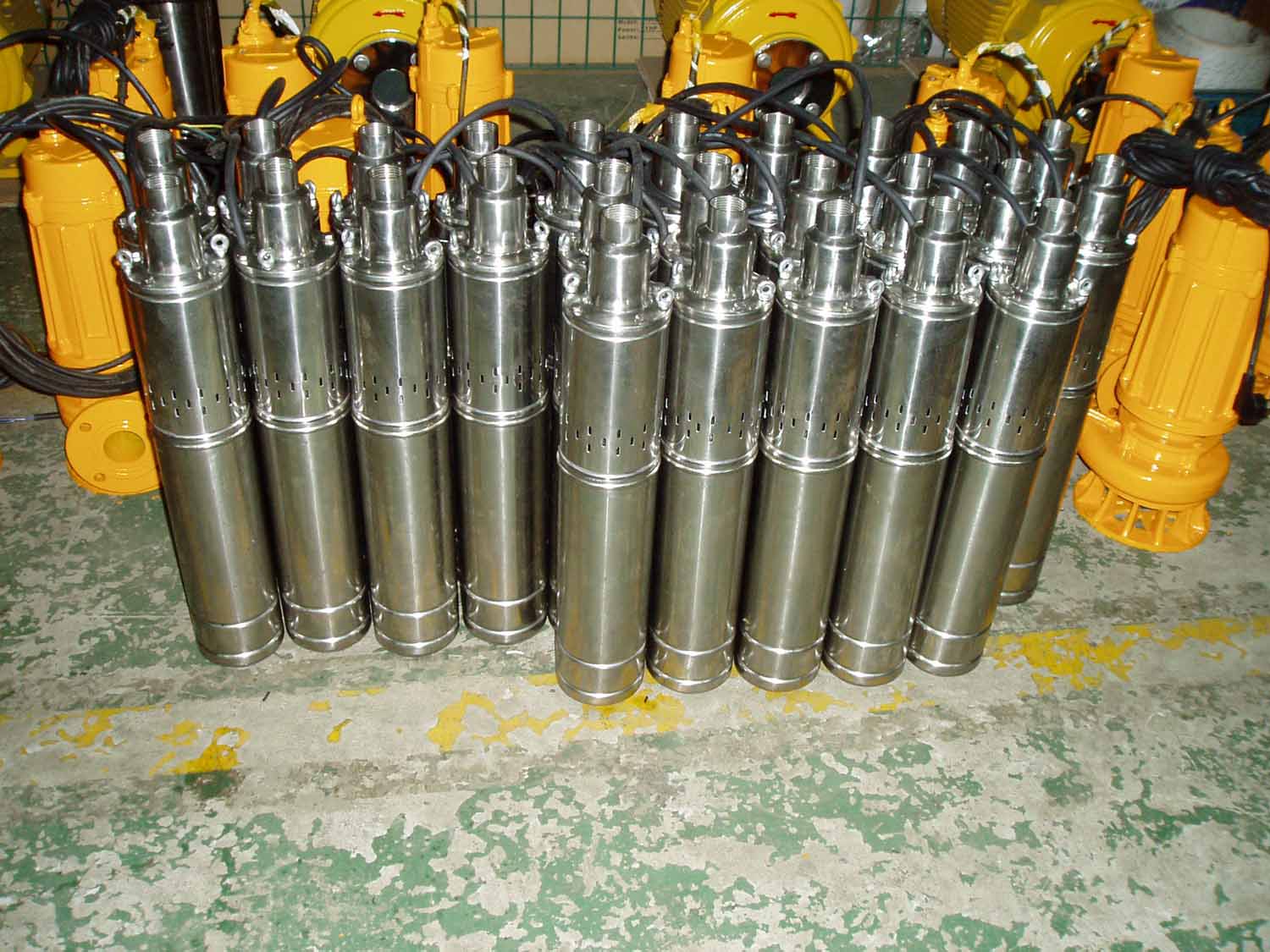

4" (QSD) Stainless Steel Screw Pump with oil-filled type motor

MAIN FEATURES

1.Single screw instead of impellers
2.oil filled  motor
3.Sandproof device
4.High head and efficiency



TECHNICAL DATA

-Pump

1.Qmax: 2.0 (m³/h)
2.Total head from 50 to 120 (m)

-MOTOR

1.Power: 0.25 to 1.1 kw (1 phase)

2.Insulation class : F
3.Protection grade: IP 68
4.Maximum diameter : Φ94.5~127 mm
5.Highest temperature of liquid : 40 °C
6.International standard:  IEC 60335-1   IEC 60335-2-41.

-Application

1.For water supply from wells or reservoirs.
2.For domestic use,for civil and industrial applications.
3.For sprimking and flow irrigation plants.

-Operating conditions

1.Water temperature up to 35 Cent.Degree.
2.Maximum sand content: 0.25%
3.Minimum international diameter of well: 4''.
4.Maximum immersion depth: 80m.

-Materials

1.Pump casing: AISI304 stainless steel
2.Inlet/Outlet:Stainless Steel
3.Screw: Steel
4.Bottom support: Stainless Steel
5.Shaft :AISI 304 stainless steel.
6.Motor casing: AISI 304 stainless steel.
7.Mechanical seal: Graphite- Ceramic

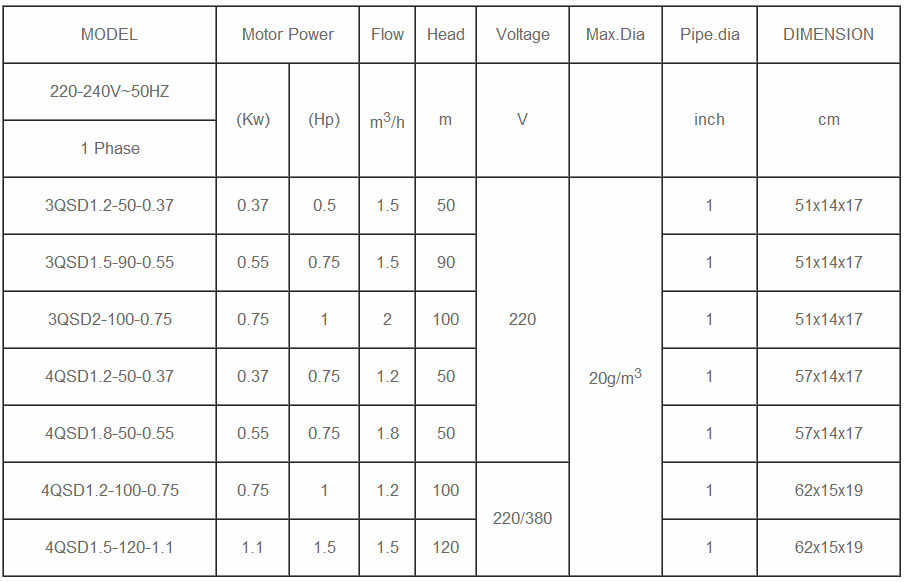

Performance table:  (n=2900 rpm)
