2018 high head building application Vertical Multistage 30hp water pump

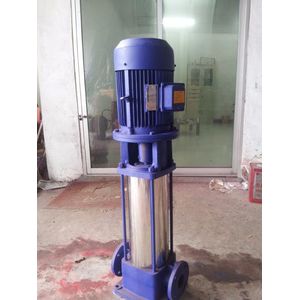

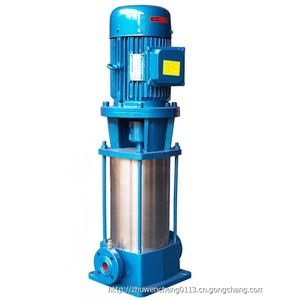

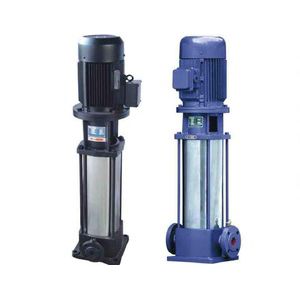

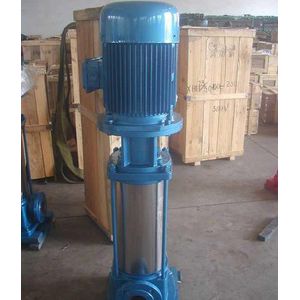

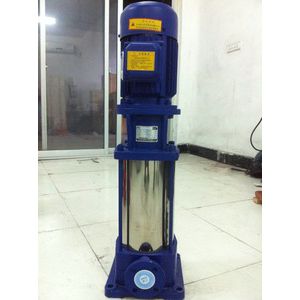

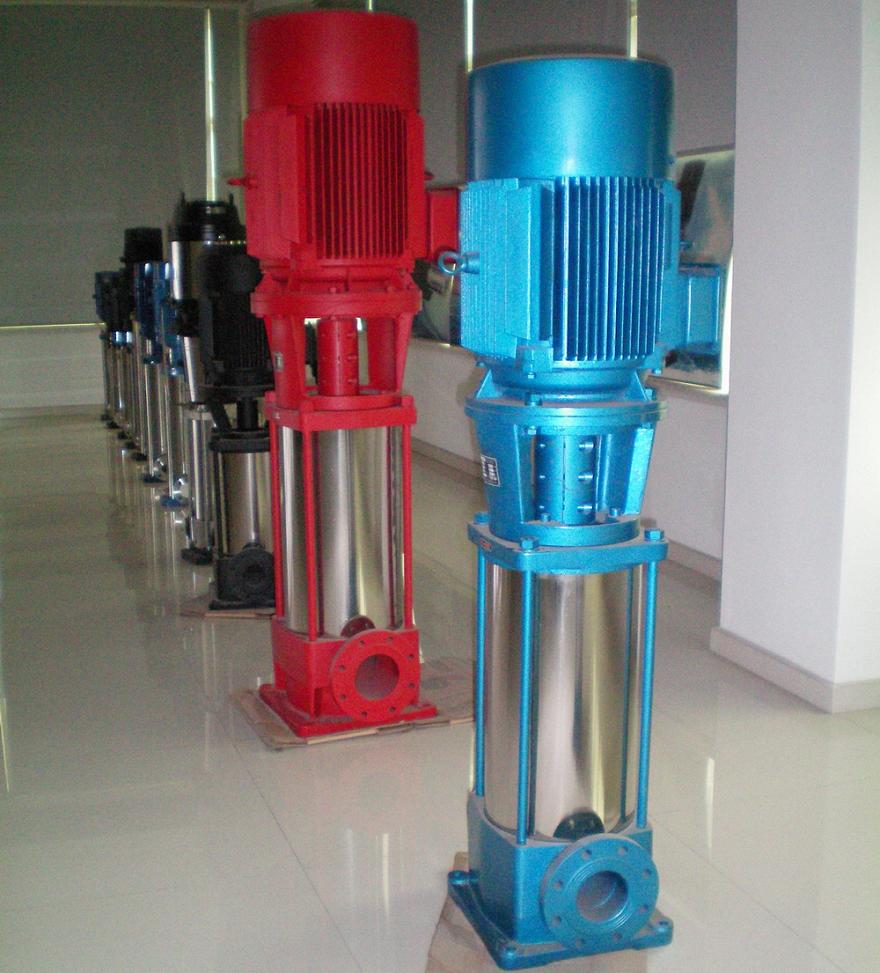

GDL Type Vertical multistage centrifugal pump, Have advantage of compact size, low noise,
Operation stable , occupy small space. This series products adopted excellent hydraulic model
With feature of high operation efficiency ,High efficiency area width,A wide range of performance coverage, can operate under economy working condition.
Property Parameter Table
| TYPE | Capacity | Heda | Efficiency | Speed | Power(kw) | NPSHr | Dia.ofpump | High | weight | high1 | ||
| m3/h | l/s | m | % | (r/min) | Shaft power | Matingmotor power | m | mm | mm | kg | mm | |
| 25GDL2-12*3 | 1.4 2 2.4 | 0.39 0.56 0.67 | 38 36 33 | 23 30 32 | 2900 | 0.63 0.65 0.67 | 1.1 | 1.4 1.7 1.8 | 25 | 606 | 58 | 125 |
| 25GDL2-12*4 | 1.4 2 2.4 | 0.39 0.56 0.67 | 50 48 44 | 23 30 32 | 2900 | 0.83 0.84 0.90 | 1.1 | 1.7 1.7 1.8 | 25 | 646 | 62 | 165 |
| 25GDL2-12*5 | 1.4 2 2.4 | 0.39 0.56 0.67 | 63 50 55 | 23 30 32 | 2900 | 1.04 1.09 1.12 | 1.5 | 1.4 1.7 1.8 | 25 | 711 | 68 | 205 |
| 25GDL2-12*6 | 1.4 2 2.4 | 0.39 0.56 0.67 | 76 72 66 | 23 30 32 | 2900 | 1.26 1.30 1.35 | 1.5 | 1.4 1.7 1.8 | 25 | 751 | 72 | 245 |
| 25GDL2-12*7 | 1.4 2 2.4 | 0.39 0.56 0.67
| 88 84 77 | 23 30 32 | 2900 | 1.46 1.52 1.57 | 2.2 | 1.4 1.7 1.8
| 25 | 816 | 78 | 285 |
| 25GDL2-12*8 | 1.4 2 2.4 | 0.39 0.56 0.67 | 101 96 88 | 23 30 32 | 2900 | 1.63 1.74 1.80 | 2.2 | 1.4 1.7 1.8 | 25 | 856 | 82 | 325 |
| 25GDL2-12*9 | 1.4 2 2.4 | 0.39 0.56 0.67 | 114 108 99 | 23 30 32 | 2900 | 1.89 1.96 2.02 | 2.2 | 1.4 1.7 1.8 | 25 | 896 | 86 | 365 |
| 25GDL2-12*10 | 1.4 2 2.4 | 0.39 0.56 0.67 | 126 120 110 | 23 30 32 | 2900 | 2.01 2.17 2.24 | 3 | 1.4 1.7 1.8 | 25 | 981 | 98 | 405 |
Export standard veneer cases or wooden cases or according to customers' requirements
Xi’an Cheng Hui Trade Co., Ltd, is a comprehensive enterprise that integrates 30hp water pump R&D, innovation, manufacturing, sales, technology support, design, installation, maintenance and 30hp water pump after-sales service. We have been supported by more than 200 manufactures in China and established a long-term and good cooperative relationship. We have established a vibrant 30hp water pump market service system and rapid response 30hp water pump technical support system, to ensure the efficient and timely service to 30hp water pump users through remote site maintenance support, rapid response, mode of on-site training, to achieve the service 30hp water pump product standardization, professional service personnel, service behavior standardization, service management modernization, so that you can enjoy our timely and effective 30hp water pump customer service no matter where. We will make unremitting efforts to give customers the trust and after-sales service while providing high quality 30hp water pumps.
