New Products High Grade High Pressure Self Priming Water Pump
Product description Of High Pressure Self Priming Water Pump
ZB series self priming pump is a self priming centrifugal pump. It uses oil seal or mechanical seal or both type double seal. It has advantages of tight structure, excellent performance and repairing convenience. Spraying irrigation can save 50% of water compared to furrow irrigation.
Applications
This series pump is suitable to deliver clear water in low water level. It is very suitable to irrigate crops in hilly areas when it fixes a spray-head. This kind of irrigation can prevent loss of water, soil and fertilizer, and also prevent soil from salinization.
Working conditions
Pump will work continuously and normally in below conditions:
1.Medium is non-corrosive clear water; sand content ≤0.10%,and particle size ≤0.20mm
2.Medium temperature ≤40 ℃; PH value between 6.5 and 8.5;
3.Frequency: 50 Hz; Voltage: 220V at single phase; fluctuation of voltage: 0.9 to 1.1 times of the rated voltage.

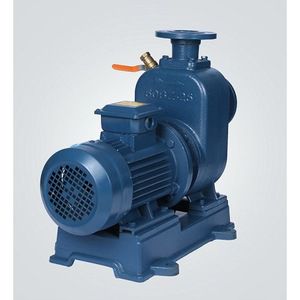

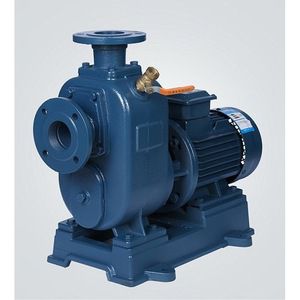

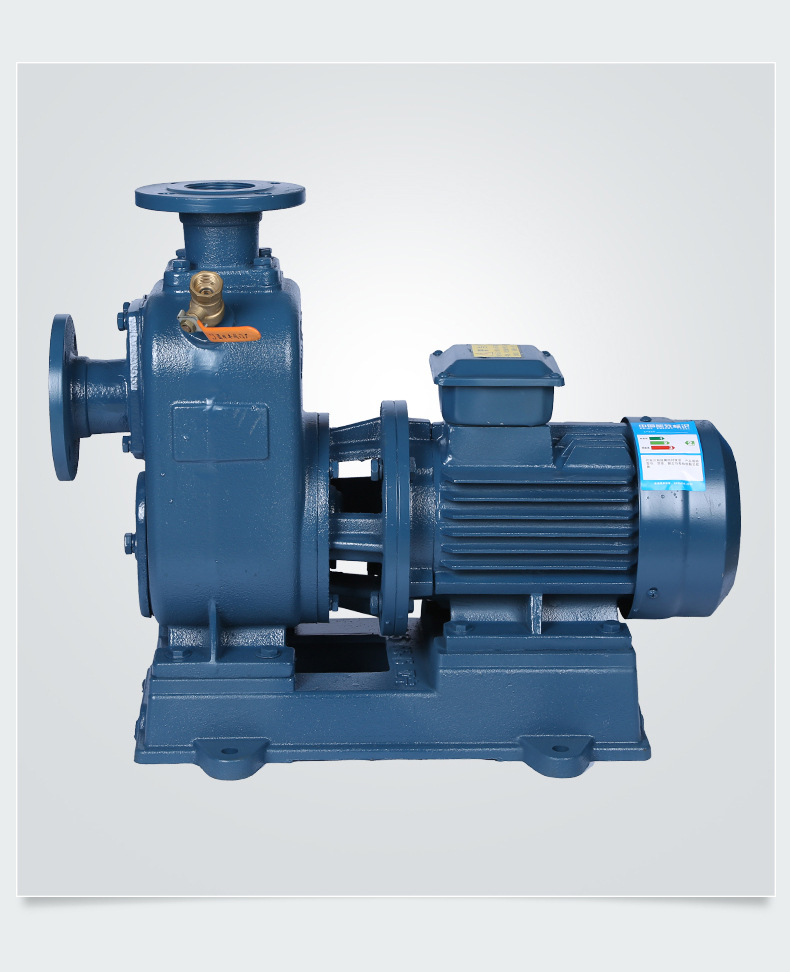

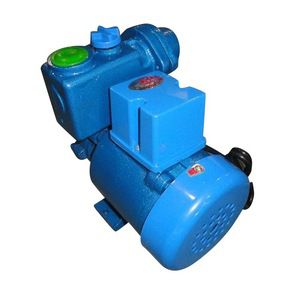

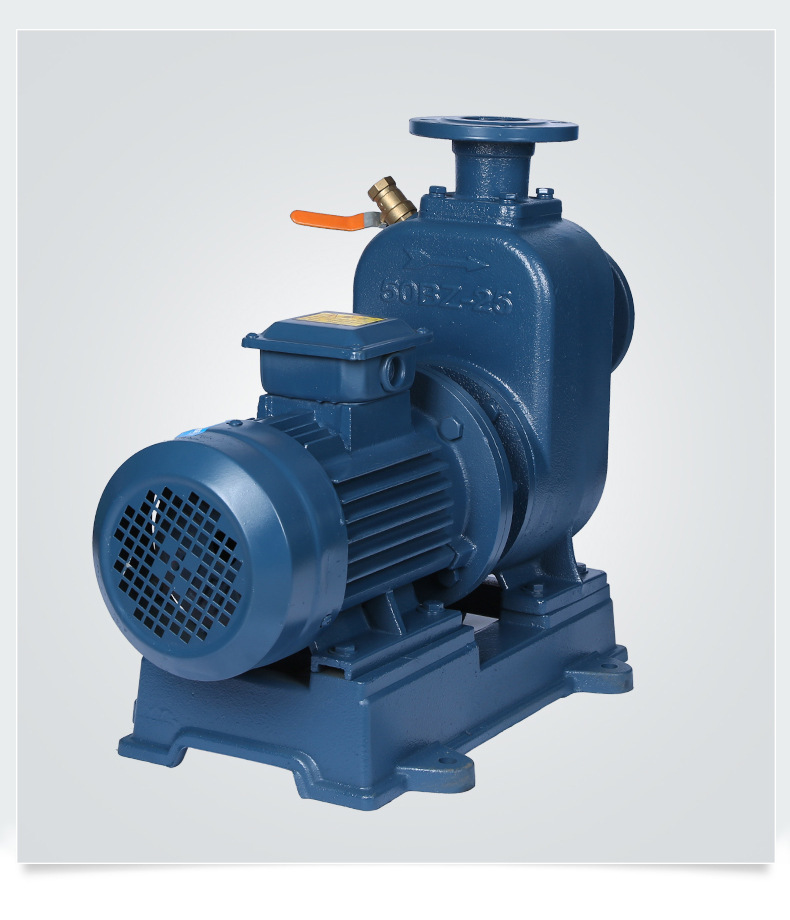

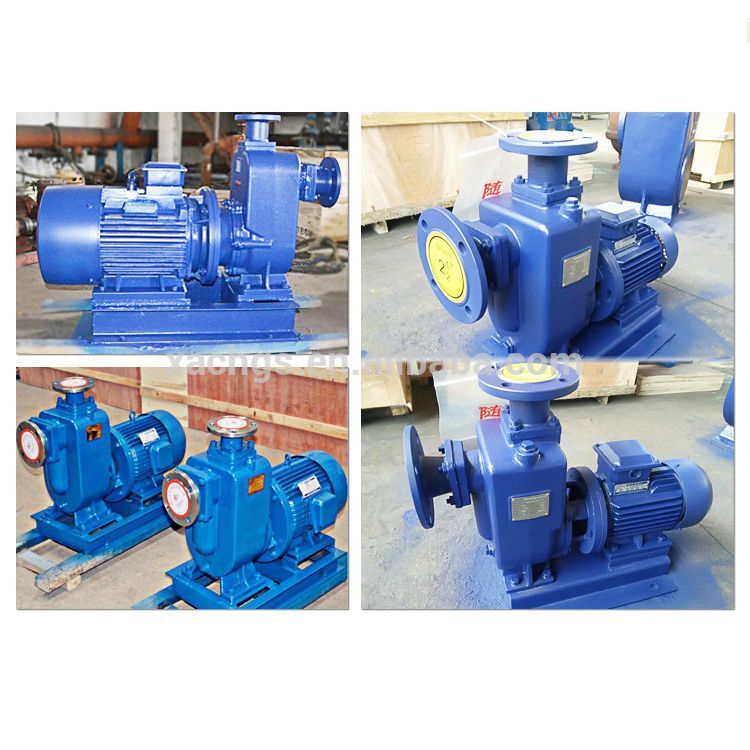

Product Picture Of High Pressure Self Priming Water Pump
Model meaning
Technical Parameter Of High Pressure Self Priming Water Pump
Model |
Power |
Voltage |
Rotation speed |
Head |
Flow |
Max. head |
Max. flow |
Diameter of outlet |
Suction head |
1WZB-35 | 0.37 | 220 | 2850 | 16 | 1.2 | 35 | 2.4 | 25 | 6-8 |
1WZB-45 | 0.55 | 220 | 2850 | 30 | 1.2 | 45 | 3 | 25 | 6-8 |
1WZB-65 | 0.75 | 220 | 2850 | 45 | 1.2 | 65 | 3 | 25 | 6-8 |
1WZB-85 | 1.1 | 220 | 2850 | 65 | 1.2 | 85 | 3.5 | 25 | 6-8 |
