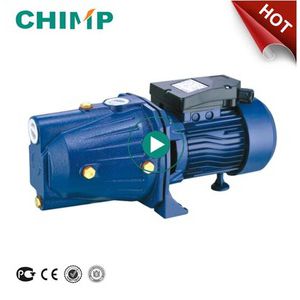

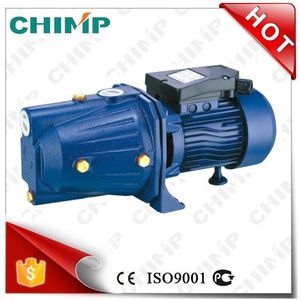

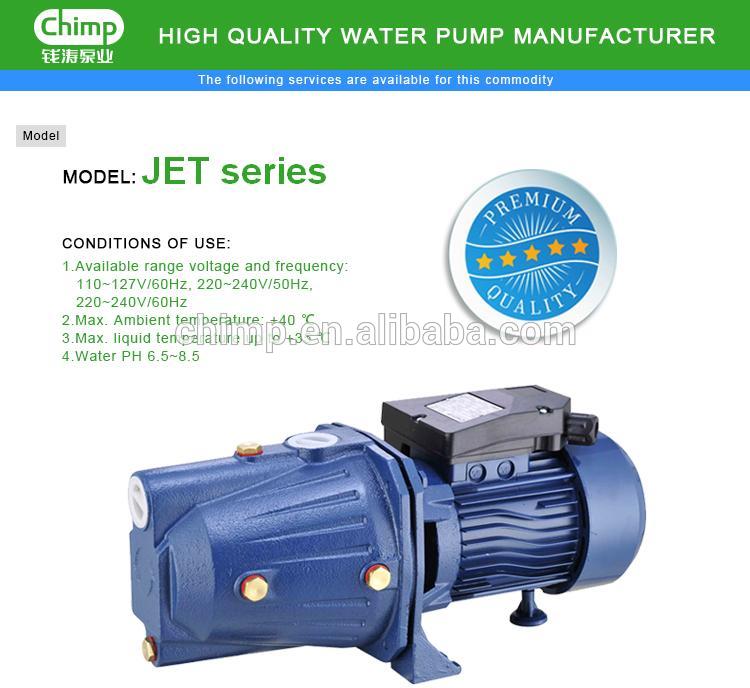

CHIMP PUMP 0.6HP Self-priming single-stage clean water JET pump
PUMP
- Stainless steel/brass/ppo impeller
- Max. Liquid termperature: +40℃
- Max. Suction: 9m
- Cast iron pump body and support
MOTOR

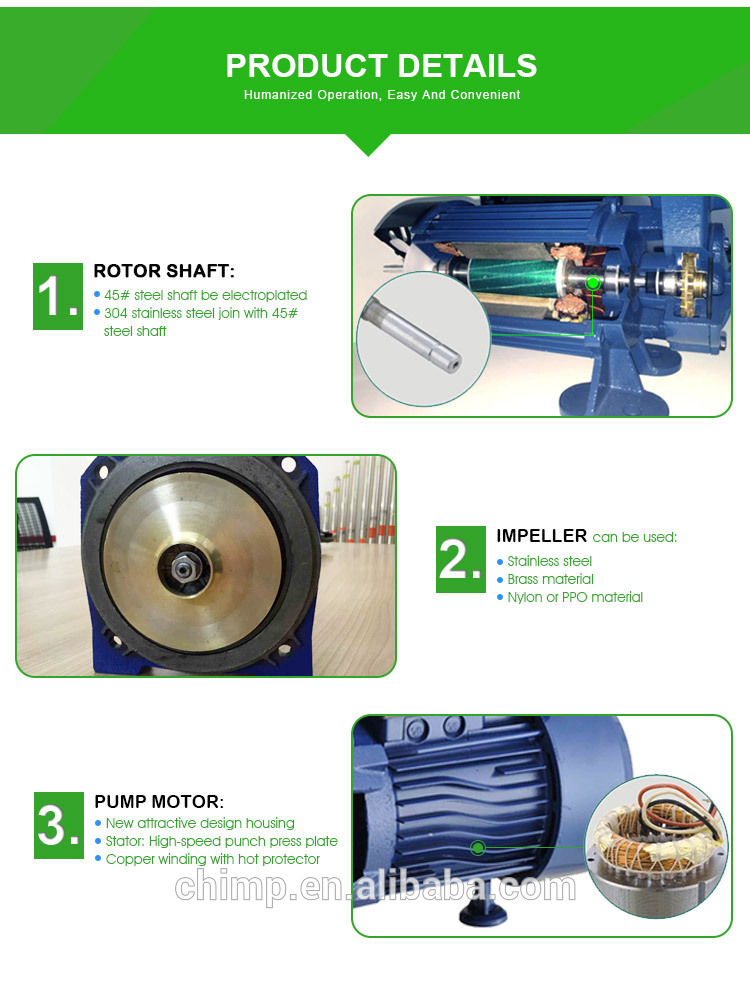

- Motor with copper winding
- Shaft: stainless steel welded with 45#/45# steel be electroplated
- Insulation class: B or F
- Protection class: IP X4
- Max.Ambient temperature:+40℃
- Cooling: External ventilation
PUMP INSTALLATION AND APPLICATIONS
It can be used to transfer clear water or other liquids similar to water in physical and chemical properties. It is suitable for lifting water from the well, sprinking irrigation in garden, pressure boosting of running water, and suppporting equipment etc.

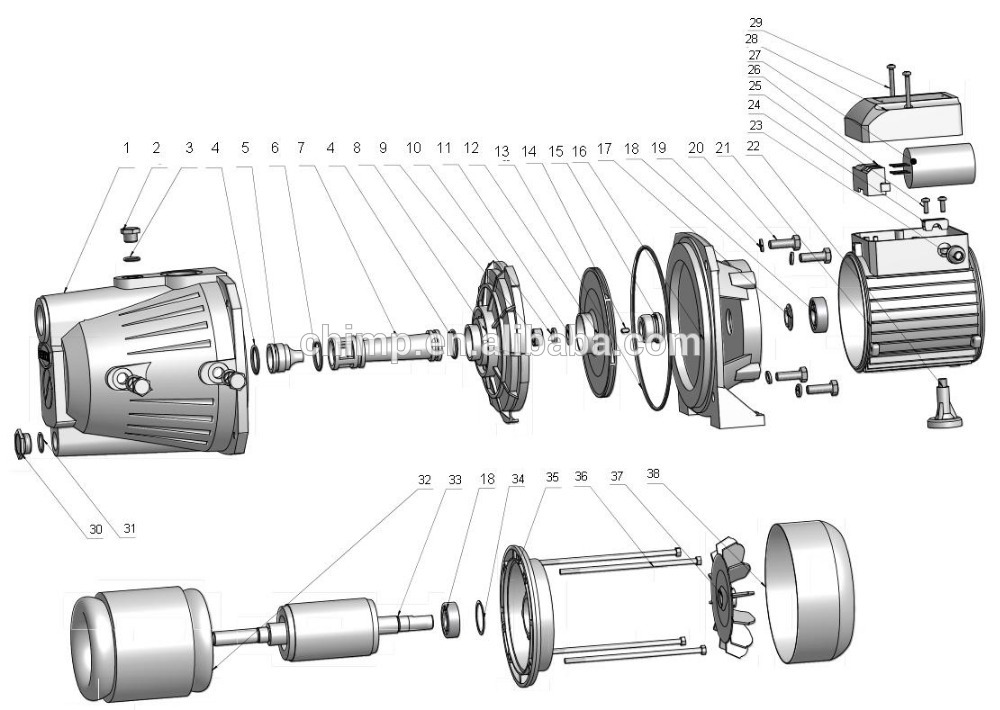

| NO. | DESCRIPTION | NO. | DESCRIPTION | NO. | DESCRIPTION | NO. | DESCRIPTION |
| 1 | pump body | 11 | Washer | 21 | Housing | 31 | "O" ring |
| 2 | charge plug | 12 | Impeller | 22 | Stand | 32 | Wound stator |
| 3 | "O" ring | 13 | "O" ring | 23 | Fairlead | 33 | Rotor |
| 4 | "O" ring | 14 | Key | 24 | Cable presser | 34 | Split ring |
| 5 | Nozzle | 15 | Mechanical Seal | 25 | Screw | 35 | Back cover |
| 6 | "O" ring | 16 | pump support | 26 | Terminal board | 36 | Bolt |
| 7 | Venturi pipe | 17 | Drops guard | 27 | Capacitor | 37 | Fan |
| 8 | Diffuser | 18 | Bearing | 28 | Terminal box cover | 38 | Fan cover |
| 9 | Nut | 19 | Snap ring | 29 | Bolt | ||
| 10 | Snap ring | 20 | Bolt | 30 | Charge plug |

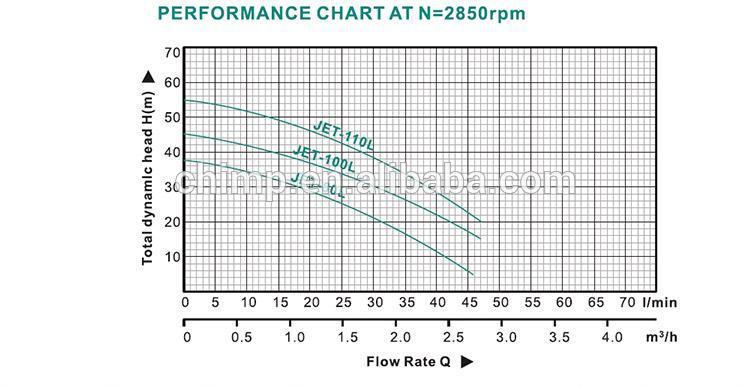

PRODUCTS TECHNIQUE
| MODEL | POWER | MAX.FLOW | MAX.HEAD | MAX.SUCT | INLET/OUTLET | GW | PACKING DIMENSION(MM) | |
| kW | HP | (l/min) | (M) | (M) | (inch) | (kgs) | ||
| JET-60L | 0.45 | 0.6 | 40 | 36 | 9 | 1"x 1" | 12.8 | 44*20*23 |
| JET-80L | 0.6 | 0.8 | 50 | 38 | 9 | 1"x 1" | 13.1 | 44*20*23 |
| JET-100L | 0.75 | 1 | 60 | 43 | 9 | 1"x 1" | 13.8 | 44*20*23 |
| JET-110L | 1.1 | 1.5 | 60 | 55 | 9 | 1"x 1" | 14.5 | 45.5*20*23 |
| JET-60S | 0.45 | 0.6 | 40 | 36 | 9 | 1"x 1" | 12.3 | 39.5*20*23.5 |
| JET-80S | 0.6 | 0.8 | 50 | 38 | 9 | 1"x 1" | 12.8 | 39.5*20*23.5 |
| JET-100S | 0.75 | 1 | 60 | 43 | 9 | 1"x 1" | 13.2 | 39.5*20*23.5 |
| JET-110S | 1.1 | 1.5 | 60 | 55 | 9 | 1"x 1" | 14.1 | 41*20*23.5 |
| JET-150 | 1.1 | 1.5 | 70 | 55 | 9 | 1 1/4"x 1" | 22 | 55.5*20.5*24.5 |
| JET-200 | 1.5 | 2 | 80 | 65 | 9 | 1 1/4"x 1" | 23 | 55.5*20.5*24.5 |
