SZX sanitary fruit juice biscuit fillings potato mud no damage transport sine machinery pump
Brief introduction
1. SZX sanitary fruit juice biscuit fillings potato mud no damage transport sine machinery pump is high viscosity midium transfer best selection of super low shear feeding.
2. Super low shear feeding although with a great deal of solid particle and fragile product a safe and no damage feeding can be provided.
3. High viscosity performance reaches the limit of flowing capability can reach 4,000,000cps.
4. It has the advantages of no pulse, stable feeding, excellent efficiency, flow cubage adjustment, without interference and shock.
Product application
1. Beverage product: beer wort, glucose, yeast, fruit, juice, concentrated juice, wine, fruit wine, fruit milk.
2. Chemical product: soap, dye, fat, solvent, resin, paper pulp/paper-making, PVC, petrochemicals, fine chemicals, fuel, alcohol.
3. Fruit concentrates: pudding, fruit jam, tomato sauce, diced vegetable, salad, mayonnaise
4. Dairy products: milk, cream, butter, sour milk, cheese, yoghurt.
5. Cosmetic: creams, skin care gel, hair cream gel, perfume and essential oils, hair conditioner, cream/gel products, tooth paste, bath and shower gel.
6. Candy: syrup, soft sweets, hard candy, cream stuffing, chocolates.
Product details
Working Principle: | Sine structure, Low shearing/grinding |
Main applications: | Food, fruit, condiment, beverage, candy, meat, cosmetic, etc |
Driver: | Electric motor |
Power Specs: | 220V,240V,380V,400V,415V,440V 3phase 50hz/60hz |
Max.permissible fluid temperature: | 100°C(212°F) / 150°C(302°F) anti- heat seal |
Type of connection: | Quick clamp, Flange, Thread, SMS, etc |
Installation position: | Horizontal |
Pump casing and wet parts: | Stainless Steel 304 or 316L |
Shaft seal type: | Water cooling mechanical seal |
Maximum drive rating: | 15KW(20HP) |
Maximum caliber: | 152mm(6inch) |
Maximum discharge-side pressure: | 16Bar |
Flow rate range: | 180-90000L/h(0.8-23760US.GPM) |

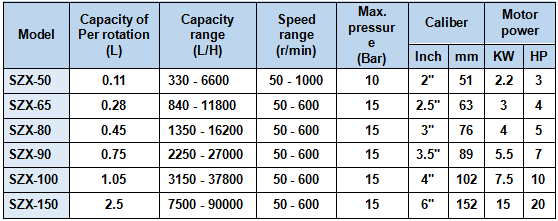

Performance data
Note:
1. The pump can configure with clamp, flange, SMS, square port, insulation jacket, trolley, wheel, feed hopper, different directions of inlet/outlet,etc.
2. Motor has CVT, gearbox, variable frequency, etc
3. CVT motor speed adjustable range: 200-1000rpm, 100-500rpm, 60-300rpm, 40-200rpm,
80-100rpm, etc.

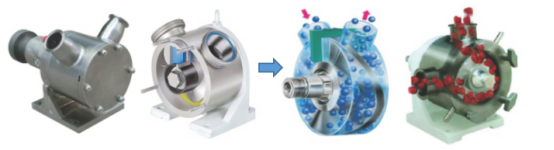

Working principle
1. The sine wave shape of impeller means a cavity can be formed at every rotation (4 cavities can be formed every passing the lining space). This operation can "push" or "release" flowing products. The pump cavity is divided into suction chamber and extraction chamber by control panel to ensure pressure tolerances at exit and entrance. Meanwhile, control panel plays another important rote to lubricate the pump bearing by product in compulsion.
2. Sine pump: Special two sine-curve-like vane is taken, instead of rotor, epicyclic gear or piston, and it runs with a movable panel and a fixed line, forming a special volume pump and realizing liquid super low shear, without pulse feeding, although in condition of 10/15 bar back pressure (water feeding), there won't be any movement on pressure gauge.

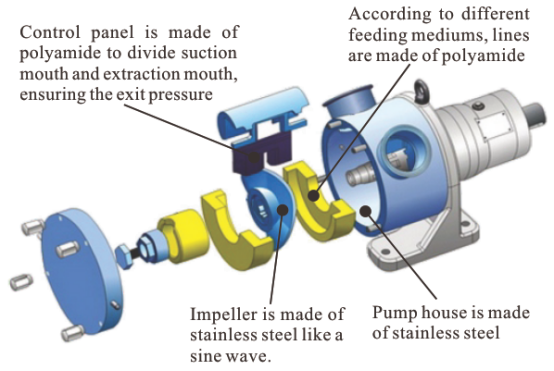

Structure diagram
Product pictures

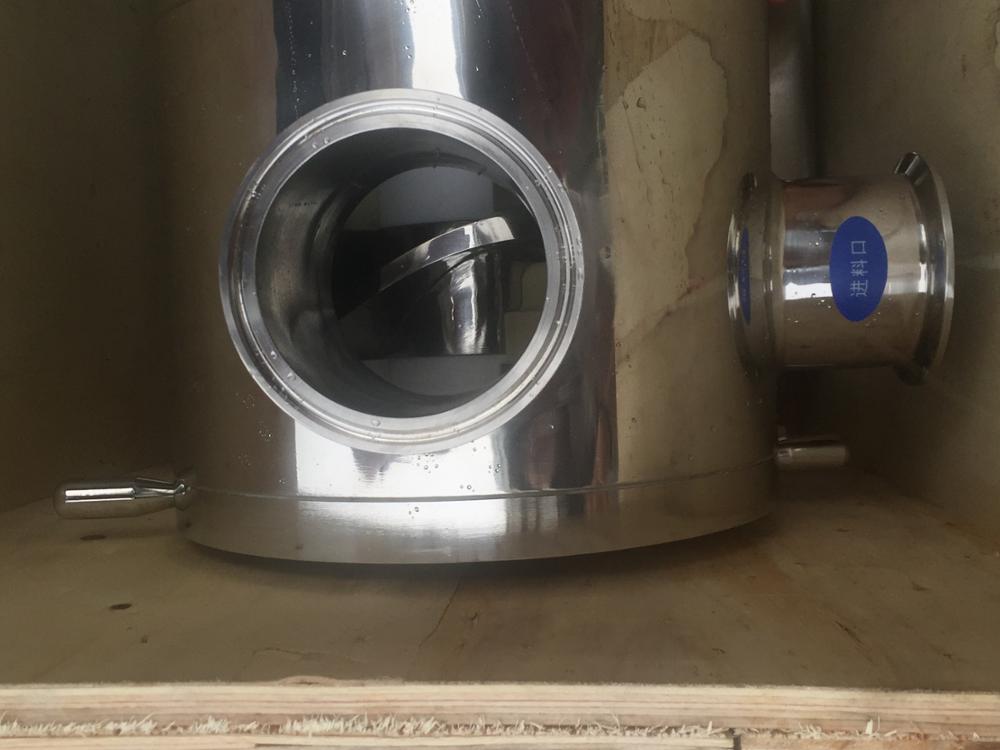

Bare pump pictures
packing pictures
>>>View more foodstuff pump pictures, pls click it.
FAQ
Q: How about delivery time?
A:1. It is about 3-7 working days if products are in stocks.
2. If product are out of stock, The delivery time depends on the quantity.
Q: Could you provide samples?
A: Yes, of course. We will send samples to you against advance deposit, but the price of sample pump and the freight charge is paied by your side.
Q: How about product problem solution?
A: If you can’t solve the problem in your local, please send the product to us, we will repair it, then back to you.
Q: What is your payment term?
A:T.T, Western union, etc.
