GW food grade liquid transfer single screw pump for starch
Brief introduction
1. GW food grade liquid transfer single screw pump for starch is compact structure, small, easy to maintain, well-adapted to medium, strong adaptability, stable flow, with small pressure fluctuation.
2. It could transfer high viscosity fluid and medium with hard suspended solid/fiber.
Product application:
Food industry: Could pump thick starch, ketchup, cooking oil, cream or fish paste.
Brewing industry: Delivery of thick ferment slurry, dregs of cereal products and various of sauces.
Medicine and daily use chemistry: Transfer pump of thick liquid, emulsified liquid & cream cosmetics.

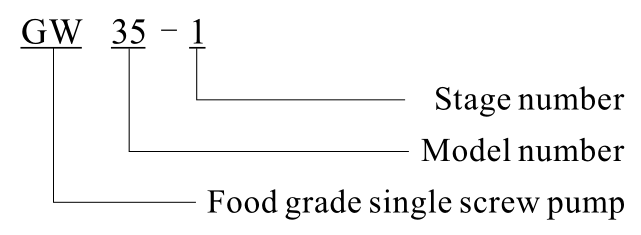

Model definition
Product details
Working Principle: | Single Screw, Progressive Cavity |
Main applications: | Slurry, suace, food, brewing, medicine, etc |
Driver: | Electric motor |
Power Specs: | 220V, 240V, 380V, 400V, 415V, 440V,etc 50hz/60hz |
Max.permissible fluid temperature: | 120°C-anti-heat NBR stator (other material is 100°C) |
Type of connection: | Flange, Clamp |
Installation position: | Horizontal |
Casing, screw(rotor): | Sanitary stainless steel |
Stator: | Food grade Anti-heat NBR, Anti-wear NBR, EPDM, FKM |
Shaft seal type: | Mechanical seal |
Maximum viscosity: | 1×106C.S.T |
Maximum drive rating: | 4KW(5.5HP) |
Maximum caliber: | 76mm(3inch) |
Maximum discharge-side pressure: | 0.6MPa(6bar) |
Flow rate range: | 1-12m3/h(4.4-52.8US.GPM) |
Maximum head(Based on water) | 60m(196.8ft) |

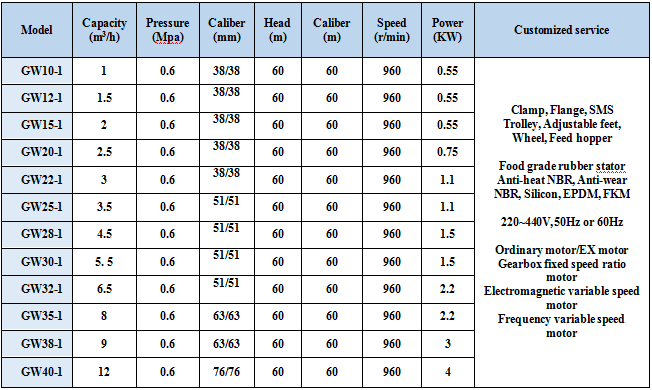

Performance data

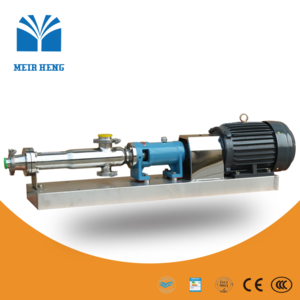

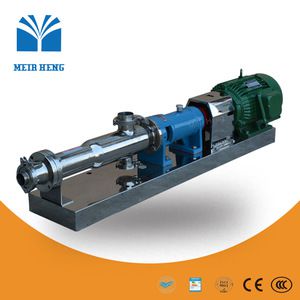

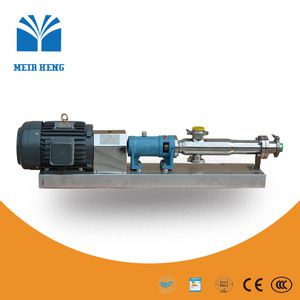

Product pictures

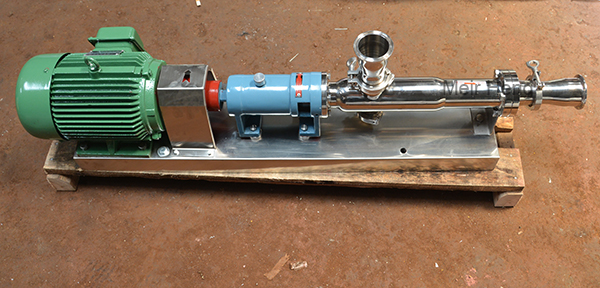

Pump with baseplate
The pump have the baseplate with the lifting device
Pump with VFD and the baseplate with the lifting device
>>>View G type single screw progressive cavity pump, pls click it.
FAQ
Q: How about delivery time?
A:1. It is about 3-7 working days if products are in stocks.
2. If product are out of stock, The delivery time depends on the quantity.
Q: Could you provide samples?
A: Yes, of course. We will send samples to you against advance deposit, but the price of sample pump and the freight charge is paied by your side.
Q: How about product problem solution?
A: If you can’t solve the problem in your local, please send the product to us, we will repair it, then back to you.
Q: What is your payment term?
A:T.T, Western union, etc.
