Horizontal G series transfer tomato paste/mashed potato screw pump

Applicable Medium

G series transfer tomato paste/mashed potato screw pump

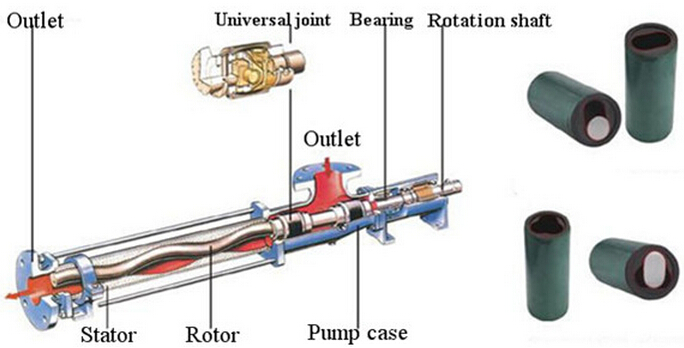

 belongs to the rotor type positive displacement pump, it is depend on the screw meshing with liner on the discharge and suction cavity to conveying liquid volume change.It is a kind of method of pressurized screw pump, a main working parts by bushing has a double helix cavity (stator) and the stator cavity and its meshing single-head screw screw (rotor).When the input shaft through the universal joint drive making planets revolving around the center of the stator, rotor stator, rotor, vice is continuous mesh form sealed cavity, the seal chamber volume invariably uniform axial movement, the medium from the suction end of deputy to the stator, rotor pressure side, the suction medium sealed cavity through the stator without stirring and destruction.

Application

1. Petro-industry

Thickened oil transfer, Oil and gas mix transfer, Oil and water separater and waste oil recovery , system, Sewage treatment, Polymer transfer

2. Chemical Industry and Pharmacy

All kinds of paste matters, All kinds of suspension, All kinds of lactescence, All kinds of liquid which contains gas and solid, All kinds of medium which coule not be mix or cut

3. Environment Engineering

Different sewage delivery, Dewatering sludge deliver, Measuring input of flocculent and chemical preparation, Oil and water separate and waste gas desulfurization

4. Mineral Products Engineering

Water gas equipment and delivery, Productiong equipment of titanium white, kaolin and hydrofoil, Chemical input, Charging and grouting, Electrolyte treatment

5. Food industry

Dairy products, tomato paste ,Juice, puree, vegetable sauce, Meat paste  and condiment, Beer and brewery

6. Papermaking industry

Raw material equipment, Process of coating and tinting, Chemical measuring, Slag and waster water treatment

Features

1. Wide application. It can transfer all flowing medium and non-running material

2. Steady flow and pressure, no pulsation

3. Speed changed, output flow will be changed

4. Strong absorb power, low working noise, no leakage and temperature rising

5. Structure

The general purpose type is the basic design. It applied to all industries in transferring liquid with different viscosity and concentration.

material:#1 cast iron casing,steel screw,food grade rubber lining.

               #2 stainless steel casing and screw,food grade rubber lining.(for high                                requirment food liquid)

Voltage:380V/400V/415V/440V/220V/230V/210V ,50/60HZ,3PHASE.

max temperature:100 degree

speed:150-960rpm, liquid more thick the speed is lower.

Parameter
