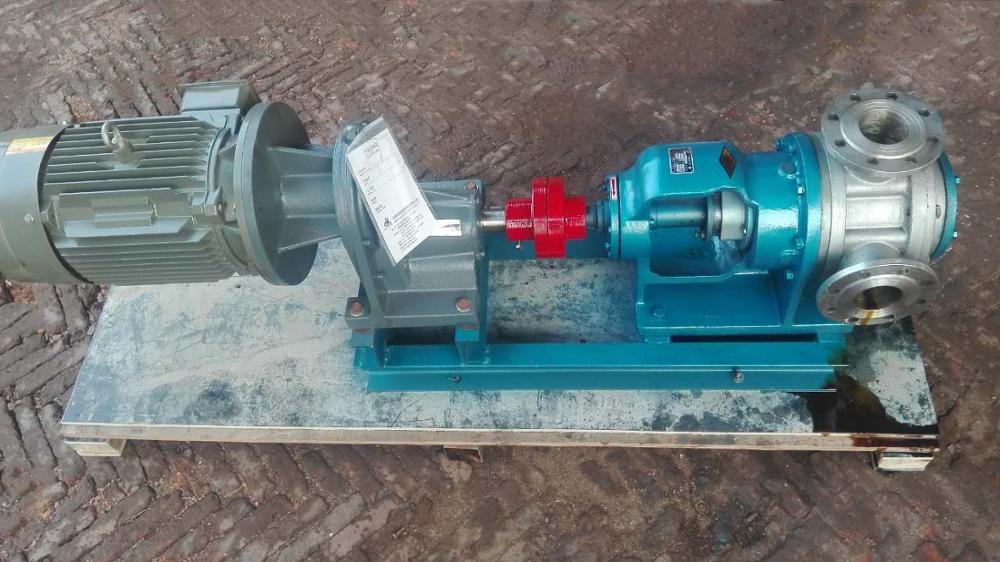

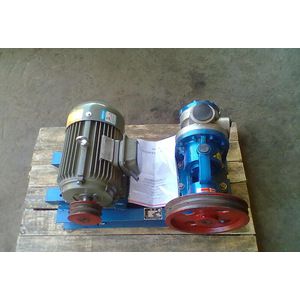

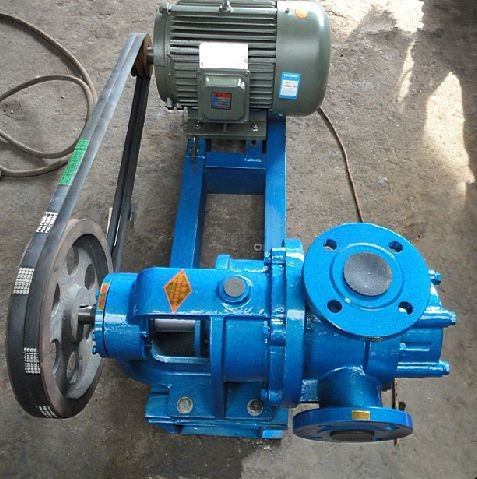

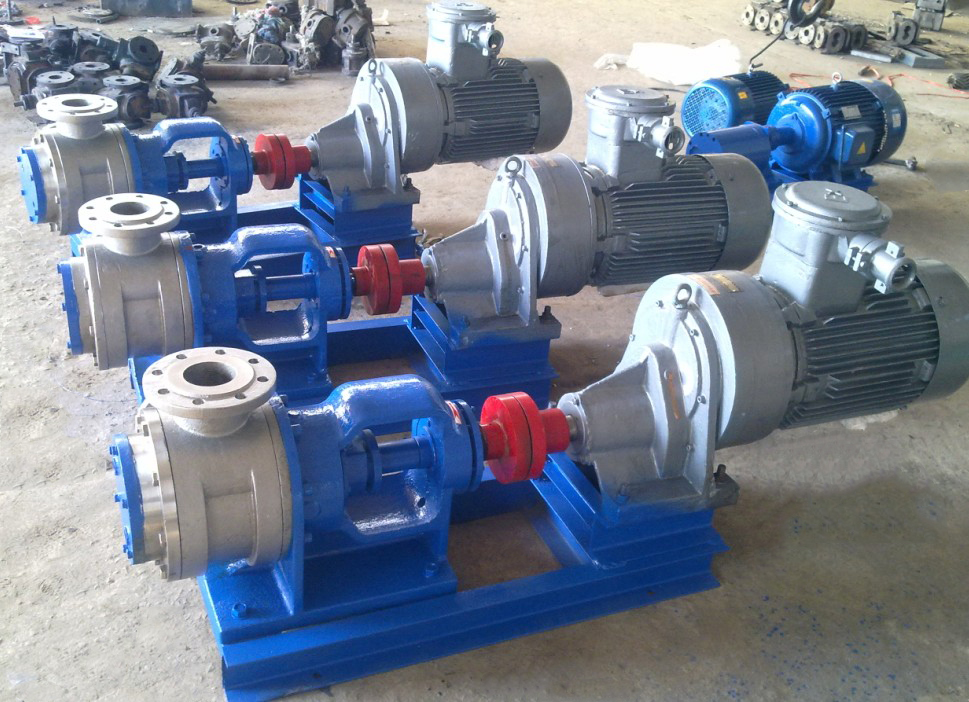

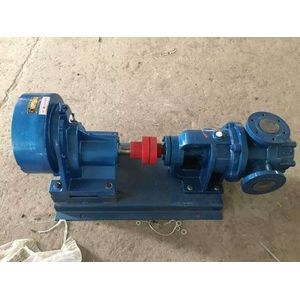

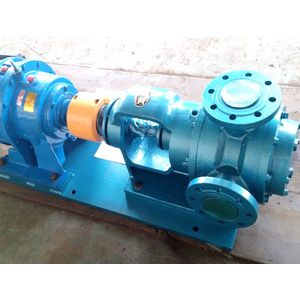

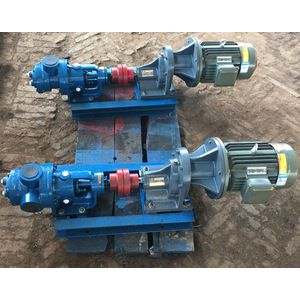

NYP series high viscosity inner ring rotor gear pump from Honghai pump idustry Botou,Hebei,China
Brief introduction
NYP series high viscosity heat insulation pump for paint is a kind of new positive displacement pump, and is designed according to the different fields of petroleum, chemical industry, paint, medicine, foodstuff and so on. It widely applies to a variety of mediums with different property and viscosity because of special structure and selected different pumps' material.
| Capacity | 0.5-100m3/h |
| Pressure | 0.78-1.0mpa |
| Power | 1.5-55kw |
| Speed | 228-960rpm |
| Diameter | 15-150mm |
| Viscosity | 1.0-300000cst |
| Mterial | cast iron,stainless steel |
| Max temperature | 200℃ |
| Seal | packing seal |
| Warranty | one year(normal wear and tear excepted) |
Application scope
(1) Oil industry
(2) Chemical industry
(3) Coating industry
(4) Grease industry
(5) Medicine industry
(6) Food industry
Construction

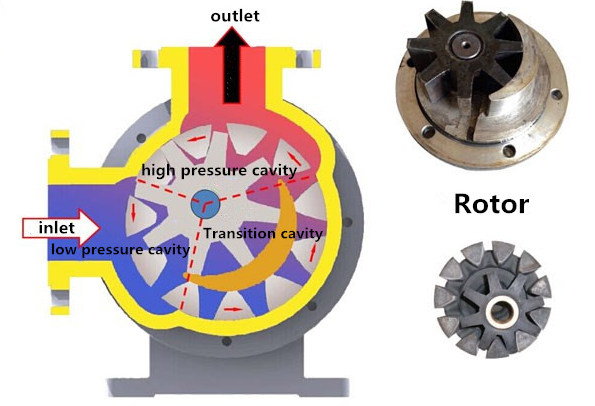

(1) Work Principle
Driving gear (outside rotor) with internal tooth drives the internal rotor and turns in same direction in the full closed pump body. The pump casing and crescent of the front cover separate the inlet from the outlet. When it turns, negative pressure formed at the suction port, the liquid inhaled and being take to the outlet by rotor, then the liquid is expelled from the discharge port as the gears mesh, The transportation of liquid finished.

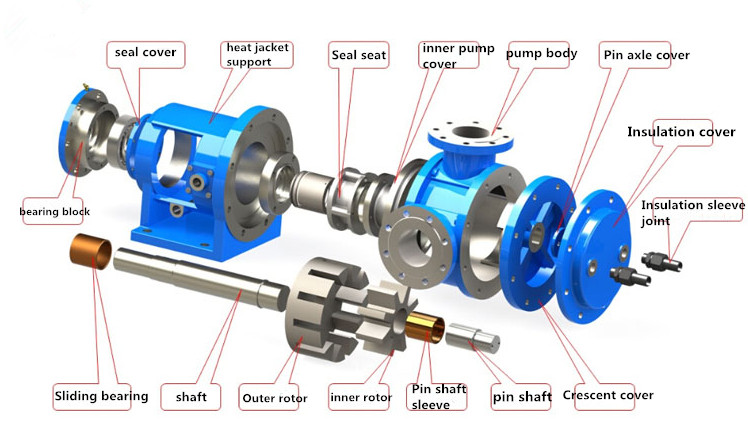

(2)Structure Feature
The pumps are mainly composed of internal rotor, outside rotor, shaft, pump casing, front cover, seal, bearing, etc.
Performance Dates
NYP cast iron material rotor pump:
NYP stainless steel material rotor pump:
If you need more information,please feel free to contact me at any time.
