Product Description
Product Model Meaning of SJB Series Starch pump, transfer pump, rotary lobe pump:
Such as : SJB80-50-200A
SJB --Mortar series centrifugal pump
80-- inlet diameter (mm)
50 --outlet diameter (mm)
200 --nominal impeller diameter (mm)
A/B/C is separately represents that impeller diameter is trimmed by the first time, the second time and the third time.
| Product Name | SJB Series Starch pump, transfer pump, rotary lobe pump |
| Flow | 50m3/h |
| Head | 50m |
| Rotation | 2900r/min |
| Medium Temperature | <150 degree |
| Power | 18.5KW |
| Efficiency | 80% |
| Pressure | High pressure |
| Overflow Material | UHMWPE |
| Impeller Material | Plastic/ UHMWPE/Stainless steel |
| Pump Casing Material | Iron |
| Solid-Containing Content | 40% |
| Medium | Acidic or alkaline medium |
Advantage of SJB Series Starch pump, transfer pump, rotary lobe pump
1. All the flow-through components of the pump are made of non-metallic materials with high mechanical strength, wear resistance and corrosion resistance. It is molding at one time after high temperature and high pressure.
2. The shell is made of pressure resistant, impact resistant high quality A3 steel
3. All mechanical seals are made of pressureless sintered silicon carbide with the best wear resistance and best resistance. The mechanical seal system has unique technology and long service life.
Certifications of SJB Series Starch pump, transfer pump, rotary lobe pump
Company Information
Jiangsu Yamei Pump Group
Our company integrates mechanical processing, hot and cold machining, investment casting, research and production together. We have complete production equipment, physical and chemical tests and inspection methods. The max high voltage test can reach 380V 10KW and the max power can reach 800KW.
There are 6 workshops and six department, specializing in the production of "Yamei" Brand stainless steel corrosion, wear-resistant chemical centrifugal pump and non-metallic fluorine plastic pump. The main materials are 321, 316, 316L, CD4Mcu, 304, 304L, 904, K alloys, T, Hastelloy, UHMWPE, F46, etc which suitable for the transportation of acids, alkalis, salts and other media under various working conditions
Pump Test
Work Shop
Structure Chart
Detailed structure of SJB Series Pneumatic Concentrated Acid Chemical Pump.
1. Pump body ring 2. Pump shell 3. Pump body 4. Impeller 5. Pump cover 6. Static ring base 7. Spring base 8. Seal cover
9. Front bear cover 10. Bear 11. Support 12. Butter nozzle 13. Back bear cover 14. Mechanical seal ring 15. Mechanical seal static ring 16. Spring 17. Seal 18. Stop nut 19. Axis 20. Framework oil seal

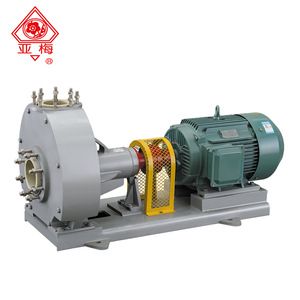

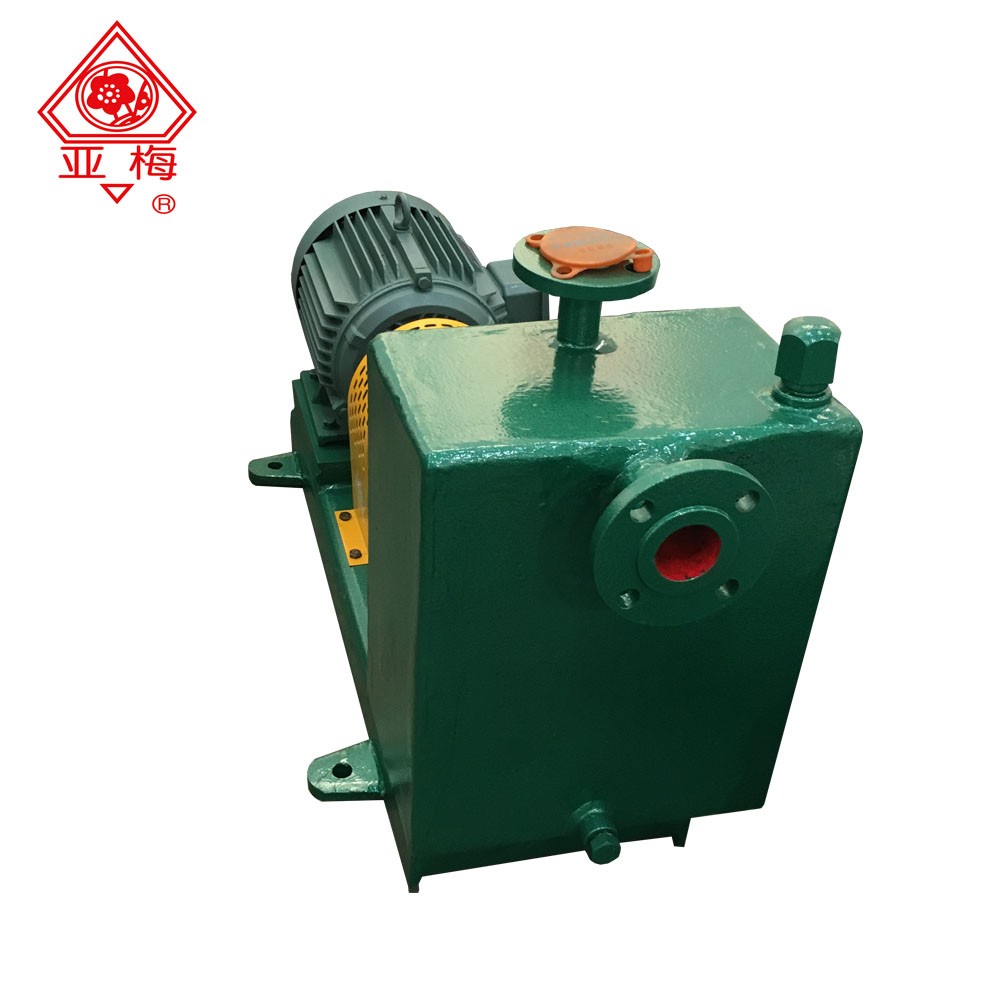

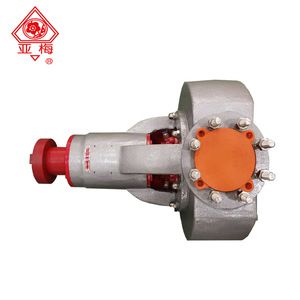

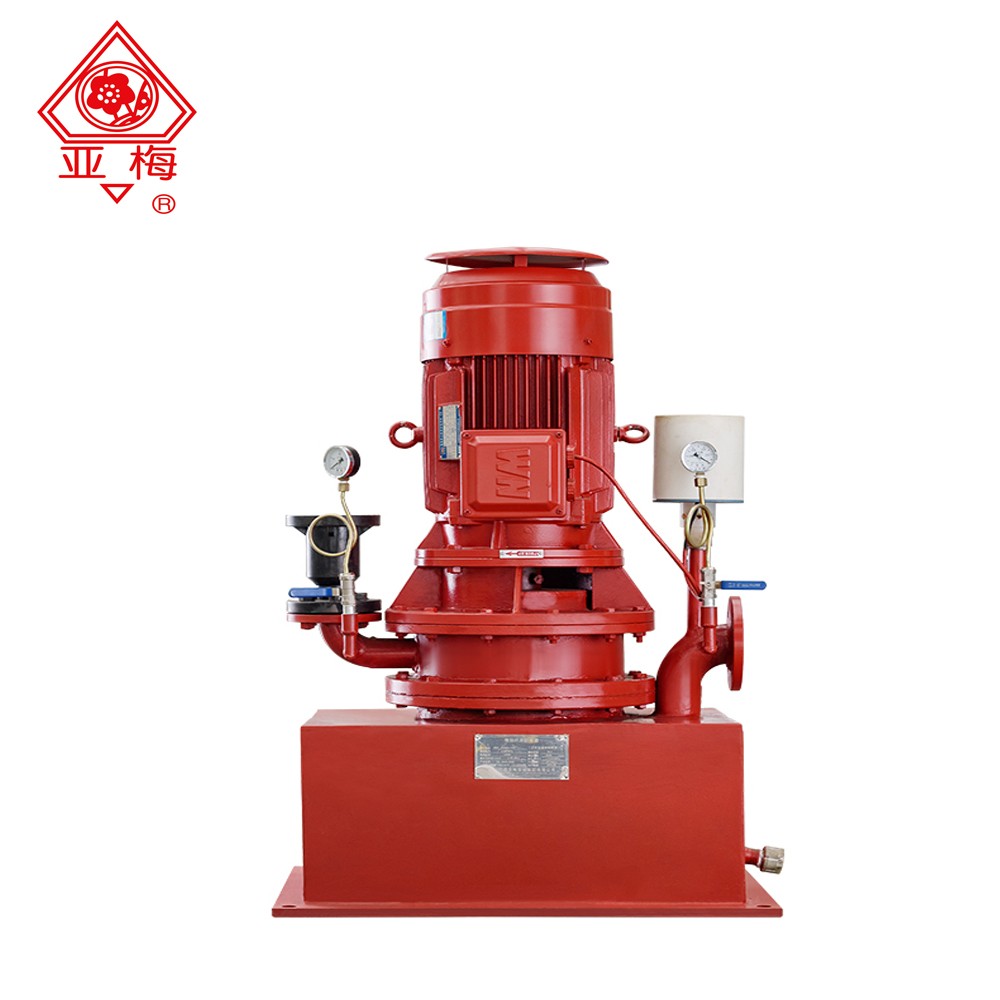

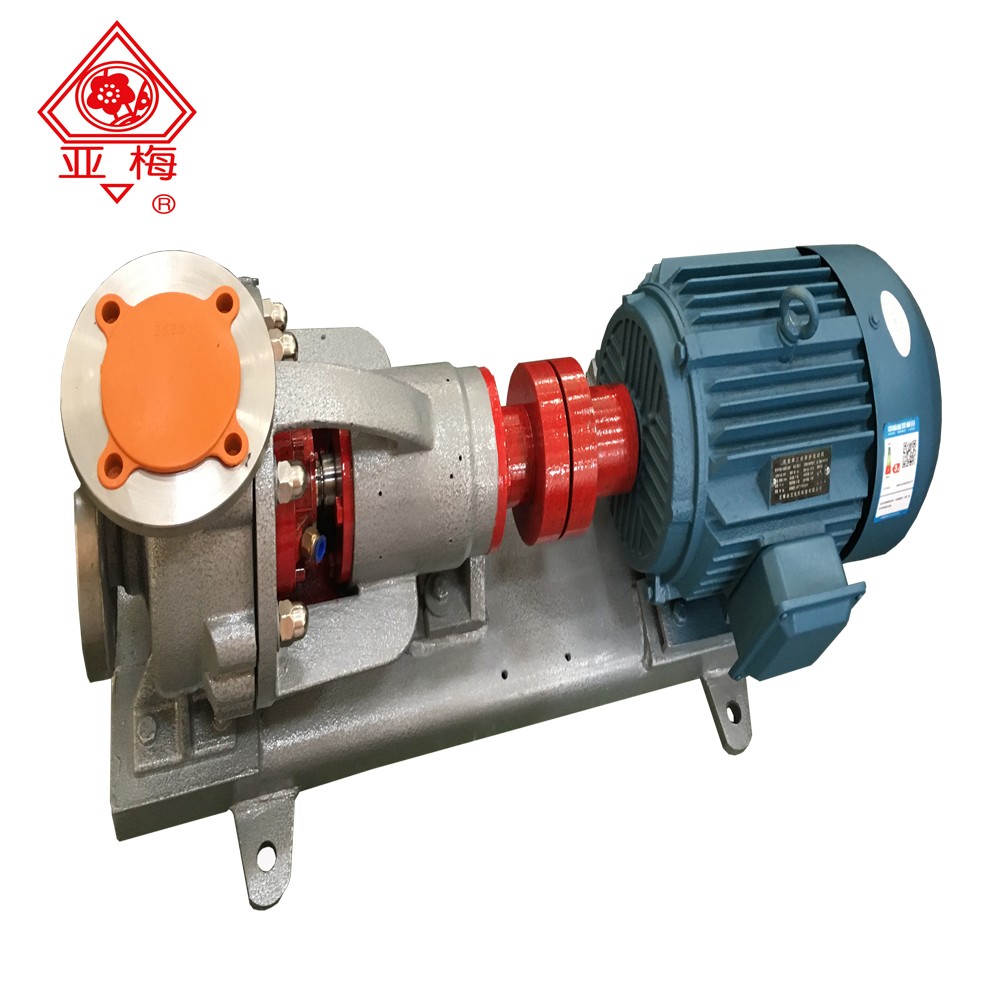

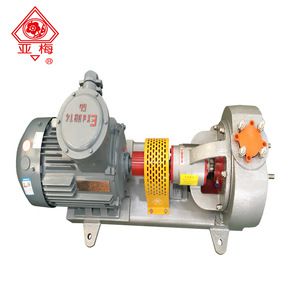

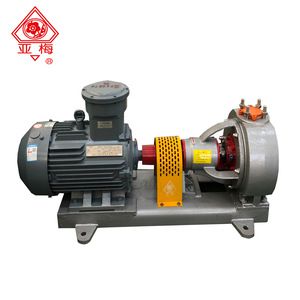

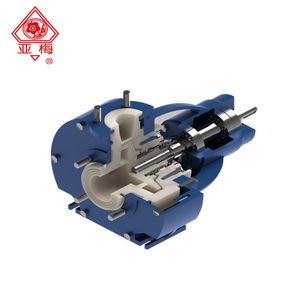

Detailed Images
Deatailed pictures show of SJB Series Starch pump, transfer pump, rotary lobe pump
For further detailed pictures or e-catalogue of our centrifugal pump, pls click here to contact us!

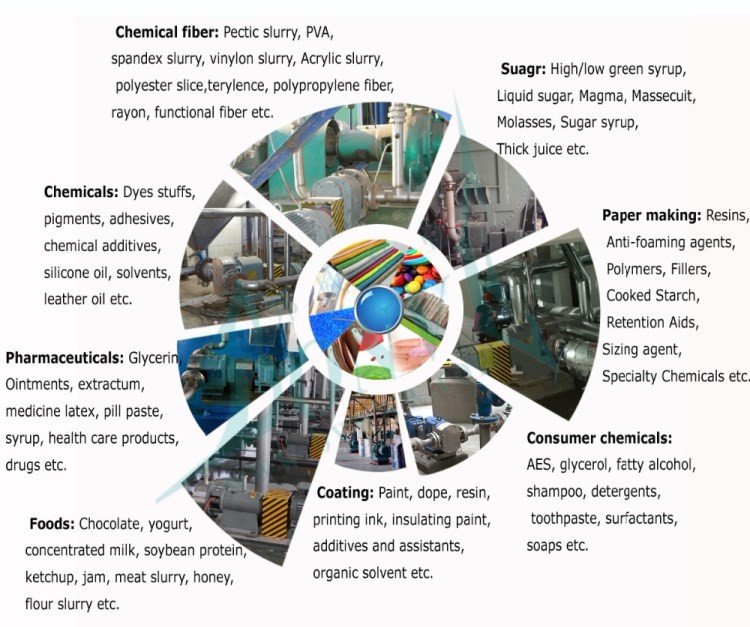

Application
Packing & Delivery
package for SJB Series Starch pump, transfer pump, rotary lobe pump
HS code: 8413709990
Package:
Standard wood package.
Each pump will be put into one bubble, sealed box and packed the bo by packing belt.
OEM package:
Name plate can be changed as your instruction and packing design as your OEM design
Standard wood package.
Each pump will be put into one bubble, sealed box and packed the bo by packing belt.
OEM package:
Name plate can be changed as your instruction and packing design as your OEM design
