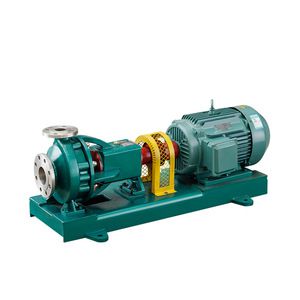

Product Description
Product name:
acid grain pump
Such as : SJB80-50-200A
SJB --Mortar series centrifugal pump
80-- inlet diameter (mm)
50 --outlet diameter (mm)
200 --nominal impeller diameter (mm)
A/B/C is separately represents that impeller diameter is trimmed by the first time, the second time and the third time.
Product Name | acid grain pump |
Flow | 50m3/h |
Head | 50m |
Rotation | 2900r/min |
Medium Temperature | <150 degree |
Power | 18.5KW |
Efficiency | 80% |
Pressure | High pressure |
Overflow Material | UHMWPE |
Impeller Material | Plastic/ UHMWPE/Stainless steel |
Pump Casing Material | Iron |
Solid-Containing Content | 40% |
Medium | Acidic or alkaline medium |
Advantage of acid grain pump
1. All the flow-through components of the pump are made of non-metallic materials with high mechanical strength, wear resistance and corrosion resistance. It is molding at one time after high temperature and high pressure.
2. The shell is made of pressure resistant, impact resistant high quality A3 steel
2. The shell is made of pressure resistant, impact resistant high quality A3 steel
3. All mechanical seals are made of pressureless sintered silicon carbide with the best wear resistance and best resistance. The mechanical seal system has unique technology and long service life.

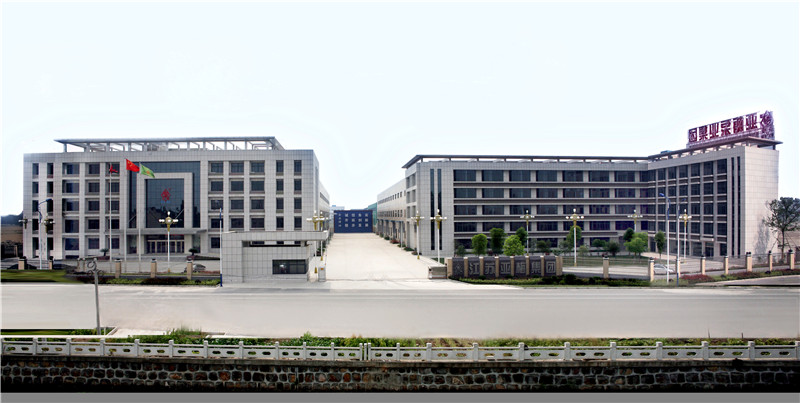

Company Information
Jiangsu Yamei Pump Group
Our company integrates mechanical processing, hot and cold machining, investment casting, research and production together. We have complete production equipment, physical and chemical tests and inspection methods. The max high voltage test can reach 380V 10KW and the max power can reach 800KW.
There are 6 workshops and six department, specializing in the production of "Yamei" Brand stainless steel corrosion, wear-resistant chemical centrifugal pump and non-metallic fluorine plastic pump. The main materials are 321, 316, 316L, CD4Mcu, 304, 304L, 904, K alloys, T, Hastelloy, UHMWPE, F46, etc which suitable for the transportation of acids, alkalis, salts and other media under various working conditions.

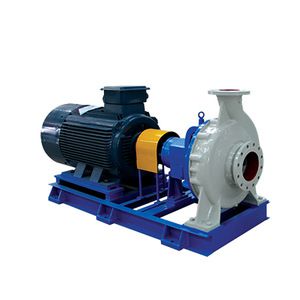

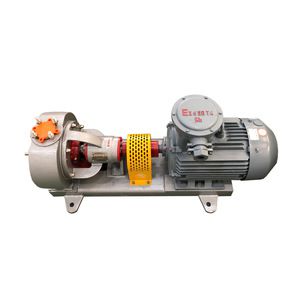

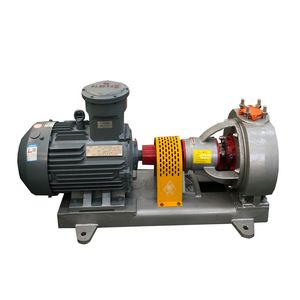

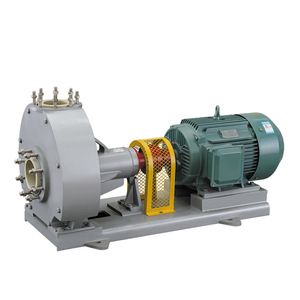

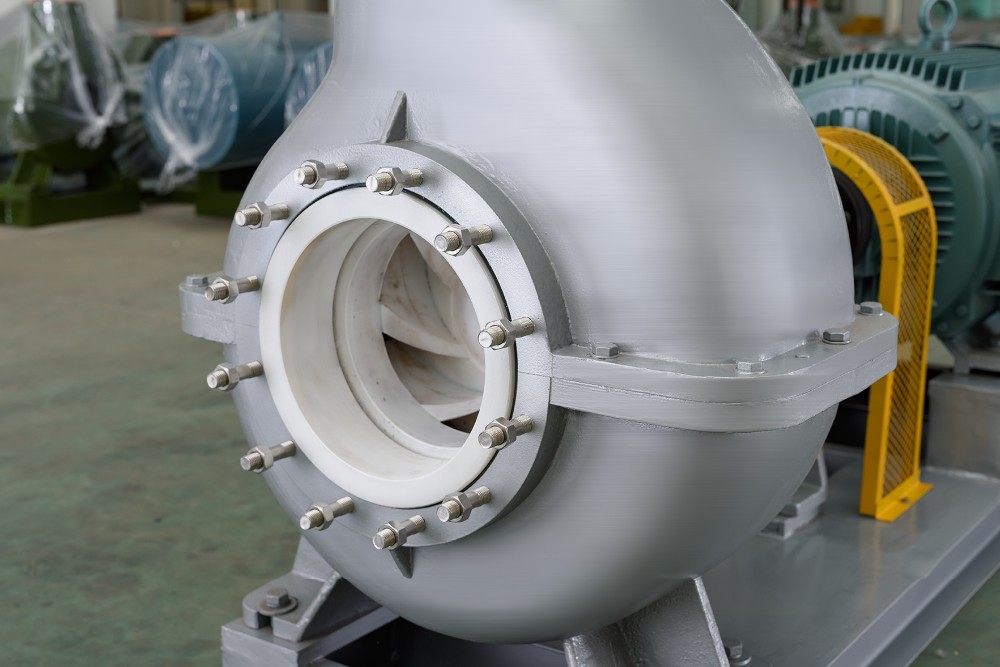

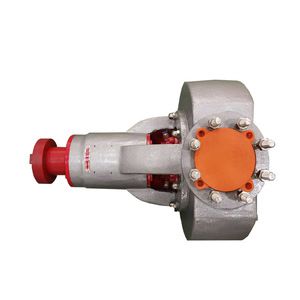

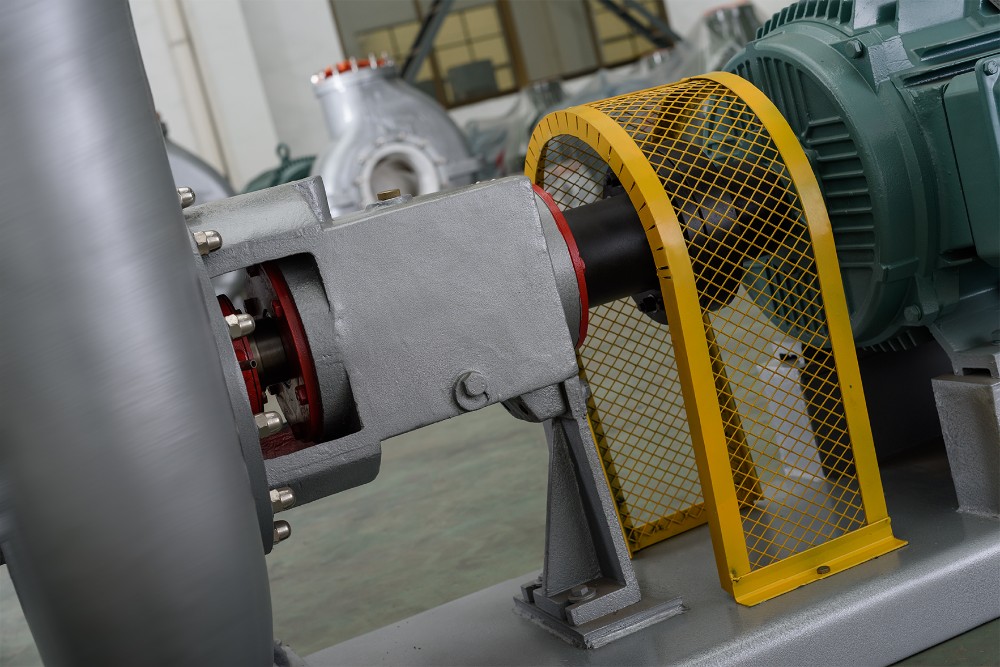

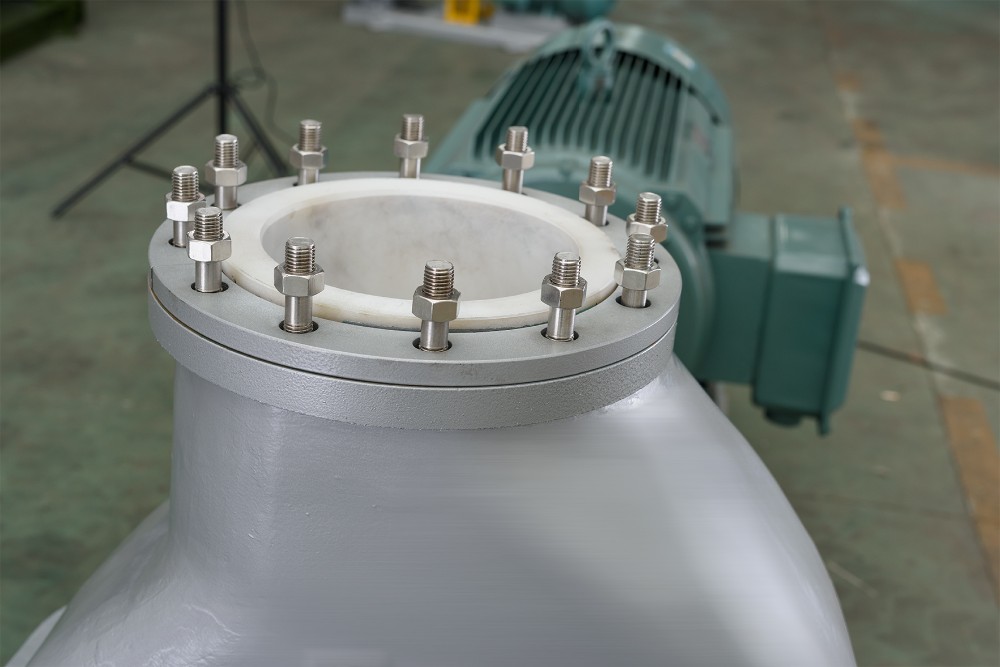

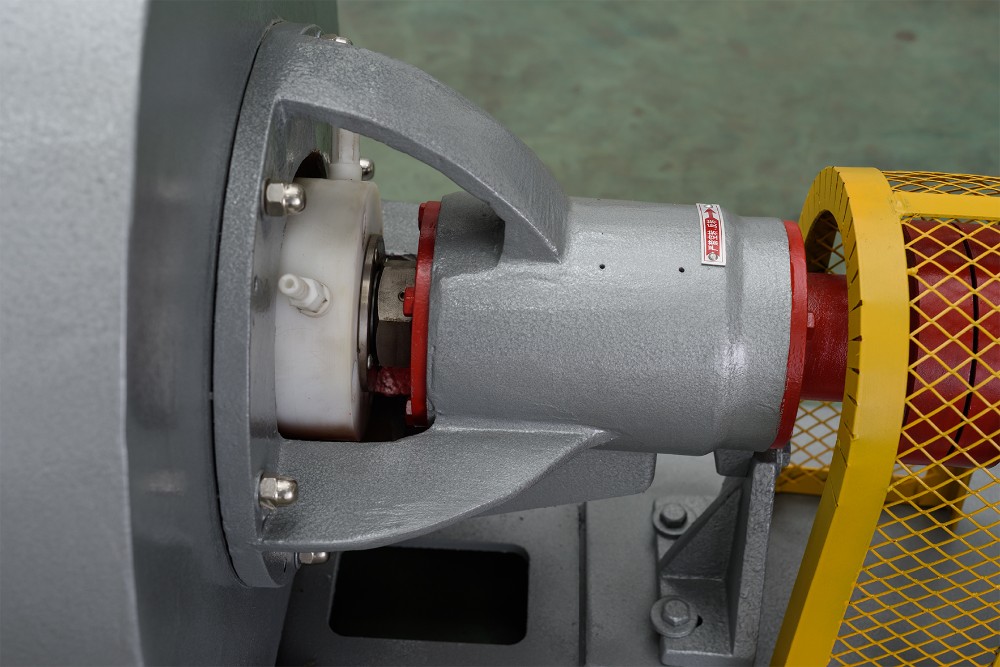

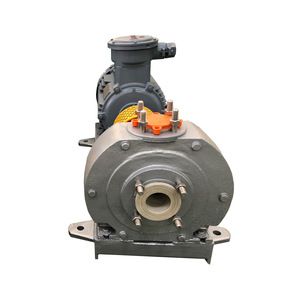

Detailed Images
Detailed pictures of acid grain pump will helps you know more about our pump

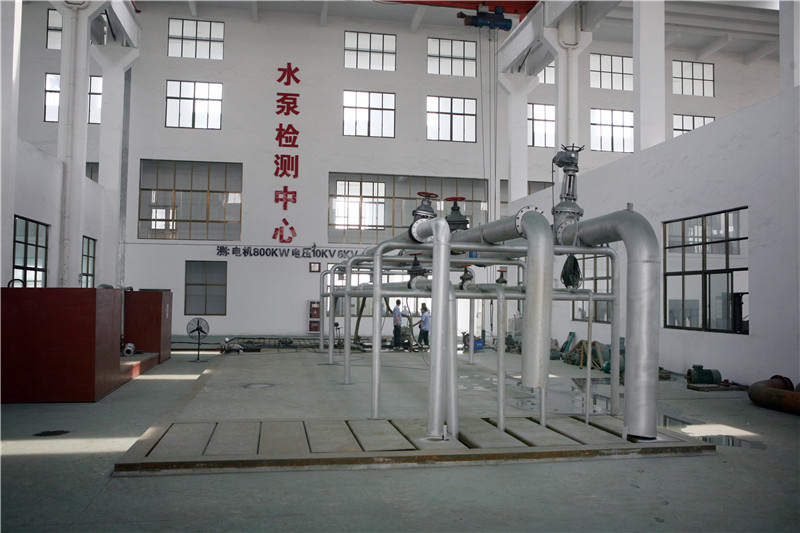

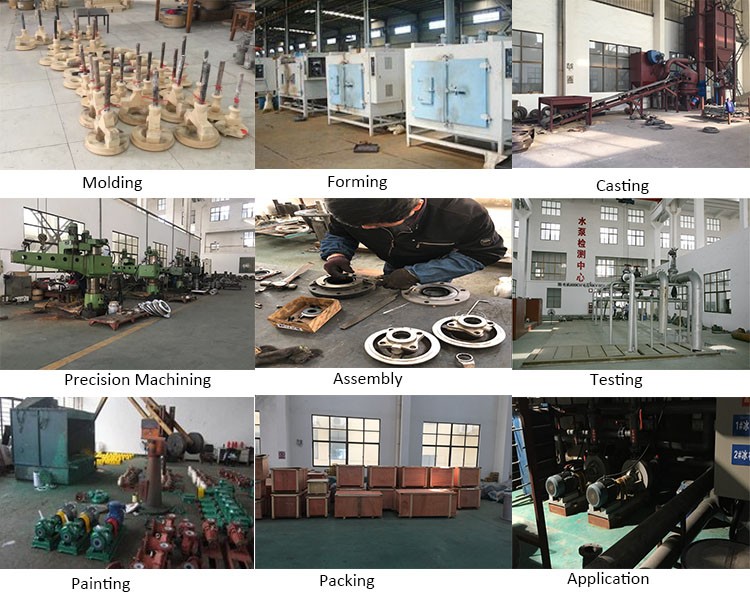

Producing Process
The whole producing process of acid grain pump

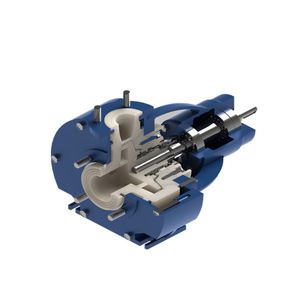

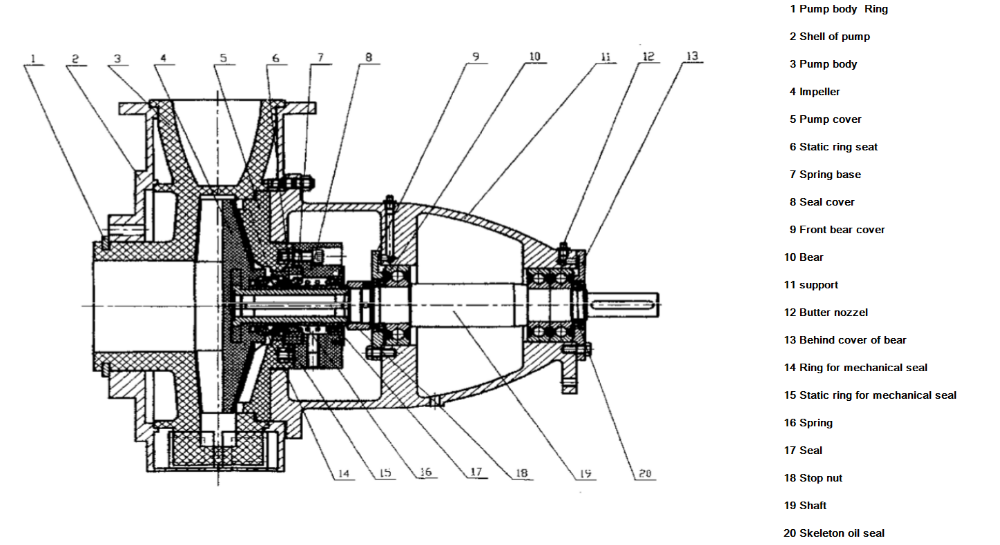

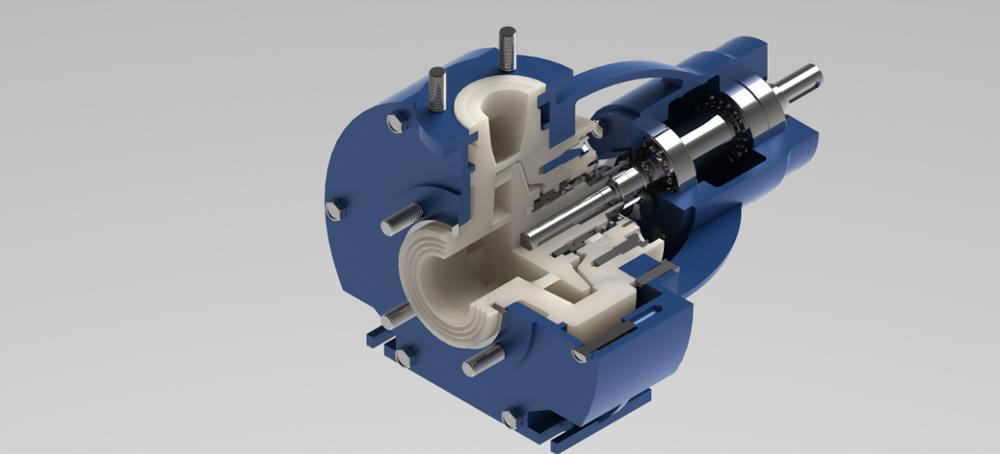

Structure
Application
Application of acid grain pump
The pump is widely used for the transportation of medium (including solids below 40%) which contains hard/soft solid particles of acids, alkalis, including hydrofluoric acid, strong, oxidants and organic solvents. The temperature of medium should below 120 centigrade.
It is especially suitable for the transportation of iron oxide skin liquid, mud slurry, coal residue liquid, lime residue liquid, and titanium white liquid, and is also suitable for use in pickling line, acid regeneration in the metallurgical industry, neutralization station and degreasing, and molybdenum mining industry.

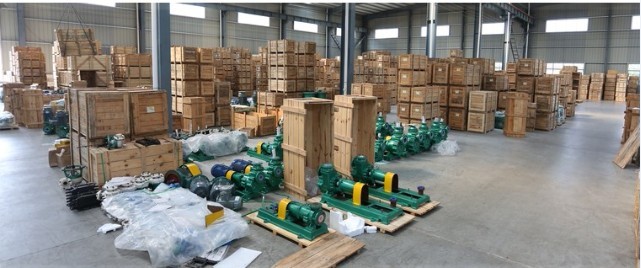

Package
Package of SJB Series acid grain pump
HS code: 8413709990
Package:
Standard wood package.
Each pump will be put into one bubble, sealed box and packed the bo by packing belt.
OEM package:
Name plate can be changed as your instruction and packing design as your OEM design
Standard wood package.
Each pump will be put into one bubble, sealed box and packed the bo by packing belt.
OEM package:
Name plate can be changed as your instruction and packing design as your OEM design
Contact
If you need e-catalogue or more detailed information about acid grain pump, pls contact us freely!
China
