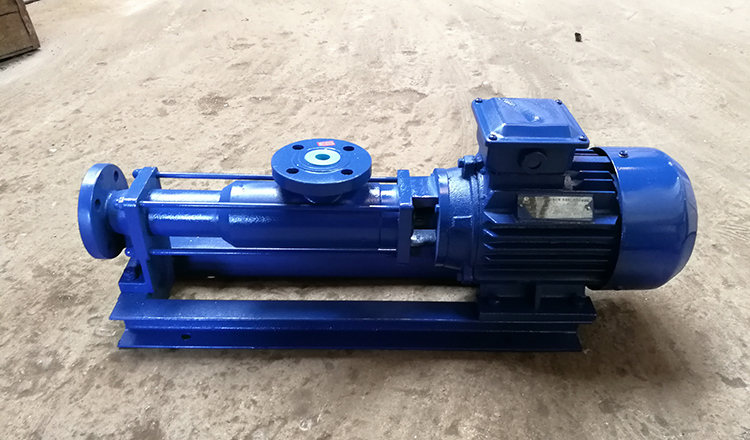

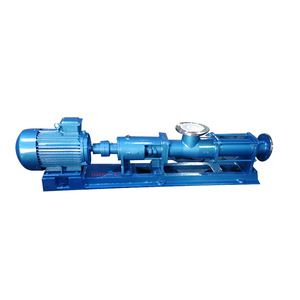

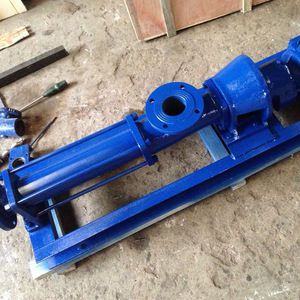

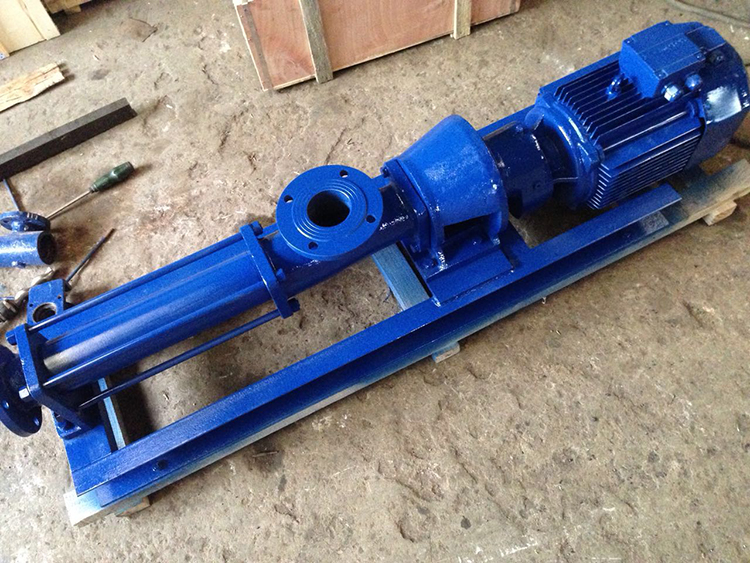

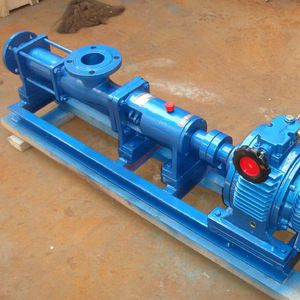

China suppliers wholesale Starch paste transfer screw pump

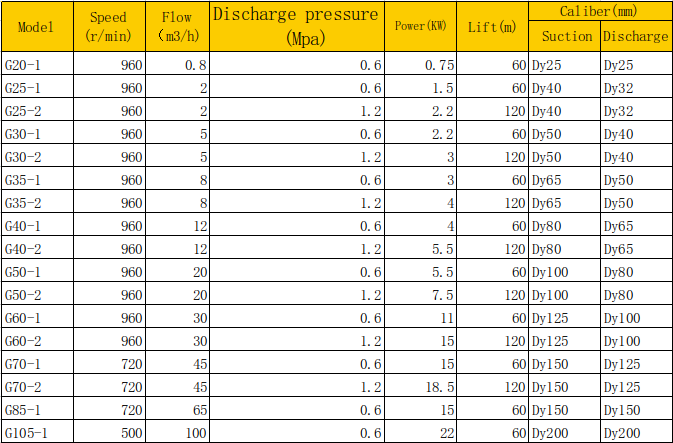

| Flow | 8m3/h |
| Lift | 60m |
| Pressure | 0.6MPa |
| Feature | Low Noise |
| Material | Cast iron |
| Type | Horizontal |
| Voltage | 220V/380V |
| Motor | AC Motor/DC Motor |
| Warranty | One Year |
| Color | Customer Specifications |

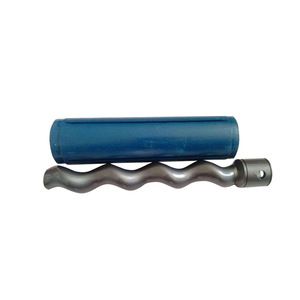

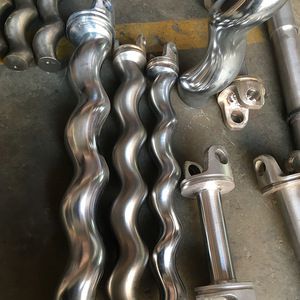

The single-screw pump is a kind of rotary positive-displacement pump with inner gearing. Its main working parts include eccentric screw (rotor) and fixed bush (stator). Due to special geometric shapes of the rotor and the stator, several separate seal cavities come into being respectively. The rotation of the rotor drives the transfer of media in all seal cavities from the suction end to the extrusion end continuously at a constant speed with the same volume. By right of these characteristics,the single-screw pump is especially suitable for the following working conditions:
1). Transfer of very viscous media;
2). Transfer of media containing solid grains or fiber;
3). Requiring continuous operation, stable pressure and no regular pressure fluctuation;
4). Requiring small agitation and no damages to the inherent structure of transferred media;
5). Low noise.
The pump seal adopts packing seal or mechanical seal. When the delivered medium is high temperature, high vise or strong corrosion, packing seal should be adopted.When the delivered medium is easy crystalline, we can design the heat preservation jacket in pump casing and front cover in order to melt the medium with steam when working. The pump can be also fitted with the safety valve.
Q. Are you manufacturer or trading company ?
A. We are manufacturer 20 years old.
Q. What is MOQ?
A. 1pc for regular products.
Q. How long is the warranty?
A. One year (expect normal wearing and tearing)
Q.Why choose us?
A.20 years old manufacturer,and 6 yeas experience external trade.
Q.How to request a manufacturing quotation ?
A.Give us a call or send us an E-mail with your purchase request.
Q.What are your quality control procedures?
A.we have equipped with high-tech, advanced computerized and self-inspection mechanics,manufactures thousands of different parts in house to ensure the built-in quality and dependable performance. This is the reason why we are recognized as on the world class quality level.
