It belongs to positive displacement pump and has the advantages of outstanding self-priming ,high efficiency and long life .It applies to delivering suspension liquid with soft solid particles,corrosive medium and suspension liquid. The delivered medium temperature range from-33℃to +180℃ and visosity range from 30cSt to 1.0*10.5 scst. The parts of contact with medium adopt stainless steel . The rotating speed can be adjusted according to the delivered medium/s physical property.

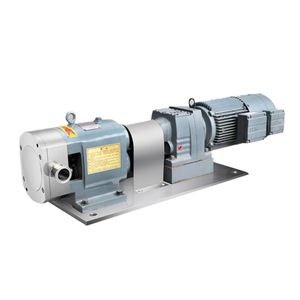

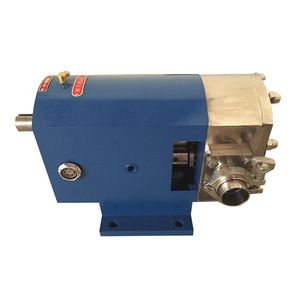

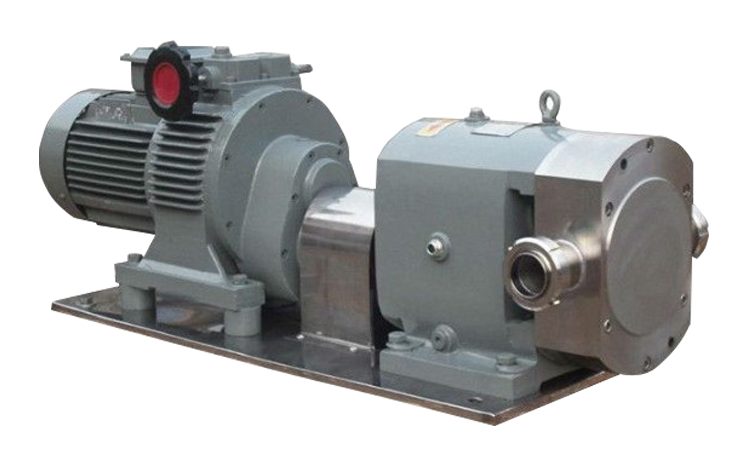

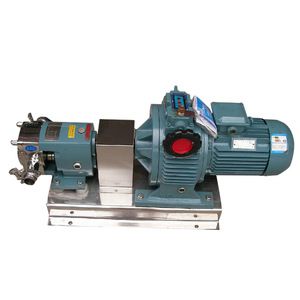

| Product name | high viscosity 3RP packing seal corn dough transfer pump |
| Voltage | 380V |
| Color | Customer Specifications |
| Feature | Eco-Friendly |
| Temperature | -30~180℃ |
| Material | Stainless Steel 304 |
| Texture of material | Stainless Steel or cast iron |
| Warranty | One year |
| Link mode | Reducer |
| Certification | SGS |
| Performance | No leakage / wear-resistance / sanitation |
| Model | Link Calibre(mm) | Rated Pressure (Mpa) | Rated Flow (m3/h) | Rated Power (kw) |
| 3RP0.5/1.0 | 25 | 1.0(1.6) | 0.5 | 0.75 |
| 3RP1.0/1.0 | 40 | 1.0(1.6) | 1 | 1.1 |
| 3RP2.0/1.0 | 40 | 1.0(1.6) | 2 | 1.5 |
| 3RP4.0/1.0 | 65 | 1.0(1.6) | 4 | 3 |
| 3RP5.0/1.0 | 65 | 1.0(1.6) | 5 | 4 |
| 3RP6.0/1.0 | 65 | 1.0(1.6) | 6 | 4 |
| 3RP7.0/1.0 | 65 | 1.0(1.6) | 7 | 4 |
| 3RP8.0/1.0 | 80 | 1.0(1.6) | 6 | 5.5 |
| 3RP10.0/1.0 | 80 | 1.0(1.6) | 10 | 5.5 |
| 3RP12.0/1.0 | 80 | 1.0(1.6) | 12.5 | 7.5 |
| 3RP16.0/1.0 | 80 | 1.0(1.6) | 16 | 7.5 |
| 3RP20.0/1.0 | 100 | 1.0(1.6) | 20 | 11 |
| 3RP24.0/1.0 | 100 | 1.0(1.6) | 24 | 11 |
| 3RP32.0/1.0 | 100 | 1.0(1.6) | 32 | 15 |
| 3RP40.0/1.0 | 100 | 1.0(1.6) | 40 | 15 |
| 3RP50.0/1.0 | 125 | 1.0(1.6) | 50 | 18 |
| 3RP60.0/1.0 | 150 | 1.0(1.6) | 60 | 22 |
| 3RP80.0/1.0 | 200 | 1.0(1.6) | 80 | 40 |
| 1. The food industry |
| Products of yogurt, ice cream, cheese, soft drinks, jelly, tomato sauce, oil, syrup, chocolate and so on. |
| 2. Daily use of chemicals |
| Cleansing milk, hair gel, hair dye, toothpaste, shampoo, shoe oil, cosmetics, etc. |
| 3. Pharmacy |
| Nutrient solution, Chinese patent medicine, medicine fat, biological products and so on. |
| 4. Chemical industry |
| Fat, solvent, resin, paint, pigment, oil and so on. |
| 5. Other industries |
| The construction industry, the plastic industry, the textile industry, the coal flotation agent and so on. |
Q. Are you manufacturer or trading company ?
A. We are manufacturer 20 years old.
Q. What is MOQ?
A. 1pc for regular products.
Q. How long is the warranty?
A. One year (expect normal wearing and tearing)
Q.Why choose us?
A.20 years old manufacturer,and 6 yeas experience external trade.
Q.How to request a manufacturing quotation ?
A.Give us a call or send us an E-mail with your purchase request.
Q.What are your quality control procedures?
A.we have equipped with high-tech, advanced computerized and self-inspection mechanics,manufactures thousands of different parts in house to ensure the built-in quality and dependable performance. This is the reason why we are recognized as on the world class quality level.
