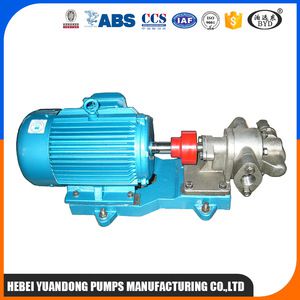

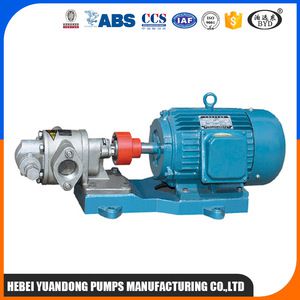

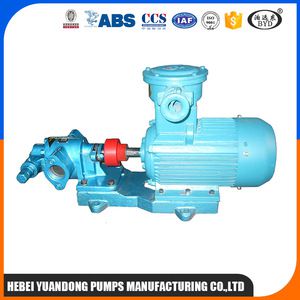

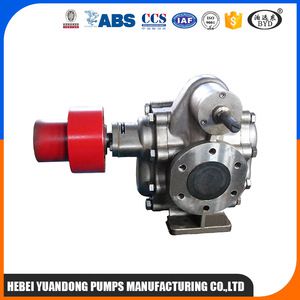

kcb55 stainless steel external electric corn oil transfer rotary gear pump

The active / passive gear after high temperature quenching, ion carburizing lime chloride.

Technical Feature

  • Hebei, China (Mainland)
  • BYD
  • KCB-55
  • Rotary Pump
  • Gear Pump
  • Oil
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$8~80

PRIMARY PARAMETERS

Place of Origin
Hebei, China (Mainland)
Brand Name
BYD
Model Number
KCB-55
Theory
Rotary Pump
Structure
Gear Pump
Usage
Oil
Power
Electric
Standard or Nonstandard
Standard
Fuel
oil
Pressure
0.33-1.45 Mpa
Application
all industrial fields
Product name
gear pump
Material
Cast Iron/Stainless Steel
Voltage
380V
Certificate
ISO CCS ABS
Color
Green,Customer Specifications
Speed
1420r/min
Feature
High Efficiency
Temperature
-10-150 degrees
Flow Capacity
55L/min
Viscosity
5-1500cst

DETAIL DESCRIPTION

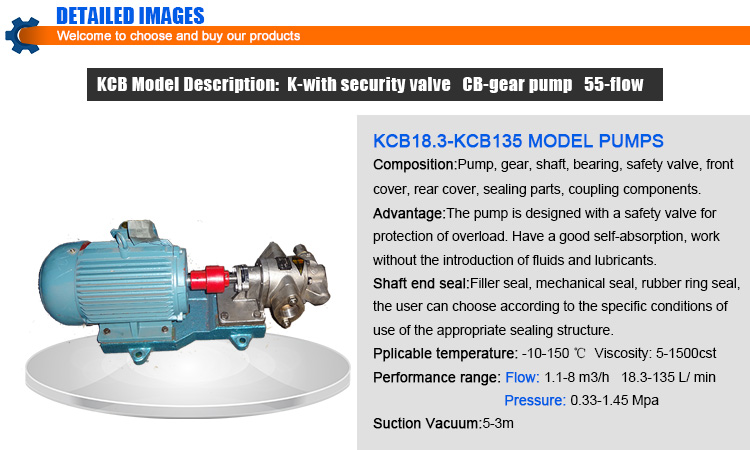

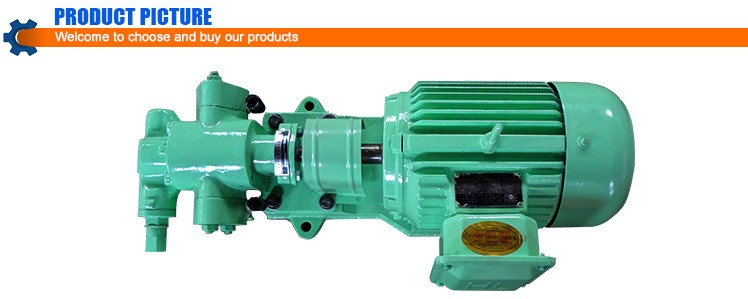

kcb55 stainless steel external electric corn oil transfer rotary gear pump

Product Description



ModelFlow Capacity

Discharge Pressure

Mpa

Suction Vacuum

m

Efficiency

%

Port size

mm

Speed

r/min

Motor
m³/hL/minKWModel
KCB-18.3 1.1   18.3  1.45  3  44  G¾″  1400  1.5  Y90L-4
2CY-1.1/1.45
KCB-33.3   2  33.3  1.45  3  44  G¾″  1400  2.2  Y100L1-4
2CY-2/1.45
KCB-55  3.3  55  0.33  3  41  G1″  1420  1.5  Y90L-4
2CY-3.3/0.33
KCB-83.3   5  83.3  0.33  3  43  G1½″ 1420   2.2  Y100L1-4
2CY-5/0.33
KCB-135   8  135  0.33  3  46  G2″  1440  4  Y112M-4
2CY-8/0.33



ModelFlow Capacity

Discharge Pressure

Mpa

Suction Vacuum

m

Efficiency

%

Port size

mm

Speed

r/min

Motor
m³/hL/minKWModel

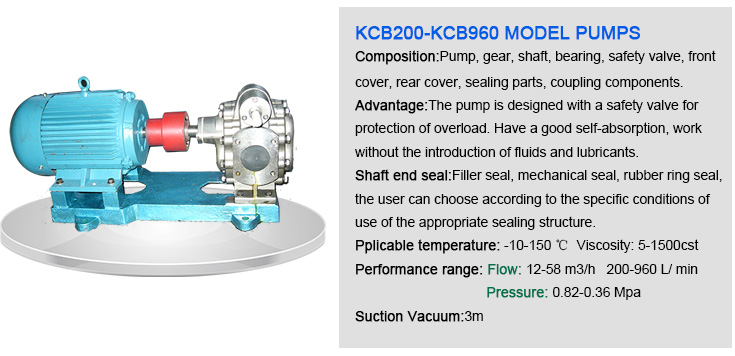

KCB-200122000.33346Φ5014404Y112M-4
2CY-120/0.335.5Y132S-4
KCB-300183000.36342Φ709605.5Y132M2-6
2CY-18/0.36
KCB-483.329483.30.36342Φ7014407.5Y132M-4
2CY-29/0.36146011Y160M-4
KCB-633386330.28343Φ10097011Y160L-6
2CY-38/0.28
KCB-960589600.28343Φ100147018.5Y180M-4
2CY-58/0.2822Y180L-4





ModelFlow Capacity

Discharge Pressure

Mpa

Suction Vacuum

m

Efficiency

%

Port size

mm

Speed

r/min

Motor
m³/hL/minKWModel

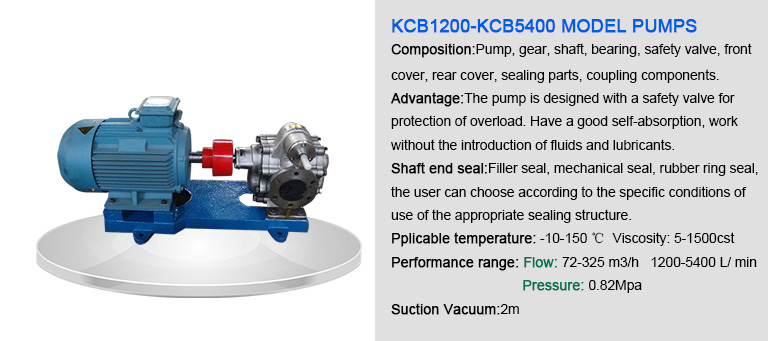

KCB-12007212000.6242Φ15074037Y280S-8
KCB-160096160098045Y280S-6
KCB-180011018000.6243Φ20074055Y315S-8
KCB-2500150250098075Y315S-6
KCB-285017128500.6244Φ25074090Y315L1-8
KCB-38002283800980110Y315L1-6
KCB-410024641000.6244Φ250740132Y355M1-8
KCB-54003245400980160Y355M1-6

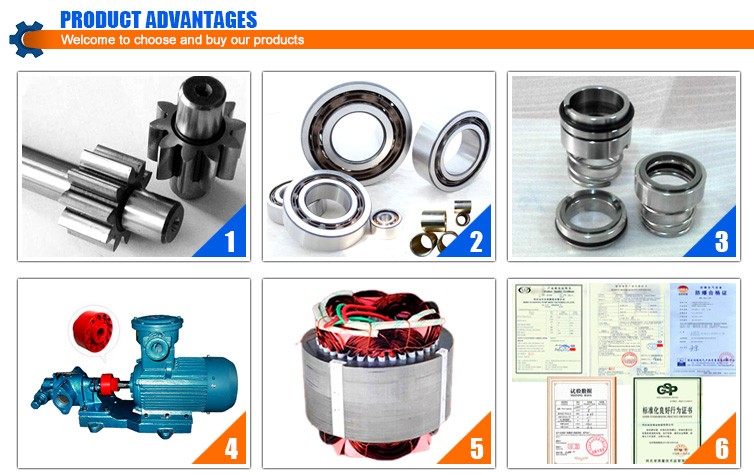

1.Driving Gear Passive Gear
The active / passive gear after high temperature quenching, ion carburizing lime chloride. Gear has a stronger hardness, wear resistance, high temperature resistance, etc.. Can extend the service life of the gear.
2.High Temperature Bearing
High temperature bearings can bear larger load torque, under high temperature, good stability, high bearing capacity, withstand high temperatures. Wear small, long life. Yuandong gear KCB18.3-KCB83.3 is the sliding bearing, KCB200 above is the rolling bearing.

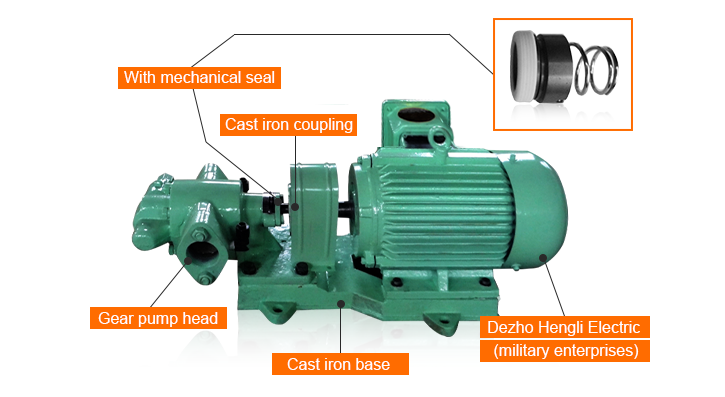

3.Mechanical Seal
Carbide mechanical seal, with good heat resistance and impact resistance, friction coefficient is small, self lubricating performance, reliable performance, no leakage, high temperature resistance, wear resistance, corrosion resistance.
4.Integral Coupling
Yuandong high temperature gear pump uses the integral coupling, safe and reliable, the concentricity is good, the service life is long, under the heavy load operation bears the torque ability to be strong.
5.100% Copper Motor
Yuandong gear pump matching 100% copper motor, stable operation, low calorific value, output power standards, long service life.
6.Certificate of Inspection
Yuandong out of the factory every gear pump has been strictly tested, and equipped with a certificate, manual, test data report, the ship with the Chinese classification society CCS certificate.

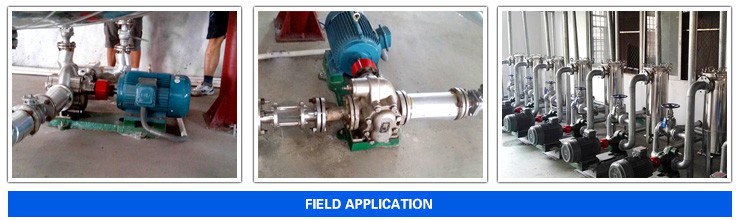

Application

KCB type gear pump is suitable for transporting heavy oil, mechanical oil, fuel oil and solid material, fiber, oil, chemical products, etc.. The pump is equipped with a safety valve to prevent damage to the pump and motor caused by overload.

Product testing

Detection equipment has a universal tool microscope, involute detector, optical projectors, universal gear measuring instrument, pulse glow plasma nitriding furnace and other large-scale testing equipment, and has a national B test station.

Packaging & Shipping

Company Information

1 Hebei Yuandong Pump Manufacturing Co.,Ltd  was founded in 1984, covers an area of 38650 square meters, construction area of 20300 square meters.

2 The company passed the ISO ,CCS,BV,ABS certification, become oil material resources market member, Sinopec material resources market member, marine pump products manufacturing enterprises.

3 companies to "Boyuandong" brand gear pump, screw pump as the leading products, involving 21 series, more than 4200 kinds of specifications, annual production capacity of up to more than 43 thousand units.

4 Product marketing oil, chemical, electric power, shipbuilding, metallurgy, food and other major industries.

5 Products exported to Southeast Asia, America, Europe and other countries.
