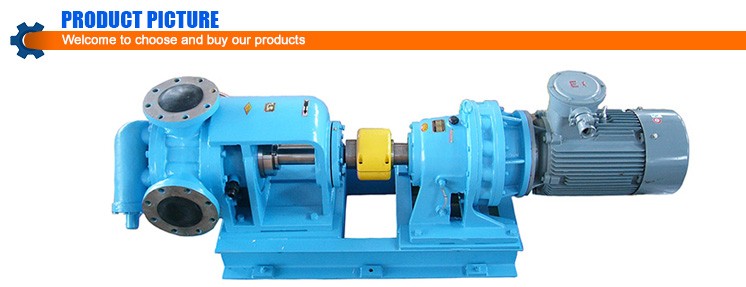

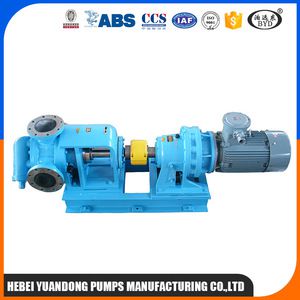

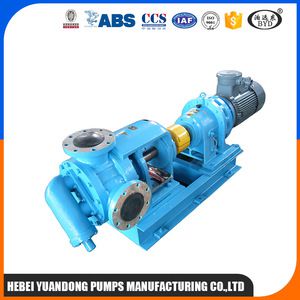

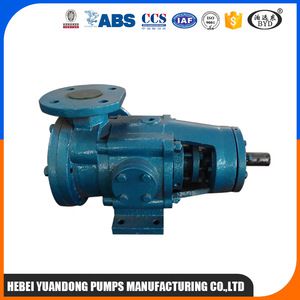

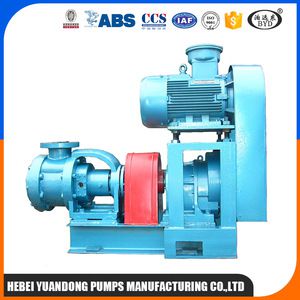

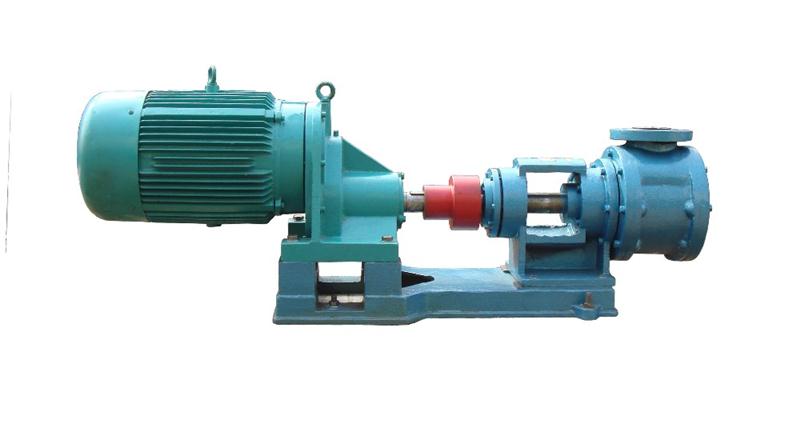

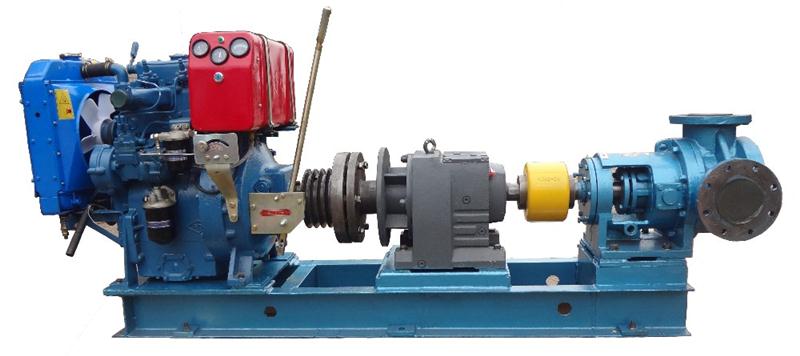

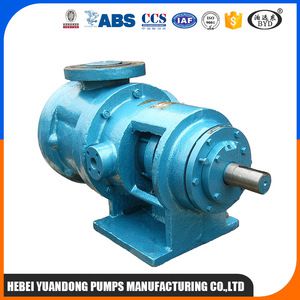

High viscosity rotor pump specification:
Temperature:-10-150 degrees
Viscosity:1-7000000cst
Flow Capacity:1-200m³/h
Pressure:≤2.0Mpa
Connection way:flange/thread
| Model | Nominal Size mm | Displacement L/100rev | Viscoity Cst | Speed r/min | Differential Pressure(Mpa) | |||
| 0.4 | 0.6 | 0.8 | 1.0 | |||||
| Power(kw)/Capacity(L/min) | ||||||||
| NYP3.6 | 40 | 3.6 | 20 | 1450 | 0.69/46.7 | 0.94/45.9 | 1.18/45 | 1.44/43.4 |
| 60000 | 455 | 0.84/16.3 | 0.91/16.2 | 0.98/16.1 | 1.01/16 | |||
| NYP24 | 50 | 24 | 20 | 720 | 1.8/165 | 2.3/16.1 | 2.8/158 | 3.4/155 |
| 60000 | 228 | 1.6/54 | 1.8/54 | 2.0/54 | 2.3/54 | |||
| NYP50 | 50 | 50 | 20 | 720 | 4.3/362 | 5.8/355 | 6.9/348 | 8.1/340 |
| 60000 | 228 | 3.1/119 | 3.7/118 | 4.0/118 | 4.5/118 | |||
| NYP80 | 80 | 80 | 20 | 615 | 5.2/471 | 6.9/461 | 8.5/451 | 10.0/433 |
| 60000 | 188 | 5.5/149 | 6.1/149 | 6.7/149 | 7.2/148 | |||
| NYP110 | 80 | 110 | 20 | 615 | 6.7/660 | 9.2/647 | 11.2/634 | 13.6/622 |
| 60000 | 188 | 6.2/209 | 7.1/208 | 7.6/208 | 8.5/207 | |||
| NYP160 | 100 | 160 | 20 | 600 | 8.9/930 | 12.1/916 | 15.3/902 | 17.5/888 |
| 60000 | 319 | 10.0/505 | 11.7/502 | 13.5/500 | 15.2/497 | |||
| NYP220 | 100 | 220 | 20 | 430 | 8.8/902 | 11.9/880 | 15.0/85.8 | 18.0/836 |
| 60000 | 117 | 8.4/256 | 9.7/255 | 10.4/254 | 11.4/253 | |||
| NYP320 | 125 | 320 | 20 | 430 | 13.0/1306 | 18.0/1270 | 220/1235 | 26.0/1200 |
| 60000 | 125 | 12.0/397 | 13.7/396 | 15.3/395 | 16.9/394 | |||
| NYP440 | 150 | 440 | 20 | 360 | 14.7/1473 | 19.2/1441 | 25.6/1409 | 40/138 |
| 60000 | 110 | 12.4/473 | 14/471 | 16.2/469 | 18.3/467 | |||
| NYP650 | 125 | 650 | 20 | 315 | 19.0/1921 | 26.0/1857 | 33.0/1794 | |
| 60000 | 100 | 15.0/645 | 17.2/643 | 19.5/640 | ||||
| NYP730 | 150 | 730 | 20 | 315 | 21.5/2135 | 29.4/2058 | 37.3/1980 | |
| 60000 | 100 | 16.8/720 | 19.5/717 | 22.3/713 | ||||
| NYP1670 | 200 | 1670 | 20 | 250 | 38.0/3852 | 52.0/3690 | 66.0/3529 | |
| 60000 | 85 | 36.0/1045 | 35.7/1400 | 40.6/1972 |
Detection equipment has a universal tool microscope, involute detector, optical projectors, universal gear measuring instrument, pulse glow plasma nitriding furnace and other large-scale testing equipment, and has a national B test station.
1 Hebei Yuandong Pump Manufacturing Co.,Ltd was founded in 1984, covers an area of 38650 square meters, construction area of 20300 square meters.
2 The company passed the ISO ,CCS,BV,ABS certification, become oil material resources market member, Sinopec material resources market member, marine pump products manufacturing enterprises.
3 companies to "Boyuandong" brand gear pump, screw pump as the leading products, involving 21 series, more than 4200 kinds of specifications, annual production capacity of up to more than 43 thousand units.
4 Product marketing oil, chemical, electric power, shipbuilding, metallurgy, food and other major industries.
5 Products exported to Southeast Asia, America, Europe and other countries.
