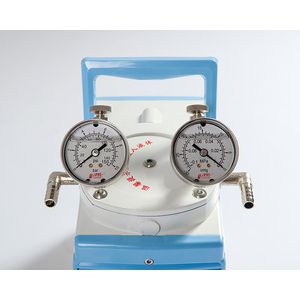

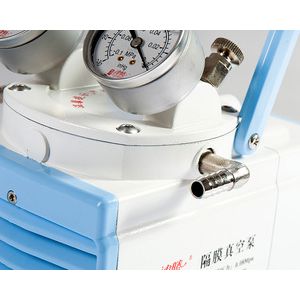

GM-0.5 Diaphragm Vacuum Pump

Features :

1.Corrosion resistance, able to tolerance almost all strong acid (including aqua regia), strong alkali, strong oxidizer, reductant , and variety of organic solvents.

2.Withstand high and low temperatures, can be used in temperature of -190℃ to 260℃ .

3.Non-stick surface, most solid material and impurity particles can not conglutinate on the surface.

Technological competitiveness:

The internal components of our diaphragm vacuum pump series are produced by numerical control equipments which imported from Germany DMG and Korea kia. This is our unique technology competitiveness that all the same type of products made by other companies could not match . With the good appearance, stable quality, excellent performance of our products , and high quality service of our company, we believe that our diaphragm vacuum pump is the best choice for your laboratory.

Technical Parameters:

Speed of evacuation ( L/Min ) :30

Ultimate pressure vacuum : ≥0.08 Mpa

                         200 mbar

Voltage rating :220Vac, 50Hz

Motor power (w) :160W

Pressure : ≥30Psi

Inlet (mm) : Ø 6

Outlet (mm) : Ø 6

Temperature of working environment ( ℃ ) : 7-40

Function : Vacuum & Pressure

Pump head : 1

Temp of the body (℃ ) : <55

Dimensions ( LXBXH ) (mm) : 210 x 160 x 235

Noise level ( DB ) : <60

Weight ( kg ) : 8

Diaphragm : NBR

Valves : NBR

Anti -corrosion pump

Warranty Service

From the date of acceptance, we can provide 12 months quality guarantee, all the maintenance costs and accessories parts costs are free within the date of quality guarantee (spare and accessories parts costs from instrument faults by human factors will be charged proper costs).

After the date of quality guarantee, we will in charge of maintain instrument, and charge proper costs according to actual maintenance costs.

Company information

Our motto: First-Rate Service, First-Rate Quality.

Xi’an Heb Biotechnology Co., Ltd, is established in 2004, has passed more than 10 years, is a technological innovation-based enterprise provided with integration of research, develop, manufacture and marketing. Nowadays, our products has gotten extensive application in Asia, European and America, even spread all over domestic laboratories. The brand of Xi’an Heb has become one of the popular and reliable brands among our customers.

Main instruments in our company: double-layer glass reactor ( jacketed glass reactor), rotary evaporator, low-temperature cooling liquid circulating pump (DLSB refrigerated circulator or chiller), multi-purpose circulating water vacuum pump, high and low temperature circulating system, high temperature oil bath(heating circulation bath), diaphragm vacuum pump, rotary vane vacuum pump, water bath/oil bath series, incubator series, drying oven series, centrifuge series, ultrasonic cleaner series etc. These scientific experimental instruments and industrial assorted equipment amount to more than 10 series and 100 types. Our products passed ISO9001 International Quality System Certification,and some products passed CE certification.

Welcome new and old customers to our factory, and we guarantee that our products have high-quality and more favorable price.

HEB wants to joint hands with you to create more precise experimental instruments.

1. Are you the factory?

Yes, we’re.

Established in 2004, we manufacture rotary evaporator, cylindrical jacketed reactor, cryostat etc.

In 2006 year, we associated with our soul partner QiXin instrument, developed commonly new production line, now, we manufacture CO2 Incubator, Cooling Incubator, Shaker Incubator, Blast Oven, Vacuum Oven, Climatic chamber and those products. Etc.

2. What is the delivery time?

Normally, we have stocks for our hot sale products, the delivery time is about 5-10 days. For the customized instrument, it’s about 10~20 days.

3. What’s the warranty period? How do you provide this?

Two years (24 month).

We have very strict inspection, the instruments which you received is high-quality and reliable.

If there’s any error, we’ll provide you the on line solution with in 12 hours. We’ll provide you the spare parts and the shipping cost totally free.

If the problem was caused by the instrument quality, and cannot be repaired, we’ll ship you the new one.
