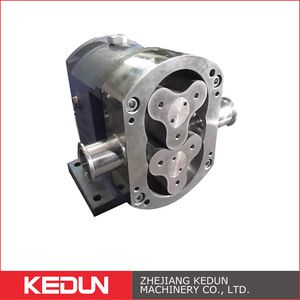

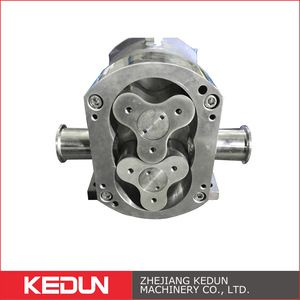

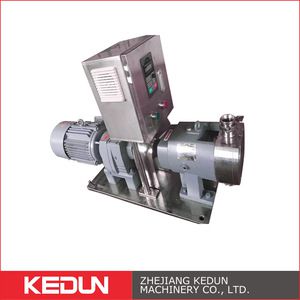

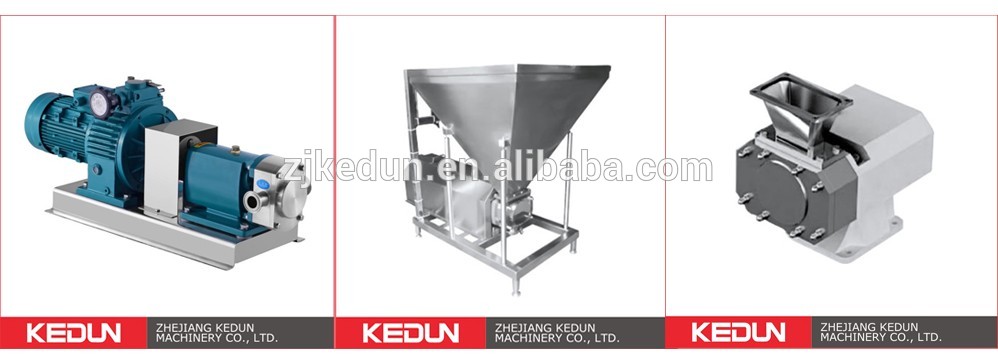

Food Grade Stainless Steel 304 316L Rotor Sanitary Lobe Pump
for honey yoghourt
Sanitary Lobe Pump with the help of the working cavity in a plurality offixed volume convey-
ing unit periodic transformation to achieve thepurpose of conveying fluid.The original motivat-
ion of mechanicalenergy through the pump, directly into the conveying fluid pressureenergy ,
the pump flow rate depends only on the working chamber, volume change value as well as its
in unit time changes infrequencyand(in theory) and discharge pressure independent.
Rotor pumps rely on the two synchronous reverse rotation of the rotor (rotor blade number
is 2-8 in the process of rotation)in the entrance to generate suction(vacuum)two rotor chambe-
r, isseparated into several small spaces in is driven by the transm ission ,shaft are rotated in t-
he opposite directionmedium isconveyed to the discharge port.
Name: | Food Grade Stainless Steel 304 316L Rotor Sanitary Lobe Pump for honey yoghourt |
Material: | SS304/SS316L |
Seal Material: | EPDM |
Max. Flow: | 90m3/h / 395 GPM |
Max.pressure: | 12bar/ 174PSI |
Max. working temperature: | 120℃ |
Voltage: | 110V, 220V, 380V |
Surface treatment: | Inner polished and Sandblast outside |
Availably connection: | Clamp, Thread Butt weld, Flange |
Application scope: | Dairy, food, beverage, pharmacy, cosmetic, etc |

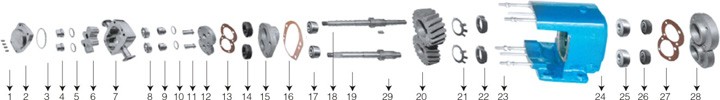

1.Screw cap 2.Pump cover 3.Seal ring 4.Cap 5.Seal ring 6.Rotor 7.Pump cavity 8.Mech-
anical seal (stationary ring) 9.Mechanical seal(moving ring) 10.Seal ring 11.Bearing sleeve
12.Bearing cover 13.Seal gasket 14.Rubber oil seal 15.Bearing seat 16.Seal gasket 17.Be-
aring 18.Upper shaft 19.Lower shaft 20.Helicalgear 21.Stop washer 22.Cap 23.Screw 24.Pu-
mp body 25.Bearing 26.Rubber oil seal 27.Seal gasket 28.Bearing cover 29.Pin

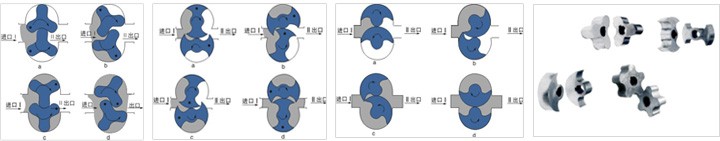

Rotor types
Usually need 30% deposit, and pay the 70% balance before delivery.Also can paid by trade assurance.
Shipping: Shipped in 7-15 days after payment.(Depends on the order quantity).
Packing: Usually plywood case (As per the request of customers)
1.Q:What is your packing?
A: We usually packing in plywood case.
2.Q:How long is the service time?
A:It could use several year without external force factors.
3.Q:Do you have warranty?
A:We have 1-2 years warranty.
4.Q:What is the MOQ?
A:The majority of products are fully in stock,we accept 1 pieces as the minimum order quantity.
5.Q:What is the payment terms?
A:We accept T/T and L/C,also can using trade assurance.
6.Q:How to choose the shipment way?
A:It is according to the order quantity,delivery time,costs and customs policy,etc.(Or decide by customs).
7.Q:How about the surface finishing?
A:Machine finished,matt and mirror polished,it will be confirmed by customer’s requirement.
