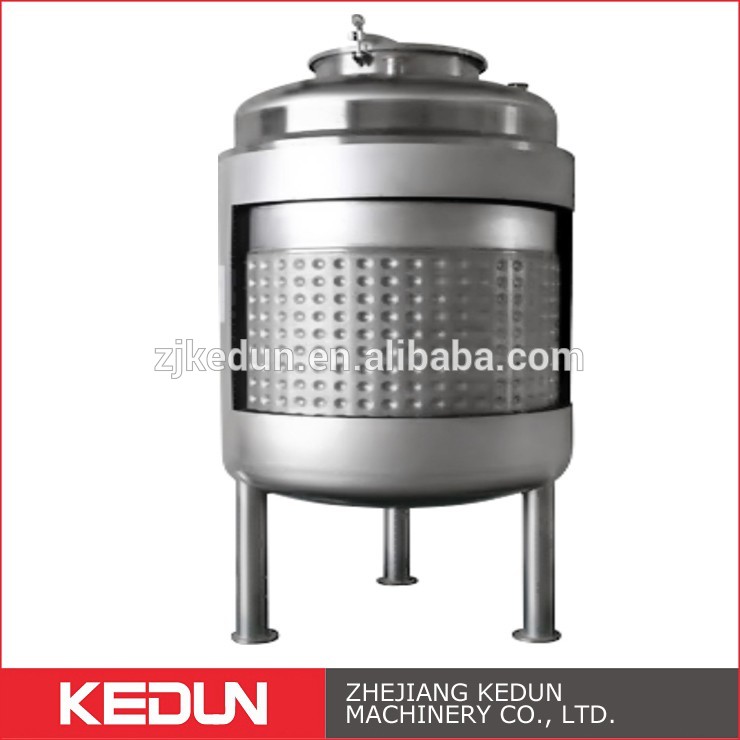

Chemical Machinery Equipment Storage Tank Stainless Steel In-
dustrial Machine

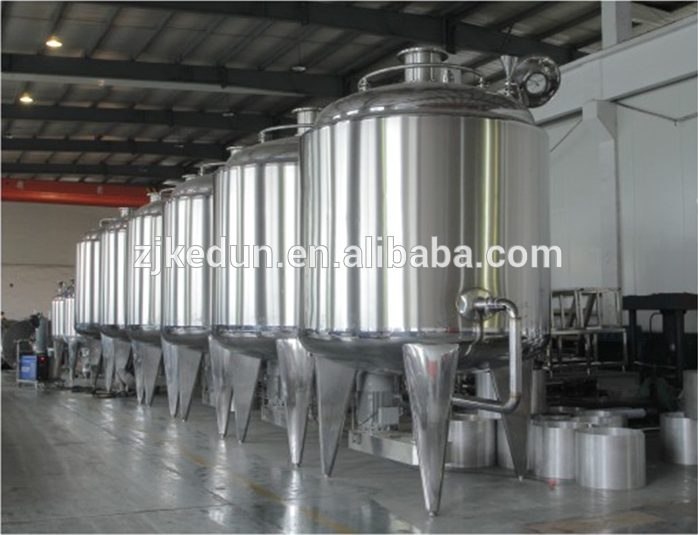

Our company supply all types and sizes of tanks to various processing industries.Including f-
ood, beverage, dairy, chemical, pharmaceutical, cosmetics and other processing industries.

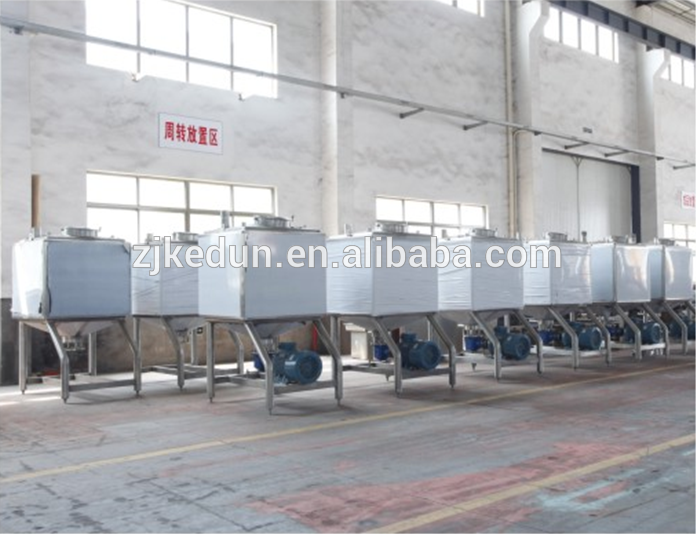

Stainless Steel mixing tank can be widely used in dairy product, chemical and daily product, r-
ubber, pesticide, dye, medicine and food industry. Used for heating, cooling,mixing process, etc.
Characteristic
1. Big heating area.
2. High working efficiency.
3. No dead conner, easy to maintain and clean.
4. Adopts high quality stainless steel SUS304 or SUS316L
5. Can be customized according to your requirements.
Working volume | Inner diameter | Outer diameter | Vessel height | Total volume |
30L | 400mm | 500mm | 400mm | 44L |
50L | 400mm | 500mm | 600mm | 69L |
100L | 500mm | 600mm | 650mm | 130L |
200L | 600mm | 700mm | 1000mm | 250L |
300L | 700mm | 800mm | 1250mm | 370L |
500L | 900mm | 1050mm | 1150mm | 650L |
1000L | 1100mm | 1250mm | 1480mm | 1260L |
1500L | 1200mm | 1350nmm | 1700mm | 1780L |
2000L | 1300mm | 1500mm | 1980mm | 2200L |
3000L | 1500mm | 1700mm | 2150mm | 3400L |
4000L | 1600mm | 1750mm | 2630mm | 4000L |
8000L | 1900mm | 2100mm | 3200mm | 8300L |
The above dimension is only for reference, we can make up to 30000L , and we can make special dimension according to client specific requirement. |
Usually need 30% deposit, and pay the 70% balance before delivery.Also can paid by trade assurance.
Shipping: Shipped in 7-15 days after payment.(Depends on the order quantity).
Packing: Usually plywood case (As per the request of customers)
1.Q:What is your packing?
A: We usually packing in plywood case.
2.Q:How long is the service time?
A:It could use several year without external force factors.
3.Q:Do you have warranty?
A:We have 1-2 years warranty.
4.Q:What is the MOQ?
A:The majority of products are fully in stock,we accept 1 pieces as the minimum order quantity.
5.Q:What is the payment terms?
A:We accept T/T and L/C,also can using trade assurance.
6.Q:How to choose the shipment way?
A:It is according to the order quantity,delivery time,costs and customs policy,etc.(Or decide by customs).
7.Q:How about the surface finishing?
A:Machine finished,matt and mirror polished,it will be confirmed by customer’s requirement.
