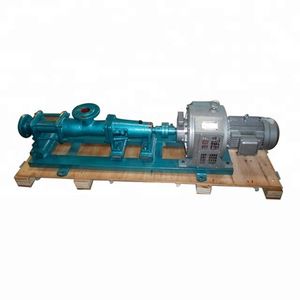

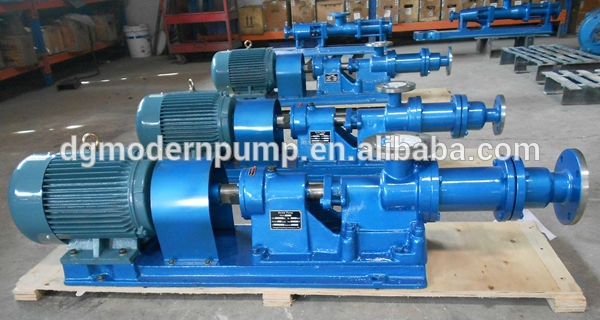

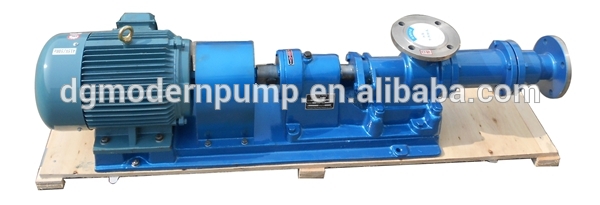

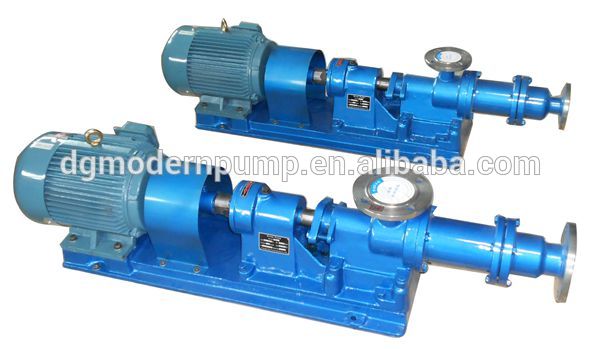

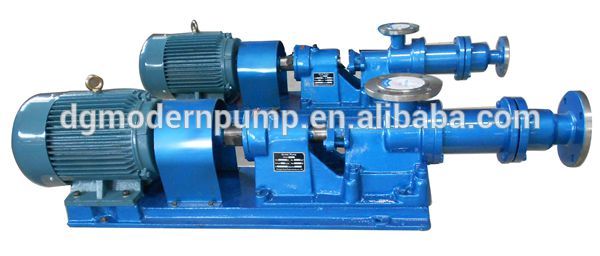

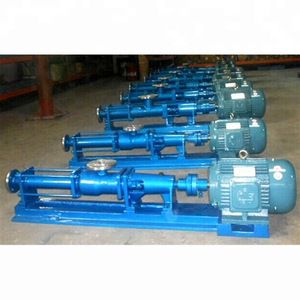

G series mono screw pump,stator and rotor screw pump
Pumped Medium of G series screw pump:
widely used for dense mix and those medium hard to transport, any dense liquid and dewatering dry material, some liquid with solid particle and fibre or suspended material, or mixture for liquid, air and solid material or corrosive liquid----such as milk, wine, chocolate juice, candy, grease, oil, bitumen, thick broad-bean sauce/broad bean paste, gasoline….etc..
working features of G series screw pump:
with wide allocation field,it can transport any flowable or non-flowable liquid, with stable flowarte and have no impulsive motion, changing the flow rate by changing the speed of impellors, good suction, low noise, no leak and temperature rise.

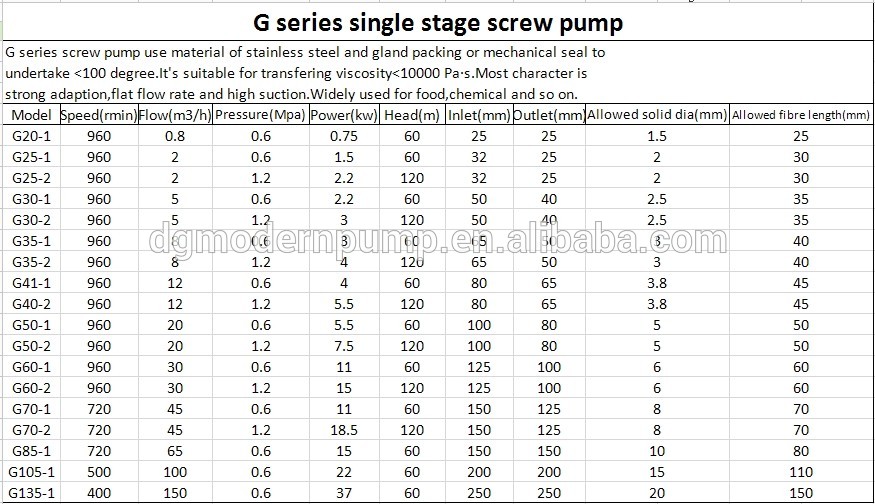

Item | Mono screw pump |
Suction | Self priming |
Model | G series |
Material | Cast iron or stainless steel |
Mode | Horizontal |
Drive | Direct coupling |
Rotor | Stainless steel |
Stator | NBR, FPM, EPDM, NR |
Seal | Pack seal |
Speed | 960r/min |
Theory | Positive displacement |
Pressure | Mono(0.6Mpa) ,Double(1.2Mpa) |
Usage | High viscosity liquid |
Power | Electric |
Standard or Non | Standard |
Outlet diameter | 25-250mm |
Capacity | 0.8-150m³/h |
Head | 60-120m |
Power | 0.75-37kw |
Warranty | 12 months |
Certificate | ISO9001:2008 |
OEM | Acceptable |
Feature | Adjustable speed |
Passed solid diameter | 1.5-20mm |
Passed fiber length | 25-150mm |
*All of the enquiry will be replied within 8 working hours
*Professional pump producer, with design team.
*All of the goods are packed with standard export wooden case(non-fumigation)
*Fast delivery time: common stock model, customed type:7 working days
*Support OEM or ODM
*Fast after-service

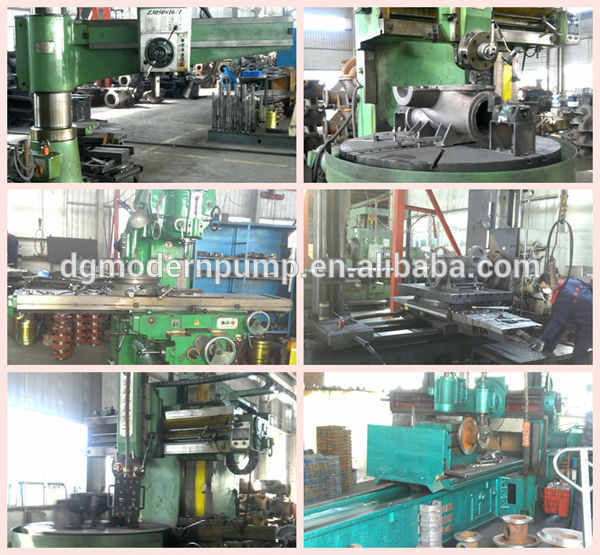

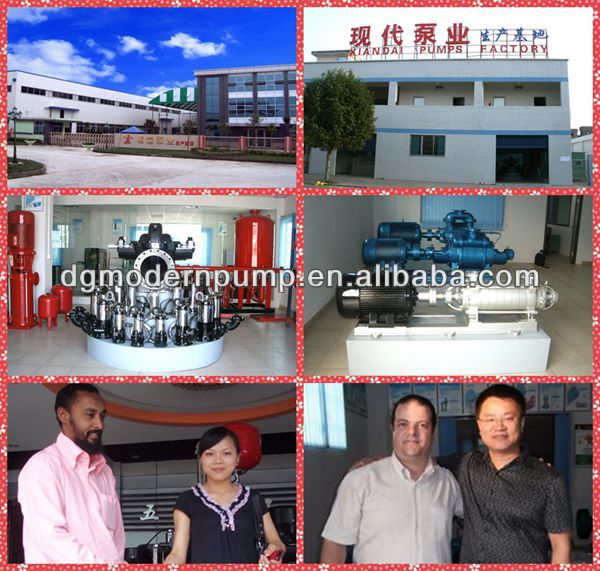

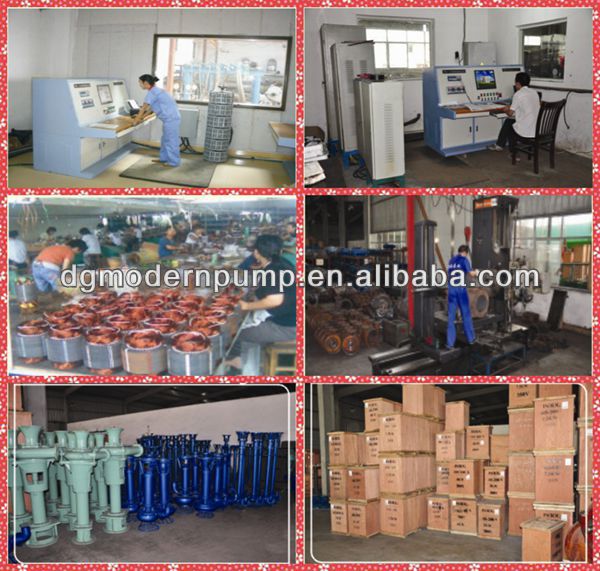

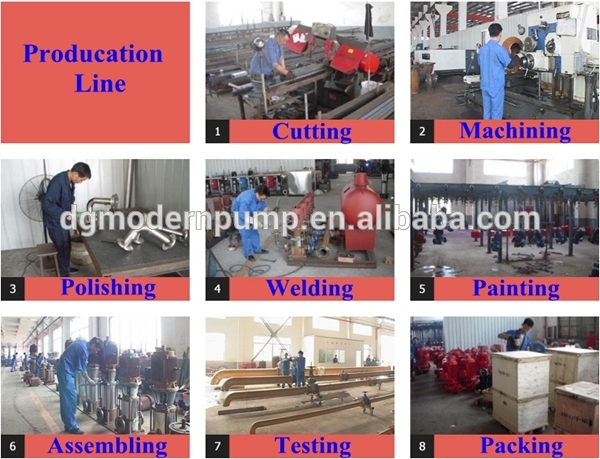

Our company established in 1998.With 20 years developing , now our group own three factory(Pearl Pump, Modern Pump and Urumchi Pump) in Chengdu, Dongguan and Urumchi. Head office in Chengdu ,Sichuan province own 50000 s.q meters new plant, 600 professional workers, hundred million equipments and total output thousands of pumps.
To be a group, our business scope have covered all kinds of pumps, like centrifugal pump,submersible pump, vacuum pump, sewage pump, chemical pump, screw pump, diaphragm pump, fire pump, water supply equipment and so on. Also welcome custom-made and OEM service. Pearl Pump is a famous brand in China, and having 20 branches in whole country. Each city have our distributors. If you like, you can be this one in your country.
Cooperating with hundreds of middle traders before 2008,in order to service our big customers better, we built up the overseas department. Dongguan in Guangdong province is our logistics center, you can choose Guangzhou, Shenzhen, Hong Kong to ship.
Every customer mostly care products quality, our group have passed ISO9001:2008 quality control system. Double testing is our quality policy. 12 months warranty time and necessary spare parts are welcomed by our customers. For international trade, third party inspection is supported.
Q1:Are you manufacturer or trading company?
Our company are professional producer for pumps,and export pumps by ourselves.
Q2:What's your business scope?
We manufacture end/double suction centrifugal pump,vertical/horizontal multistage pump,sewage pump,vacuum pump,chemical pump, oil pump,screw pump, diaphragm pump, fire pump, constant pressure VFD water supply system and so on.
Q3:What's information for enquiry?
Basic information:flow and head.If special design,pls provide drawing.50HZ or 60HZ are both OK.
Q4:What's your payment terms?
Common payment terms:T/T 30% deposit,balance payment before shipment.
Western Union
Q5:How about warranty and after-service?
12 months warranty time after receiving days,not include quick-wear parts and default phase.We promise 24 hours action for your problem.And send parts by air or express for your fix.
