wear resistant centrfugal find sand slurry pump mining coarse sand pump

The impellers are made of wear resistant chrome alloy or rubber.

Technical Feature

  • Hebei, China (Mainland)
  • zidong
  • ZHR
  • Centrifugal Pump
  • Single-stage Pump
  • Water
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$1~8

PRIMARY PARAMETERS

Place of Origin
Hebei, China (Mainland)
Brand Name
zidong
Model Number
ZHR
Theory
Centrifugal Pump
Structure
Single-stage Pump
Usage
Water
Power
Electric
Standard or Nonstandard
Standard
Fuel
Diesel
Pressure
High Pressure
Application
for abrasive material transfer,such as mining slurries
coarse sand pump material
high chrome alloy
OEM
welcome
bearing
top brand,high quality bearing
coarse sand pump certificate
ISO9001,CE
Price
Factory direct competitive price

DETAIL DESCRIPTION

Centrfugal find sand slurry pump mining coarse sand pump



Parameters:

a) Caliber: inlet 3inch,outlet 2inch

b) Flow:36-76m3/hr

c) Head: 13-40 m

d) Rotate speed: 1300-2100r/min

e) Max. power:30KW

f) NPSH: 2-4m



♣ Coarse Sand Slurry Pump Overview



     ZIDONG BRAND Type of ZH/ZHR series centrifugal slurry pumps are cantilevered,horizontal,slurry pumps.

1. They are designed for the handling highly abrasive, high density slurry in the metallurgical, mining, coal,

    power, building material and other industrial departments etc.

2. The pumps of this type also can be installed in multistage series.

3. The frame plates for type ZH/ZHR centrifugal slurry pumps have replaceable wear-resistant

     metal liners or rubber liners.

4. The impellers are made of wear resistant chrome alloy or rubber.

5. The frame plate liner and impeller for HH pump are adoptable of wear-resistant metal only .

6. The shaft seals for type ZH centrifugal slurry pumps can be adoptable of gland seal or expeller seal.

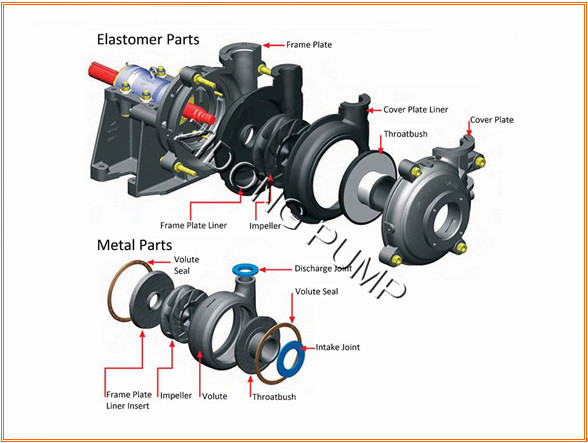

♣ Coarse Sand Slurry Pump Structure



 ♣ Coarse Sand Slurry Pump Details



1. The wet parts for slurry pump are made of wear-resistant high chromium alloy or rubber liner

2. Slurry pump's bearing assembly use cylindrical structure, adjusting the space between impeller

    and front liner easily. They can be removed completely when being repaired. Bearing assembly

    use grease lubrication.

3. The shaft seal could use the packing seal, expeller seal and mechanical seal.

4. The discharge branch can be positioned at intervals of 45 degrees by request and oriented to

    any eight positions to suit installations and applications.

5. There are the drive types, such as V belt drive, gear reducer drive, fluid coupling drive, and

    frequency conversion drive devices for the slurry pump.

6. Wide performance, good NPSH and high efficiency. The slurry pump can be installed in multistage

    series to meet the delivery for long distance.

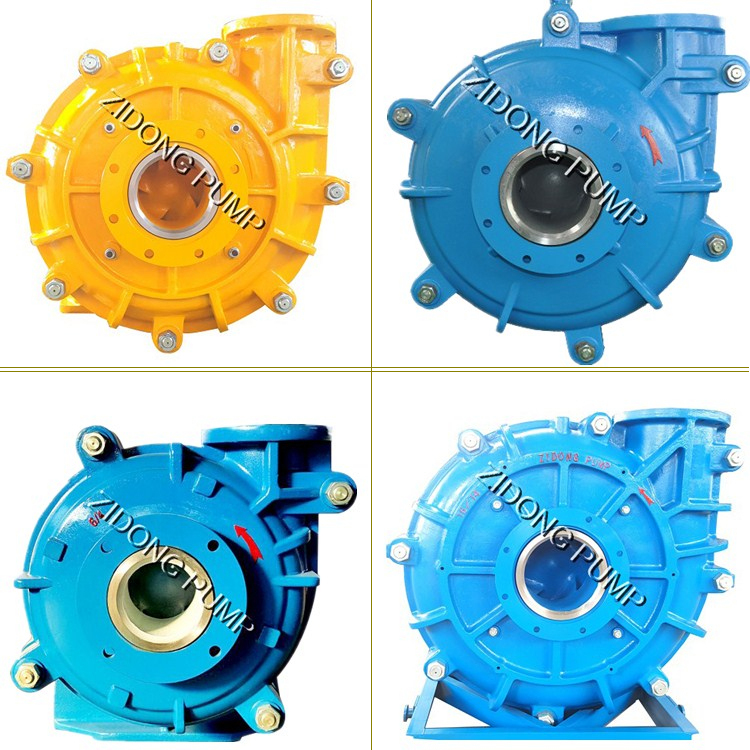

♣ Coarse Sand Slurry Pump And Parts Photos



  For more details on our find sand coarse sand slurry pump,welcome contact us .

  We will give technical advice to you ASAP.
