Competitive Price Centrfugal  Slag Slurry Pump

slurry pump parameters:

a) Caliber: DN25-DN400mm

b) Flow:12-5040m3/hr

c) Head:5-118 m

d) Rotate speed:300-3800r/min

e) Motor power:15-1200 KW

f)  Working temperature:≤80 °C

   slurry pump details:

  1. Type of ZH(R)  series pumps are cantilevered, horizontal ,centrifugal slurry pumps.

   2.They are designed for the handling highly abrasive, high density slurry in the metallurgical, mining ,coal,

        power, building material and other industrial departments etc.. the pumps of this type also may be

        installed in multistage series.

  3. The frame plates for type ZH(R) pumps have replaceable wear-resistant metal liners or rubber liners.

  4. The impellers are made of wearresistant metal or rubber. The frame plate liner and impeller for HH pump

       are adoptable of wear-resistant metal only.

  5. The shaft seals for type ZH  pumps may be adoptable of gland seal or expeller seal.

  6. The discharge branch can be positioned at intervals of 45 degrees by request and oriented to any eight

   positions to suit installations and applications.

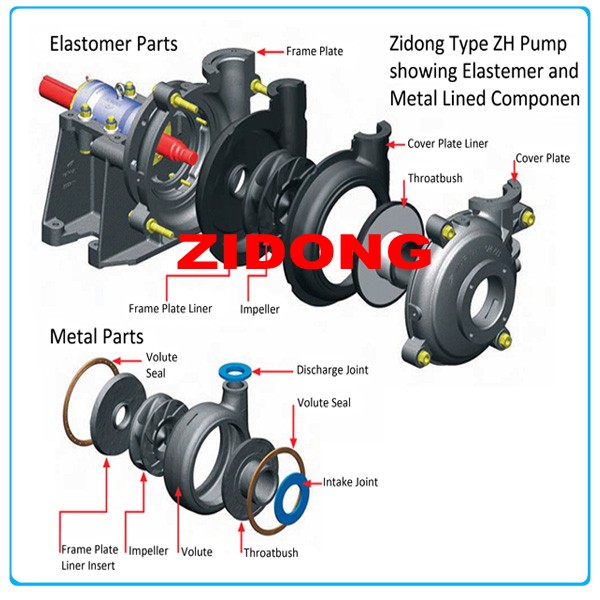

  slurry pump structure:

 slurry pump function:

    -Coal washing plant

    -Mining and mineral process

    -Iron ore processing plant

    -Slurry, Mud transfer

   -Gold mining Manufacturer

   -Dredging process

   -Trash handle

   -Tailing handle

   -Mud pump

  If there are anything we can do for you, please feel free to contact us.
