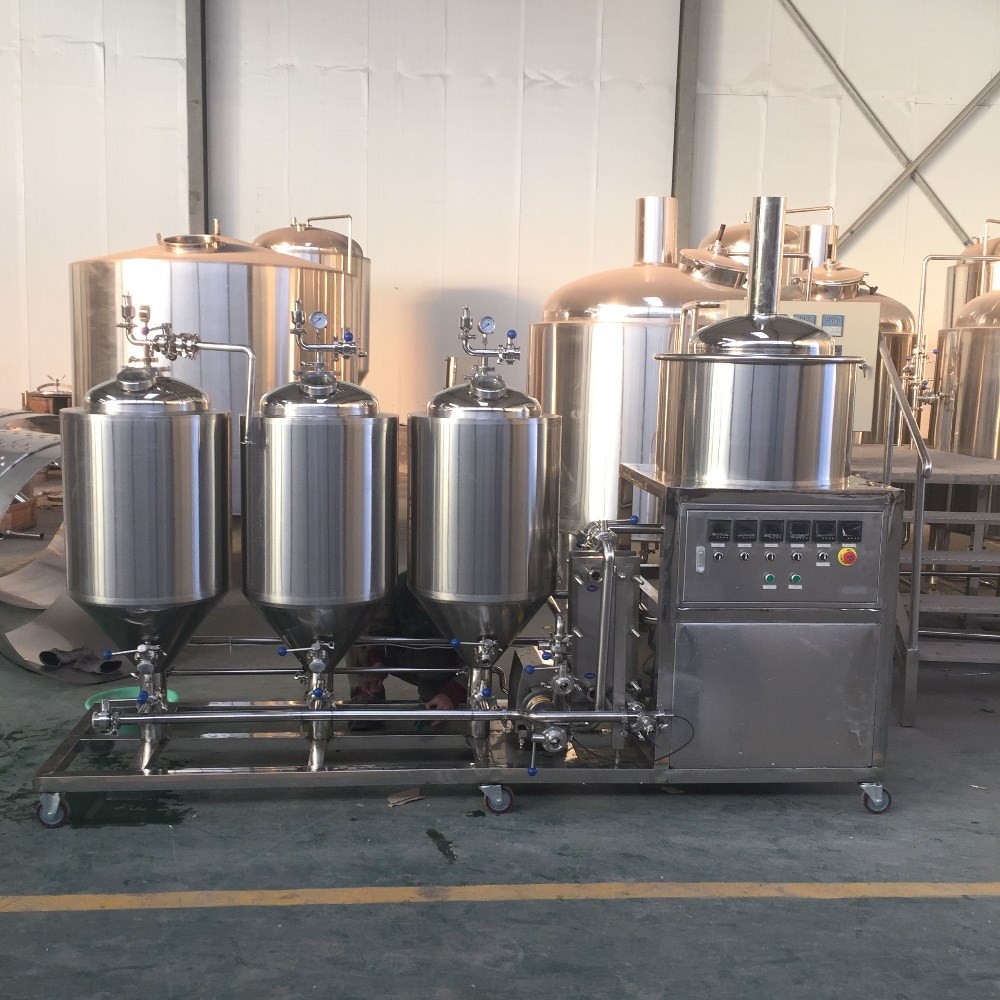

CE ISO 30L 60L 1BBL stainless steel 25 gallon beer fermenter

PRIMARY PARAMETERS

Processing

Fermenting Equipment

Condition

New

Place of Origin

Hubei, China (Mainland)

Brand Name

YDL

Model Number

YDLLFV-1BBL

Processing Types

Alcohol

Voltage

3phase/380(220

Power(W)

Heating Method

Dimension(L*W*H)

Customer's Requests

Weight

20KG-2000KG

Certification

CE ISO TUV

Warranty

1 Years

After-sales Service Provided

Engineers available to service machinery overseas

Product Name

stainless steel 25 gallon beer fermenter

Material

Stainless Steel 304/316

Application

Brew

Capacity

1BBL 2BBL....100BBL even 500BBL

Function

Brewing Beer Brewing Equipment

Heating method

Steam Heating

Control system

Pressure Auto Control

brand

YDL

Keywords

stainless steel 25 gallon beer fermenter

Site

brewery / beer produce line

DETAIL DESCRIPTION

Product Description

Our stainless steel 25 gallon beer fermenter available from 1 Barrel to 100 Barrels w/ an average 25% Head Space. All tank have a Dish top , Cylinder body & 60 /70° Cone Bottom . Certified stainless steel material for all tanks, with 100% TIG welded joints and seams with sanitary interior polish. Dimple Plate jacket for Glycol cooling & high efficient Polyurethane foam insulated. All tanks use Tri-clamp connections, are designed for up to 14.7 PSI and tested at 30 PSI. We can custom fabricate any tank to meet your brewery’s space and height restrictions.

NAME BRAND, HIGH QUALITY VALVES AND FITTINGS WITH EVERY TANK!

Standard Features:
•60 / 70 degree cone bottom, with an average of 25% head Space.
•Dual zone dimple cooling jackets (3 or more on larger tanks)
•Interior shell: 304 stainless steel, thickness 3mm /11 gauge
•Cooling jacket: 304 stainless steel, thickness 2mm /14 gauge
•Exterior shell: 304 stainless steel, thickness 2mm /14 gauge
•2” Polyurethane insulation
•Interior surface to finish pickled and passivated
•Exterior surface to brushed, #4 finish
•580x480mm Side manway, shadowless
•Dry hop inlet at top;

Capacity	Cylinder(OD*H)	OAH	Inner Thickness	function
1BBL-3BBL	850*1250mm	2380mm	3mm	for home used
3BBL-10BBL	1000*1250mm	2530mm	3mm	for pub
7BBL	1000*1250mm	2530mm	3mm	for bub
10BBL	1150*1250mm	2670mm	3mm	for bub
50BBL	1750*2750mm	4770mm	3mm	brewery
80BBL	2100*2900mm	5300mm	3mm	brewery

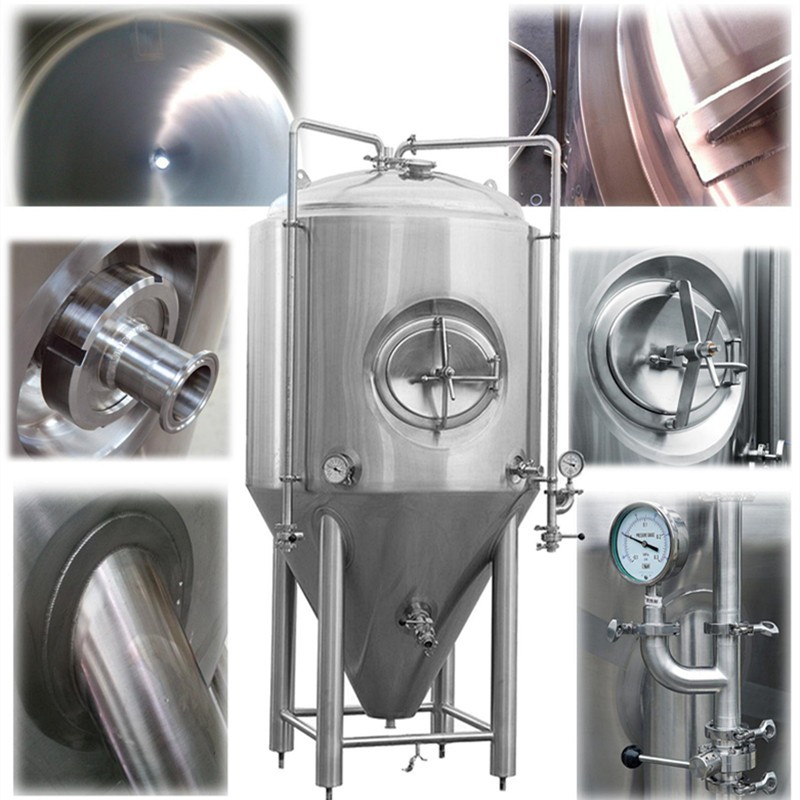

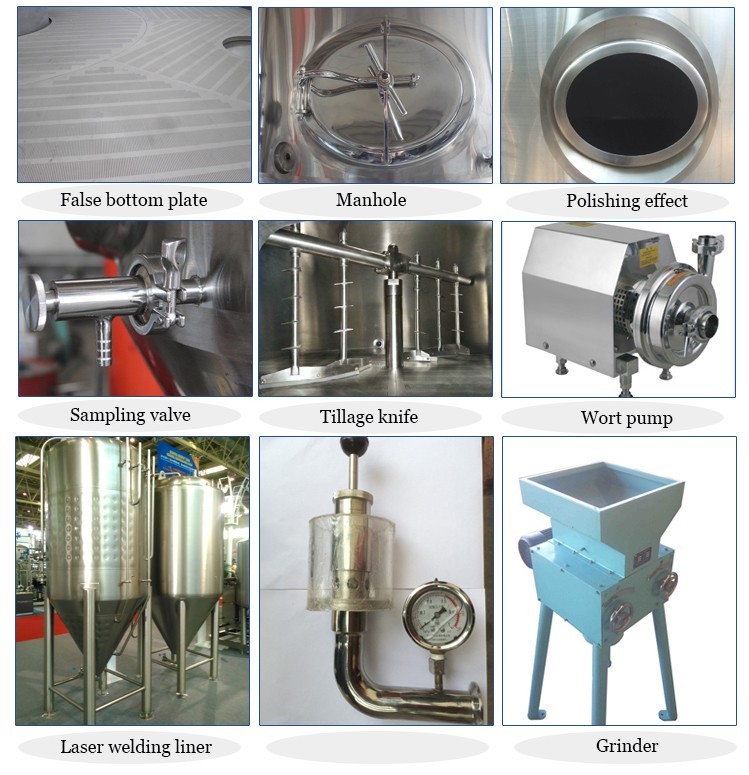

Detailed Images

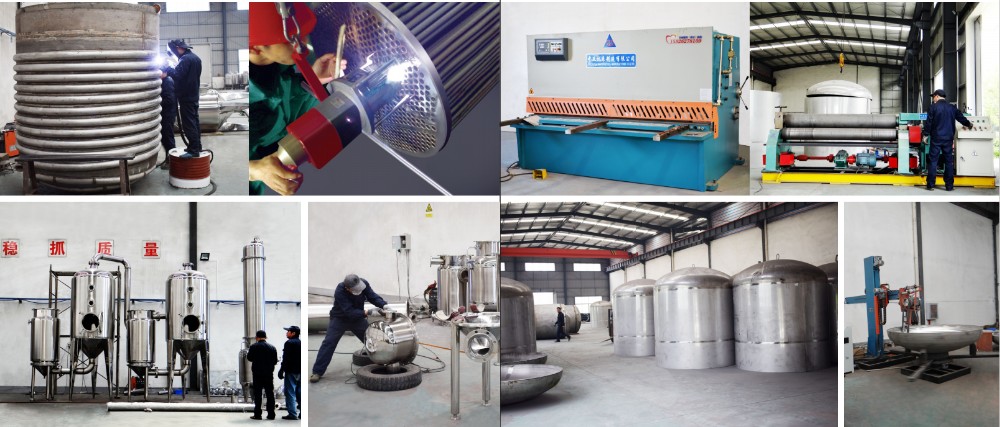

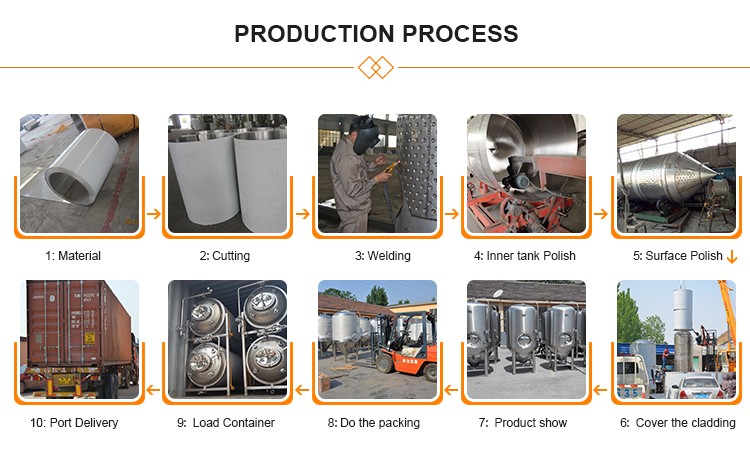

The Process of stainless steel 25 gallon beer fermenter

As a professional factory , we can offer you OEM & ODM, and customized products according to your drawings and your design.

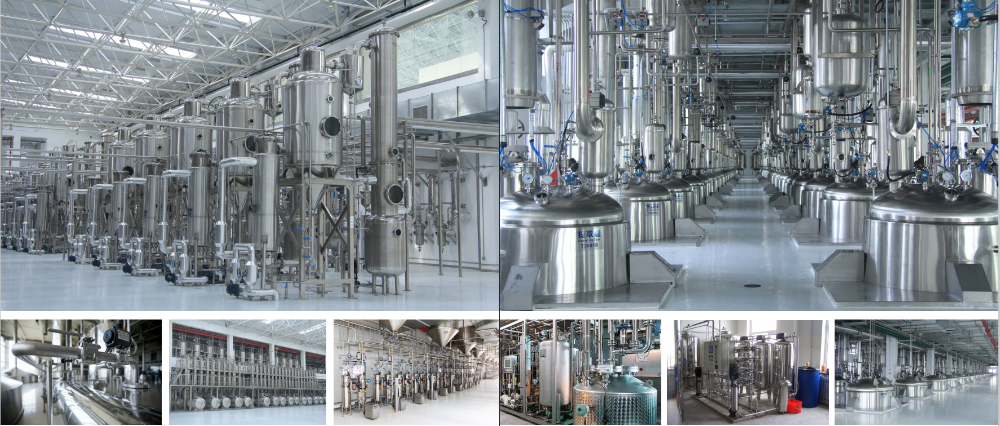

Our stainless steel 25 gallon beer fermenter project:

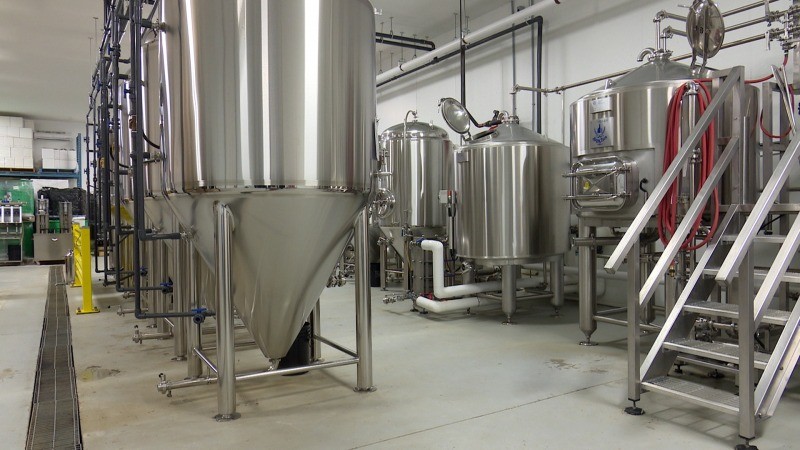

1: the first project: a beer produce line in sri lanka

2: the seconde project: a pharmaceutical engineering in china

Packing & Delivery

The package of stainless steel 25 gallon beer fermenter

standard package for shipping by sea,

outside :wooden packaged.

Certifications

we Hubei yideli light industry technology co.,ltd is powerful factory specilized in pharmaceutical machiner and equipment. such as beer fermenter , bright tank , brew house, stainless steel 25 gallon beer fermenter all are our main products.

such as IDF, ISO, 3A,CE,TUV have been approved.
