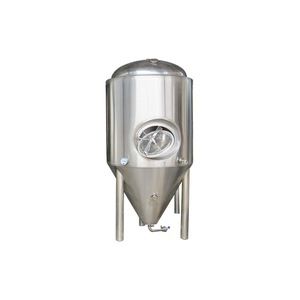

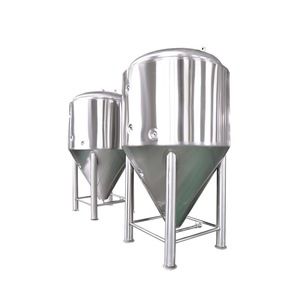

7BBL / 10BBL / 15BBL Sanitary Conical Beer Fermenter Tank with 50mm-100mm PU Insulation
Basic description
Description: Beer Brewery Fermenter
Capacity: 100l~10000l, 1bbl~30bbl and even larger, in fermenting equipment
Material: stainless steel 304/316 up to international standard
Quality control: 48 hours pressure test
Total capacity: 20~25% ahead of useful capacity, the whole fermentation stage
Main process: pure argon gas welding, double face forming, professional polishing for both inside and outside
Standard Features:
• Dual zone dimple cooling jackets (3 or more on larger tanks)
• Interior shell: 304 stainless steel, thickness 3mm /11 gauge
• Cooling jacket: 304 stainless steel, thickness 2mm /14 gauge
• Exterior shell: 304 stainless steel, thickness 2mm /14 gauge
• 2” Polyurethane insulation
• Interior surface to finish pickled and passivated
• Exterior surface to brushed, #4 finish
• 580x480mm Side manway, shadowless
• Dry hop inlet at top;

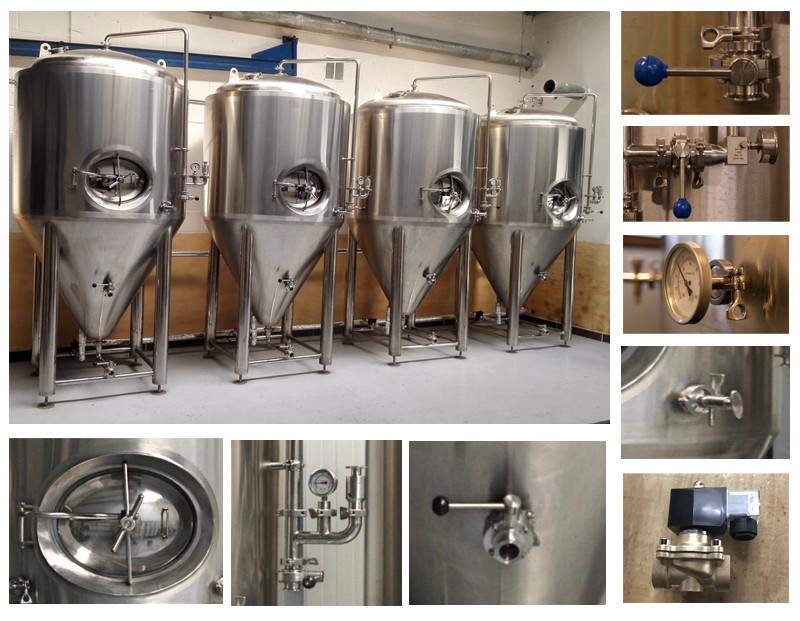

• Accessories:
Sample Valve x1;
Pressure relief/vacuum valve x1;
Temp. sensor / thermometer x1;
Rotating racking arm with butterfly valve x1;
Bottom outlet with butterfly valve x1;
Spraying Ball with down tube x1;
Stainless pipe legs with adjustable footpads x4;
Technical Parameters (For reference )
Capacity | Cylinder(ODxH) | OAH | Inner Thickness |
7BBL | 1000 x 1250mm | 2530mm | 3mm |
10BBL | 1150 x 1250mm | 2670mm | 3mm |
15BBL | 1250 x 1680mm | 3250mm | 3mm |
20BBL | 1400 x 1700mm | 3400mm | 3mm |
30BBL | 1650 x 1850mm | 3740mm | 3mm |
40BBL | 1750 x 2050mm | 4040mm | 3mm |
50BBL | 1750 x 2750mm | 4770mm | 3mm |
60BBL | 1150 x 1250mm | 2670mm | 3mm |
80BBL | 2100 x 2900mm | 5300mm | 3mm |
100BBL | 2200 x 3350mm | 5850mm | 3mm |

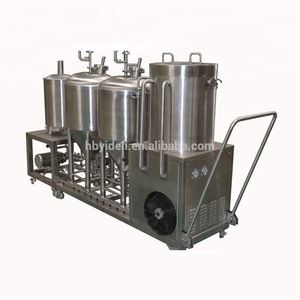

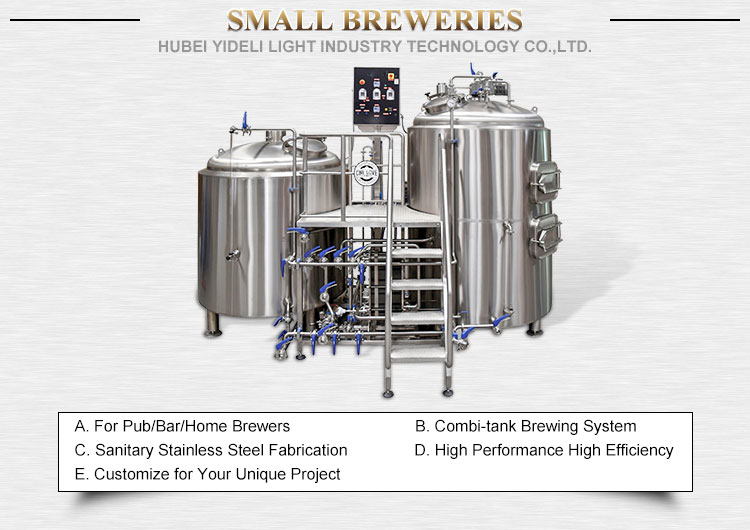

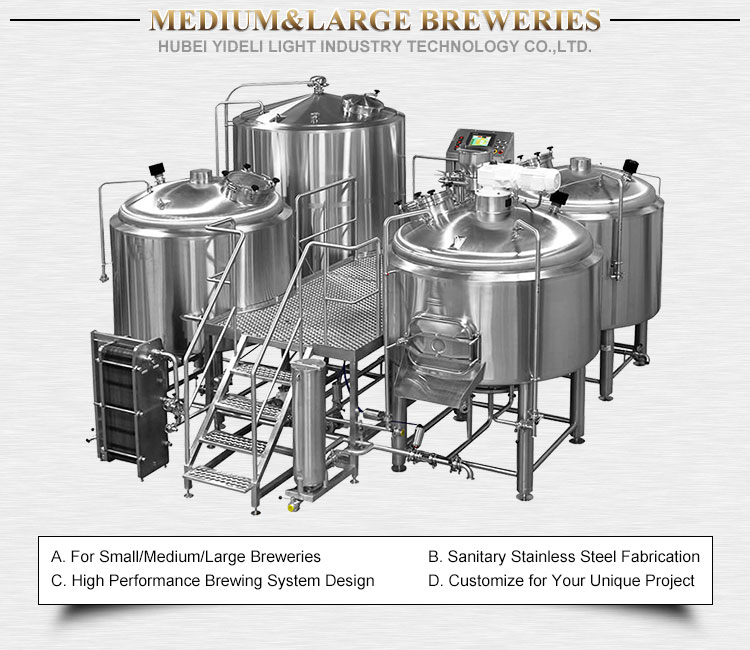

More Main Products

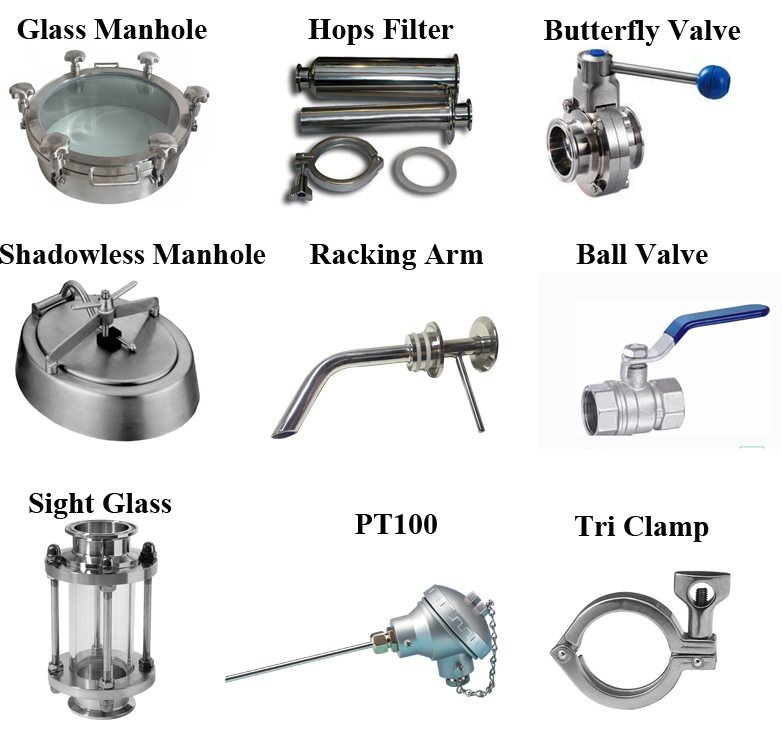

Related Accessories

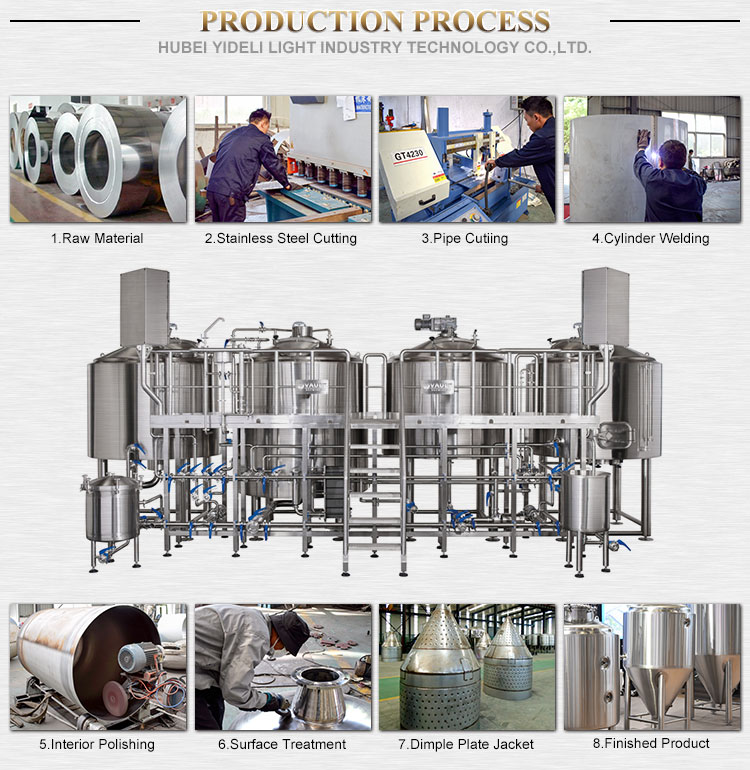

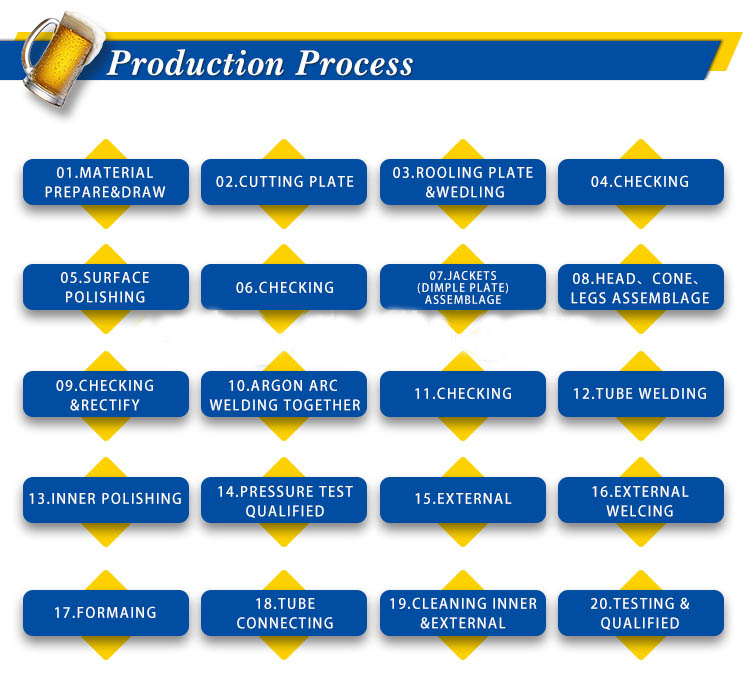

Production Process
1. Provide beer production technology and brewing formula,equipment design.
2. Providing 3D and CAD drawing for brew house space layout within 7 days after get your rough sketch.
3. All the tanks material is adopt international standard stainless steel 304.
4. The main equipments have three years warranty.
We speclalize in this field for several years ,with best quality ,best service and competitive price, and we are 6th year Alibaba Gold supplier .More services we can produce :
1. Professional Free Design 2. OEM Support 3. Low MOQ 4. Fast Delivery
Feel free to contact us.
