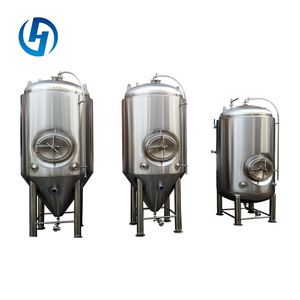

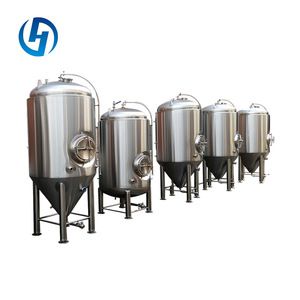

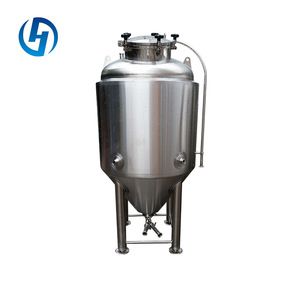

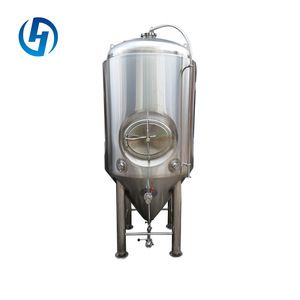

500l beer brewing equipment /beer brewery machine /homebrew fermenters

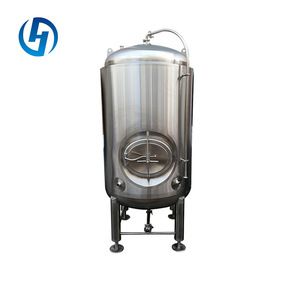

Our Brite Tank available from 1 Barrel to 100 Barrels w/ an average 10% Head Space. All tank have a Dish top & bottom, Cylinder body. Certified stainless steel material for all tanks, with 100% TIG welded joints and seams with sanitary interior polish. Dimple Plate jacket for Glycol cooling & high efficient Polyurethane foam insulated. All tanks use Tri-clamp connections, are designed for up to 14.7 PSI and tested at 30 PSI.
We can custom fabricate any tank to meet your brewery’s space and height restrictions.
NAME BRAND, HIGH QUALITY VALVES AND FITTINGS WITH EVERY TANK!
Standard Features:
•Dish Cover at top & bottom, with an average of 10% head space
• Dimple plate jacket for glycol cooling
• Interior shell: 304 stainless steel, thickness 3mm /11 gauge
• Cooling jacket: 304 stainless steel, thickness 2mm /14 gauge
• Exterior shell: 304 stainless steel, thickness 2mm /14 gauge
• 2” Polyurethane insulation
• Interior surface to finish pickled and passivated
• Exterior surface to brushed, #4 finish
Or
Interior surface to polished to RA≤0.22μm
Exterior surface adapts satin polish.
•580x480mm Side manway, shadowless
• Accessories:
Sample Valve x1;
Pressure relief/vacuum valve x1;
Temp. sensor / thermometer x1;
Carbonation Stone x1;
Bottom outlet with butterfly valve x1;
Spraying Ball with down tube x1;
Stainless pipe legs with adjustable footpads x4;
| Capacity | Cylinder(ODxH) | OAH | Inner Thickness |
| 7BBL | 1050 x 950mm | 1910mm | 3mm |
| 10BBL | 1100 x 1350mm | 2360mm | 3mm |
| 15BBL | 1300 x 1500mm | 2610mm | 3mm |
| 20BBL | 1350 x 1750mm | 2910mm | 3mm |
| 30BBL | 1500 x 2100mm | 3340mm | 3mm |
| 40BBL | 1700 x 2100mm | 3420mm | 3mm |
| 50BBL | 1750 x 2450mm | 3800mm | 3mm |
| 60BBL | 1800 x 2800mm | 2670mm | 3mm |
| 80BBL | 2100 x 2600mm | 4250mm | 3mm |
| 100BBL | 2200 x 2950mm | 4650mm | 3mm |
