Stainless steel wine fermentation tank & wine tank

Fermenter available from 1 Barrel to 100 Barrels with an average 25% Head Space.

Technical Feature

  • Fermenting Equipment
  • New
  • Zhejiang, China (Mainland)
  • HS(wine fermentation tank )
  • HSMT
  • Alcohol
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$2~350

PRIMARY PARAMETERS

Processing
Fermenting Equipment
Condition
New
Place of Origin
Zhejiang, China (Mainland)
Brand Name
HS(wine fermentation tank )
Model Number
HSMT
Processing Types
Alcohol
Voltage
380V
Power(W)
15-70Kw Depends
Dimension(L*W*H)
Depends
Weight
200KG-2000KG
Certification
CE BV TUV
Warranty
2 Years, Within 24 months against the date of B/L
After-sales Service Provided
Engineers available to service machinery overseas
Stainless steel 304 or 316L
wide capacity range
Dimension
Tank shell thickness
Medium
Color Available
Mirror SUS
Accessories
Available
Usage
To make beer through Mashing, Fermenting, Cooling etc
Exterior Surface
To be #4 finished
Certificate
ISO CE

DETAIL DESCRIPTION

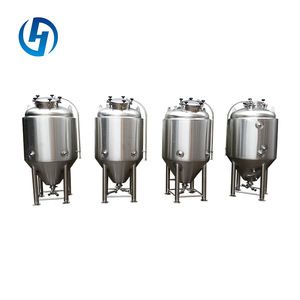

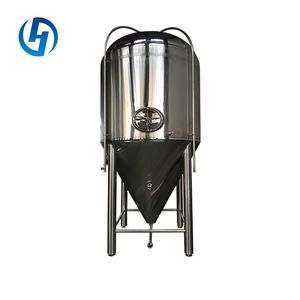

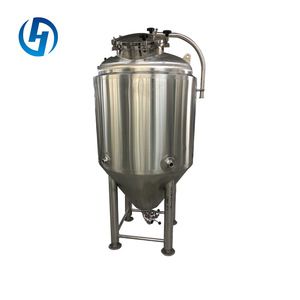

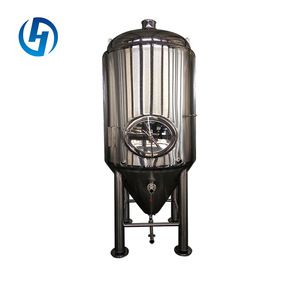

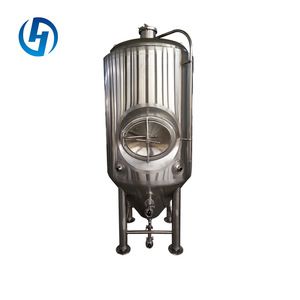

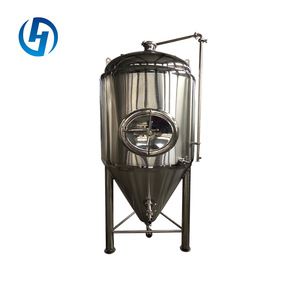

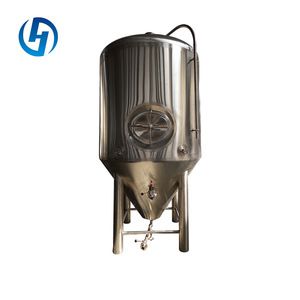

Stainless steel wine fermentation tank & wine tank

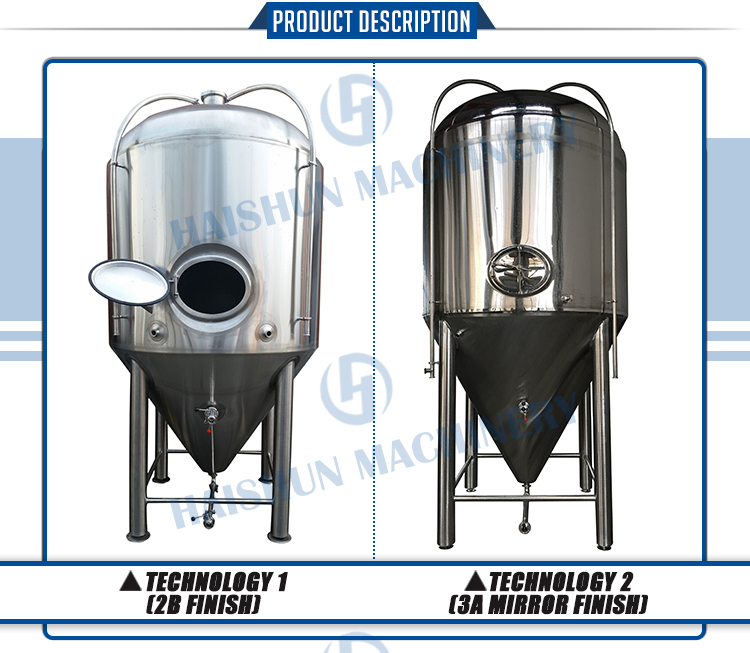

Product Description

Fermenter available from 1 Barrel to 100 Barrels with an average 25% Head Space. All tank have a

Dish top , Cylinder body & 60 /70° Cone Bottom . Certified stainless steel material for all tanks,

with 100% TIG welded joints and seams with sanitary interior polish. Dimple Plate jacket for

Glycol cooling & high efficient Polyurethane foam insulated.  All tanks use Tri-clamp connections,

are designed for up to 14.7 PSI and tested at 30 PSI.  We can custom fabricate any tank to meet

your brewery’s space and height restrictions.



NAME BRAND, HIGH QUALITY VALVES AND FITTINGS WITH EVERY TANK!



  Standard Features:

• Dual zone dimple cooling jackets (3 or more on larger tanks)

• Interior shell: 304 stainless steel, thickness 3mm /11 gauge

• Cooling jacket: 304 stainless steel, thickness 2mm /14 gauge

• Exterior shell: 304 stainless steel, thickness 2mm /14 gauge

• 2” Polyurethane insulation

• Interior surface to finish pickled and passivated

• Exterior surface to brushed, #4 finish

• 580x480mm Side manway, shadowless

• Dry hop inlet at top;

• Accessories:

   Sample Valve x1;

   Pressure relief/vacuum valve x1;

   Temp. sensor / thermometer x1;

   Rotating racking arm with butterfly valve x1;

   Bottom outlet with butterfly valve x1;

   Spraying Ball with down tube x1;

   Stainless pipe legs with adjustable footpads x4;



CapacityCylinder(ODxH)OAHInner Thickness
7BBL1000 x 1250mm2530mm3mm
10BBL1150 x 1250mm2670mm3mm
15BBL1250 x 1680mm3250mm3mm
20BBL1400 x 1700mm3400mm3mm
30BBL1650 x 1850mm3740mm3mm
40BBL1750 x 2050mm4040mm3mm
50BBL1750 x 2750mm4770mm3mm
60BBL1150 x 1250mm2670mm3mm
80BBL2100 x 2900mm5300mm3mm
100BBL2200 x 3350mm5850mm3mm
More Product

Advantages

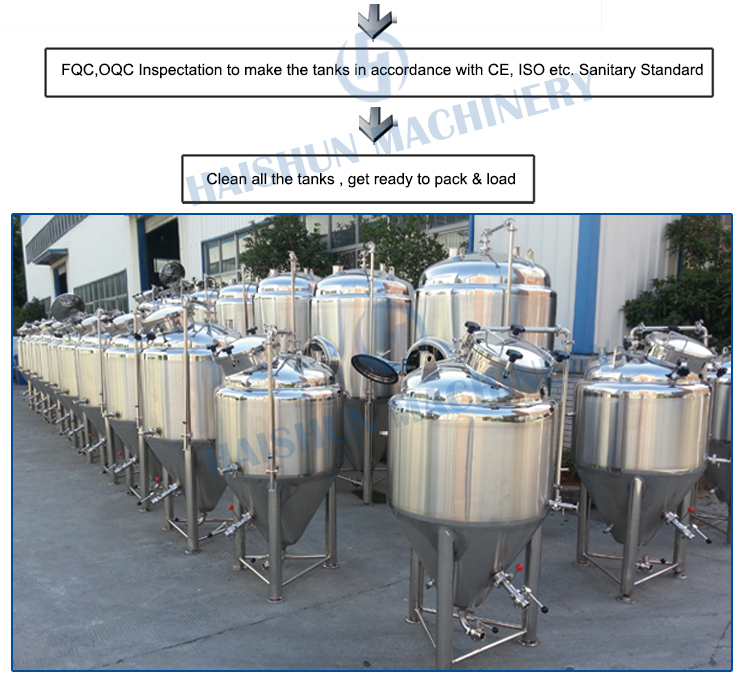

Packaging & Shipping





Company Information

Contact us

    Feel free to contact with us for detailed information & price!

    Shipping cost will be determined by tank quantity & delivery location.
