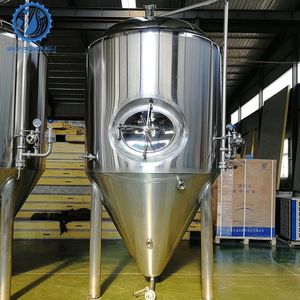

50l 100l 200l 250l 300l 400l 500l 600l 800l stainless steel jacketed conical beer fermenter tank

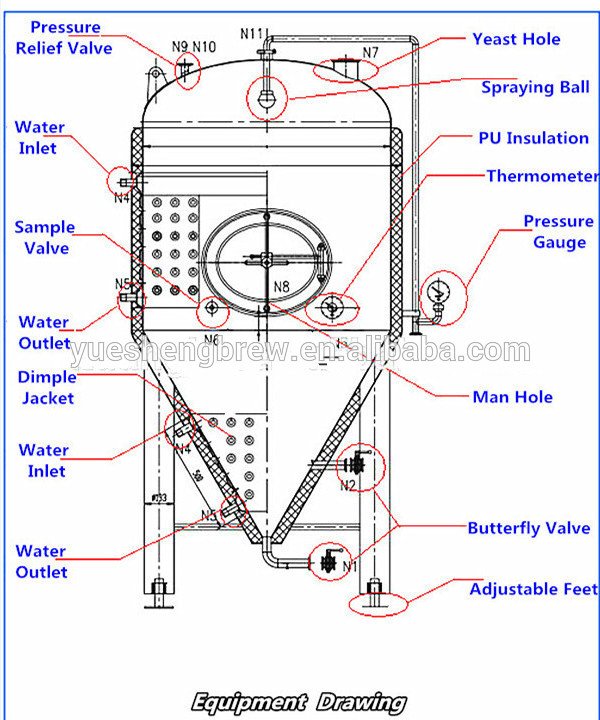

Fermenter tank configuration:
| Function | Wort Fermentation |
| Total capacity | Effective capacity +25% Headspace minimum |
| Interior Shell | SUS304 full welded; TH=3mm |
| Exterior Shell | SUS304 full welded; TH=2mm |
| Insulation | polyurethane,, TH=1.5mm |
| Glycol Jacket | Dimpled plate on cone and side |
| surface treatment | Surface brushed; Polish treatment |
| Polish precision | 0.4µm |
Control way | Individually temperature controlled by PLC or DCS |
| Washing way | CIP spray ball, in the center of the inside tank |
| Bottom cone | 60-90 degree |
| cooling way | chiller |
| Manway | top manhole or side manhole |
| Welding way | Perfect argon arc welding, Ra <=0.4 μm |
| Temperature control ways | Platinum resistance thermometer and Direct reading thermometer, display temperature from intelligent data meter |
| Temperature measurement system | Temperature sensor PT100, temperature display by intelligent data meter |
| Pressure control system | Automatic control electric connected pressure gauge |
| Tank pressure | Design pressure 0.3MPa; Working pressure 0.2Mpa |
| Valves and fitting | Matched valves SUS304 1)Solenoid water valve; 2)Solenoid relief valve 3)Butterfly valves;(Bottom outlet Butterfly valve:DN40) (Racking Butterfly valve: DN32) 4)Sample valves; 5)Beer outlet valves; 6)Drain valves: 7) One detachable Ladder stair, SUS304 |
| optional | Capacity:50-20000L Top hop additional port CO2 stone |

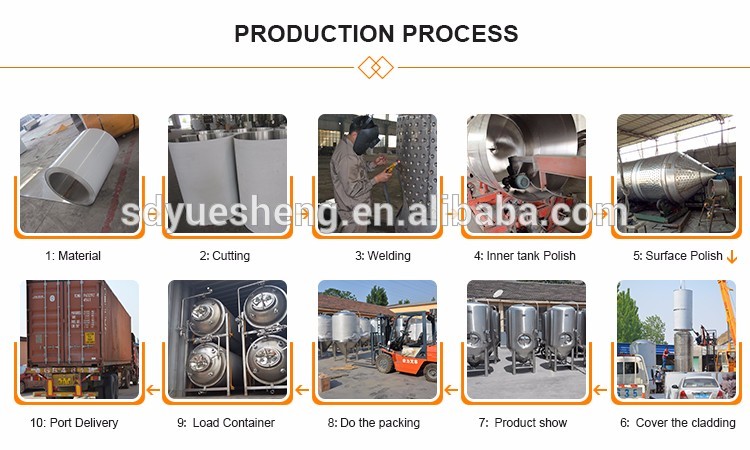

Welding and polish:
Accersories:
We consider all different potential situation in the delivery, so we use every prevention measures to avoid any potential inconvenience or trouble
Bulk cargo: Standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the surface of our products.
Container cargo: the equipment will be bound firmly and won’t easily swing to the side, or up, or down.
50 / 500 / 1000 gallon stainless steel beer conical fermentation tank
We consider all different potential situation in the delivery, so we use every prevention measures to avoid any potential inconvenience or trouble
Bulk cargo: Standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the surface of our products.
Container cargo: the equipment will be bound firmly and won’ t easily swing to the side, or up, or down.50 / 500 / 1000 gallon stainless steel beer conical fermentation tank
1.Dedicated team of consulting services within 12 hours' reply
We have a whole well trained marketing team to provide the most userfriendly consulting services to
customers before they make decisions. Your questions would be replied within 12 hours by our sales
team.
2.Professional team of technical engineers
We have the most professional team of engineers for project design, equipment selection, system utilization, all of which make sure that the brewery system are up to customers’ satisfaction.
3.Industry leading manufacturing facilities
We have the most complete production line for equipment construction and state-of-the art manufacturing machines.
4.Warranty
Provide 36 months complete warranty for tanks body and lifetime maintenance service;
All of the accessories and auxuliaries facilities are guaranteed for one year.1000 gallon conical fermentation tank
shandong yuesheng brew equipment200l / 400l conical beer wine fermenter with cooling jacket
is specialized in 1000 gallon conical fermentation tank designing, manufacturing,installation, commissioning, technology and development services
manufacturer. The company's production, technology,management of experienced professionals are constituted to excellent performance,exquisite workmanship, appearance concise atmosphere, the design is compact, easy to learn for the purpose of manufacturing production equipment.
1.What is kind of your packging?
Export standard, wooden case, iron crate, or any suitable for long distance sea transportation.
2.How long is your deliever lead time?
After 30-45 working days when we receiving your payment.
3.Could you caculate the shipping for me?
Yes, please kindly let us know which port is nearest your place.
4.Can your factory produce products according to our samples or drawing?
Yes, we can and most of our products can be customerized.
5.What is your term of payment?
50% T/T in advance ,balance before shippment. or other suitable payment methods.
How to make an order?
1.Send one inquiry or email
2.check email and choose models in our catalogue
3.negotiate detail order
4.confirm proforma invoice and arrange deposit
5.30-45 days later get your equipment
