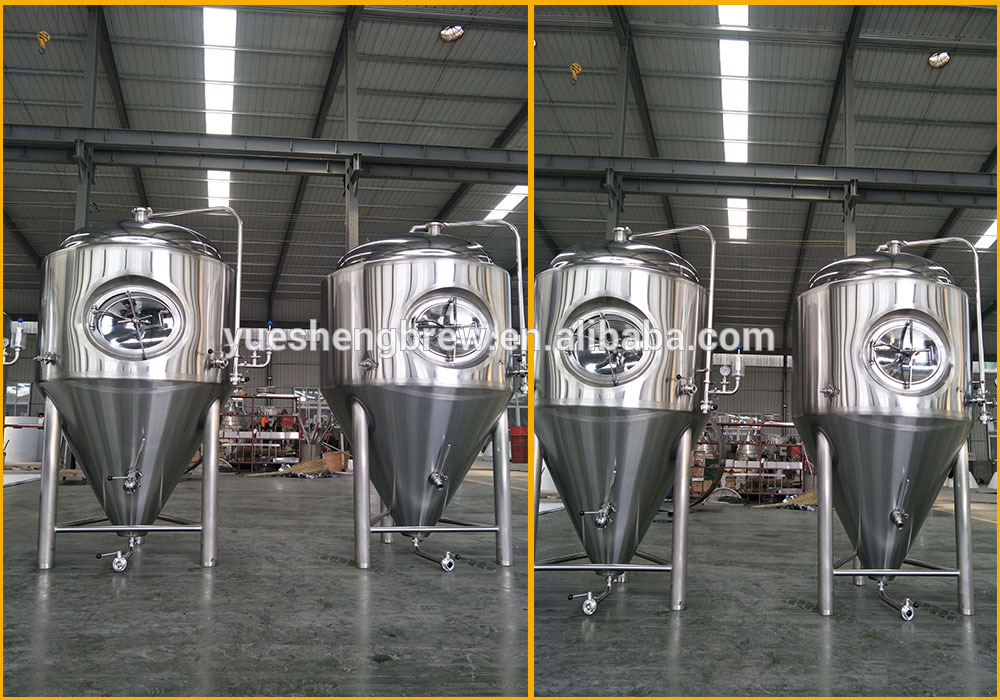

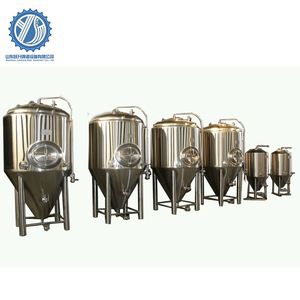

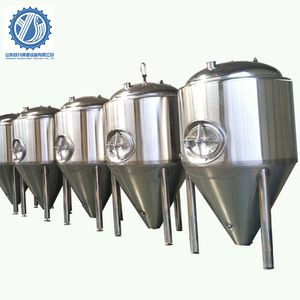

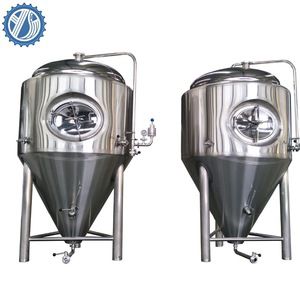

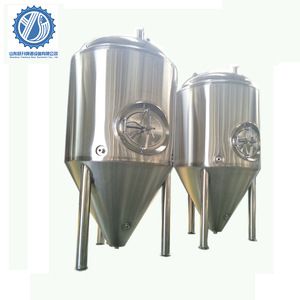

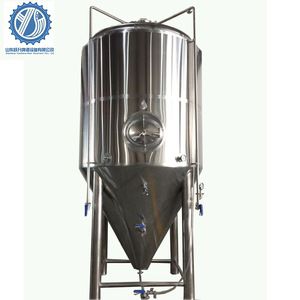

100L 200L 500L 10hl 1000L 2000L 3000L stainless steel conical fermenter fermentation tank
Simple description of 100L 200L 500L 10hl 1000L 2000L 3000L stainless steel conical fermenter fermentation tank
| Material: stainless steel 304 or 316 |
| Effective volume: 100-3000L |
Thickness of inner body is 3mm, cladding is 2mm, insulation thickness: 100mm |
Top breather valve, top hop additional port |
Manhole; With rotary CIP spray balls |
Sample valve; Thermal well; Mechanical pressure adjustable valve |
Glycol solenoid valves; Bottom drain port and beer outlet |
Dimple type glycol cooling jacket, cooling jacket thickness is 1.5mm |
Technical specification of 100L 200L 500L 10hl 1000L 2000L 3000L stainless steel conical fermenter fermentation tank
Technical Details of Stainless Steel Conical Fermenter | |
ITEMS | SPECIFICATION |
| |
Effective Volume | 100L-3000L |
Size | can be design base on customer space infrastructure height and door size. |
External-Jacket | Stainless Steel SUS304 |
Inner surface material | Stainless Steel 304/316 |
Cooling way | With glycol cooling jacket |
Washing way | CIP spray ball; In the center of the inside tank |
Beer way out | With beer outlet and drain valve |
Welding way | Perfect argon arc welding, Welds are smooth and flat and the arrangements of welds have to be not more than Ra 0.4 μm. Inside and outside polishing processing, No welding dead corner. |
Control way | Programmable Logic Controller (PLC)--full-auto control Distributed Control System (DCS)-- semi-auto control |
Temperature control ways | Platinum resistance thermometer and Direct reading thermometer, display temperature from intelligent data meter |
Temperature Measurement System | Temperature sensor PT100, temperature display by intelligent data meter |
Pressure control system |
Automatic control electric connected pressure gauge |
Tank cladding material | SUS304 |
Material of inner tank Surface | Stainless Steel SUS304 |
Out Surface cladding/ surface treatment |
Surface brushed; Polish treatment |
Polish precision | Polishing precision≤0.4µm |
Tank cladding Thickness |
2mm(customized) |
Inner tank material thickness | 3mm |
Top Seal head | Domed top |
Head thickness | 3mm |
Bottom cone | Conical cone |
cone angle | 60 degree or can be adjustable according to customers's requirement |
Insulation layer material | Protected by polyurethane(PU) |
Insulation layer Thickness | 100mm(customized, can design as per requirement) |
Tank pressure | Design pressure 0.3MPa; Working pressure 0.24Mpa. |
Test pressure | Design pressure 0.3MPa; Working pressure 0.24Mpa. |
Work pressure | Design pressure 0.3MPa; Working pressure 0.24Mpa |
Manhole | Top manhole with glass window |
Valves and fitting | Matched valves SUS304: 1)Solenoid water valve; 2)Solenoid relief valve 3)Butterfly valves (Racking Butterfly valve: DN32) 4)Sample valves; 5)Beer outlet valves; 6)Drain valves: 7) One detachable Ladder stair, SUS304 |
Electric instruments | Electronic connect pressure gauge; relief valve;intelligent data meter |
Packaging Detail | Export standard, maximum protection, including:Wooden case, angle steel, plastic film, bubble film. |
Certification | CE and ISO |

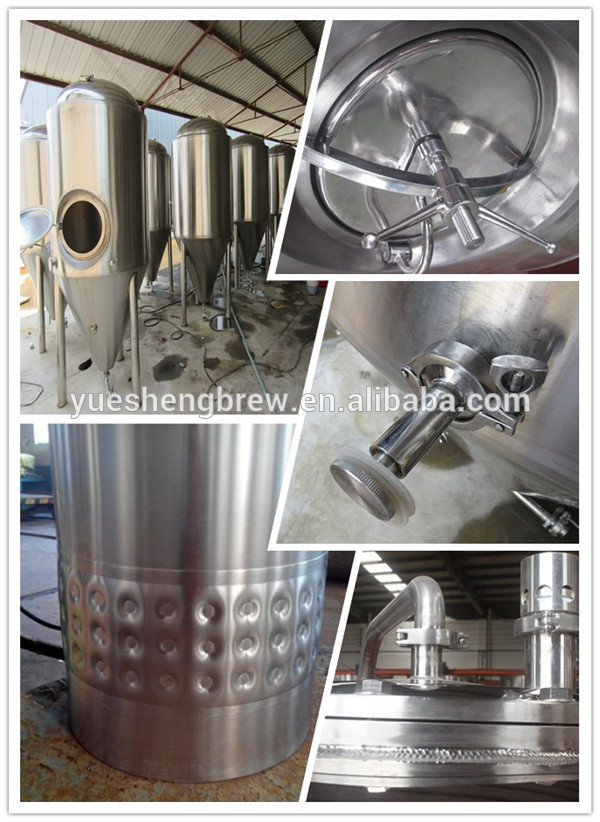

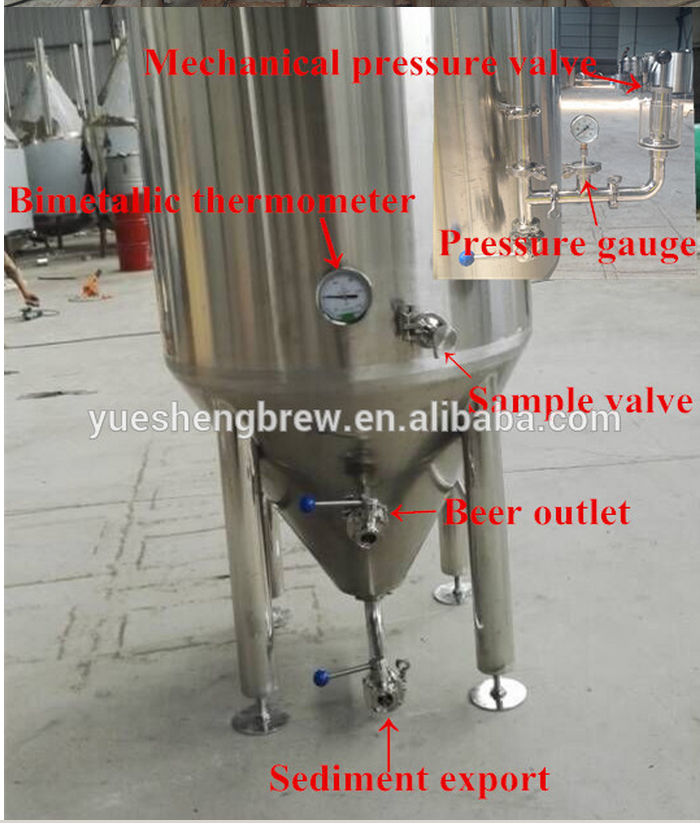

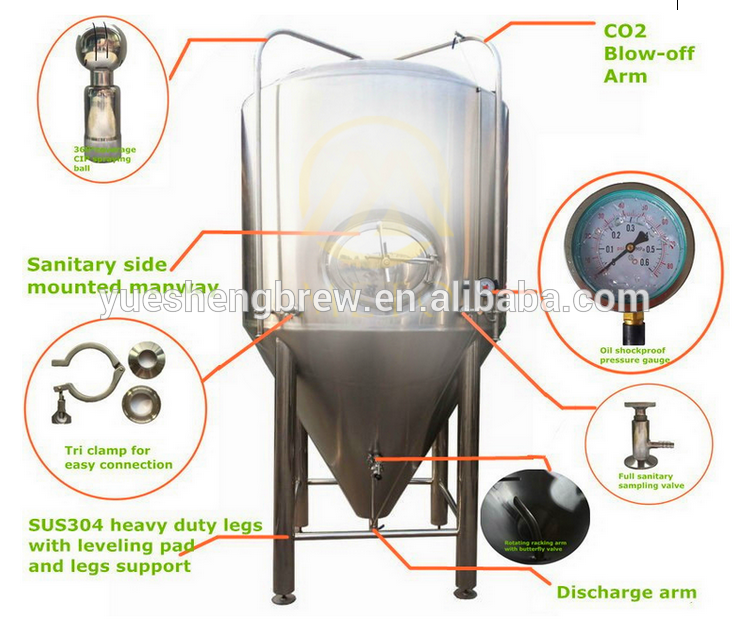

Details displaying of 100L 200L 500L 10hl 1000L 2000L 3000L stainless steel conical fermenter fermentation tank

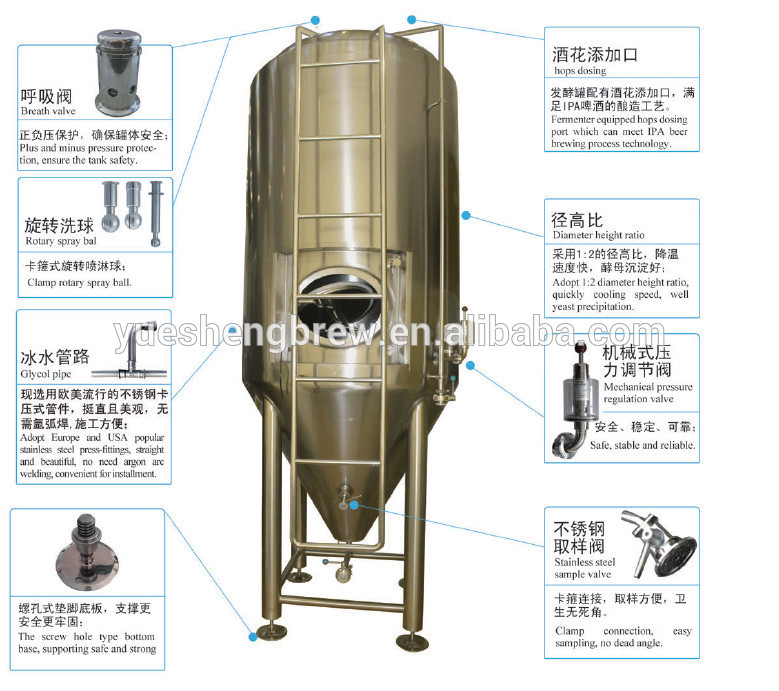

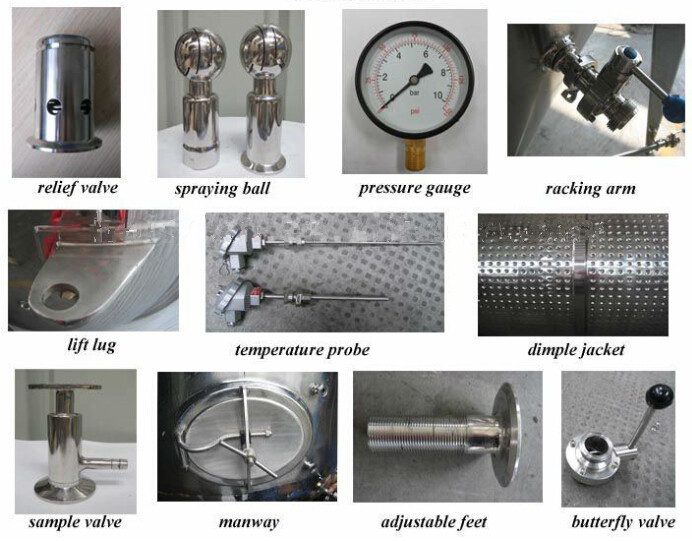

Components parts of 100L 200L 500L 10hl 1000L 2000L 3000L stainless steel conical fermenter fermentation tank

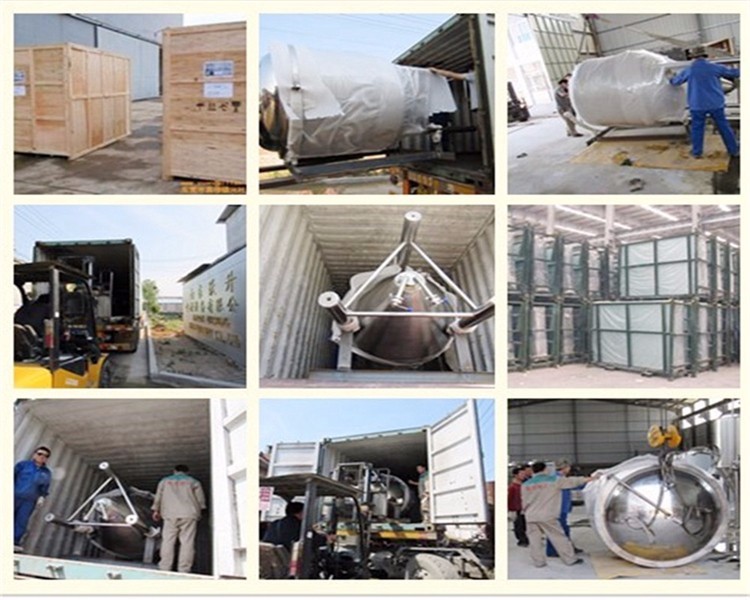

We consider all different potential situation in the delivery, so we use every prevention measures to avoid any potential inconvenience or trouble
Bulk cargo: Standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the surface of our products.
Container cargo: the equipment will be bound firmly and won’t easily swing to the side, or up, or down.
Pre-service
Our market team can serve you in 24 hours, so please feel free to contact at your convinent.
Our dedicated engineers can supply 2D,3D drawing for you if you needed.
If you need to inspect our factory, we can book the hotel and make the invitation letter for you.
Our market team with our engineer with more than 10 years experiences together can satisfy you with any technology problem;
Customize machine can be offered(voltage,material,dimension,heating source and so on)
After-service:
When shippment, we will supply a whole set of parts for backup.
If there is any parts damaged, we are surely can send the part to you in 24 hours.
Main machine is 3 years warranty, auxiliary machine is 12 months warranty,
electrical components is 18 months warranty, life long service.
1.What is kind of your packging?
Export standard, wooden case, iron crate, or any suitable for long distance sea transportation.
2.How long is your delievery lead time?
After 30-45 working days when we receiving your payment.
3.Could you caculate the shipping for me?
Yes, please kindly let us know which port is nearest your place.
4.What is your term of payment?
50% T/T in advance, balance before shippment or other suitable for payment methods.
5.How to make an order?
1.Send one inquiry or email
2.check email and choose models in our catalogue
3.negotiate detail order
4.confirm proforma invoice and arrange deposit
5. You will get the equipment after 30-45 days.
