High quality 500L beer fermentor
Fermenter System
Fermenter system is composed of fermenter tank, bright beer tank, yeast added tank, etc.
The traditional design of the fermenter’s cylinder and cone is double-jacket, the seal head is single-jacket, based on the original design.
500L fermenter tank description:
1. Quality: High quality Without driving leakage risk and nice appearance
2. Capacity: Can be customized
3. Processing: Fermenting
4. Thickness: 3mm
5. Volume design: Properly according to the capacity requests
6. Certification: ISO9001 / CE
7. Material: Stainless Steel 304
8. Warranty: 5 years
500L beer fermentor
1 | Total capacity | 625L |
2 | Effective capacity | 500L |
3 | Size | D960*H230mm |
4 | Weight |
|
5 | Material | SUS304 |
6 | Exterior shell | 2mm |
7 | Interior shell | 3mm |
8 | Insulation material | PU |
9 | Insulation TH | 80mm |
10 | Top type | Dished head |
11 | Manhole Type | Side |
12 | Manhole size | 530x430mm |
13 | Inner cone | 60 degree |
14 | CIP pipe Diameter | Φ32 |
15 | CIP ball(1) | 360º Rotating spray ball |
16 | Temperature sense | PT100 sensor |
17 | Thermowell diameter | Φ10 |
18 | Inner Polishing | 0.2-0.4micron |
19 | Design pressure | 0.3Mpa |
20 | Cooling type | Dimple cooling jacket |
21 | Cooling area | 1.25 M2 |
22 | Cooling jacket inlet | G3/4 |
23 | Cooling jacket outlet | G3/4 |
24 | Pressure control | Mechanical pressure relief valve |
25 | Pressure gauge | 1pc |
26 | Rotating Racking arm | 1pc |
27 | Sample port | Φ38 |
28 | Drain outlet | Φ51 |
29 | Safety valve (PVRV) | Φ51 |
Qihui Standard

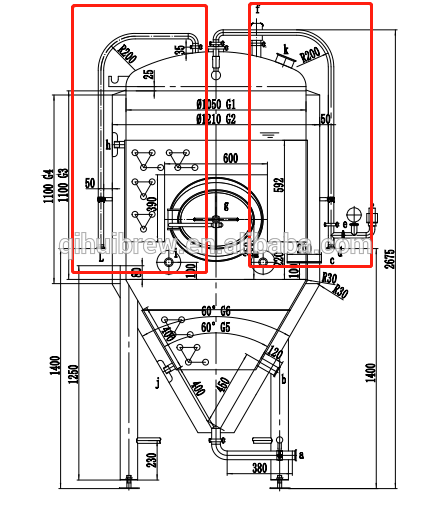

Double “L” pipeline
We equip double “L” pipeline, one for CIP cleaning, other is balance pipeline.
Normally, some factories do not have the balance pipeline.
The function of the balance pipeline:
A. When cleaning the fermenter, the valves on the balance pipeline are keep in open state, it allows intake and exhaust to avoid positive pressure or negative pressure in the fermenter.
B. Larger fermentation tanks produce more CO2 during the main fermentation period. This pipeline valve can be connected to the CO2 exhaust pipe, the CO2 can be discharged outside.
Company information:

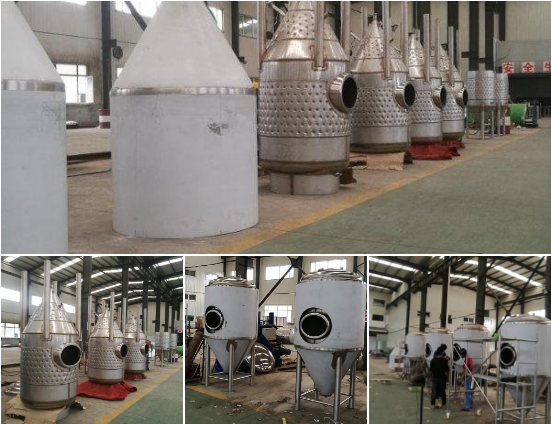

Jinan Qihui Beer Equipment Co., Ltd is located in Jinan City, Shandong Province, the location have strong industrial base and convenient transportation. Modern production workshop and first-class manufacturing equipment, such as laser cutting machine, coiling machine, rolling taper machine, head polishing machine, stainless steel welding machine, e.t.c... The company has independent import and export rights, already exported to United States, Canada, Germany, Poland, Russia, Australia, Greece, Mexico, South Korea, France, the Czech Republic, the Netherlands, Switzerland, Japan, New Zealand, India, Thailand and other 50 countries and regions.
