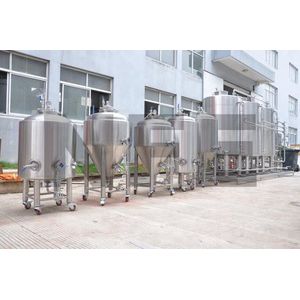

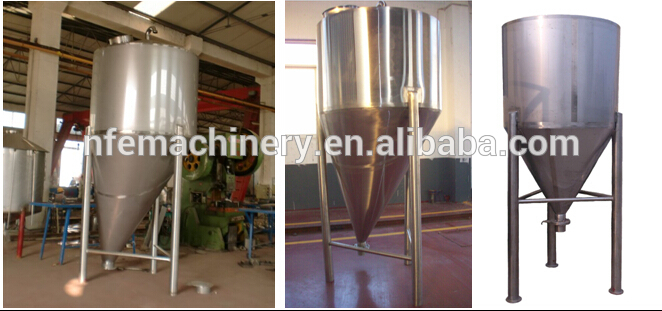

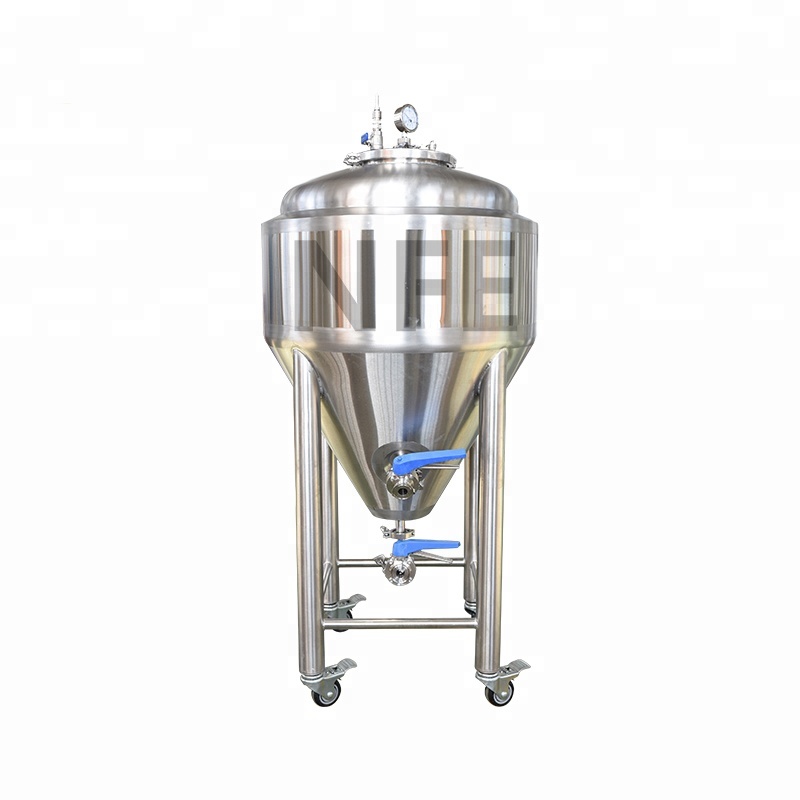

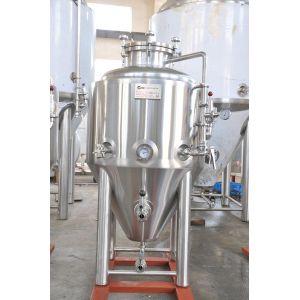

Sanitary Stainless steel 304,
conical vertical tank,
25% top space to avoid beer foam out;
dome top head, cone bottom;
Surface brushed, welding line polish sanding light belt;

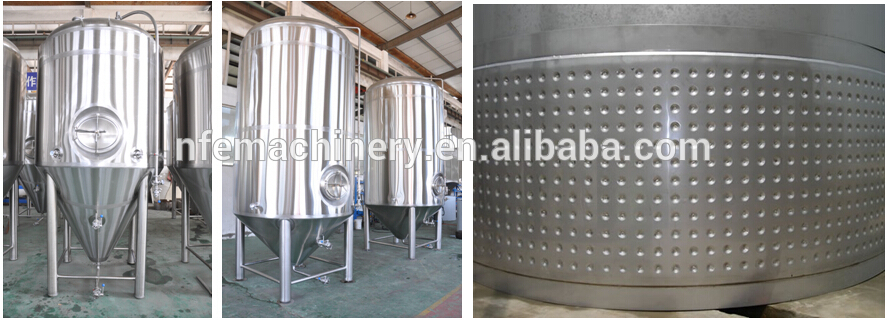

dimple plate cooling jackets( on wall and cone);
With rotary CIP spray balls and arm;
Pt100 temperature sensor; dry hopping port on top head;
Sample valve in the cylinder;
separate outlets for yeast and clear beer, beer racking arm located in the conical part of the tank
Relief valve, Pressure regulating valve; Pressure gauge;
Glycol solenoid valves,
Stainless steel legs with bigger and thicker base plate, with screw assembly to adjust leg height
MILL SYSTEM: MILL MACHINE, FLEX AUGER, GRAIN BIN, GRIST HOPPER |

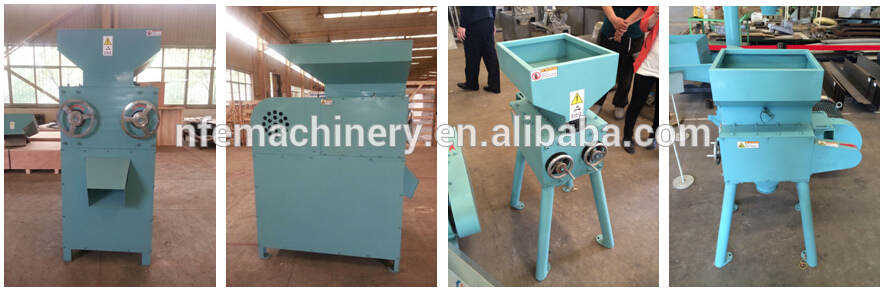

Mill Machine: 80-150kg/h, 300-500kg/h, 500-800kg/h, 800-1000kg/h |
|

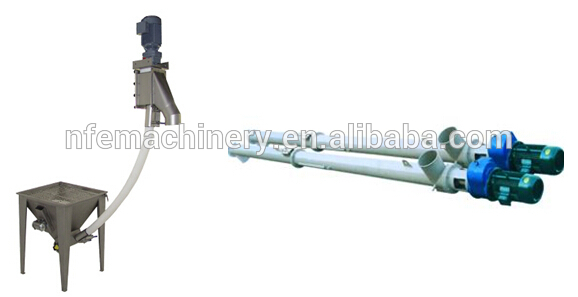

Flex Auger: PPR material pipe, stainless steel auger, motor |
|
Grist Hopper, Grain bin |
|

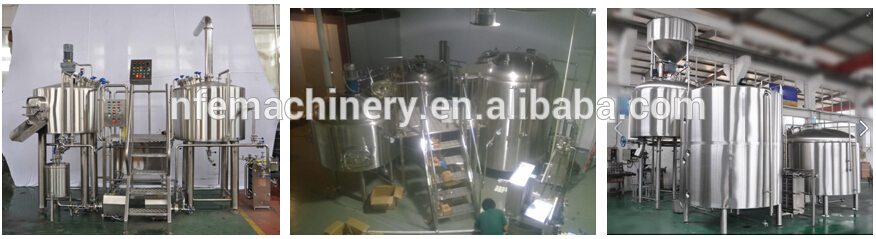

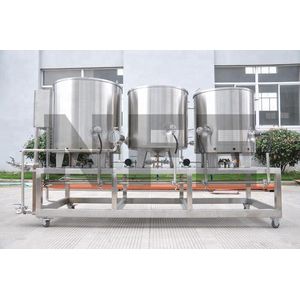

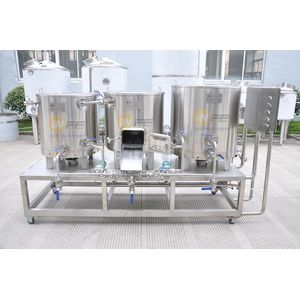

Brewhouse: two vessels, three vessels, four vessels, five vessels Heating medium: steam heating, natural gas direct fire, electric heating Insulation material: rock wool. Insulation thickness: 80mm/100mm Mash tank; hydrator, mixer, steam heating jacket Lauter tun: rake, agitator, false bottom, hydrator Brewkettle, steam heating jacket, inner steam heating deivce; natural gas direct fire Whirlpool tun: whirlpool entry Capacity: 50L -100HL |
|
Fermentation Tank: 50L-500HL |
|

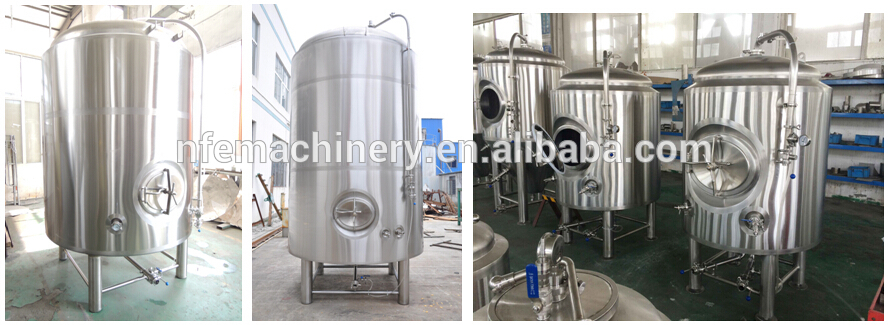

Bright Beer Tank: 50L-500HL |
|

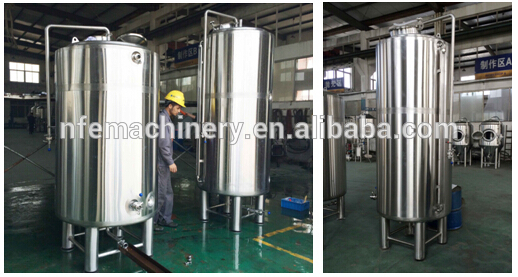

Hot Water Tank/Cold Water Tank/Glycol Tank: |
|

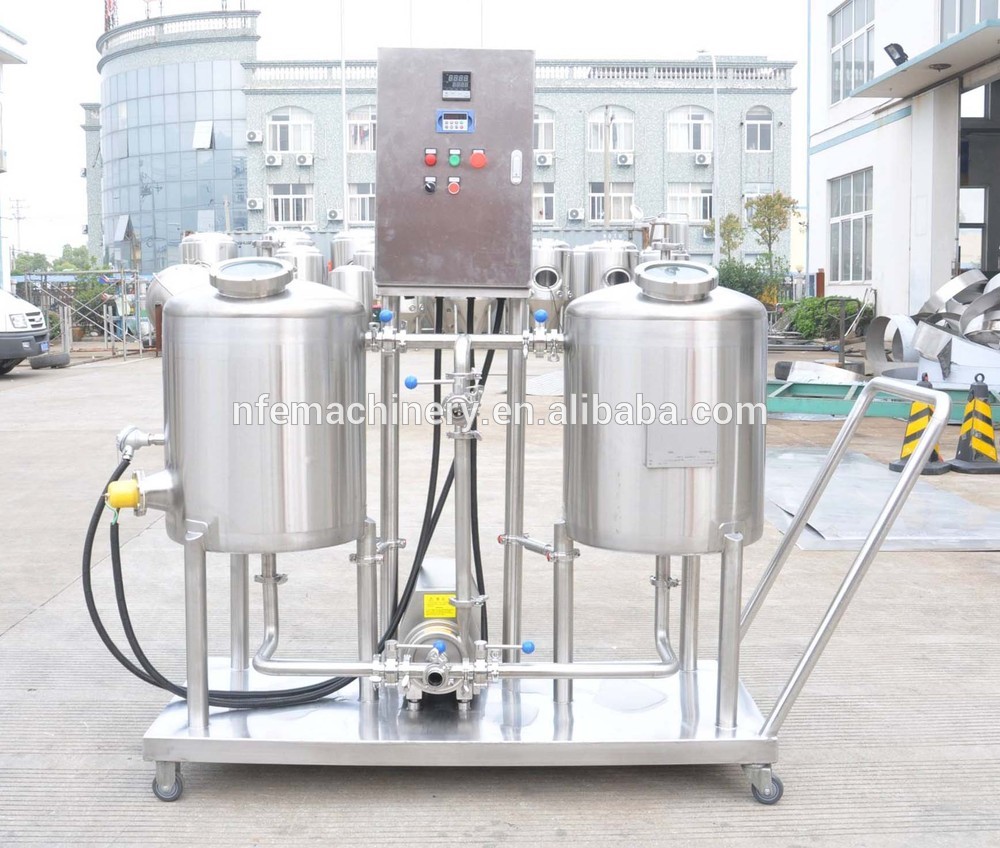

CIP System |
|
We are preparing to supply technology service at any time.
1. Provide the most professional and prompt consulting services
2. Provide onsite installation service for starting up new brewery projects;
3. Regular maintenance service and lifetime after-sales services.
4. Provide equipment handbook, electrical appliance drawing, tank and machinery drawings to customers with the equipment.
1. Main tanks, vessels and machines will be packaged with soft protection materials and mounted on steel frames.
2. All spare parts, accessories and fittings will be packaged with seperate box.
