1bbl 2bbl craft beer fermenters, beer unitanks, fermentation tanks for microbrewery

PRIMARY PARAMETERS

Processing

Fermenting Equipment, Fermenting Equipment,fermenter,fermentation,milling,beer brewing

Condition

New

Place of Origin

Zhejiang, China (Mainland)

Brand Name

NFE

Model Number

1bbl/2bbl

Processing Types

Alcohol

Voltage

3phase/380(220,400,415,440)V / 50,60 HZ

Power(W)

10-30KW

Dimension(L*W*H)

Depends on capacity

Weight

Various in different models

Certification

CE ISO

Warranty

3 Years

After-sales Service Provided

Engineers available to service machinery overseas

Appearance

Stainless Steel

Color Available

Mirror SUS

Inner Polishing Precision

0.4 Micrometer

Thickness of Tanks

3mm for nterior shell/2mm for exterior shell

Insulation

Polyurethane or Rockwool with thickness=80mm

Control system

Temperature, Pressure auto control

Volume Design

Properly according to the capacity request

Plants Type

Turnkey or Customerized

Application

1bbl/2bbl fermenter

DETAIL DESCRIPTION

Pub hotel restaurant Brewery used craft beer brew kettle stainless steel fermenting unitank 1bbl/2bbl beer conical fermenter tanks

About us

NFE-Series Beer Brewing Equipment, Brewery Equipment

NFE Machinery Co., Ltd. is is a professional manufacturer of beer brewery equipment,fermenters,stainless steel vessels,etc.

We could offer suitable brewery Project according to your requirement,idea.Such as you want build these item in your Home,Hotel, bars,Restaurant, barbecue, small and medium-sized breweries and so on.

Output Calculation

Capacity	Cylinder(ODxH)	TOTAL HEIGHT	Inner Thickness
3BBL Fermenter	960x750mm	1880mm	3mm
5BBL Fermenter	1060x850mm	2250mm	3mm
7BBL Fermenter	1160 x 900mm	2450mm	3mm
10BBL Fermenter	1260 x 1150mm	2800mm	3mm
15BBL Fermenter	1500 x 1220mm	3100mm	3mm
20BBL Fermenter	1600 x 1400mm	3500mm	3mm
30BBL Fermenter	1800 x 1650mm	3760mm	3mm
40BBL Fermenter	1900 x 1850mm	4210mm	3mm
50BBL Fermenter	1900 x 2050mm	4750mm	3mm
60BBL Fermenter	2200 x 2150mm	4830mm	4mm
80BBL Fermenter	2200 x 2900mm	5780mm	4mm
100BBL Fermenter	2200 x 3600mm	6450mm	4mm

PROJECT CASE

Details

Project Description

Pub hotel restaurant Brewery used craft beer brew kettle stainless steel fermenting unitank 1800l beer conical fermenter tanks

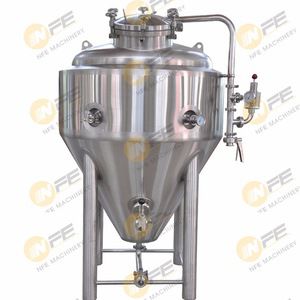

Fermentation Tank

Standard Features

Dual zone dimple cooling jackets (3 or more on larger tanks)
Interior shell: 304 stainless steel, thickness 3mm /11 gauge
Cooling jacket: 304 stainless steel, thickness 2mm /14 gauge
Exterior shell: 304 stainless steel, thickness 2mm /14 gauge 80mm Polyurethane insulation
Interior surface to finish pickled and passivated
Exterior surface to brushed, #4 finish
580x480mm Side manway, shadowless
Dry hop inlet at top;

Accessories

Sample Valve x1;
Pressure relief/vacuum valve x1;
Temp. sensor / thermometer x1;
Rotating racking arm with butterfly valve x1;

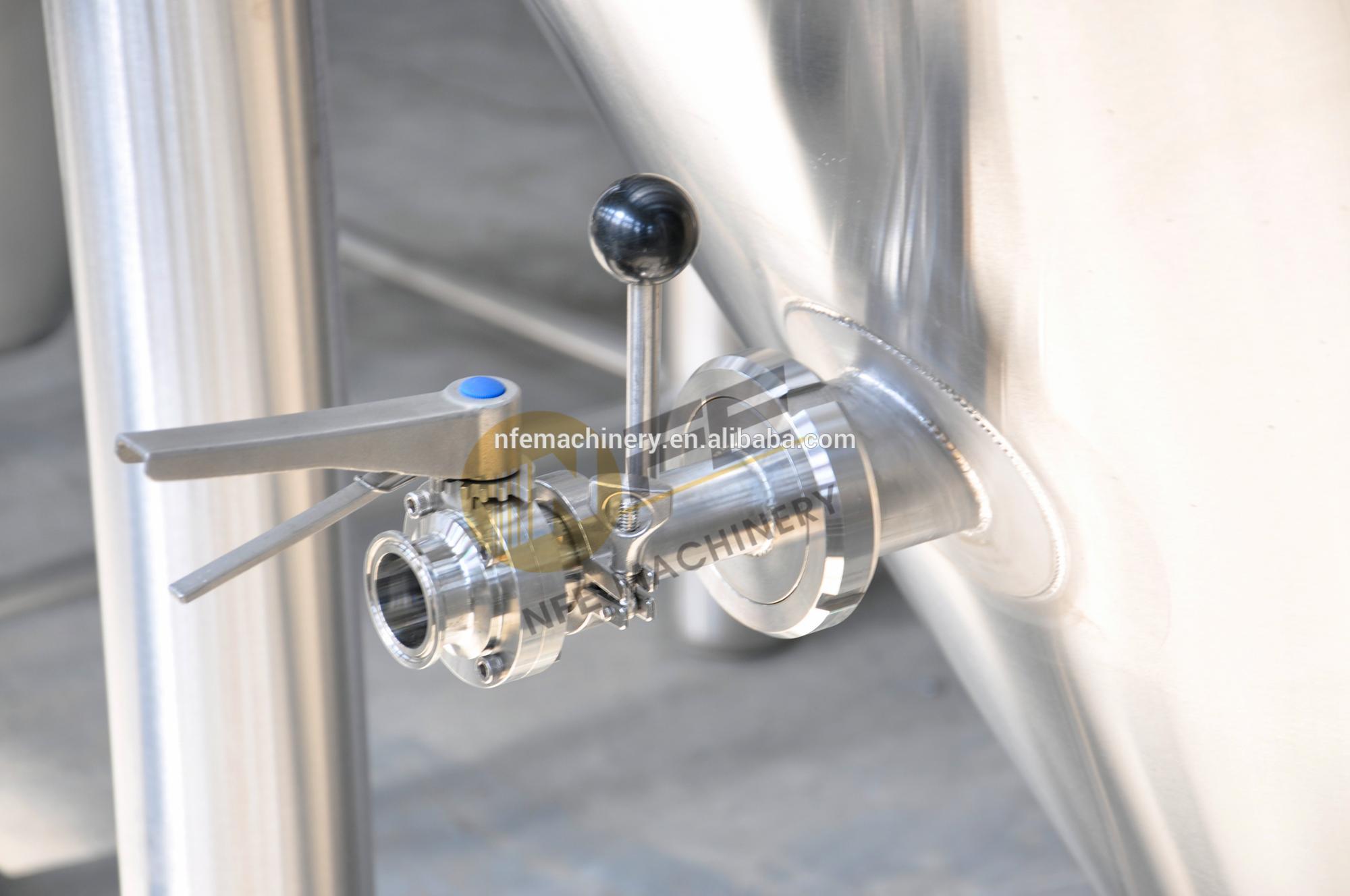

Bottom outlet with butterfly valve x1;
Spraying Ball with down tube x1;
Stainless pipe legs with adjustable footpads x4;

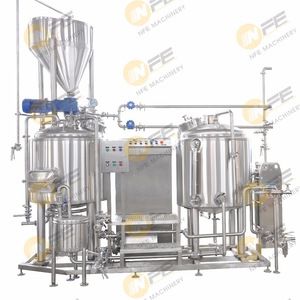

An Brewery Euipment

Part 1, Malt Milling Unit of 1800l brewery equipment

Part 2,Brewhosue System of 1800l brewery equipment

Brewhouse System	Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun in various combination
Infusion or decoction brewing methods are designed exactly
Infusion or decoction brewing methods are designed exactly

Part 3, Fermentation Tank of 1800l brewery equipment

Fermentation Tank	Standard stainless steel conical cylindrical fermentation tanks
Single size as brewhouse is common used in restaurant

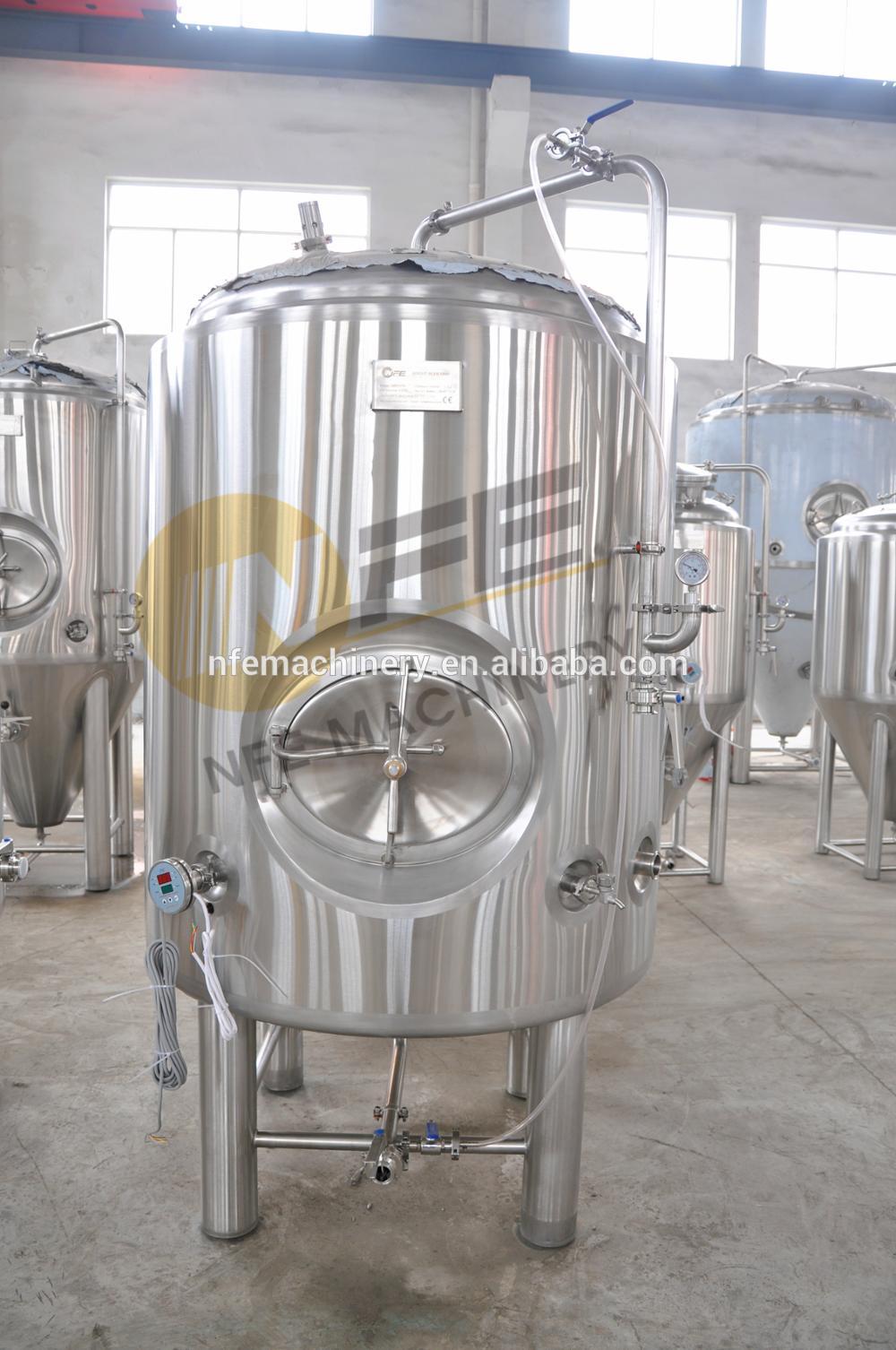

Part 4, Beer Bright Tank of 1800l brewery equipment

Beer Bright Tank	Adopting scientific pressure maintaining and temperature cooling technology.
Equipped with rotary spray ball,carbonation stone device,relief valve,pressure regulating valve,etc.
The tank wall and bottom cone are welded with cooling jacket device to reach quick cooling and section cooling purpose.

Part 5, Glycol Cooling Unit of 1800l brewery equipment

Glycol Cooling Unit	Insulated glycol water tank with or without copper coil for glycol liquid holding and mixing
Efficiency chillers or refrigerators with fryonto supply cooling energy

Part 6, Controlling Unit of 1800l brewery equipment

Controlling Cabinet

2 types:

Instrument (Button)panel and PLC Touch screen Panel controller,

Electrical controlling cabinet with temperature, on-off controlling for brewhouse

Temperature controller, thermocouple, solenoid valves etc are included

Certifications

Our Services

1.We supply the complete turnkey beer brewery equipment include the bottle and

barrel filling system.

2.The detailed floor plan,CAD drawing and 3D drawing of the brewery,installation

pipeline connection drawing,the operation manual.

3.We can transport the goods to your delivery place.

4.Support sending engineer to install and training technology on site and supervised-installation with remote support.

5.We supply the beer recipes,brewing technology.

6.Guarantee 3 Years service for the beer brewery equipment.
