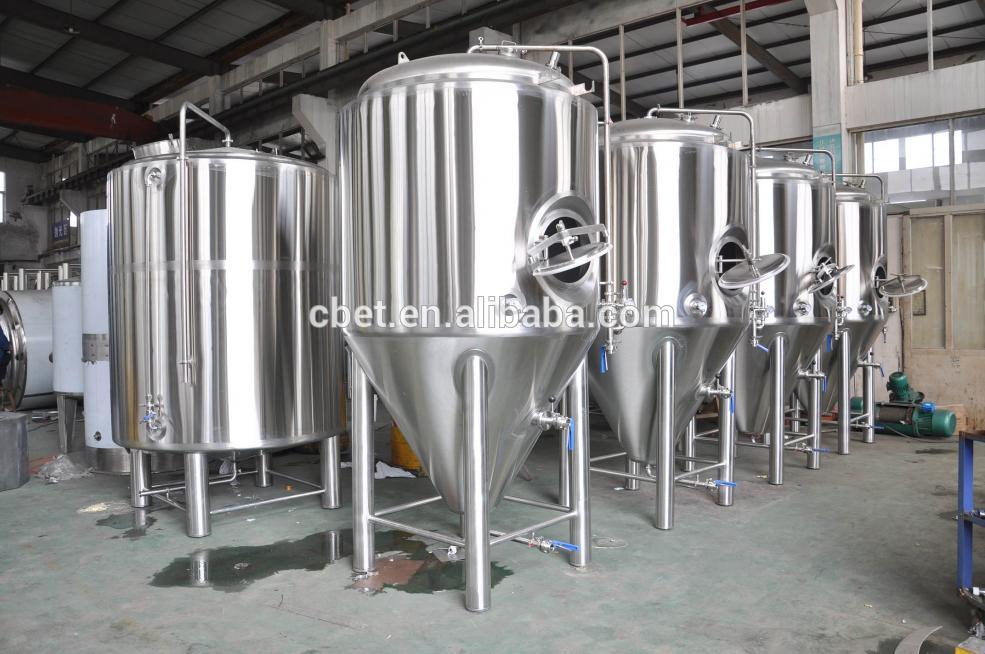

500l 1000l 2000l 3000l Stainless steel conical fermenter fermentation tanks
CBET can provide complete conical fermenter fermentation tanks for home/pilot beer brewing,pub/restaurant/Bar beer brewing, micro brewery brewing with diversity capacity from 100L~5000L, 1BBL~30BBL, to meet different demands of the market!
More client beer brewing project reference video in Youtube link:
https://www.youtube.com/channel/UCJlwjOqI8Snr1bFr7SuinEw/videos?view_as=subscriber
Conical Fermenter Fermentation Tanks Specification
| Fermentation Tank | Function:Wort Fermentation and maturation |
| Interior Shell:SUS304 Stainless Steel full welded,TH: 3.0mm; | |
| Exterior Shell:SUS304 Stainless Steel full welded,TH: 2.0mm; | |
| Insulation: Polyurethane-TH:80mm | |
| 100% TIG welding with pure argon gas shield | |
| Overall polishing to 0.4~0.6μm without dead corner | |
| Glycol Jacket: Dimpled plate on cone and side,thickness:2.5mm | |
| Cooling media: glycol water or alcohol water. | |

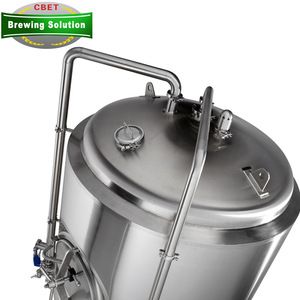

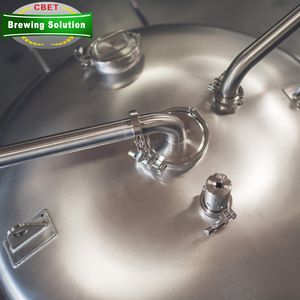

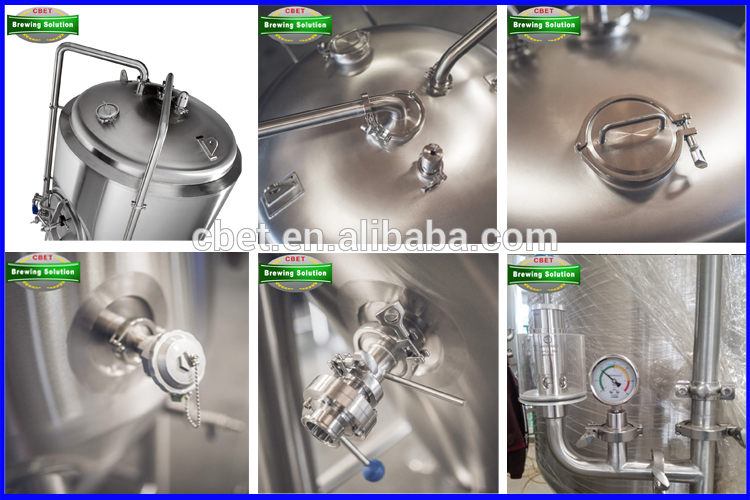

| Dry hopping port and safety valve on the top of tank | |
| Mechanical relief valve,Shockproof pressure gauge on CIP arm | |
| Stringent tank test with 3 BAR pressure(48Hours) | |
| Stringent Jacket test with 3 BAR pressure(48Hours) | |

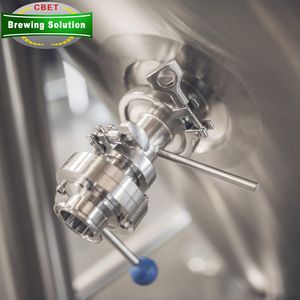

| Rotating racking port,discharge port with butterfly valve | |
| Dished head and 60 degree cone bottom | |
| Inward type elliptical side manhole, with bevel edge | |

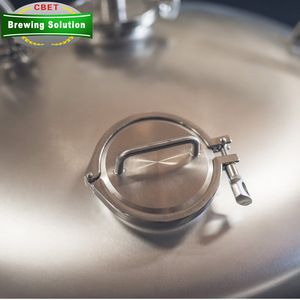

| Sanitary top mounted pressure manway | |
| CIP arm with 360° coverage rotatable CIP spraying ball | |
| Thermowell with high accuracy temperature sensor: PT100 | |
| Cooling control:Square table control,sigle tank single control. | |
| Top ladder hanger, in line with manhole vertically | |
| Welding seams brushed sand belt, welding points to be acid passivated, | |
| 4 heavy duty stainless steel legs with leveling footpads |

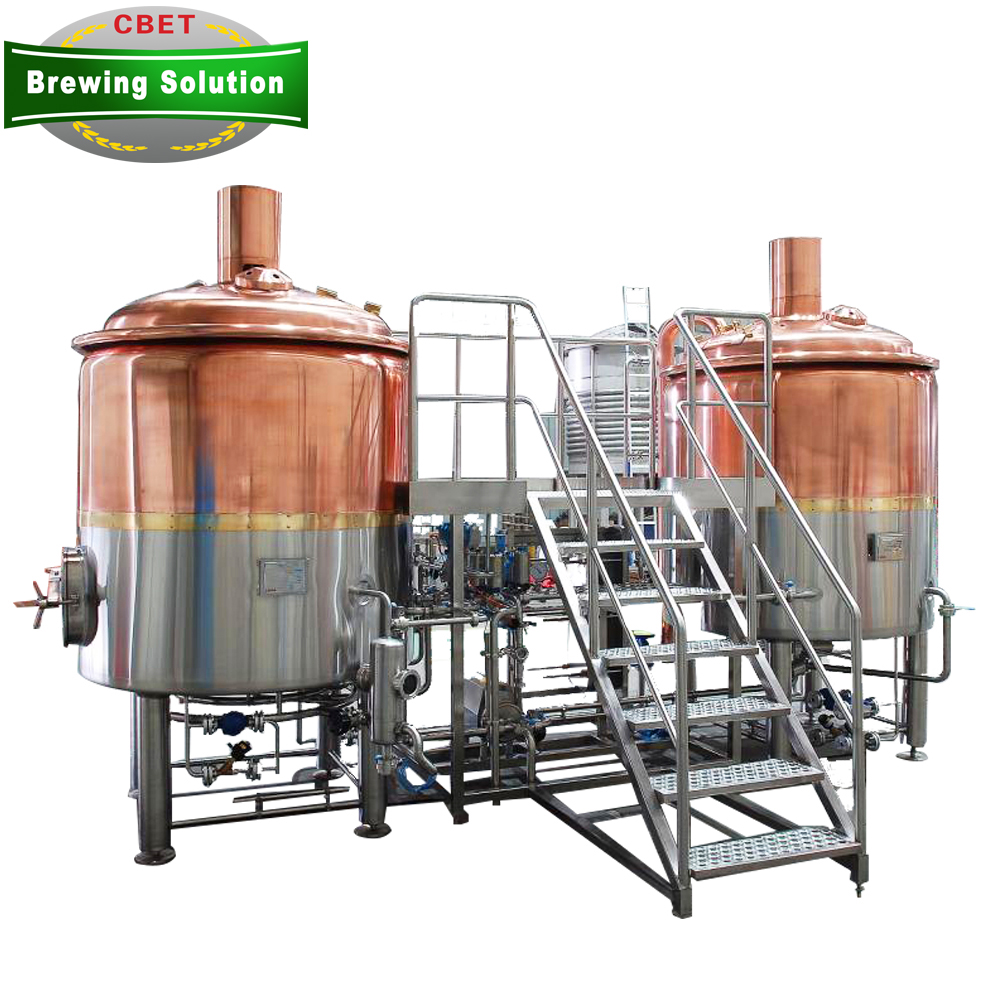

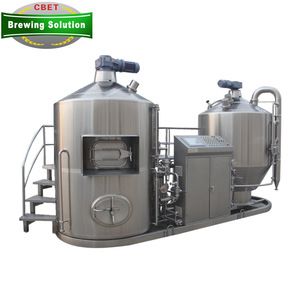

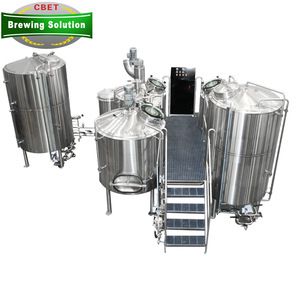

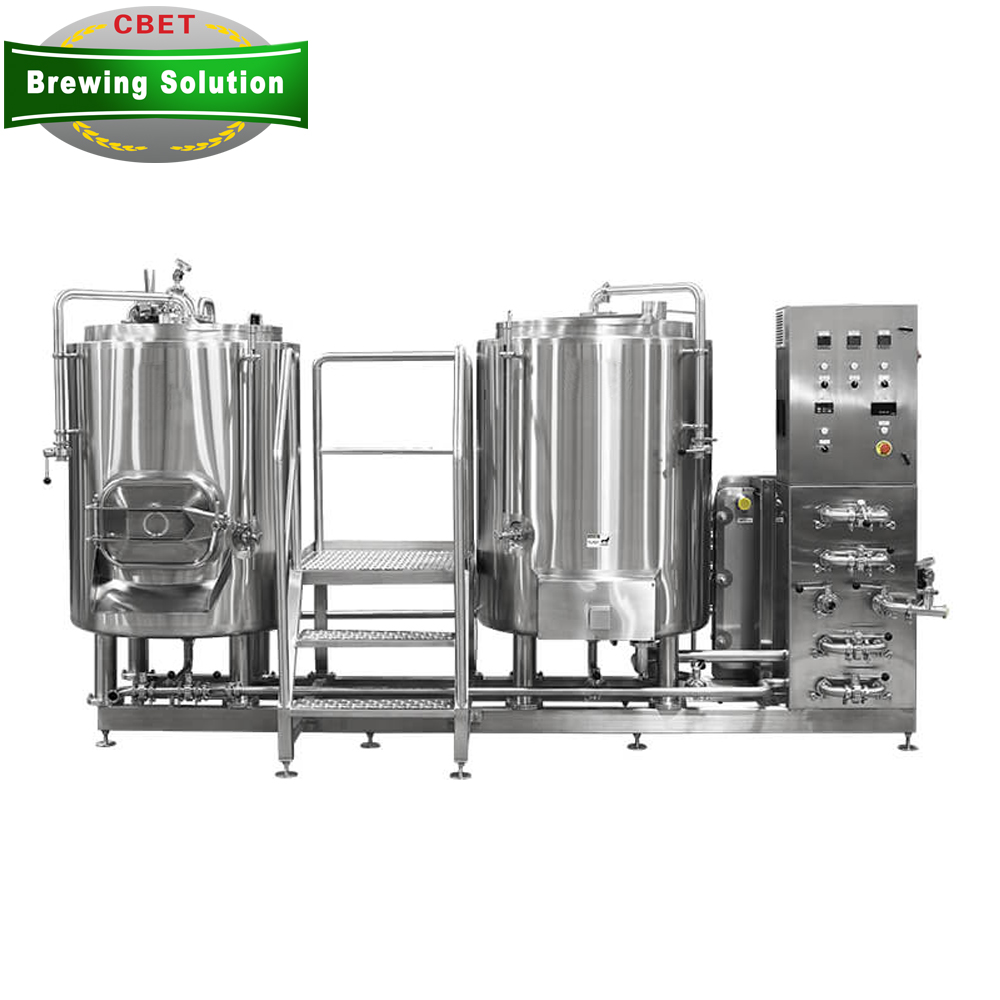

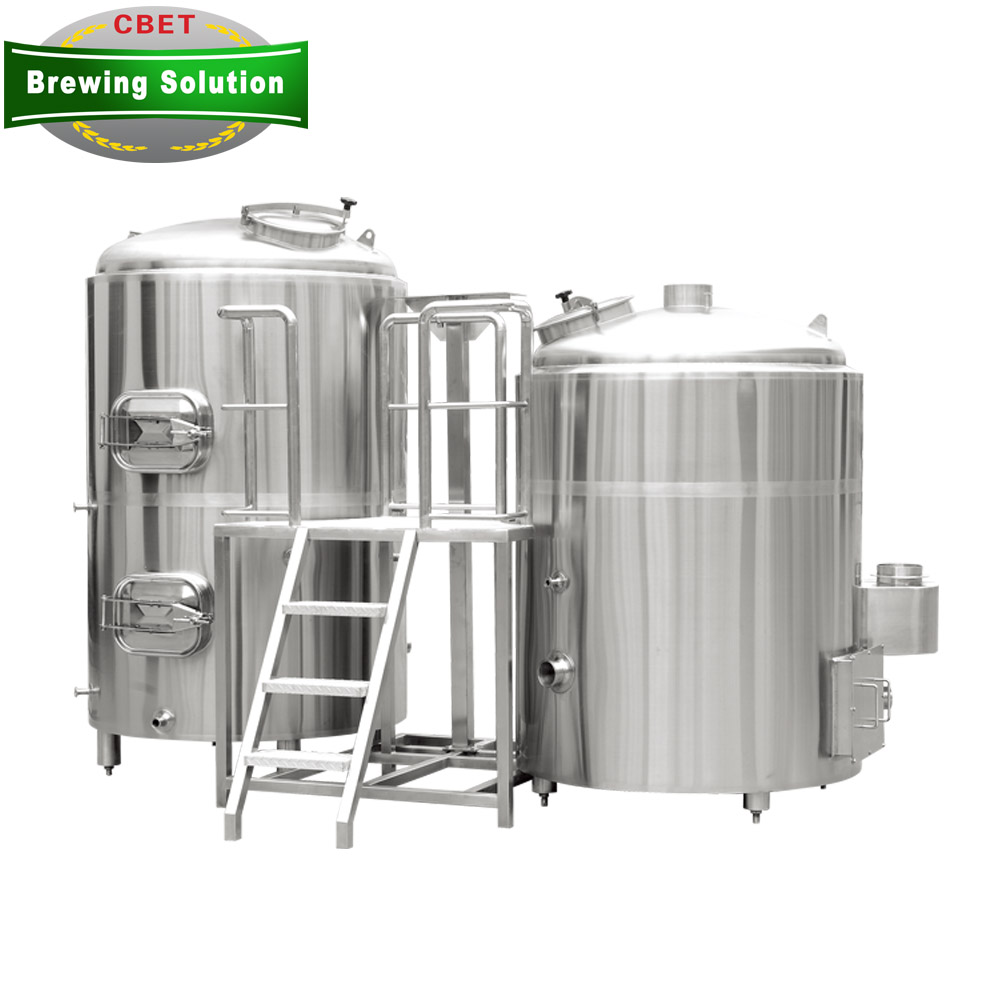

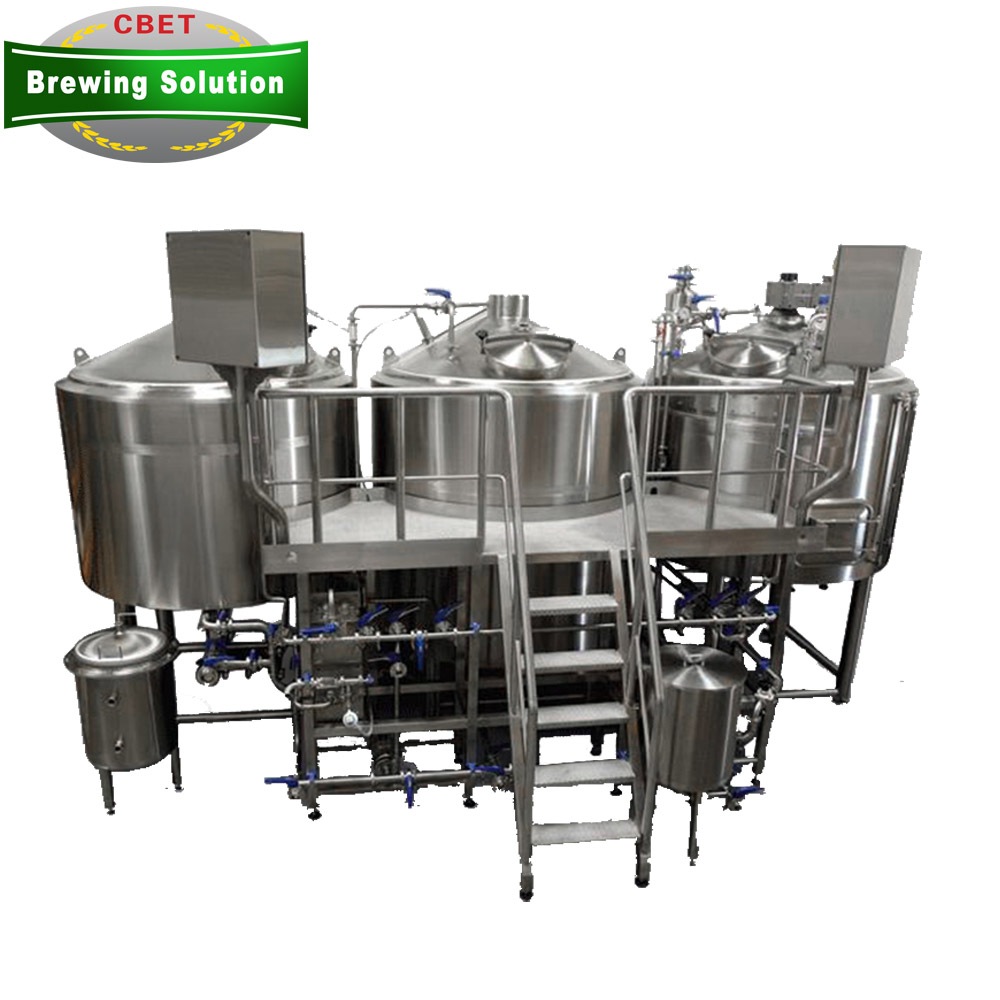

RECOMMEND PRODUCTS

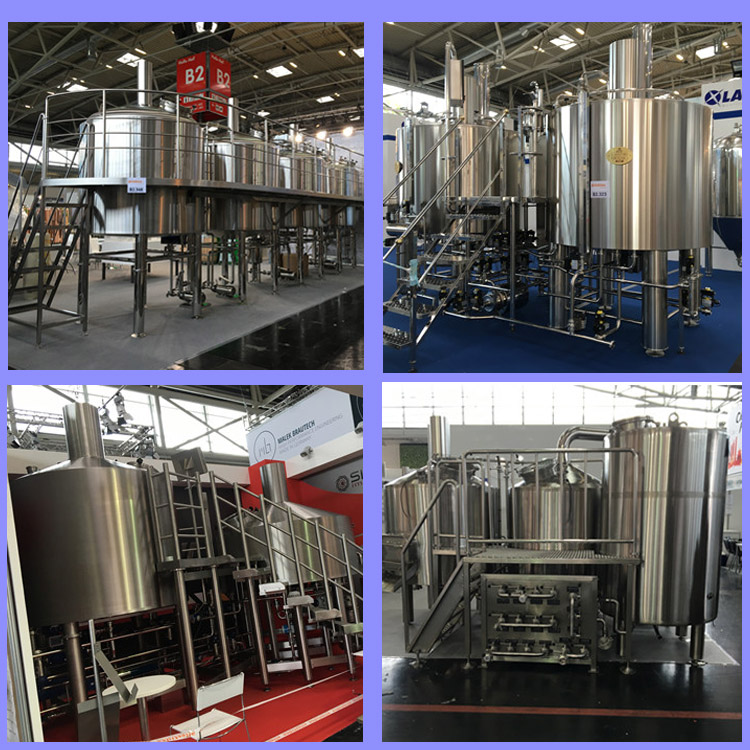

EXHIBITION DISPLAY
| One-Stop Service | (1)Free consultation service before, during, and after sales; |
| (2)Project planning and design services; | |
| (3)Free debugging instruction of equipment until everything is functional; | |
| (4)Management of equipments' long distance shipping from seller's factory to named port or station by buyer; | |
| (5)Training of equipment maintenance and operating personally; | |
| (6)New production techniques; | |
| (7)Provide 36 months complete warrantee for main parts and life-time maintenance service;The seller is responsible for the nature damage of the machinery in the warranty period except for man-made damage. All spare parts and wearing parts are attached with the machinery for free; |
1. Can you design the brewing equipment for our brewery?
We have a professional designer team to help our customer do design work.
2. About the production capacity:
The capacity is for per day prodcution,we can give you suggestions according to your daily production to equipped the fermentation tanks quantities and capacity.
3. Can your brewery system make both lager and ale?
Yes. Our brewery system can do this.

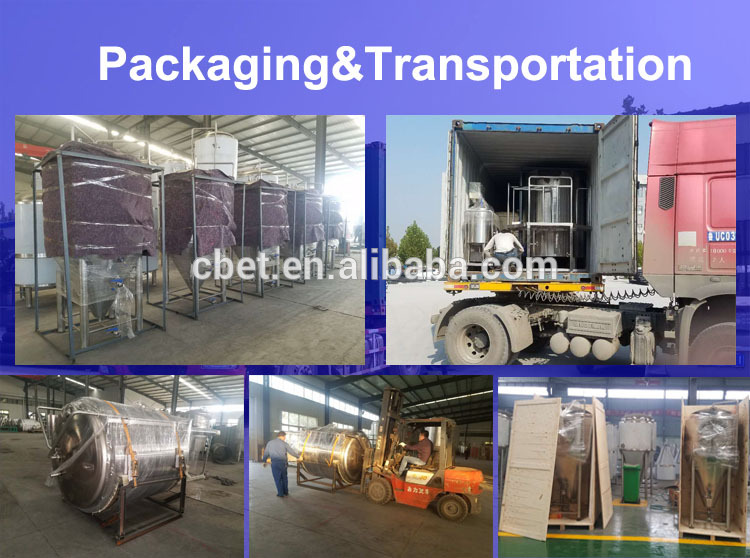

4. About the packaging and shipping:
All the tank was packaged by Iron frame package,spare parts by wooden package to avoid missing and broken during shipping
5. About the brewing technology: Our engineer will supply the installation and training service to your local country.Also can send you drawings to show you how to installation and how to use the equipment, then you can save the installation money
6. What's your payment term?
We are regular doing 40% deposit and 60% balance payment by TT. Base on our cooperation, we also can do other payment way. If you have any specially request, you can talk with us.
6. How does your quality control?
We have a professional QC team, we will control the goods quality during all the mass production, and we can do inspection service for you.
7. I never come to China before, can you be my guide in China?
We can arrange our driver to pick you up from airport to our company, and to book the hotel for you. we will find the translator for you, and will be together work.
