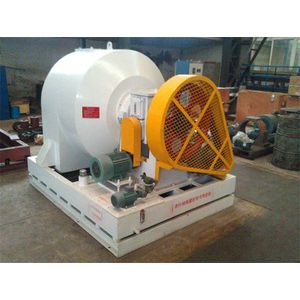

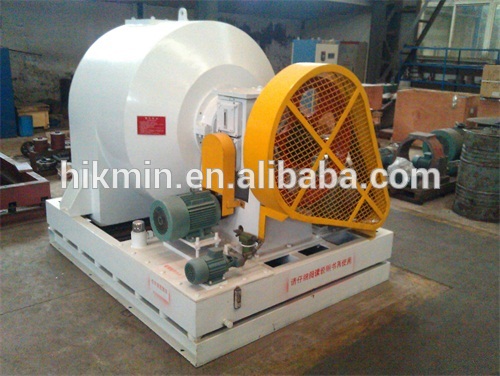

Horizontal Vibratory Scroll Screen Centrifuge for coal preparation
Horizontal Vibratory Centrifuge Working principle:
The material get through the feed pipe with enamel and the sieve base, then enter into the bottom of the sieve basket. Pulled by the centrifugal base, material in the sieve basket clings to the screen surface. And then under the vibrating force, the material move uniformly to the big end of the sieve basket, finally the dewatering material is thrown out from all around the sieve basket, falling into the discharging port under the chasis, and then is discharged downward.
Horizontal Vibratory Screen Centrifuge has sieve basket diameter of 850mm~1,500mm, and is mainly used for dewatering of lump clean coal, middlings and other similar materials, with 0.5mm~50mm feeding granule. It has advantages of small initial investment and floor area, low energy consumption, good dehydration effect, low coal crushing rate, long sieve basket life, convenient operation and maintenance and low noise, and sieve interval of 0.25, 0.3, 0.35, 0.5, etc.
Items | Unit | Coal Dehydration Centrifuge Model | ||||||
TWZ850 | TWZ10A | TWZ1150 | TWZ1300 | TWZ1400 | TWZ1500 | |||
Feeding size | mm | ≤50 | 0.5~13 | 0.5~50 | 0~50 | ≤50 | 0.5~50 | |
Processing capacity | t/h | 30~50 | 100 | 100~200 | 180~250 | 200~300 | 250~350 | |
Moisture | % | 5~9 | ||||||
Sieve basket diameter | mm | 850 | 1000 | 1150 | 1300 | 1400 | 1500 | |
Screen opening | mm | 0.25,0.3,0.35,0.5 | ||||||
Basket angle | ° | 13 | 13 | 13 | 13 | 13 | 15 | |
Double amplitude | mm | 6 | 6 | 4~6 | 4~6 | |||
Basket rotational speed | r/min | 450 | 380 | 350 | 310 | 290 | 270 | |
Main motor power | Kw | 15 | 22 | 37.5 | 45 | 55 | 75 | |
Vibrating motor power | Kw | 4 | 4 | 7.5 | 7.5 | 11 | 15 | |
Oil pump motor power | Kw | 0.37 | 0.37 | 0.37 | 0.55 | 0.55 | 1.1 | |
Dimension | L | mm | 2060 | 2150 | 2800 | 2700 | 3100 | 3170 |
W | mm | 1510 | 1875 | 1930 | 2260 | 3090 | 2975 | |
H | mm | 1625 | 1765 | 1930 | 2245 | 2295 | 2400 | |
Weight | Kg | 2500 | 2620 | 5527 | 6500 | 9200 | 10000 |
Pre-Sales Service
* Inquiry and consulting support.
* OEM service is available.
After-Sales Service
* Training how to instal device and commissioning.
* Engineers available to service machinery overseas if needed.
| Packaging for Coal Dehydration Centrifuge | |
| Standard Container | 20' or 40' LCL or FCL for Horizontal Vibratory Screen Centrifuge Separator or spare parts. Generally one container can load two sets centrifuge machines. |
| Packaging Details | |
