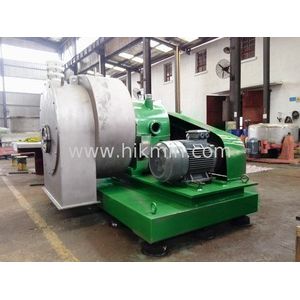

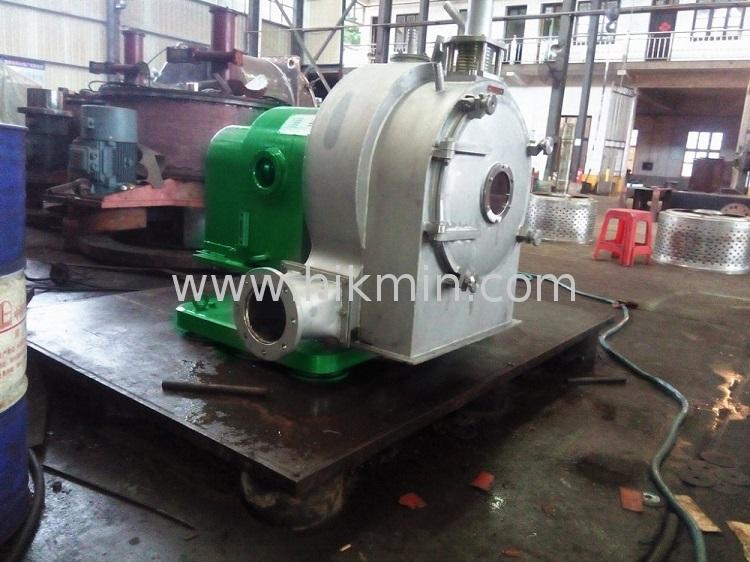

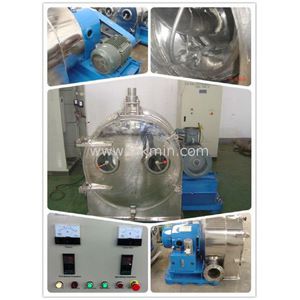

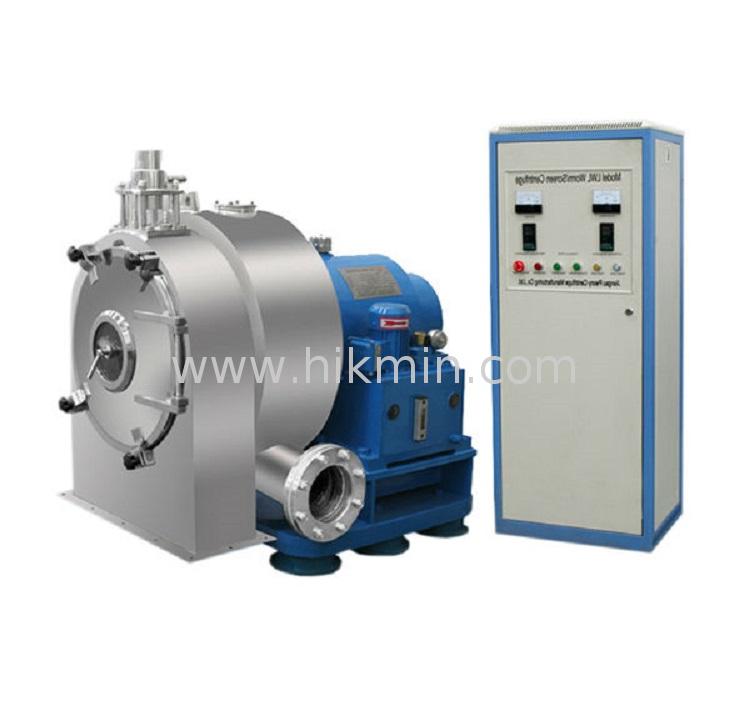

China factory industrial decanter centrifuge hydraulic horizontal worm screen centrifuges
Applications:
Apply to adipic acid, salt cake, pyrazolene, AH-salt, ammonium persulphate, gypsum, silver nitrate, ammonium phosphate, ammonium sulphate, ammonium thiosulphate, ion Exchange Resin, sodium chloride, Anthracene, sodium chlorate, aspirin, sodium formiate, manganese sulphate, borax, methyl cellulose, sodium metaborate, calcium formiate, sodium nitrate, sodium perborate, sodium phosphate, citric acid, sodium sulphate, polysyrene, polyvinylacohol, sodium thiosulphate, copper sulphate, potash, tarteric acid, crystal soda, potash alum, trisodium phosphate, potassium bicarbonate, zinc sulphate, pentaerythrite, plastic granules, glacial acetic acid, potassium chloride, potassium pensuphate, potassium phosphate, potassium sulphate.
Features:

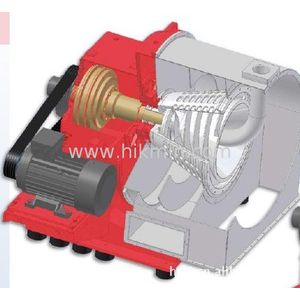

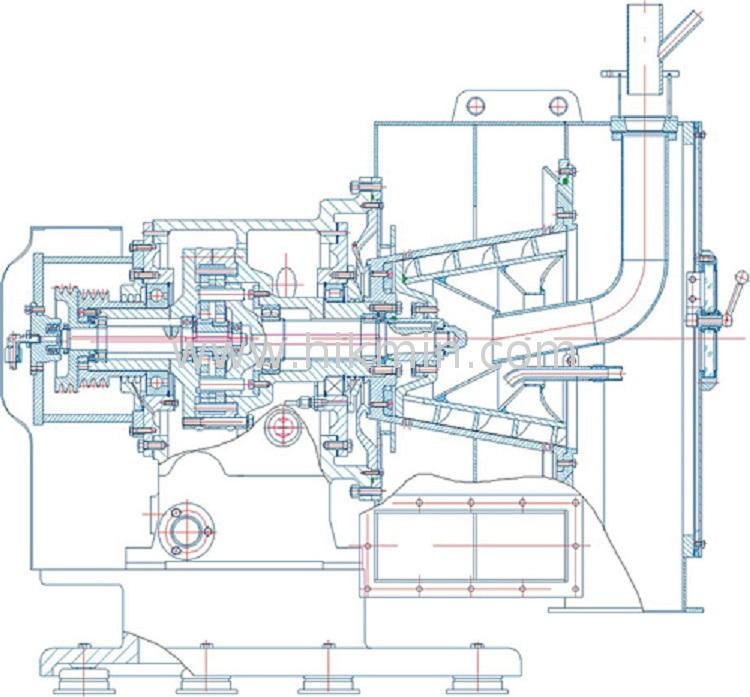

1. Bowl and scroll and other main parts are made of stainless or titanium materials resisting corrosion. The cone angel of the bowl is 10° or 20°.
2. The reversed cone ring designed particularly at the front-end of the cone-shaped bowl makes the bowl achieve double dehydration function screening and sedimentation.
3. Continuous feeding, separating, cleaning, dewatering and solid discharging, with complete continuity.
4. Specifically custom-built screening metal lathing with a thickness of 1.5mm and longer service life.
5. Large handling capacity and good cleaning effect.
6. Frequency conversion control, stepless speed of the bowl is adjustable.
7. The differential speed of the scroll is adjustable.
8. Independent lubrication station with simple and reliable lubrication and good cooling performance.
9. Safety protection: Rotating speed detection, over vibration protection, motor overload and overheat protection and scroll zero differential protection can be configured.
Technical Parameters:
models | Basket Dia(mm) | Rotation rate of basket(r/min) | Relative Centrifugal force | Productivity m3/h | Power of motor(kw) | Weight(kg) | Overall Dimensions(l*w*h)(mm) |
LLW320 | 320 | 2630 | 1240 | 1-5 | 7.5 | 700 | 1350*1050*1000 |
LLW350 | 350 | 3000 | 1770 | 2-8 | 11 | 1000 | 1400*1250*1150 |
LLW400 | 400 | 2750 | 1700 | 3-10 | 15 | 1300 | 1500*1350*1250 |
LLW450 | 450 | 2500 | 1580 | 5-15 | 22 | 1500 | 1600*1400*1300 |
LLW530 | 530 | 2000 | 1190 | 8-20 | 30 | 2000 | 1700*1450*1400 |
LLW630 | 630 | 1800 | 1140 | 10-30 | 37-45 | 2500 | 1980*1440*1740 |
LLW800 | 800 | 1400 | 870 | 15-50 | 55-75 | 4000 | 2300*2200*1750 |
LLW1000 | 1000 | 950 | 500 | 20-80 | 75-90 | 6000 | 3000*2400*2300 |
LLW1200 | 1200 | 780 | 400 | 30-100 | 90-110 | 8000 | 3200*2800*2600 |

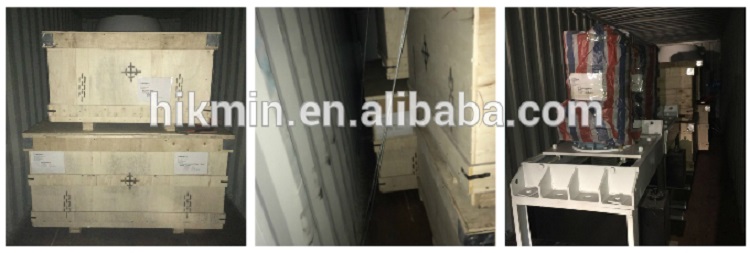

Packaging for centrifuge machine | |
Standard Container | 20' or 40' LCL or FCL for liquid solid Horizontal centrifuge or spare parts. Generally one container can load two sets centrifuge machines. |
Packaging Details | Liquid solid Horizontal centrifuge is nude packed. Spare parts packed by Non-fumigation wooden box. Inner use pe film, covered by waterproof plastic cloth. Or pack it according to customers special request. |
Pre-Sales Service
* Inquiry and consulting support.
* OEM service is available.
After-Sales Service
* Training how to instal device and commissioning.
* Engineers available to service machinery overseas if needed.
PRODUCT CATEGORIES

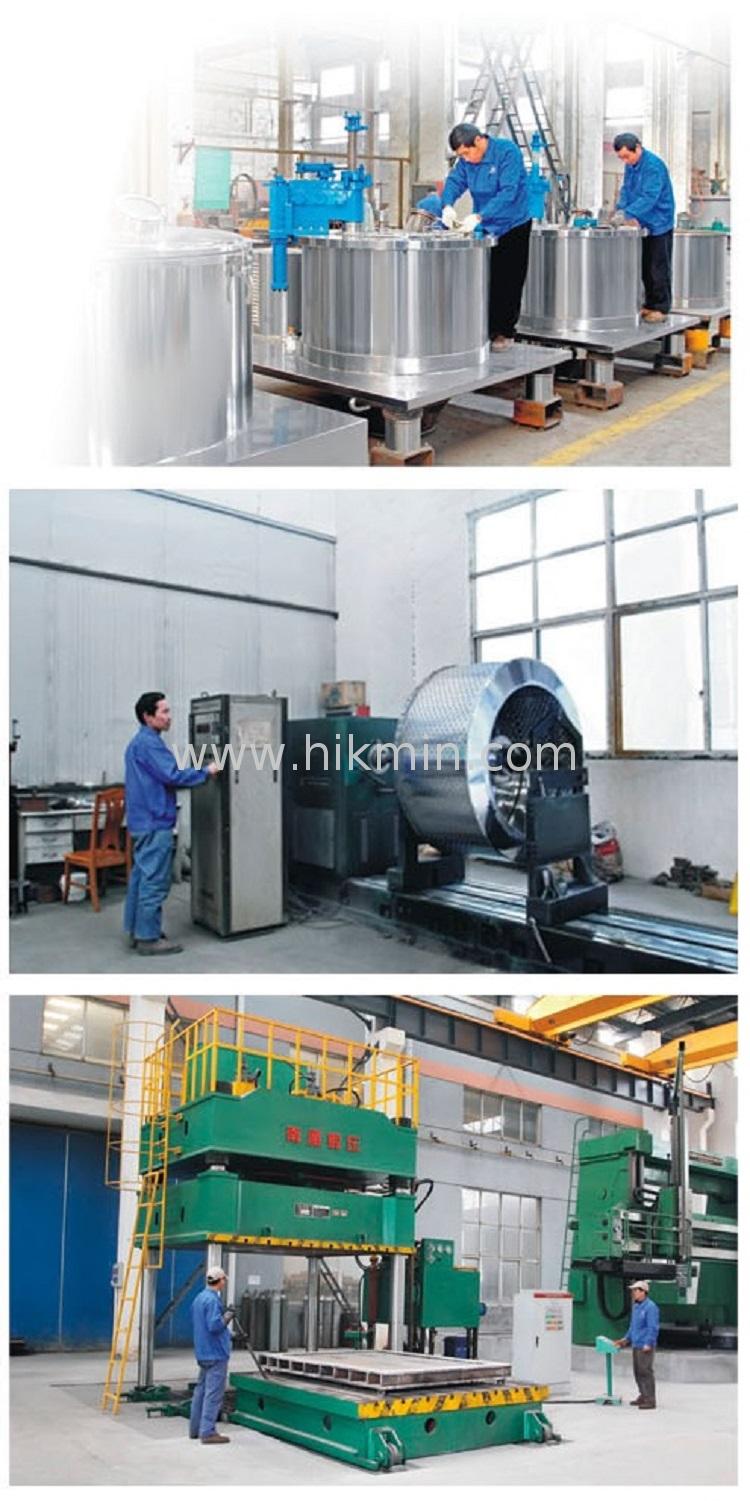

Founded in 1997, HIKMIN is specialized in innovative solutions for feeding, flotation and separation applications. Our main products are Belt weigh feeder, centrifuge, flotation machine, vibrating screen and other Mining machinery as well as related spare parts.
1) With 20 years' experience in mining processing industry.
2) With nearly 200 employees, 22 in R&D center, 4 production line
3) 8 to 10 million annual sales.
4) Implements 6S and OEC management, with more than 30 patents and 7 CE certificate.
5) First company owning engineering technology research center & provincial key laboratory in China.
Through focusing on marketing and improving With many years’ development, we built a professional R&D department and a after-sale service team, who can tailor the product for customer and solve the problem. Most of our products have been widely used in domestic and overseas plants, and get highly recognized clients.
What’s the application of centrifuge?
LLW Horizontal Centrifuge is widely used in many fields such as environmental, pharmaceutical food, chemical industry for separation/washing/dewatering . It can separate almost all liquid and solid with proper feature.
How to clean the machine?
The machine has self-cleaning function. When the processing is finished, you just put one button and the machine will do the cleaning automatically.
How to choose the machine material?
For the material, we have stainless steel 304, 316, 2205 and Tianium for your option. Generally SS304 is used. If the material is with corrosion, then SS 316/2205 or Ti shall be selected.
What’s the capacity of the machine?
Firstly we have different model with different capacity for this machine. Secondly, the capacity will be customized according to concentration of the suspension. Higher the concentration, lower the capacity.
How is the processing result?
The finished moisture and solid lost rate is based on the material feature. And different machine brings different processing capacity. Also we can offer testing service to get realistic results.
