Product Description

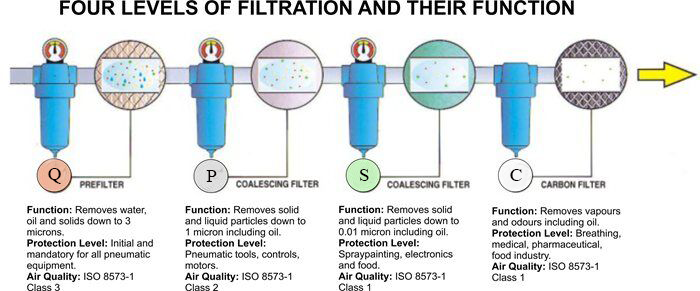

| Grade | Q Grade Air Filter | P Grade Air Filter | S Grade Air Filter | C Grade Air Filter | |

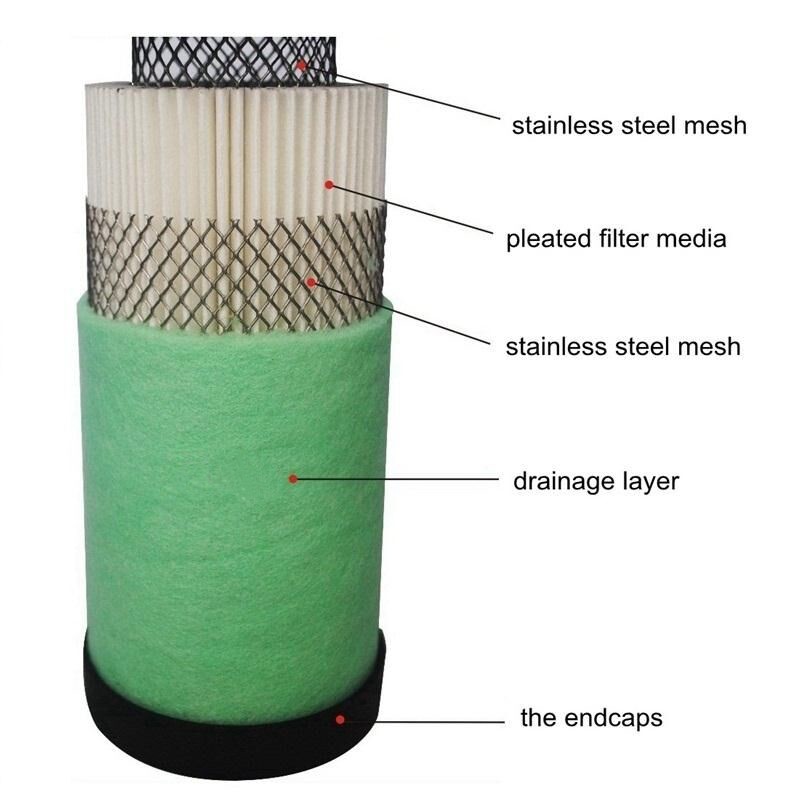

| Material | Multilayer Glass Fiber Filters | Activated Carbon Filter element | |||
| Accuracy | Oil Content | ≤3PPM | ≤0.1PPM | ≤0.01PPM | ≤0.003PPM |
| Filter Impurities | ≤3Micron | ≤1Micron | ≤0.01Micron | ------- | |
| Max. Operate Temperature | 120℃ | 120℃ | 120℃ | 120℃ | |
| Function | Removal of the oil and dust from the air, the purpose is to reduce the load of post-filter, and make sure that the service life of the filter. | Removal of the oil from the air to be micro-oil (0.1PPM) and removal of the dust<1Micron | To meet the requirements of Precision Industry, removal of the oil content in the air(0.01PPM), and removal of the dust <0.01Micron | Using Activated Carbon Filter element for removal of the odors in the air and Filter out oil content to (0.003 ppm). |
| Model | Air Capacity (NM^3/Min) | Air Inlet/Outlet Diameter | Height | Diameter mm | Weight (KG) |
| HR-007 | 0.7 | 0.75'' | 260 | 80 | 0.9 |
| HR-015 | 1.5 | 0.75'' | 260 | 80 | 0.9 |
| HR-024 | 2.5 | 1.5'' | 330 | 100 | 1.5 |
| HR-035 | 3.8 | 1.5'' | 330 | 100 | 1.5 |
| HR-060 | 6.9 | 1.5'' | 430 | 100 | 2 |
| HR-090 | 9 | 2.5'' | 530 | 150 | 7.6 |
| HR-120 | 12 | 2.5'' | 900 | 150 | 12.9 |
| HR-150 | 15 | 2.5'' | 900 | 150 | 13 |
| HR-180 | 18 | 2.5'' | 900 | 150 | 13 |
| HR-240 | 24 | DN80 | 1190 | 310 | 27 |
| HR-300 | 30 | DN80 | 1100 | 420 | 60 |
| HR-360 | 36 | DN100 | 1150 | 420 | 65 |
| HR-450 | 45 | DN100 | 1230 | 459 | 80 |
| HR-550 | 55 | DN100 | 1130 | 513 | 115 |
| HR-600 | 60 | DN100 | 1155 | 565 | 130 |
| HR-750 | 75 | DN125 | 1210 | 657 | 140 |
| HR-900 | 90 | DN150 | 1210 | 657 | 145 |
| HR-1200 | 120 | DN150 | 1340 | 657 | 180 |
| HR-1500 | 150 | DN200 | 1340 | 706 | 190 |
| HR-1800 | 180 | DN200 | 1365 | 706 | 195 |
| HR-2100 | 210 | DN200 | 1365 | 746 | 196 |
| HR-3000 | 300 | DN250 | 1530 | 896 | 354 |
| HR-3600 | 360 | DN250 | 1660 | 946 | 398 |
| or Customized |

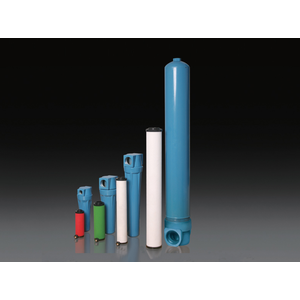

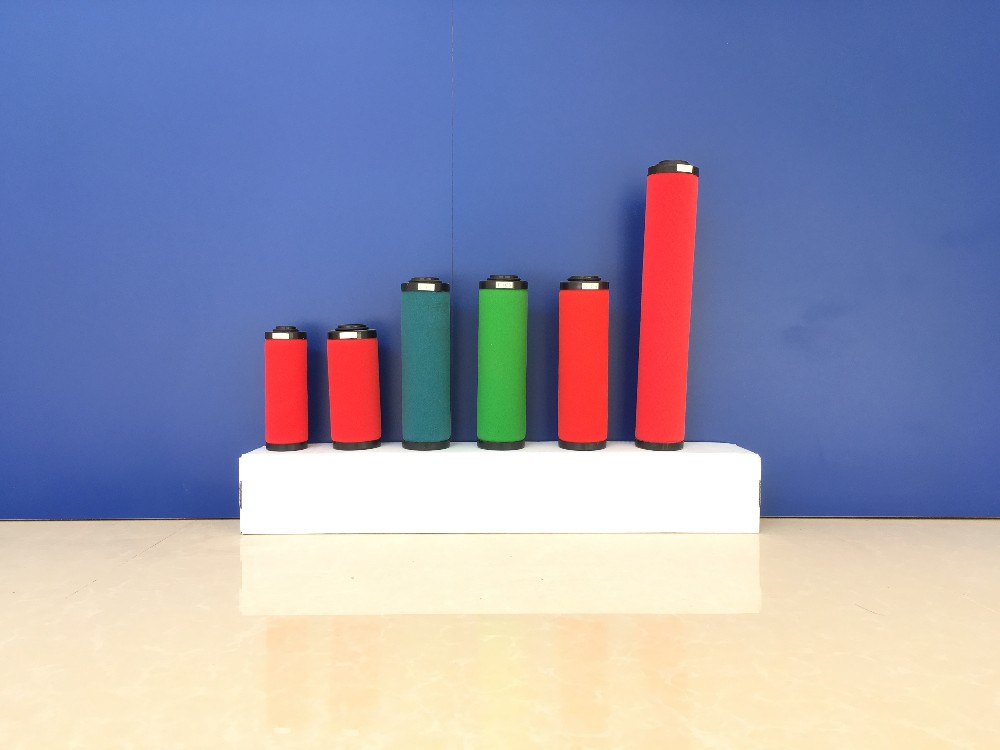

Detailed Images
Product Packing
Related Products

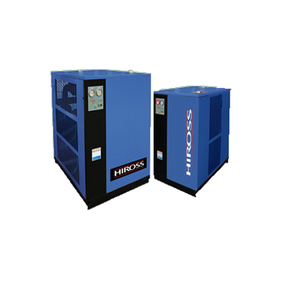

EXW_Water-Cooling Refrigerated Air Dryer for Compressed Air
91.8% Response Rate

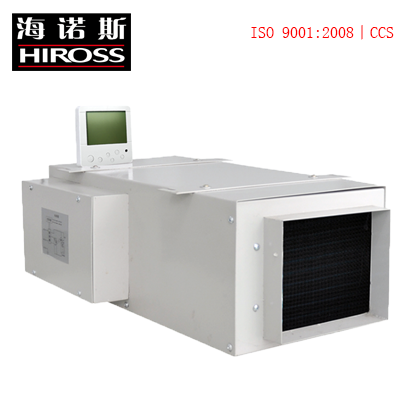

EXW_Concealed Wall Ducted Dehumidifier for Swimming & Warehouse
91.8% Response Rate

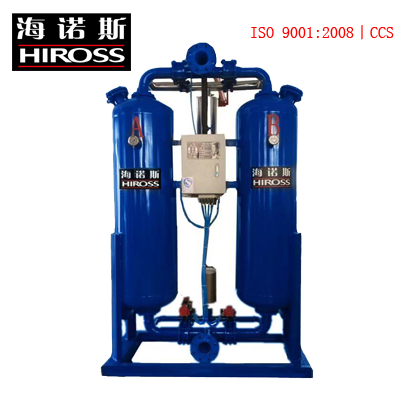

Anti-Explosion_Heatless Absorption Compressed Air Dryer with PLC Controller for Compressed Air
91.8% Response Rate

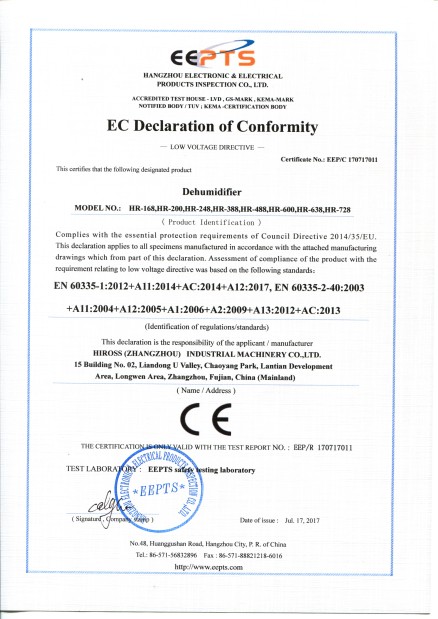

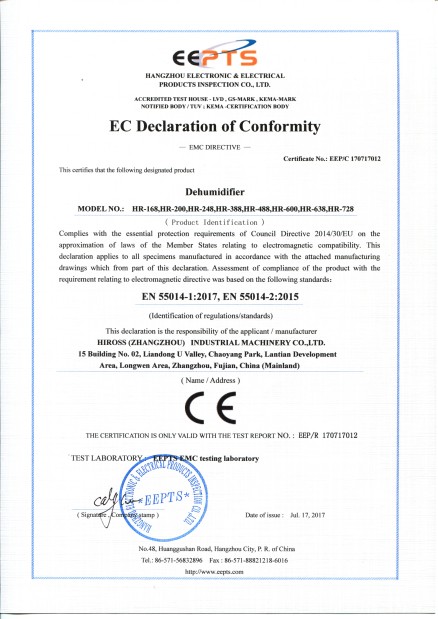

Certifications
Why Choose Us

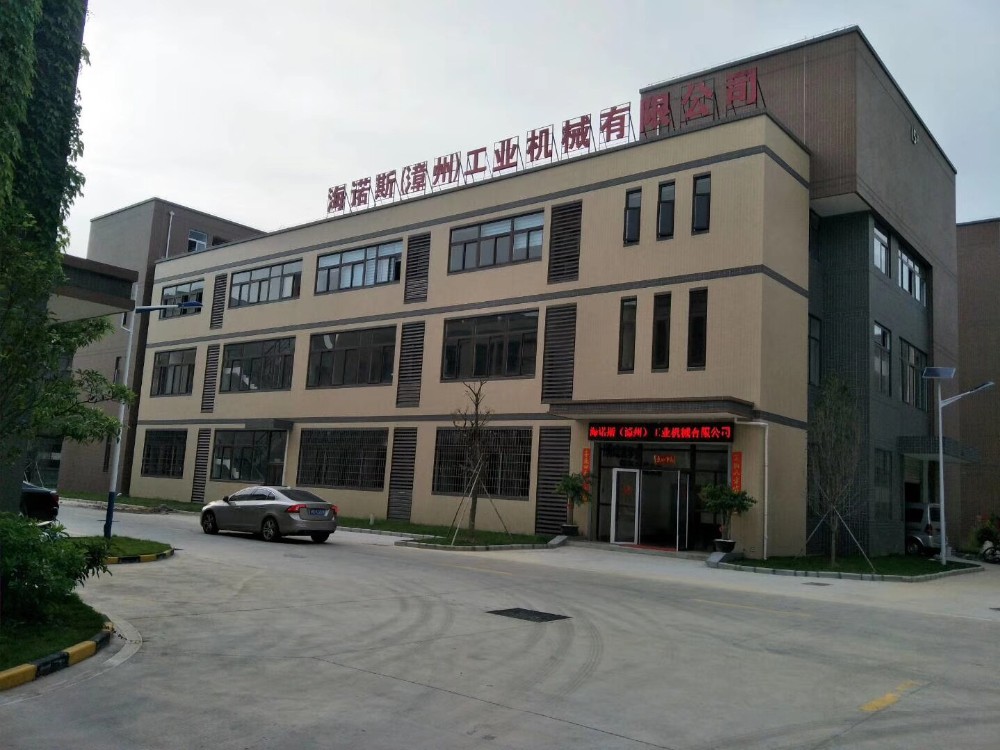

About us
