Air Cooled Refrigerated Air Dryer
| product details | Inlet temperature | ≤80°C |
| Enviroment (working) temperature | ≤40°C | |
| Refrigerant (freezing medium) | R-22 | |
| Pressure dew point | 2~10°C | |
| Refrigerated | Air cooling | |
| Working pressure | 0.4-1.0Mpa | |
| Model | HR-10AC | |
| Capacity | 1Nm3/min | |
| Applicable air compressor | 5Hp | |
| Power consumption | 0.65kw | |
| Air entrance diameter | G1'' | |
| Appearance size(mm)(L*W*H) | 650*380*580 | |
| Power | 220V/50HZ | |
| Weight | 40kg |

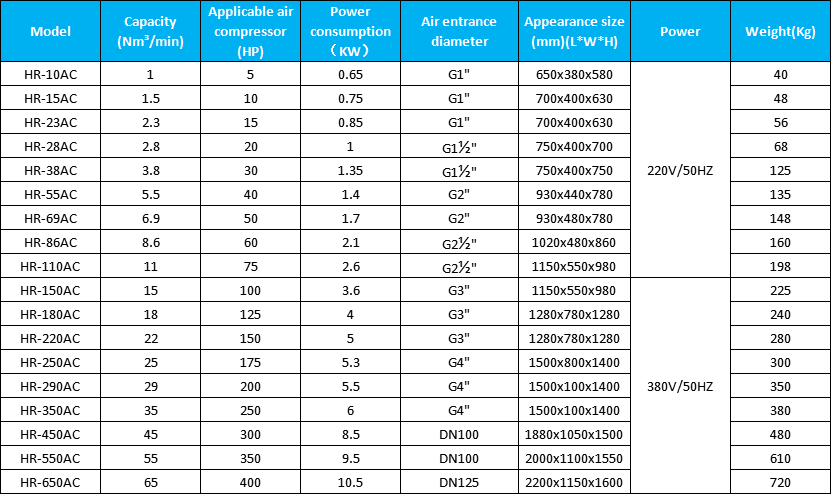

Technical paraments of Air cooled Refrigerated Air Dryer
Air cooled high temperature type(Inlet temperature≤80°C)

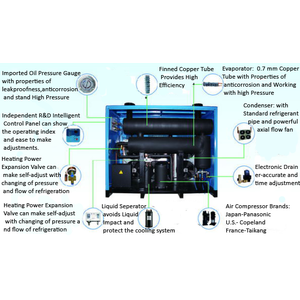

The characteristics of Refrigerated Air Dryer
1.Humanization design:scientific and proper design of structure,novel appearance,elegant appearance ,simple constrction,easy operation,maintenance and installation.(no foundation).
2.The refrigeration system of machine and air system through comprehensive accurate calculation by experts who combination with different working condition.The design paraments reserved more than 20% margin.
3.Refrigeration compressor:adapt international well-know brand.Such as:Panasonic,Copeland,Tecumseh,and Maneurop compressor,which with low vibration,low noise,reliable performance,to ensure the long service of the whole machine.The compressor protection class IP54.
Packing Details:widely used refrigerated air dryer with factory price ,wooden box packing for more safety transpotation.
Delivery Time:shipped in 15 days after payment.
HIROSS company foucs on designing,resarching and developing and manufacturing the purify,enviorment friendly,energy saving equipment.With advanceted technology as the core of company.Combine with internationally processing technolegy,Extensive learning from the other's advantage ,Thanks to untiring(unremitting) efforts.In addtion,adoption of high-qulity compenonts,developing,manufacturing a series of HIROSS high per
peformance post-processing equipment of compressing air and enviormental protection and energy-saving equipment.A series of HIROSS products have passed QS,ISO9001:2008 international quality system cetification,and CCS(Cetification Of China Classcification Society) .
Main products
contact us:
What's you advantage?
A:1.OEM products;We can produce products according to your demands,including size,package.....
2.complete cetificate.Don't worry quality and clearance issue.We passed ISO9001 cetification,some cetification documents can be provided based on the customers' do mestic rules.
Q:How pay for this?
A:Our company supports T/T100%;30% prepaid,70% balance before delivery.
