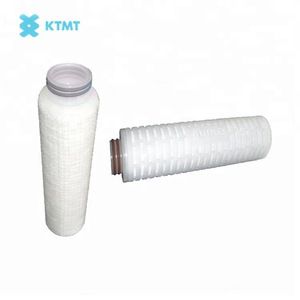

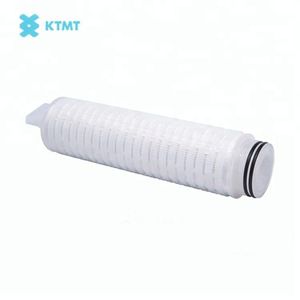

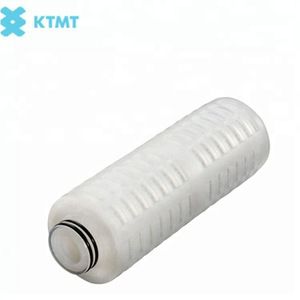

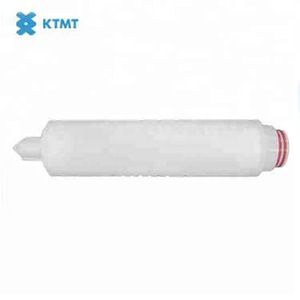

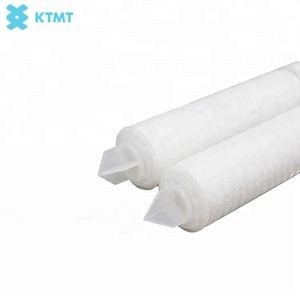

PP pleated millipore 0.45 membrane filter for biotechnology
PP pleated water filter cartridge adopts the polypropylene membrane as the main filter material, the cartridge
is a kind of advanced fixed-deep filter cartridge. Its filter micron rate range can varies from 0.1um to 60um.
The filtering precision will not easily affected by the pressure fluctuation of the filter membrane. Because of its
advantages of low pressure, high flow rate, long service life, good filtering accuracy and lower economic costs,
etc., it is welcomed by many customers at home and abroad.
Specification:

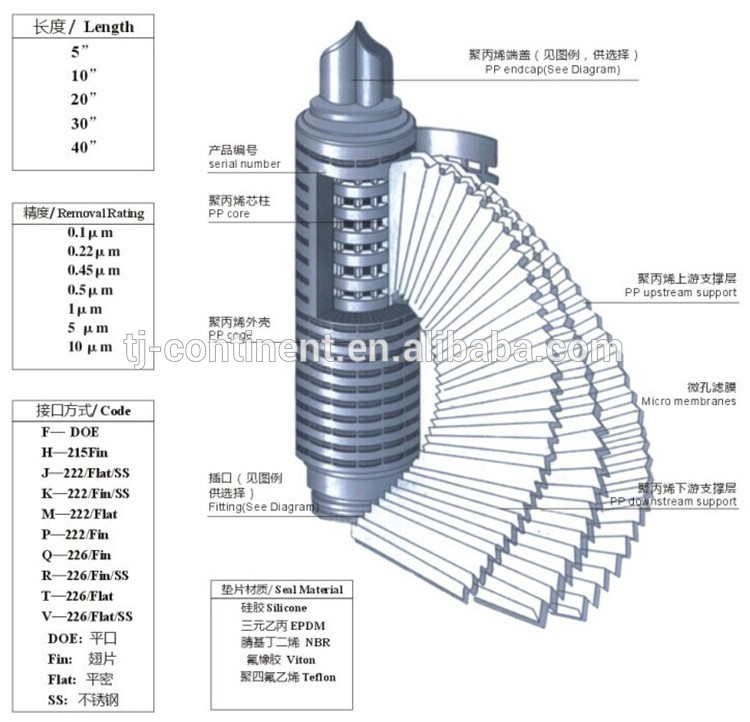

Material of Configuration | |
Filter Medium | Polypropylene membrane (PP) |
Distribution Layer | Polypropylene |
Inner Core | Polypropylene |
End Cap | Polypropylene |
Support Cage | Polypropylene |
Seal Part Material | Silicone, EPDM, NBR, Viton |
Other Technique Data | |
Micron Ratings (um) | 0.1, 0.22, 0.45, 1, 3, 5,10, 20, 30, 60 microns |

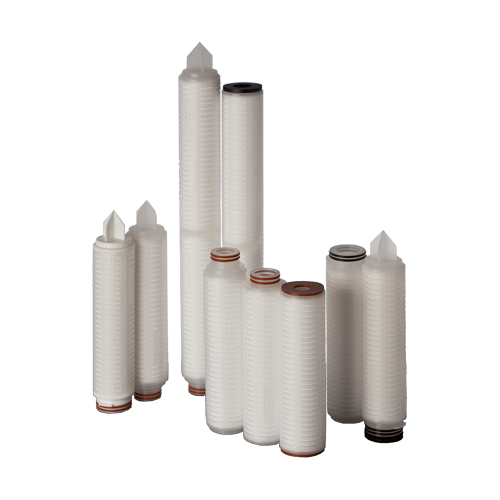

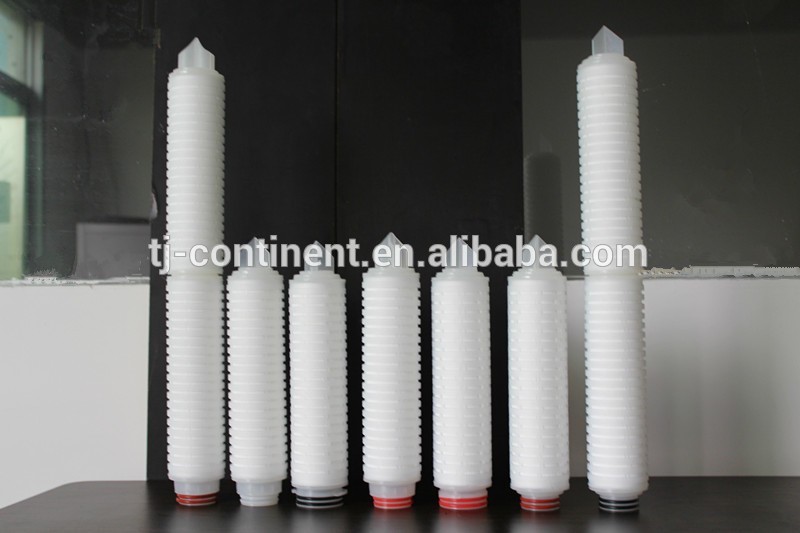

Length | 5, 10, 20, 30, 40 inches |

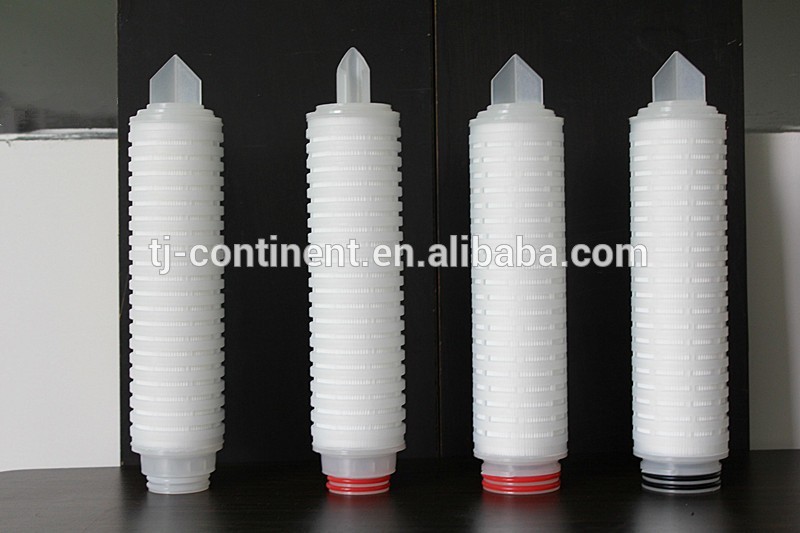

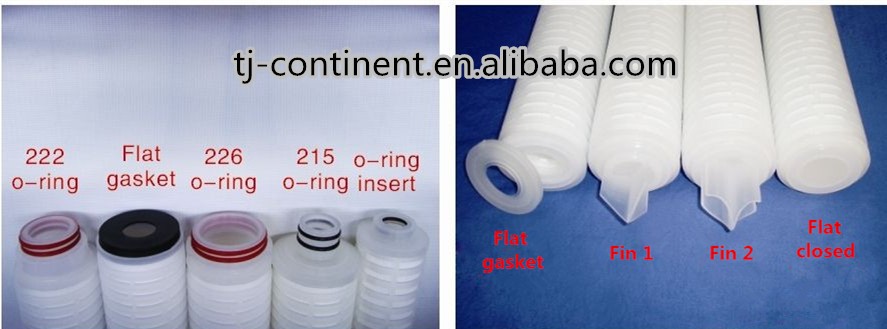

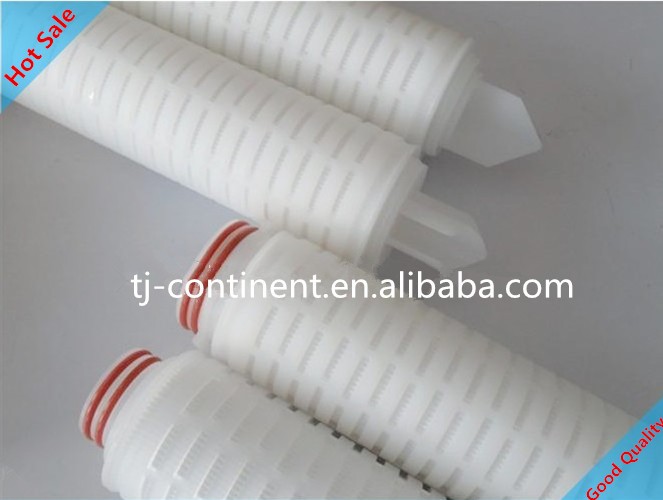

End Caps | doe, soe, 222/flat, 222/fins, 226/flat, 226/fins |
Filter Area | 0.4-0.7m² |
Outer Diameter | 69mm |
Inner Diameter | 33mm |
Differential Pressure | ΔP≤0.42MPa at25°C |
Reverse Differential Pressure | ΔP≤0.28MPa at25°C |
Working Temperature | ≤80°C |
Sterilization Temperature | 30min @121°C |

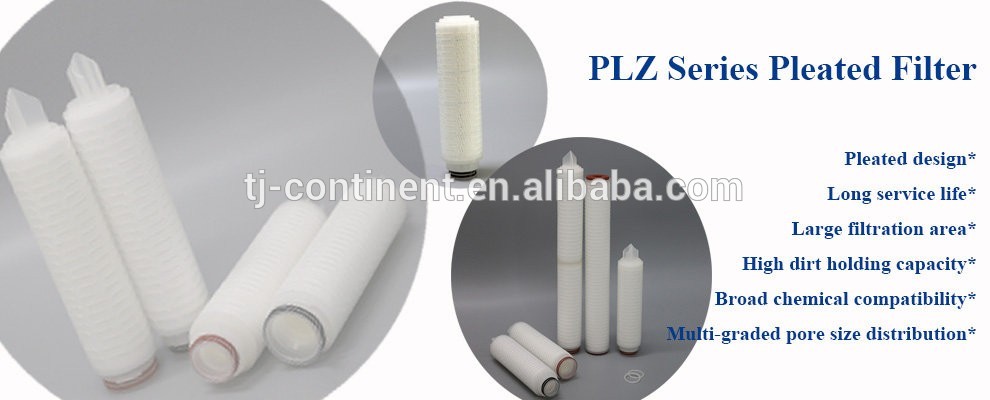

Features and Benefits:
--Excellent performance of chemical compatibility.
--High flow rate, low pressure drop, long work life.
--Better performance removal rating meets all-purpose application.
-- Hot melting seal enhances the strength and reduce the dissolved matter.
-- Pleated design provides high dirt holding and suspended solids capture.
Application:
--The prefiltration of reverse osmosis water system, deionized water system.etc.
--The filtration of drinks, wine, mineral water, pure water, edible oil.
--The filtration of chemical solvents, fine chemicals, ink.
--The filttration of liquid medicine, pharmacy, pharmaceutical water.
--The filtration of biological products, plasma, oilfield reinjection water, gas filter and so on.

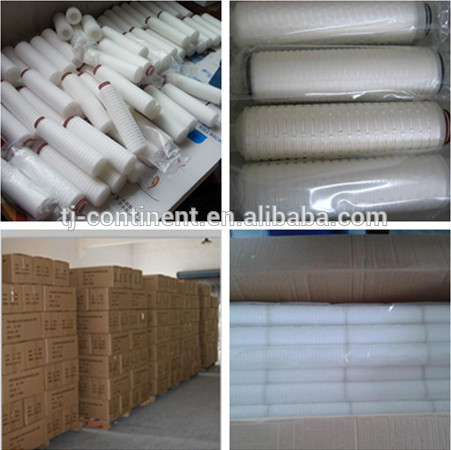

Packaging: Netural packing, plastic bags inside and carton box or wooden case outside, or as customer requirement.
Shipping: Within 20 days after receipt of your 50% down payment, by air, by sea and all kinds of Express.
1. Q: Are you manufacturer ?
A:Yes, we are the manufacturer with continuous and improved R & D, production, sales and service supply.
2.Q: What are your main products ?
A: Our products are industrial water filter cartridges, housing filters,RO water purifiers and all kinds of filter components and so on
3.Q: How to get a quotation ?
A: In order to send you our best price, please kindly inform us detailed product parameters.
4.Q: Could you provide free sample ?
A: Yes, we could provide free sample if the value not big, but the courier charge will be on your side. And we'll send back the courier charge if you place an order to a certain amount.
5.Q: What’s your payment terms ?
A: Mainly accept Paypal, West Union and T/T, L/C is also available if order amount big. For Samples: 100% in advance via Paypal,West Union or T/T. Formal order: 50%T/T in advance and balance against the Copy of B/L. Other payment terms can be further discussed.
6.Q: Can I get your products with our logo and design ?
A: Most of products are OEM or ODM with your logo and customized products will be extra costed.
7.Q: What is your delivery time ?
A:In normal condition, the delivery time is 7-15days for regular products if we have enough raw material. For big order quantity, we'll firstly try our best to meet your demand offer you the shortest delivery time.
