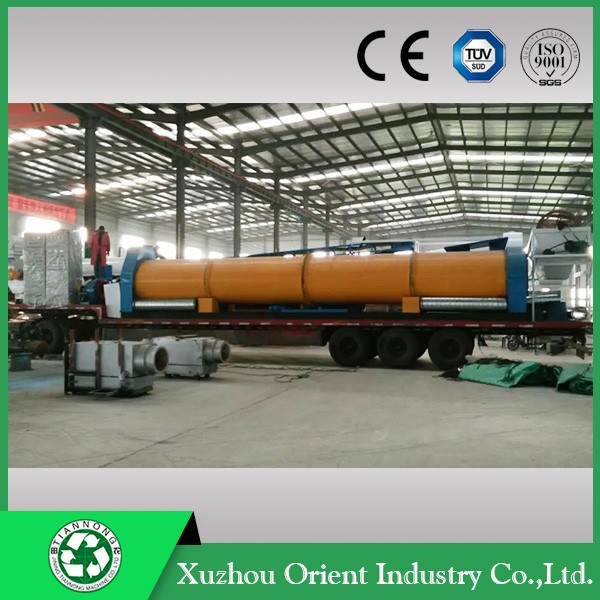

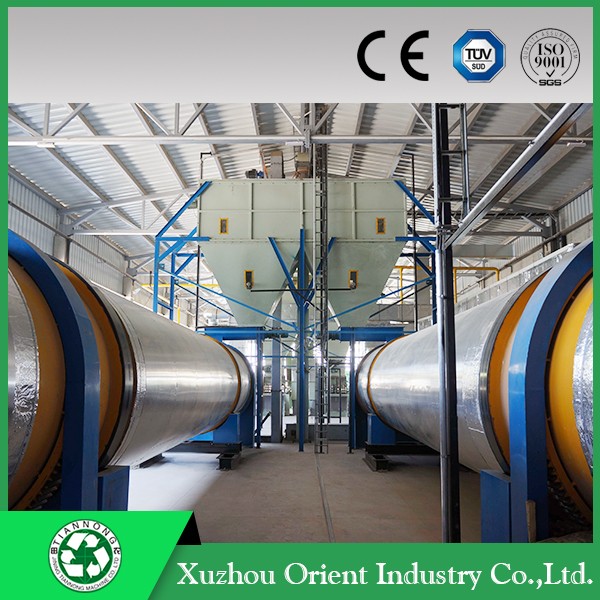

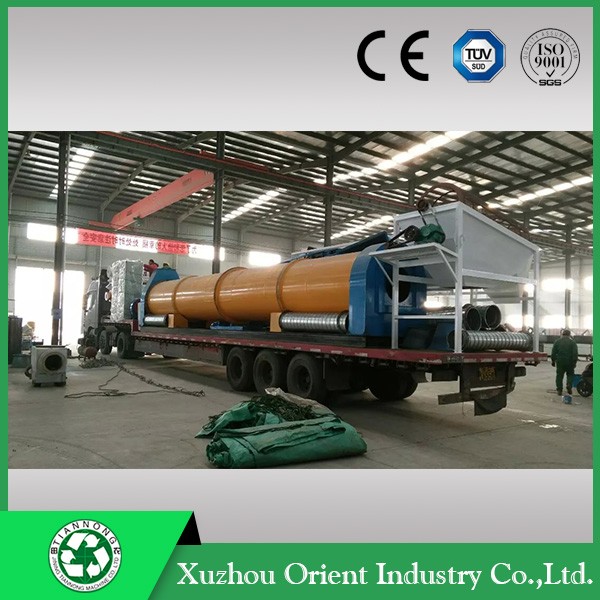

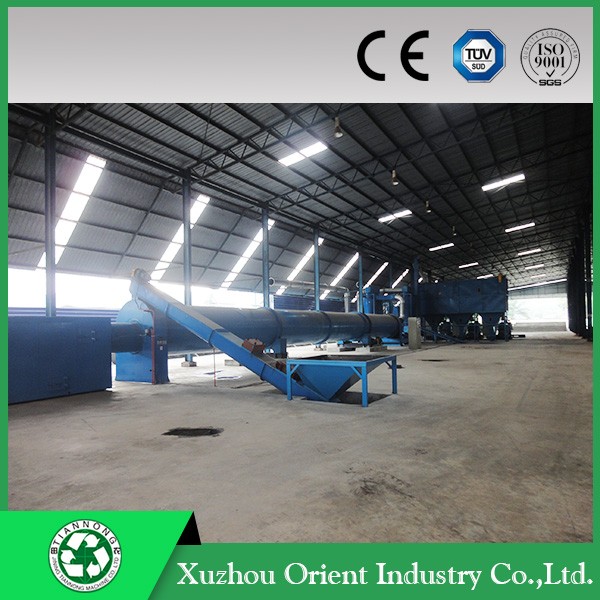

WSG-Series High Efficiency Rotary Drum Dryer for Slag, Coal, Wood, Bagasse can be used to dry the following material:
a. Sawdust, grazing, leaves, sugarcane biogases, and animals’ wastes and so on. And it can be used in Chemical Plant, Mine, Metallurgy and other industries. For example, the ore, the scoria, coal, metallic powder, phosphor fertilizer, sulfur.
b. It can dry the granule materials which have special requesting and must dry in low temperature. For example, Vesicant; Lightweight Calcium Carbonate; Active Dust; Magnet Powder; Plumbago and so on.
| Item | TN-ORIENT Rotary Drum Dryer | ||||
| Water Evaporation (kg/h) | 250 | 500 | 1000 | 1500 | 2000 |
| Power(kw) | 5.5 | 7 | 15 | 15 | 22 |
| Drum Diameter(m) | 1.2 | 1.5 | 1.8 | 1.8 | 1.8 |
| Drum Length(m) | 5.5 | 7 | 10 | 13 | 15 |
| Drum Wall Thickness(mm) | 8 | 10 | 12 | 14 | 16 |
| Inclination | 0.4% | ||||
| Rotation(rpm) | 5-20rpm (adjustable according to different raw material) | ||||
| Damage parts and the life | Bearing:1-2 years; Tricorn belt B model | ||||
| Weight (ton) | 13 | ||||
| Coal Consumption (kg/1hour) | 320 |
Packing and Delivery
- Base on the shape and weight of machine to choose the wood pallet or iron pallet.
100% well-packing to ensure the arrival safety with ocean cargo insurance.

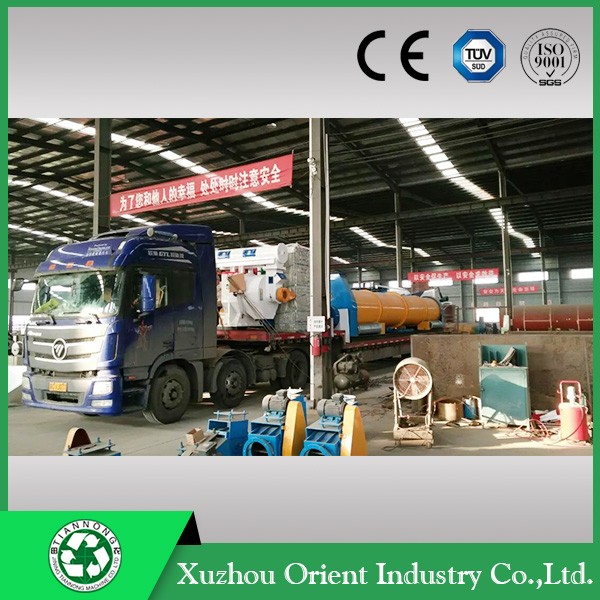

- We send our packer to the port to inspect the loading.
- Established in 1997, exported the first set of Wood Pellet Machine to Korea in 2000; 16 years experience in the biomass pelletizing field.
- Adwarded High-Tech Enterprise of Shandong Province.

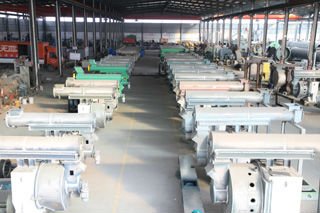

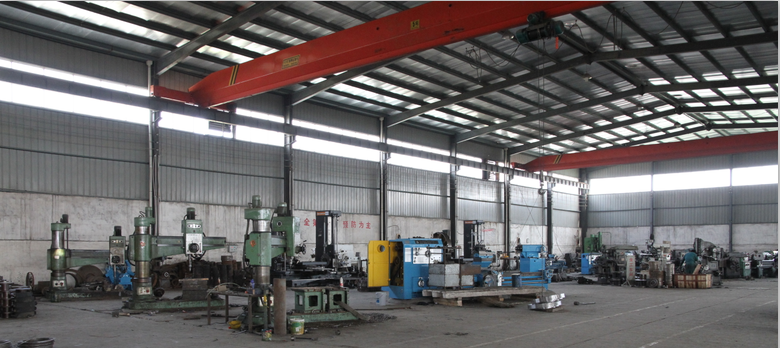

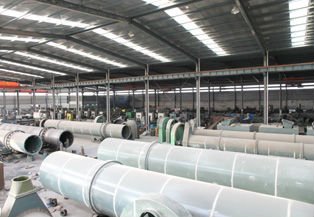

-Covering > 170,000 square meters (260 acres), and has 97,000 square meters modern production workshop.
- Hold over 25 national unique patents
- Certificated by CE, ISO9001, SGS
- 60% market share in the domestics; exported over 50 countries.
- Specialized in the turn-key project in the biomass pelletizing field from Debarking - Chipping - Crushing - Drying - Pelletizing - Cooling and Sieve - Packing - Dedusting - Heating Supplying.

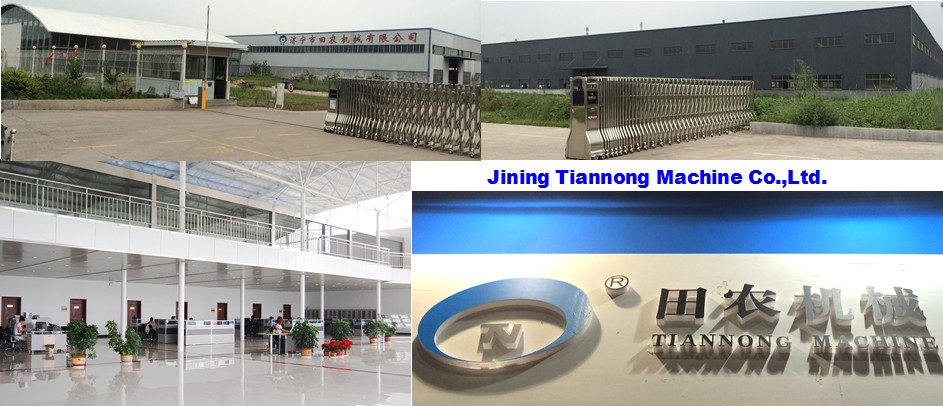

- Branches Companies as following: Jining Tiannong Machine Co., Ltd.
Jining Naijiu Mould Co., LtdXuzhou Orient Industry Co., Ltd.
Weishan Hengjie Furnace Technology Co.
Weishan Tianong Science and Technology Co.
TeYiAn Robot Science and Technology Co.
ToPellet Machinery GmbH
Our company also have Ring die pellet mill,Flat die pellet mill, Hammer mill, Briquetting machine, pellet packing machine,pellet stove, pellet burner, ect,

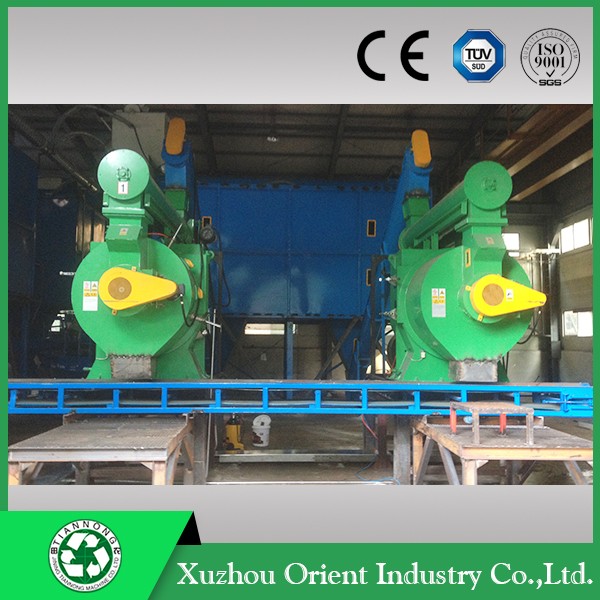

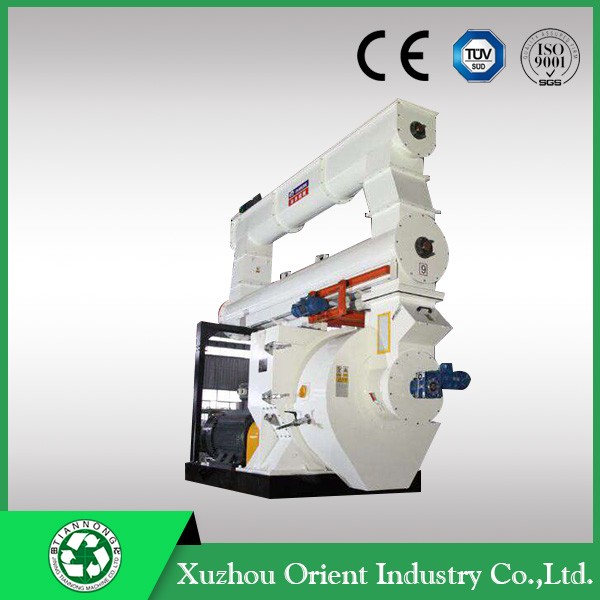

pellet mill

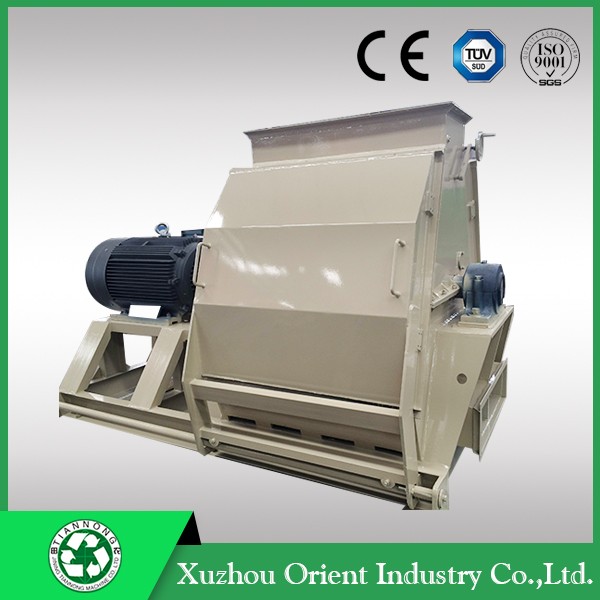

hammer mill

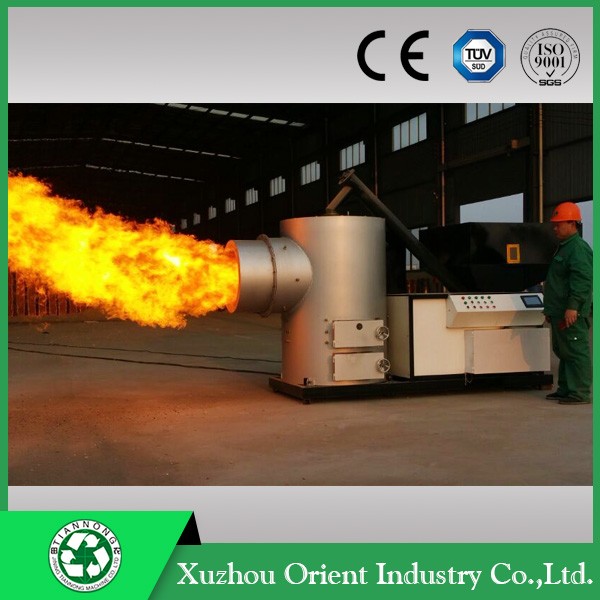

pellet burner

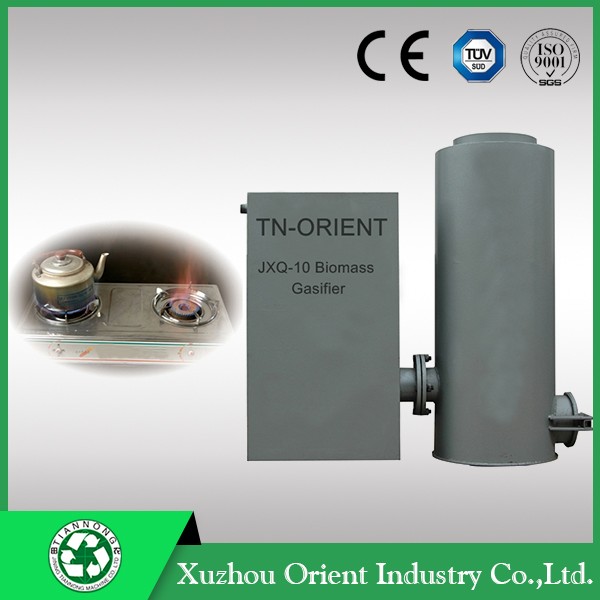

Biomass gasifier

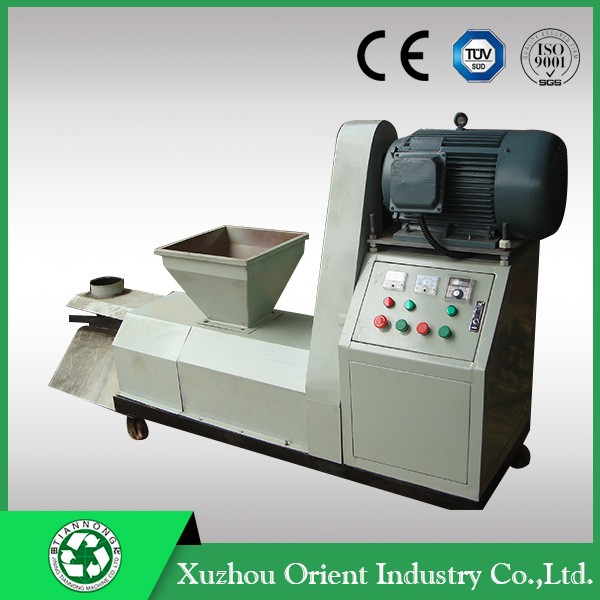

Biomass briquetting machine

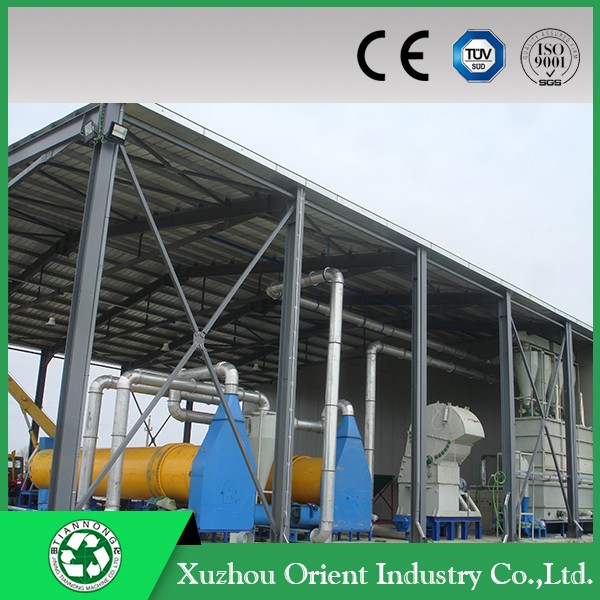

pellet line
Customer is God.
Your satisfaction is our unremitting pursue.
Preparation for Pelletizing
The raw material should be 3-6mm detritus with moisture 14-16%.
Which process is better?
Chipping - Crushing - Drying is better than the process of Chipping - Drying - Crushing - Drying. The big material is difficult to dry which will need more heating energy. Our Crusher can crush the wet material efficiently.
The effection on moisture and size to Crusher
The wet material is more difficult to crush than the material with moisture less 20%. When you require the Crusher to hammer the material into smaller pieces, it will decrease the output and increase the eletrical consumption.
How to choose Dryer?
Three-pass Dryer is not suitable to dry the saw dust or wood chip, it will need more heating energy and electrical consumption. And the structure of Three-pass Dryer is difficult to maintain.
How to choose Pellet Machine
Quality is the most important element. The second is to analysis the cost to product pellet from the machine on Electrical Consumption, Lubricating Oil, Life of Wearing Spare Parts. The safety device on machine is also important.
Non-dust workshop is impossible or not?
Non-dust workshop is possible, but you will need to cost the money which is equal to buy 1 complete pellet plant from China to realize it.
