WSG-Series Sale Promotion Sawdust Rotary Drum Dryer with CE can be used to dry the following material:

a. Sawdust, grazing, leaves, sugarcane biogases, and animals’ wastes and so on. And it can be used in Chemical Plant, Mine, Metallurgy and other industries. For example, the ore, the scoria, coal, metallic powder, phosphor fertilizer, sulfur.

b. It can dry the granule materials which have special requesting and must dry in low temperature. For example, Vesicant; Light Calcium Carbonate; Active Dust; Magnet Powder; Plumbago and so on.

During the Drying Process, the best moisture content to pellet and briquette is about 13-15% and 11-12%, the function of the Rotary Dryer is to make the crushed pieces with suitable moisture.

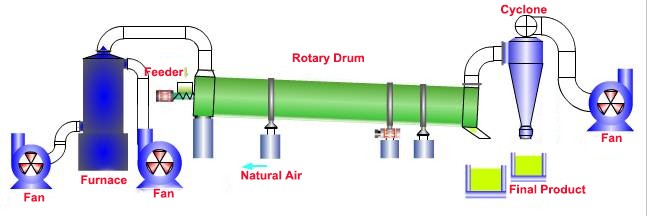

The Rotary Dryer is made up of Direct or Indirect Biomass Stove, Main Rotary Drum Body, Screw Conveyor, Cyclones, Air-locks, Fans and matched Pipes which can realize to reduce the moisture from 60%-10%.

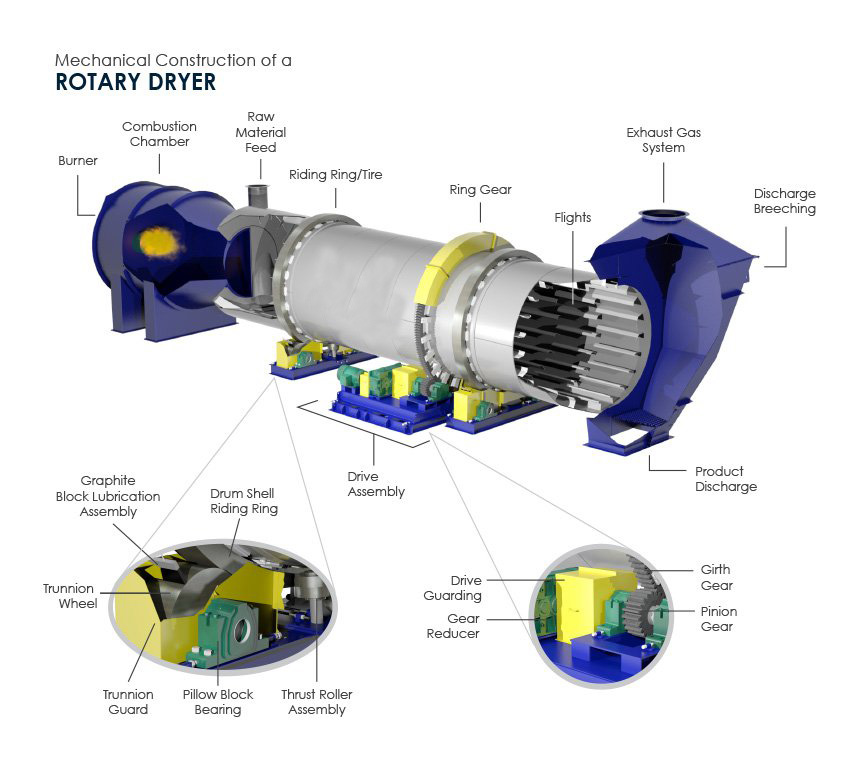

Sale Promotion Sawdust Rotary Drum Dryer with CE is a type of industrial dryer employed to reduce or minimize the liquid moisture content of the material. The dryer is made up of a large, rotating cylindrical tube, usually supported by steel beams. The dryer slopes slightly so that the discharge end is lower than the material feed end in order to convey the material through the dryer under gravity. Material to be dried enters the dryer, and as the dryer rotates, the material is lifted up by a series of internal fins lining the inner wall of the dryer. When the material gets high enough to roll back off the fins, it falls back down to the bottom of the dryer, passing through the hot air as it falls.

This air can either be moving toward the discharge end from the feed end (known as co-current flow), or toward the feed end from the discharge end (known as counter-current flow). The hot air can be made up of a mixture of air and combustion heat energy from a burner, in which case the dryer is called a direct heated dryer.

Alternatively, the hot air may consist of air or another (sometimes inert) heat energy that is preheated. When the air is preheated by some means where burner combustion heat air does not enter the dryer, the dryer known as an indirect-heated type. Often, indirect heated dryers are used when product contamination is a concern. In some cases, a combination of direct-indirect heated rotary dryers is also available to improve the overall efficiency.

Customer is God.

Your satisfaction is our unremitting pursue.

- If you are interested on our products, we will supply you with the detailed technical information;

- If you need our engineer to have on-the-spot investigation, we can make the accurate project report;

- Before you place the order to us, we will perfect the legal provisions to guarantee the buyer's benifts on machine quality and delivery time;

- During the manufacturing, we will keep the buyer informed on each step, and seriously treat the feedbacks from the buyer;

- Before deliverying the machine, we welcome the buyer to have the inspection and watch the trial running on main machine;

- Making the good package to guarantee the machine well and delivering the machine on time;

- Sending the engineer overseas to have the installation, commission and trainning;

- During the quality assurance period, we supply with free service for all our quality problem;

- Over the quality assurance period, we will give the best solution on each technical problem in time;

- For the operator's mistake to damage the machine, the buyer affords the cost and we will send our technician to solve the problem.

- Established in 1997, exported the first set of Wood Pellet Machine to Korea in 2000; 16 years experience   in the biomass pelletizing field.

- Adwarded High-Tech Enterprise of Shandong Province.

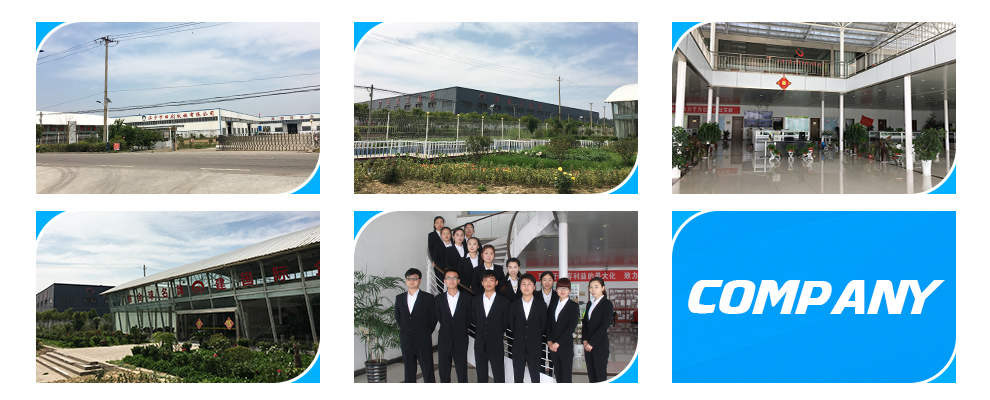

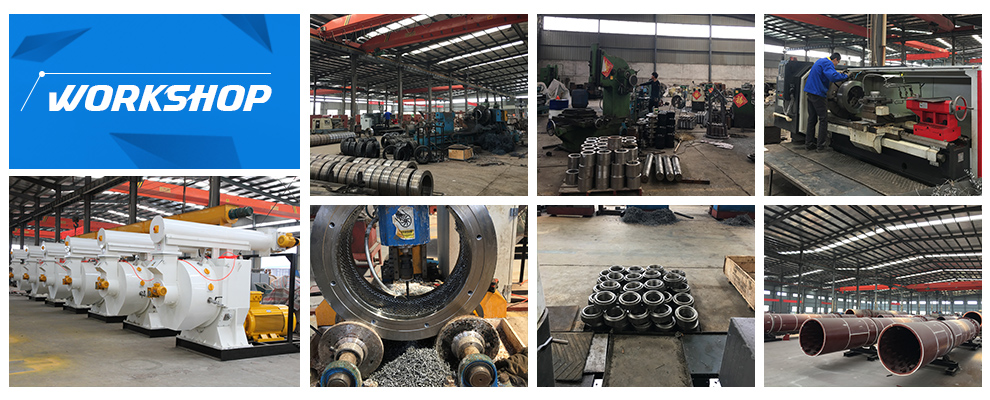

-Covering > 170,000 square meters (260 acres), and has 97,000 square meters modern production      workshop.

- Hold over 25 national unique patents

- Certificated by CE, ISO9001, SGS

- 60% market share in the domestics; exported over 50 countries.

- Specialized in the turn-key project in the biomass pelletizing field from Debarking - Chipping - Crushing - Drying - Pelletizing - Cooling and Sieve - Packing - Dedusting - Heating Supplying.
