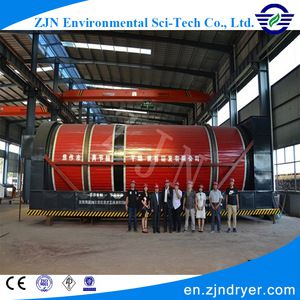

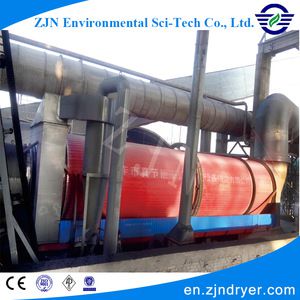

Large capacity drum roller dryer for wastewater sludge dewatering

Generally specking, our drying equipment consists of three main parts:Heat Sources, Drying Unit, Exhaust and Dust Treatment.

Technical Feature

  • New
  • Drum Drying Equipment
  • Henan, China (Mainland)
  • ZJN
  • Z2000
  • 380V
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$100~300

PRIMARY PARAMETERS

Condition
New
Type
Drum Drying Equipment
Place of Origin
Henan, China (Mainland)
Brand Name
ZJN
Model Number
Z2000
Voltage
380V
Power(W)
30KW
Dimension(L*W*H)
12m*dia 3.8m
Weight
6000KG
Certification
ISO9001
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Name
sludge drying equipment
Application
Sludge Treatment
Product name
sludge drying equipment
Material
Stainless Steel
Heating source
nature gas
Color
red
Capacity
1000kg/h
Usage
Reduce Material's Moisture
Raw material
wet materials
Installation
Engineer Guide

DETAIL DESCRIPTION

Product Description

Overview

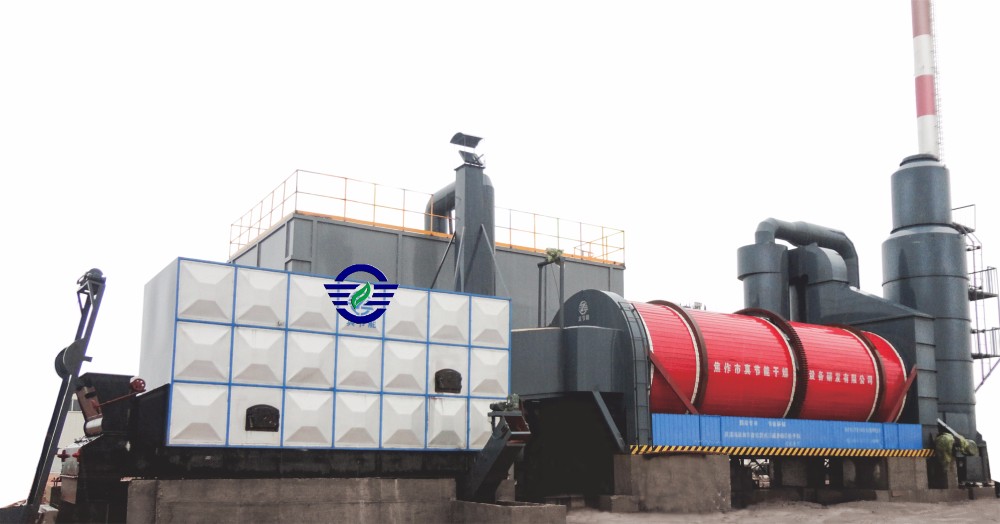

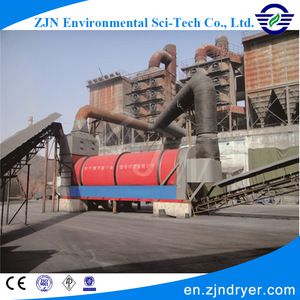

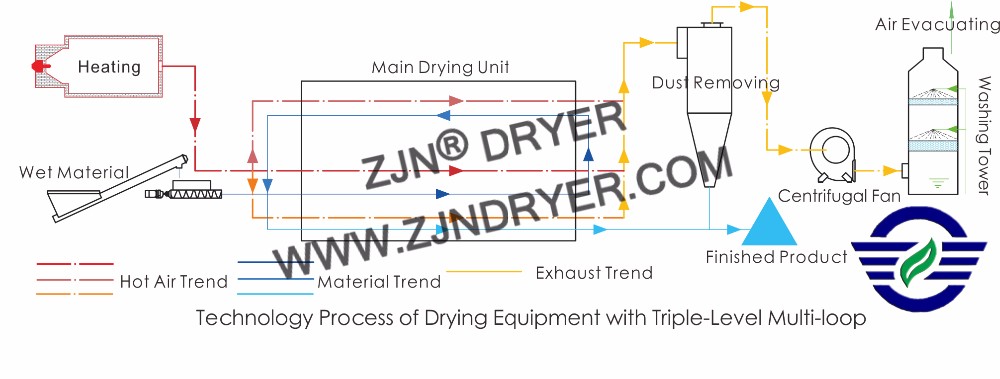

Generally specking, our drying equipment consists of three main parts:Heat Sources, Drying Unit, Exhaust and Dust Treatment.

1.Heat Sources: Coal, Nature Gas, Marsh Gas, Oil, Biograss and so on...

2.Drying Unit: Which is a Rotary Drum Dryer, consists of three drums with different diamter, take less space to get better drying effect.

3.Exhaust and Dust Treatment: Exhaust control device can ensure the exhaust up to the standard of emission.

Our Technology

The “Rotary Harrow Rolling Triple Stage & Multi-loop” drying is divided into 3 stages. Every stage has different design technique, thus adjusting to the changes of material moisture content. The whole process is an integrated linkage control system. The technology is advanced and mature so as to be stable and reliable for long-term operation.

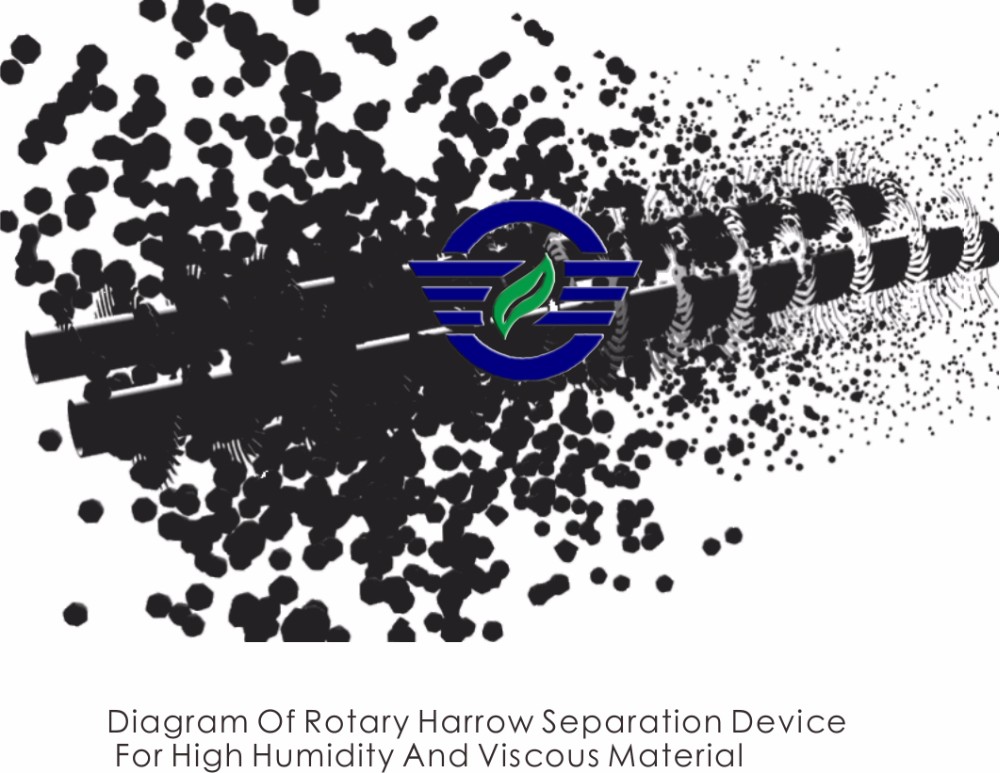

Putting the hot air and material into the first stage of drying equipment. There is a “Rotary Hollow Rolling Broken Device” in this stage, which breaks the material into scattered and “boiling suspended” state. With the hot air, the material will be keeping rolling, rotation and separation, and its surface will be dry, which can effectively prevent particles from clustering again. Thus the important transformation “high humid —→ not humid, high sticky —→ not sticky, high viscous to not viscous” is completed. With the function of Material Raising System, the material will be continuously threw and raised. The entire drying room will be filled by a complete material “curtain”, which can make the material abundantly and evenly contact with hot air, thus increasing the heat utilization and evaporation intensity.

Drying Technical Features

1. Automatic forward and reverse reciprocating technology for “Triple Stage Drying Core” rotary harrow is a particular patent technology.

2. “Three Cylinder Grading Exhaust Process”, the water vapor produced during drying process can be discharged in time just to avoid the re-adsorption.

3. The use of Triple “W & S” Material Movement technology, sludge undergo a long distance in the drying equipment, thus it can contact with the hot air adequately, thereby the hot utilization rate will be high.

4. The use of “Mechanical Material Feeding Technology” , sludge in the Material Feeding System can go forward and backward automatically.

5. The use “Triple Stage & Multi-loop Patent Technology”, which pack three cylinders with different diameters together, so that sludge can spread thinly with big evaporation area, in order to dry fast.

6. Particular “Hot Air Distribution System”, can adjust the hot air volume into the triple stage dryer.

7. The use of “Automatic Material Feeding Control Configuration”. To control the feeding amount on basis of the sludge moisture.

8. “Speed Adjustment and Control Device” for main dryer, which is a device for adjusting the finished material moisture on basis of the requirement in order to meet drying demands.

9. The use of “DC Vortex plus AC Reciprocation” patent technology. Sludge go back two steps after taking three steps in the dryer. And the dry ones move fast, the wet ones slow. The day material will discharge automatically once the material meet the drying request.

10. The use of “Low Temperature but Large Air Volume” drying technology. In the role of low temperature, sludge can make full use of large volume air for drying so as to meet the requirement of drying.

11. The use of “Automatic Reciprocating Material Technology”. It can make the sludge mixed and tumble, then fully separated into bulk and linkage integrated production.

12. The use of “Forward and Reverse Feeding and Raising System”. Sludge can move in multiple directions in the cylinder, cover the entire dryer and form a material curtain. sludge can go everywhere in the dryer and contact with hot air adequately.

13. The unique “Horizontal Installation” can protect the cylinder from up and down.

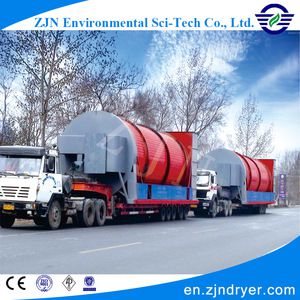

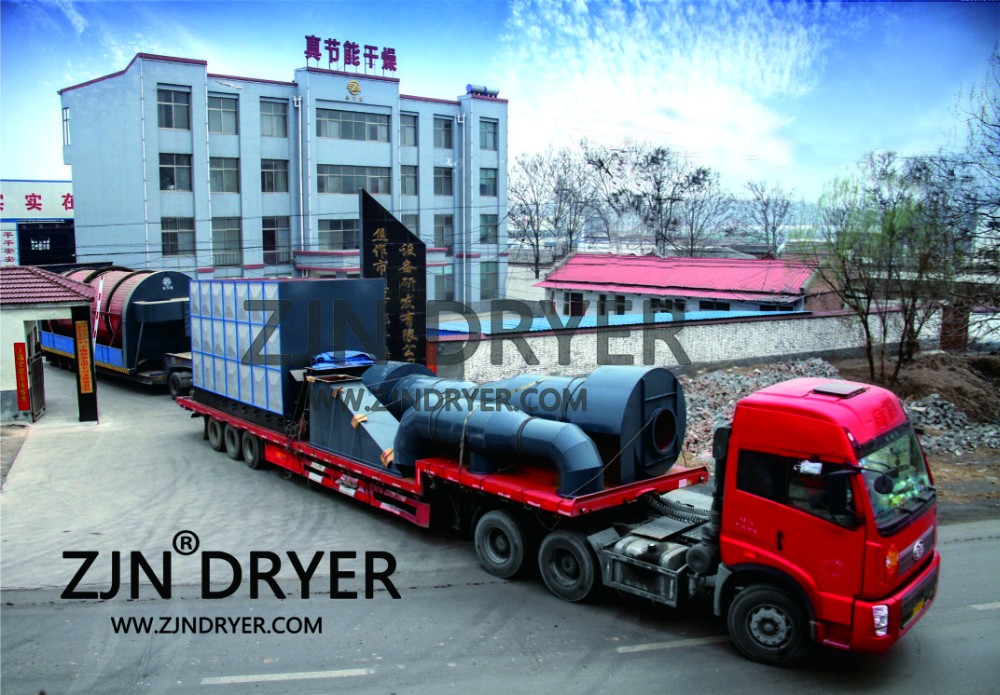

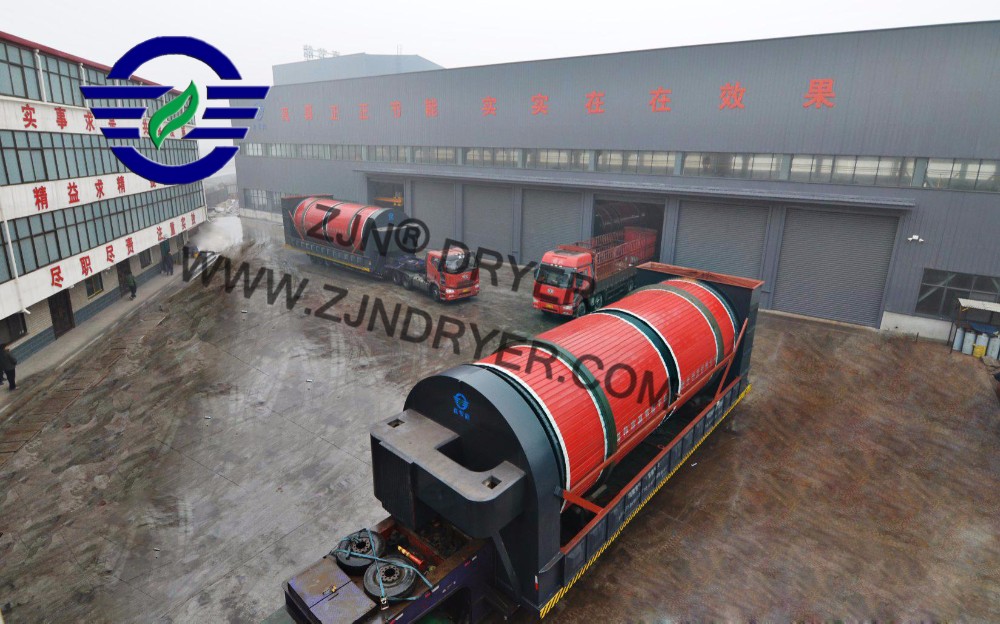

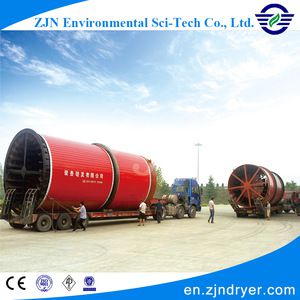

Packing & Delivery

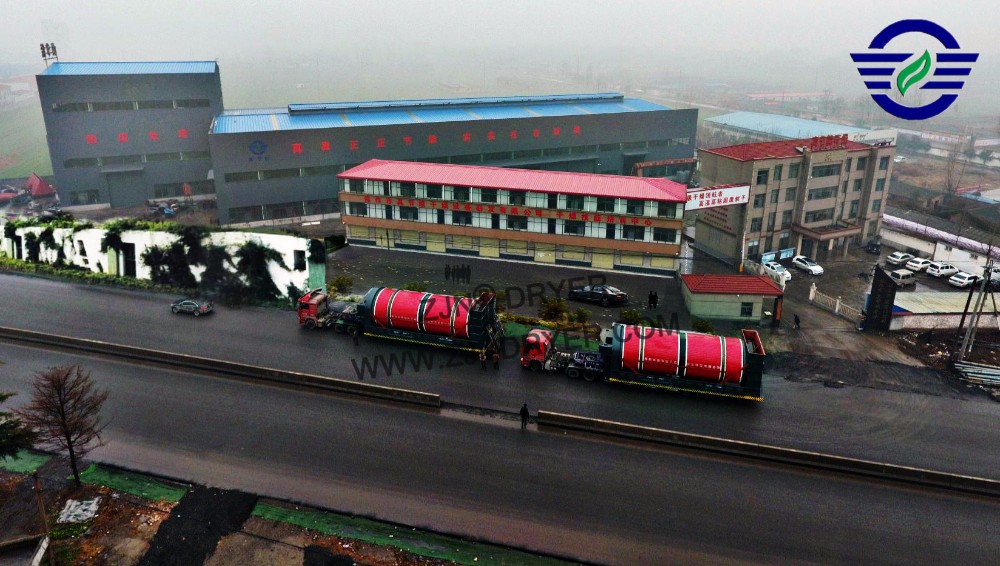

Our Company

Brief Introduction


Henan ZJN Environmental Sci-Tech Co.,Ltd(Jiaozuo ZJN Drying Equipment R&D Co,.Ltd) established in 1991, an innovative enterprise who has been specialized in the technology researching, equipment manufacturing and project engineering of drying high humid and viscous materials. We've become a leading manufacturer of drying equipment with rich experience and good reputation.

Company Honor



Patent Technology & Certificates

Our Service

1.Pre-sale services:We can provide you with project design, process design, suitable purchase program for your equipment. Also design and manufacture products based on your specific needs, to train your technical personnel.


2.Sale: We will accompany you to complete the equipment inspection, construction plan and assist in the development process in detail.


3.After Sale Service: We send technicians to the scene to guide the equipment installation, commissioning and training your operating personnel.


4.Warranty period 12 Months, in addition to the force majeure and man-made factors, the damage caused by design, process and manufacturing equipment, the seller is responsible for sending people to offer free repair.

Contact Us
FAQ

1.Q: What about your International Market?
A: We have established overseas projects in 28 countries and regions. And we need your support to
introduce our high quality product and service to your honored company and country.

2.Q: How about the quality of your products?
A: Our products are manufactured strictly according to national and international standard. We check every part of machine carefully before delivery. In addition, our company has passed the ISO9001:2008 international quality management system certification.

3.Q: Why Choose your factory?
A: We have the best quality products with over 100 items patent; we have a professional installation and after-sales staffs; we are china leadling manufacturer with high production capacity; we have a professional sales and service team.

4.Q: What is your MOQ?
A: MOQ is 1set machine,anyway,special discount will be give on large scale.

6.Q: What is your payment terms?
A: You can pay by T/T,L/C or other ways.
